Application:

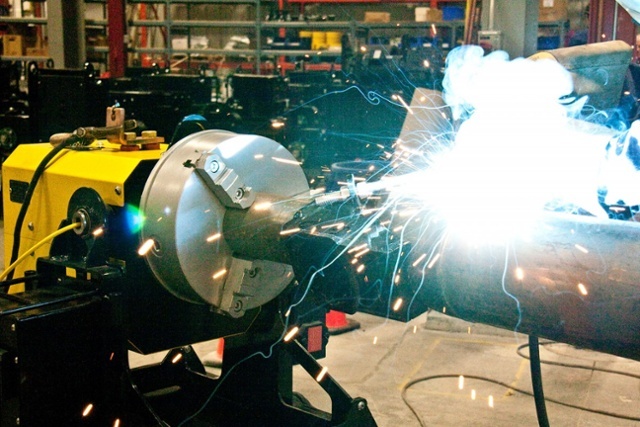

A US State gas company designed a custom mount to attach to a trailer hitch on their work truck. They do field repairs and installs of gas valves and the equipment runs off a small generator. They purchased a 12" Benchtop Welding Positioner from us and we're proud to share their before and after results below:

Key Workpiece:

They did testing on their most common workpiece: 8” OD ½” wall pipe. Welding elbows and valves.

Weld Process:

Stick. Generally 8 full passes per weld.

Old process time:

Average of 160 minutes per completion with handling/prep/etc.

12P/Elbow Jig time:

Average of 100 minutes per completion with handling/prep/etc.

Click here for information on the elbow jigs we manufacture.

Reduction In Time:

~38% labour savings per weld.

Average Job:

180 to 200 welds.

Average Hours Saved:

180 to 200 hours.

$125/hr field welder:

$22,500 to $25,000 per job savings.

Interested to see the ROI?
