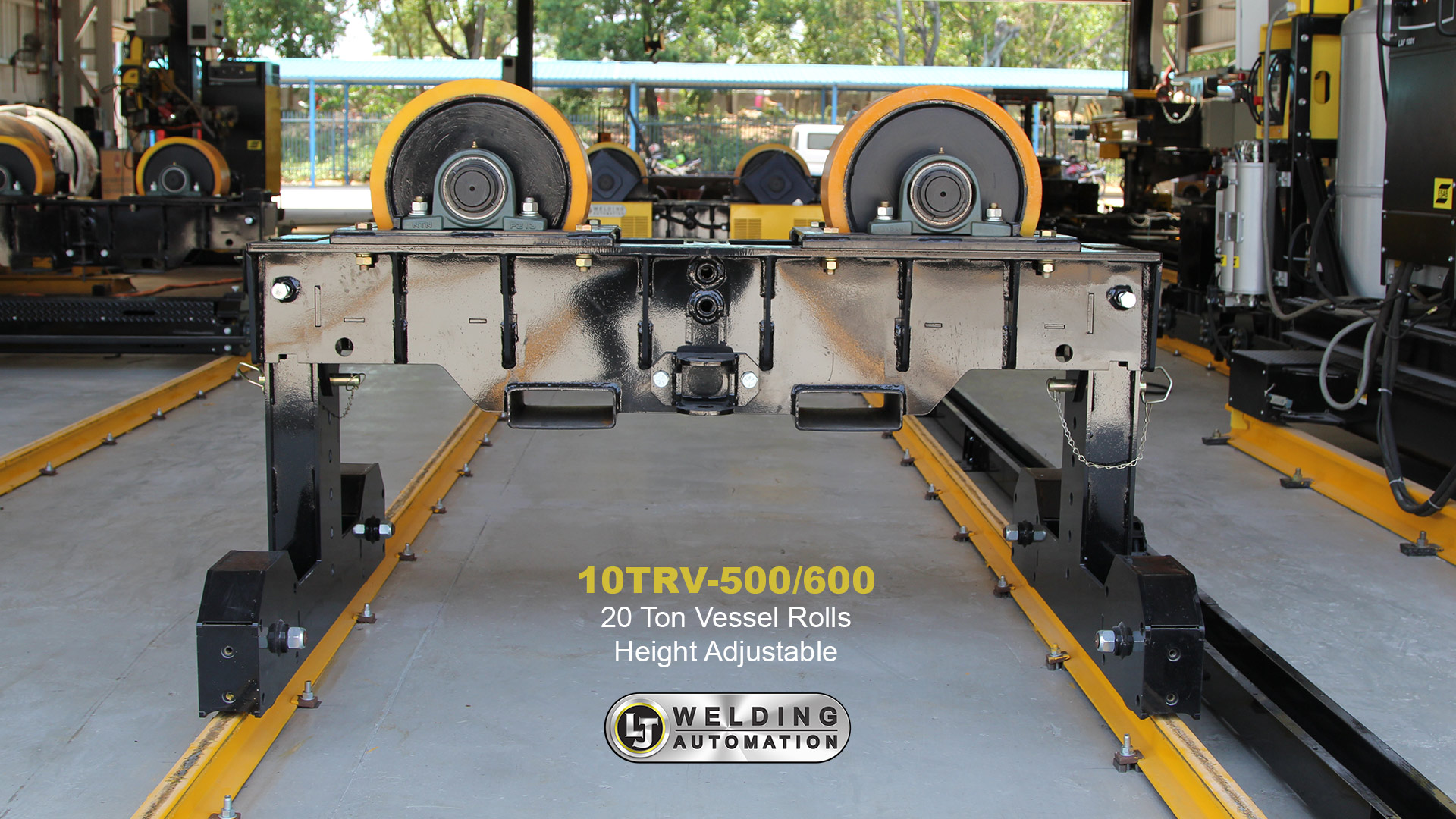

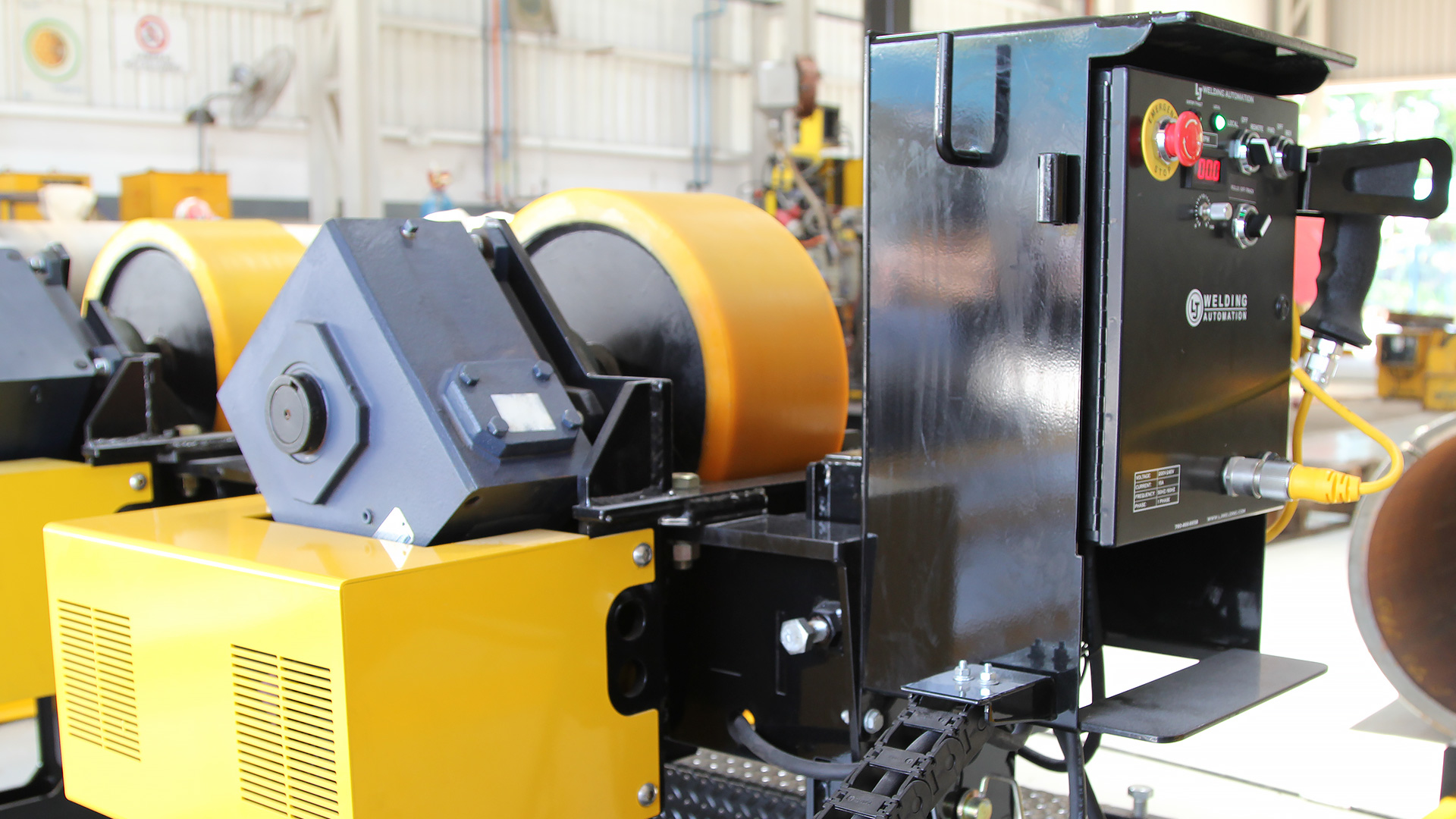

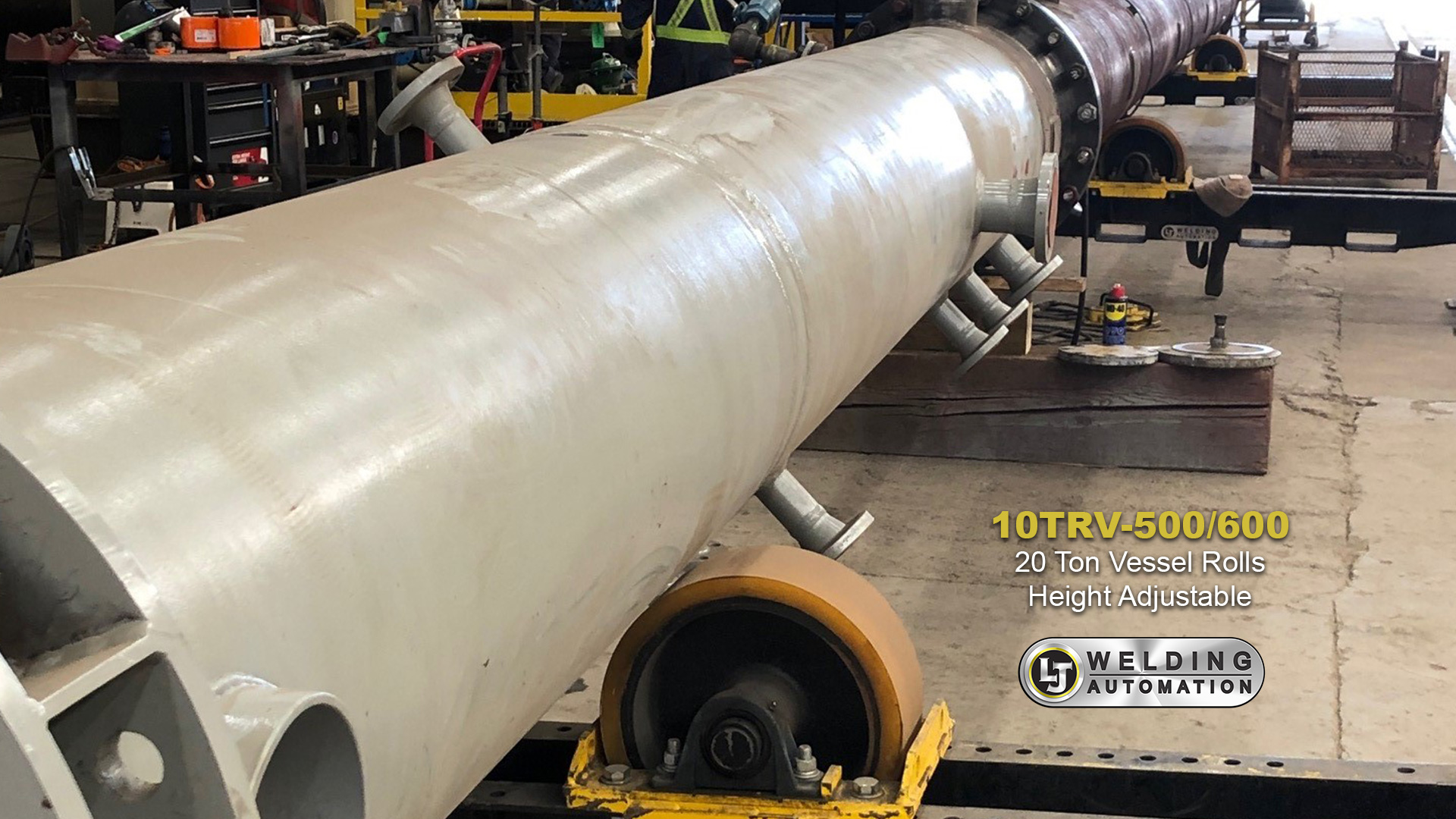

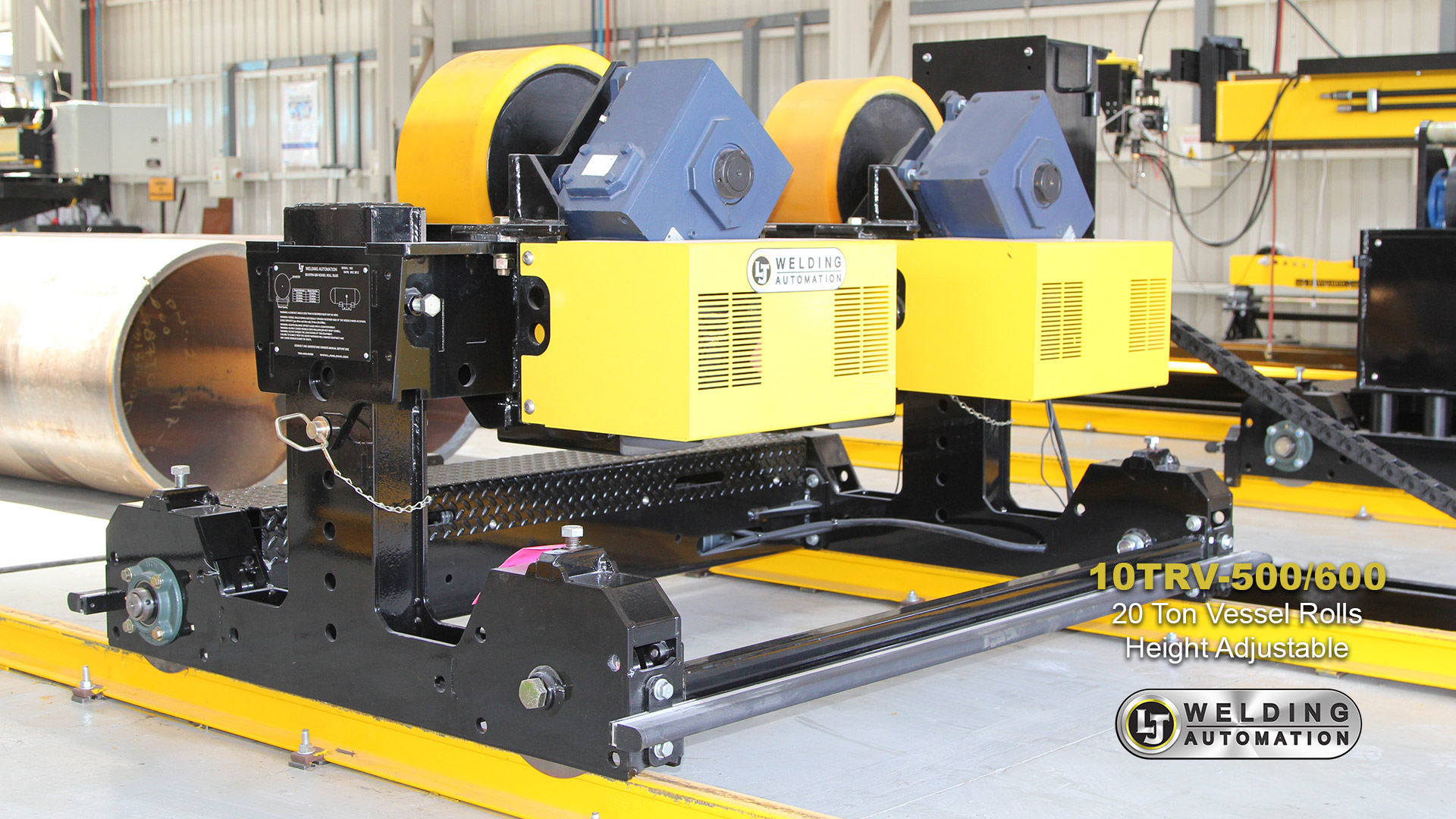

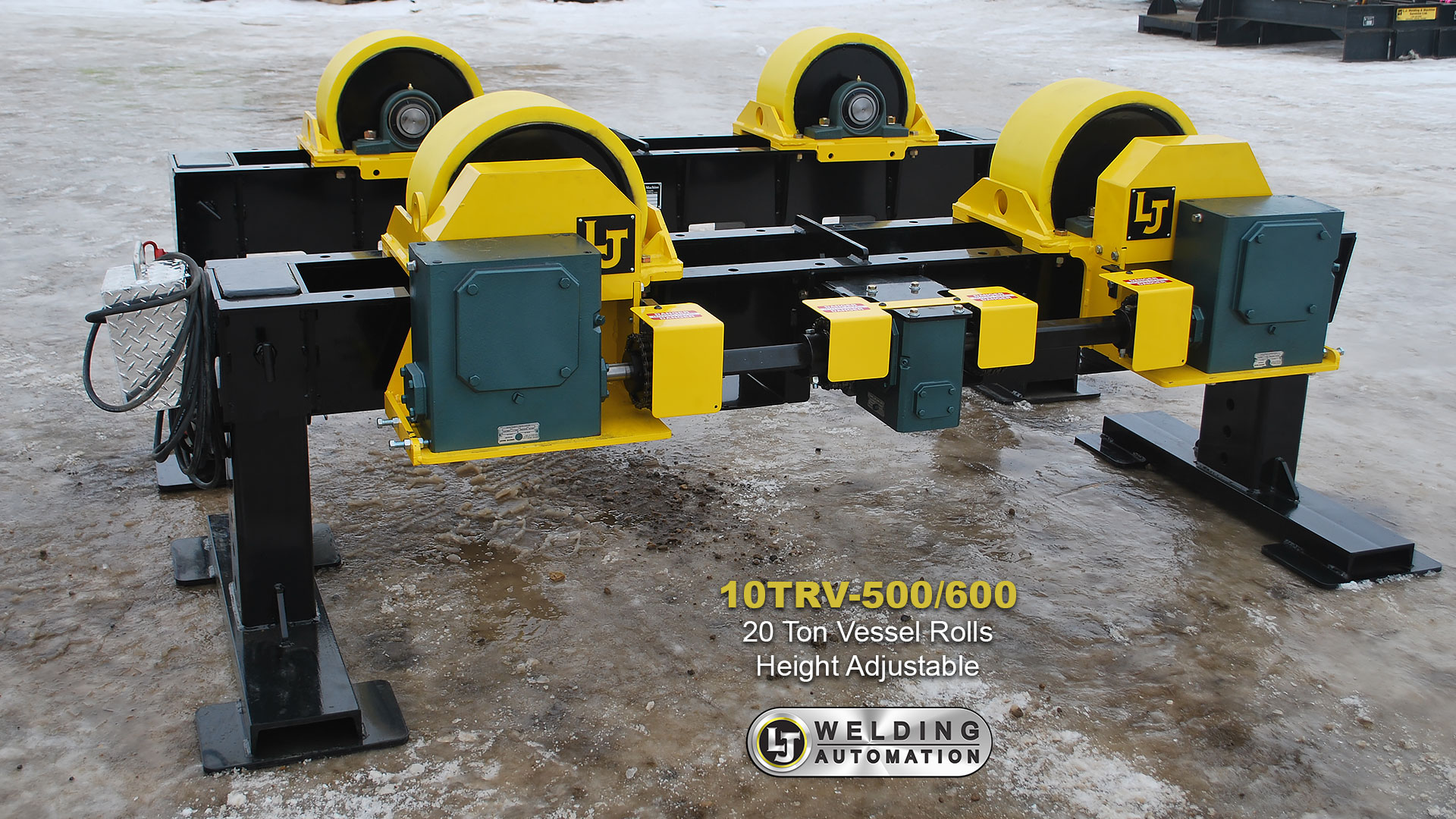

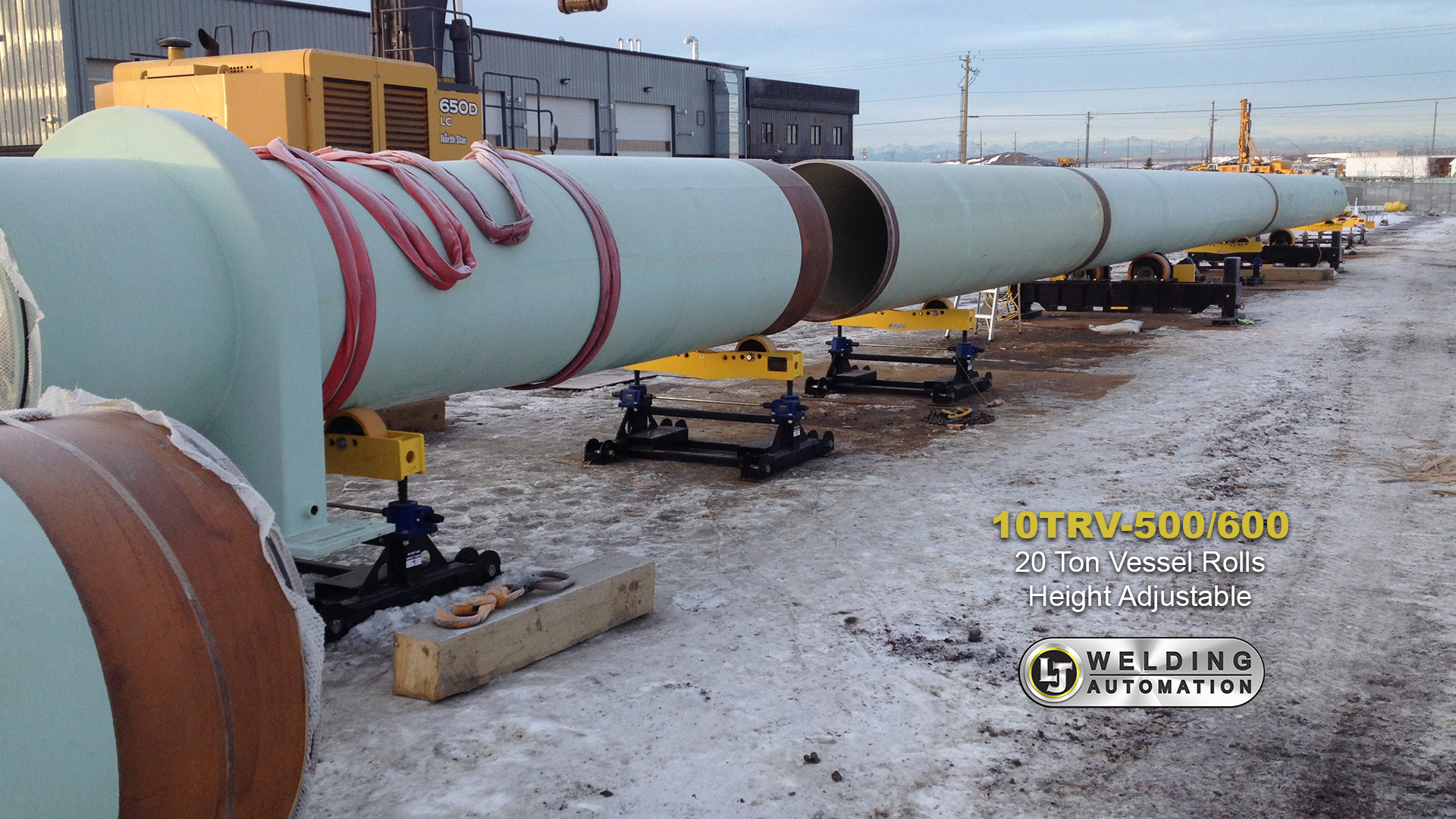

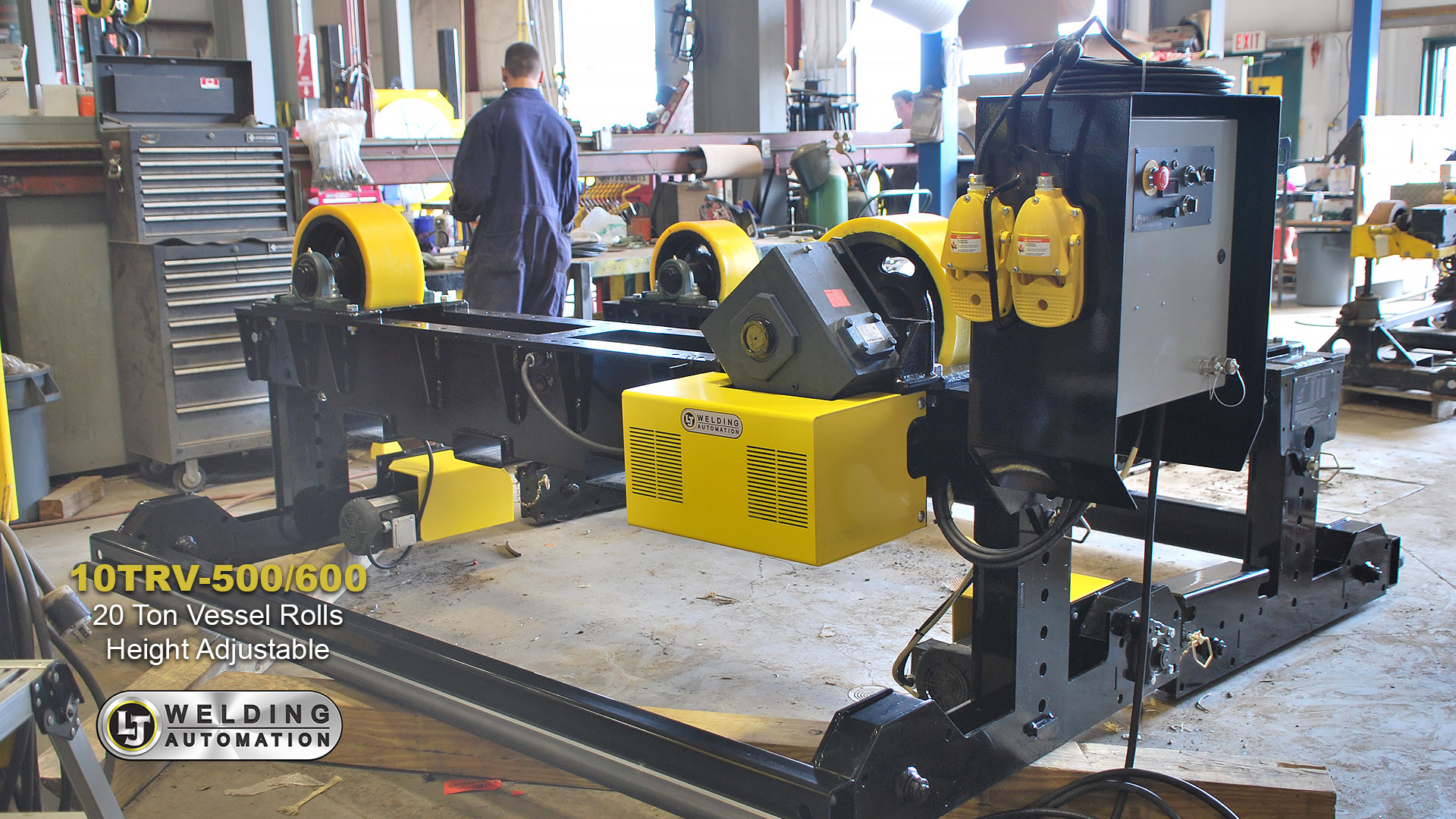

20 TON VESSEL ROLLS / HEIGHT ADJUSTABLE:
10TRV-500/600

KEY SPECIFICATIONS

Loading Capacity

Driver: 20,000 lbs (10-ton);

Idler: 20,000 lbs (10-ton)

Footprint

Driver: 44" x 123-7/16" x 33";

Idler: 44" x 112-5/8" x 33"

Diameter Range

12” - 168”

Tractive Effort

6,000 lbs (Dual drive)

Turning Torque

50,000 in-lbs (Dual drive)

Turning Speed

5–50 in/min

Height Range

27" - 45" (top of wheel),

Adjustable in 3" increments

Power Requirements

240V, 3-ph or 480V, 3-ph

Weight

Driver: 2,134 lbs

Idler: 1,330 lbs



Key Benefits

7

Forklift Pockets

LJ - ICONS-GRAPH1

Increased Production with Reduced Labour Skill

LJ - ICONS-THUMBSUP-2

Lower Work Fatigue

LJ - ICONS-ROBOT1-2

Maximized the Quality of Welds

5-1

Synchronized Rotation

4-1

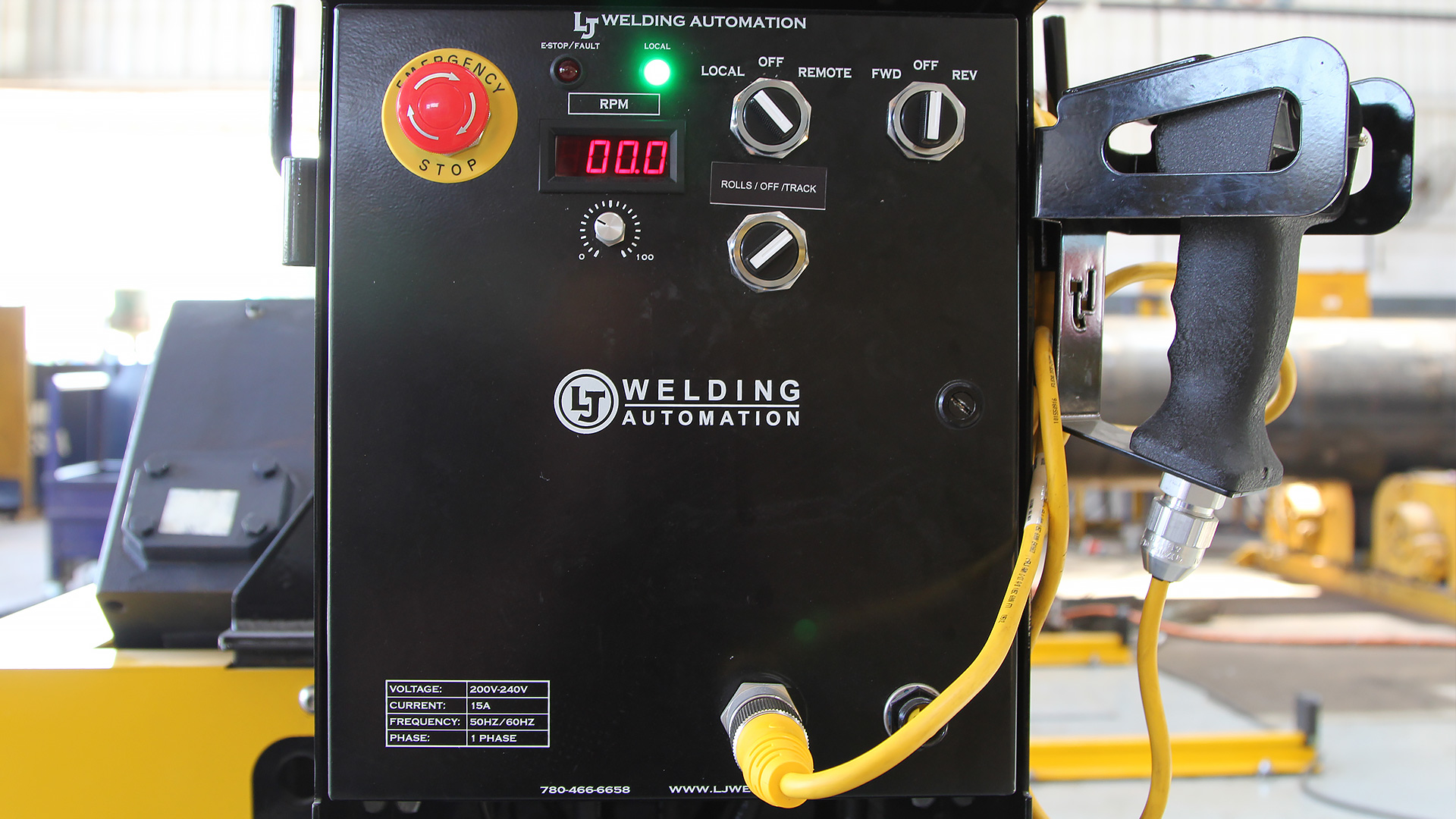

Upgradable Controls & Custom Height Options
