BENCH TOP WELDING POSITIONERS

All LJ Welding's bench top positioners are built with powered variable-speed rotation in either direction and controlled by a variety of remote foot switch options.

	Comfortable Welding: Our bench top positioners allow the operator to make down-hand welds for fast, smooth welding as well as to deposit more metal with fewer passes.
	Increased Productivity: Our versatile thru-bore portable weld positioner are built to enhance productivity in lighter duty fabrication tasks in your welding shop
	Versatility: LJ’s bench top positioners come in useful for grinding, chipping or other welding applications that depend upon circular movements
	Safety: The equipment has been built with consideration of the end user’s safety, comfort and convenience in mind.

BENCH TOP WELDING POSITIONERS SELECTION

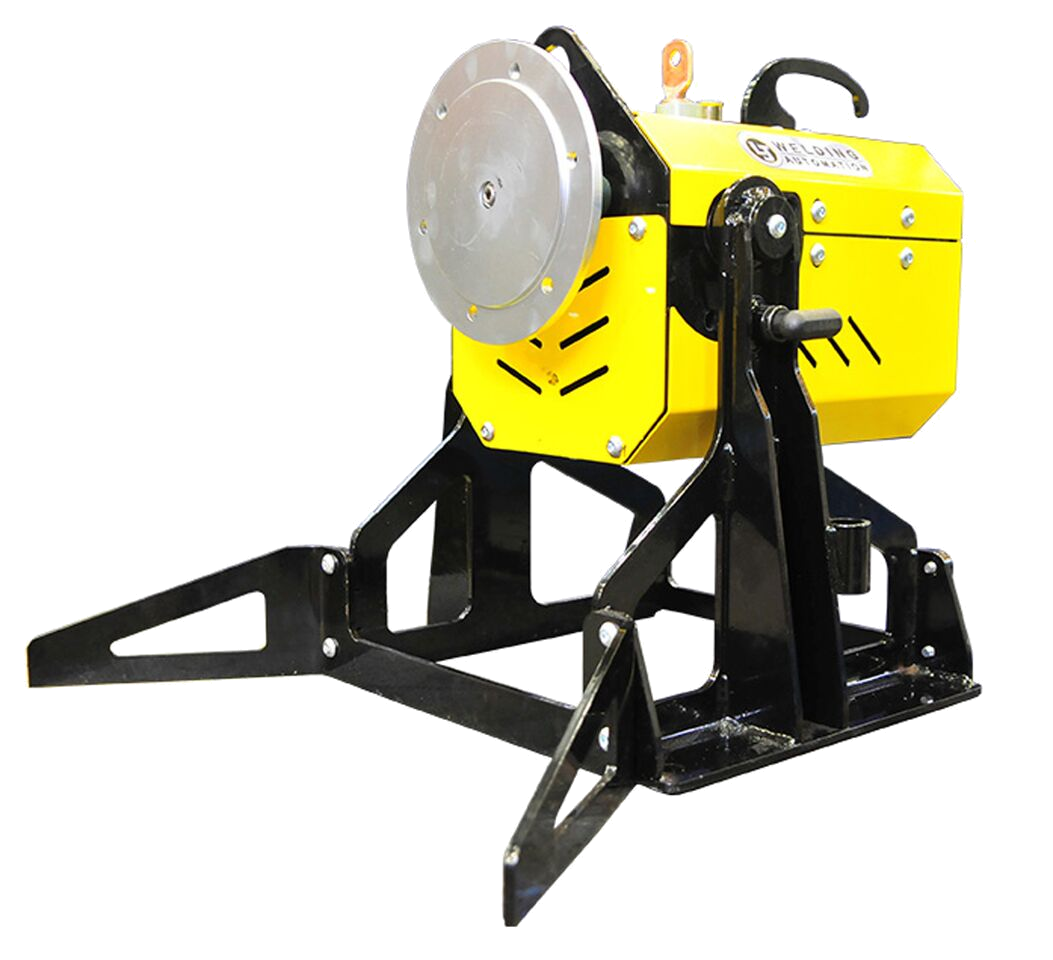

Positioner Specifications	300 lb Portable Bench Top Positioner: 08P-200	1,000 lb Portable Bench Top Positioner: 12P-900	1,000 lbs Thru-Bore Portable Bench Top Positioner: 12P-800
Loading Capacity	300 lbs (at mounting plate)	1,000 lbs (at mounting plate)	1,000 lbs (at mounting plate)
Footprint	26-½” x 23-15/16” x 20-⅝”	26-9/16” x 27-½” x 25-¼”	26-9/16” x 27-½” x 25-¼”
Tilting Range	-15° – 105° (vertical mounting plate datum), Adjustable in 15° increments	-5° – 100°	-5° – 100°
Tilting Torque	750 in-lbs	3,000 in-lbs	3,000 in-lbs
Turning Speed	0.7 – 7 RPM	0.5 – 5 RPM	0.45 – 4.5 RPM
Mounting Plate Diameter	8-½” (custom options available upon request)	12-¾” (optional: 12” chuck/welding gripper)	12-¾” (optional: 12” chuck/welding gripper)
Power Requirements	120V, 3A, 1-ph, 60Hz	120V, 9A, 1-ph, 60Hz	120V, 9A, 1-ph, 60Hz
Ground Capacity	200 Amps	800 Amps	200 Amps
Weight	110 lbs	280 lbs	300lbs (without a 3 jaw chuck)
Thru-Bore	3/8" hollow spindle (air purge fitting)	3/4" hollow spindle (air purge fitting)	3" hollow thru-bore
