KEY SPECIFICATIONS
Loading Capacity |
2,000 lbs (1-ton) |
Footprint | 16-¾” x 26-¾” x 9-9/16” |
Diameter Range | 2" – 24" |
Rolling Surface | Conical style 7-½” OD Urethane roller (x2) |
Weight | 90 lbs |
Loading Capacity |
2,000 lbs (1-ton) |
Footprint | 16-¾” x 26-¾” x 9-9/16” |
Diameter Range | 2" – 24" |
Rolling Surface | Conical style 7-½” OD Urethane roller (x2) |
Weight | 90 lbs |

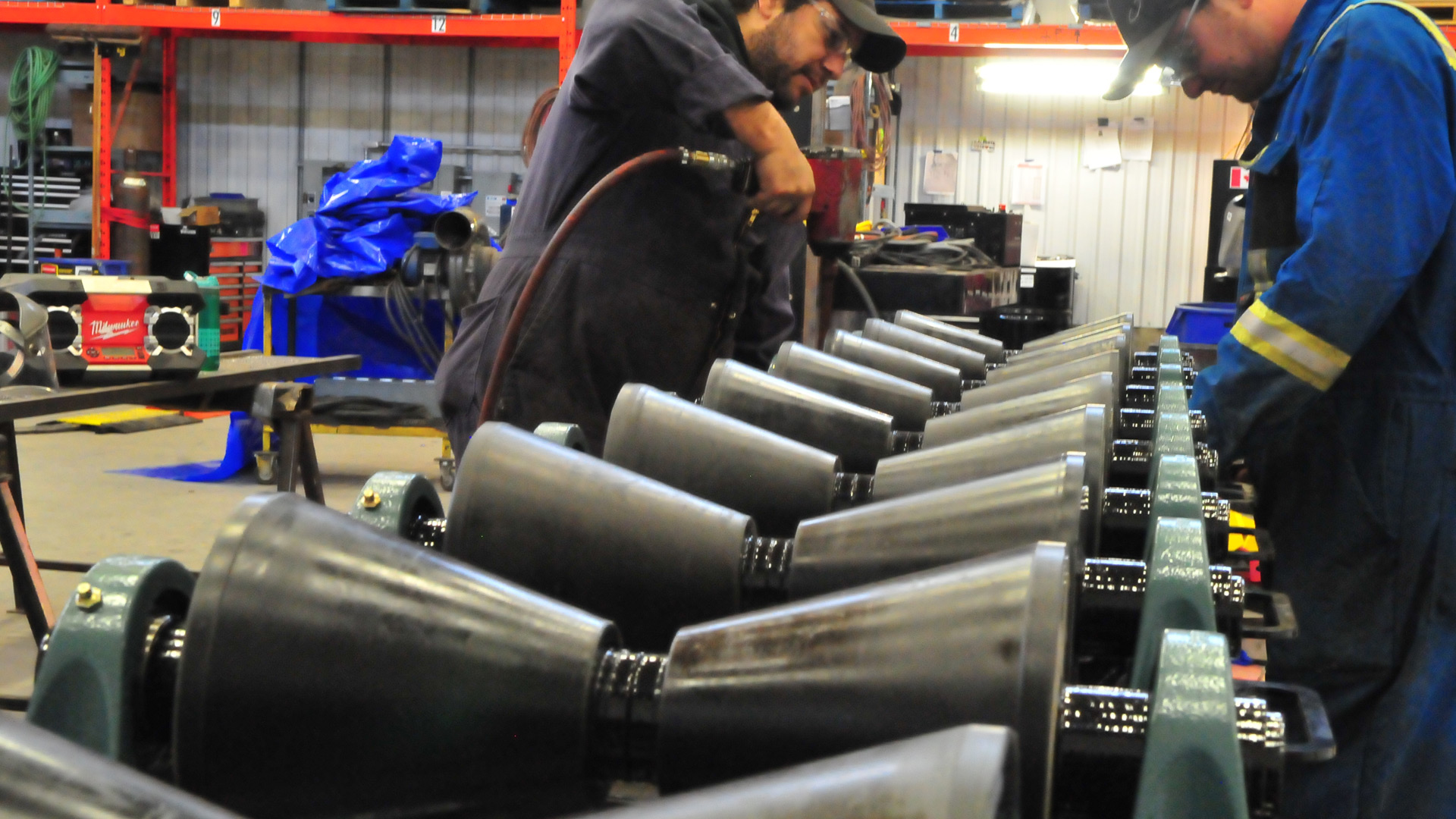

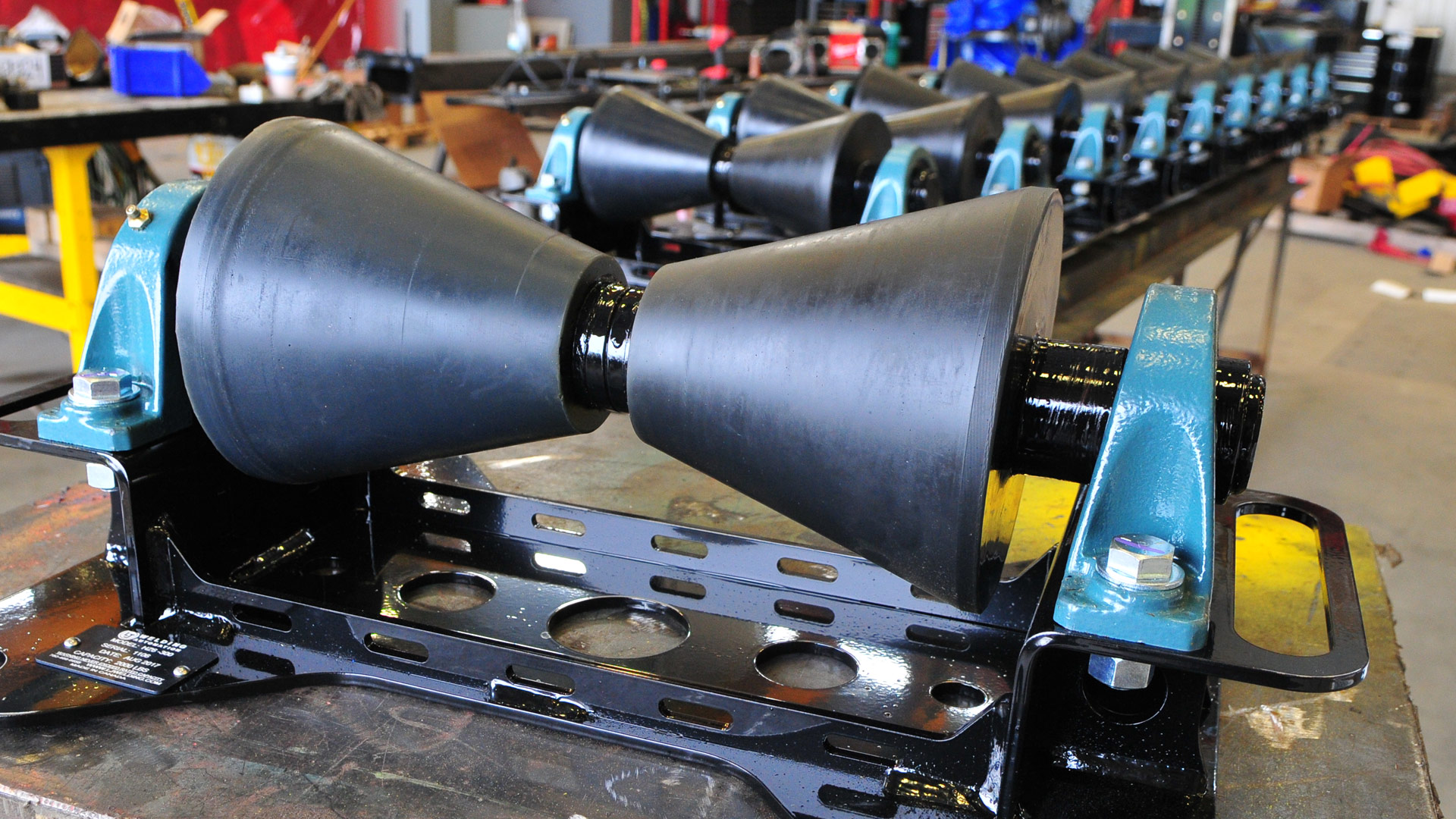

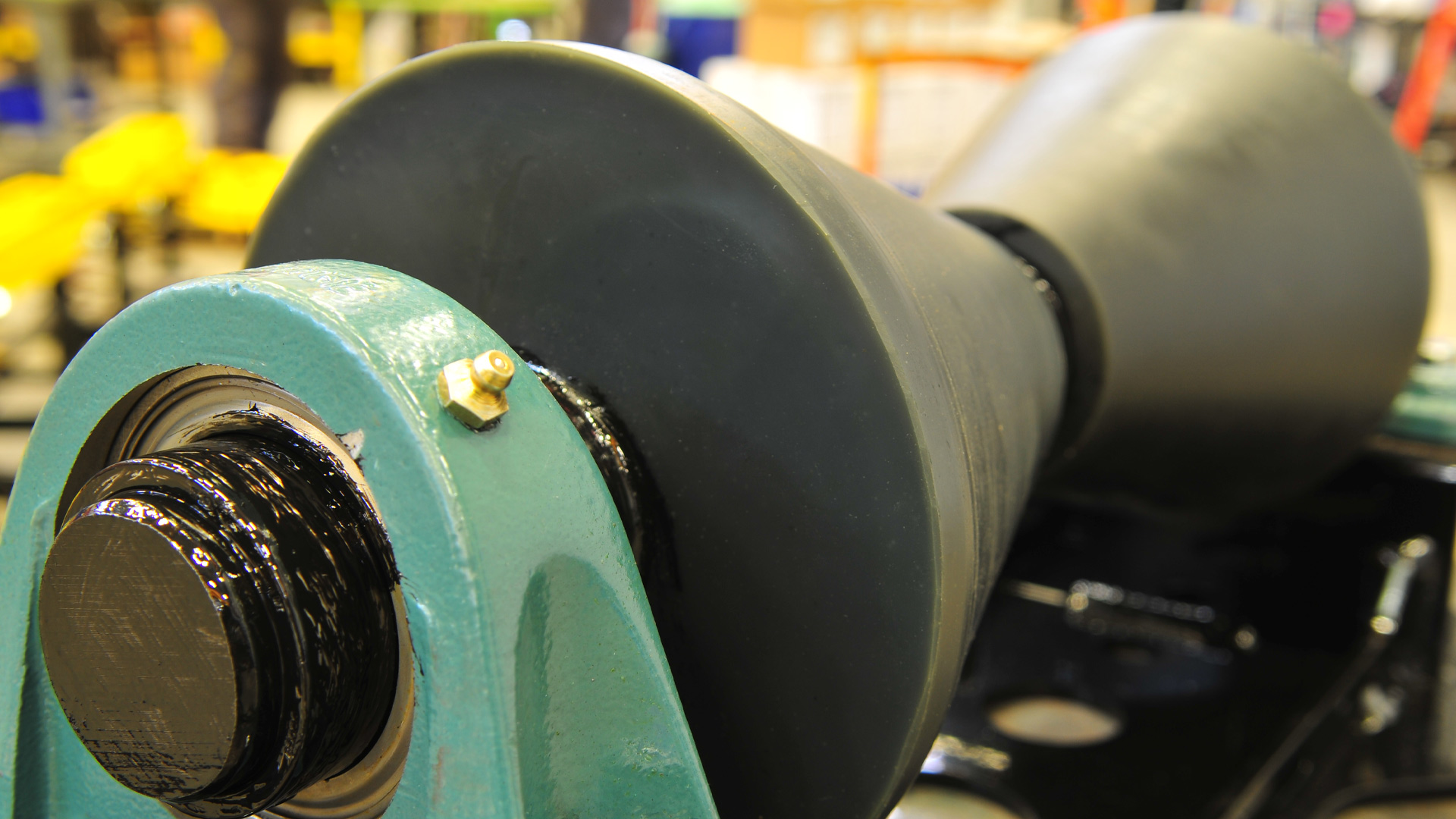

Pipeline rollers help support and guide a pipeline section during river and road crossings installation. Designed to keep pipe above ground, safe from dirt and other contaminates, they protect the pipe exterior, minimize drag force as it is pulled through horizontal drill holes, and support pipes that carry petroleum products, crude oil, and natural gas to destinations around the world. Durable and lightweight, the HZ6-300 has a load capacity of 1 ton and a diameter of 2 – 24 inches. Designed to accurately center pipe as it moves along the feeder cradle, the HZ6-300 is equipped with conical heavy-duty urethane rollers that allow smooth pipe rotation and protect the pipe from damage.
In addition, its modular design enables curved pulls and can be easily lifted with chains, straps, or forks. As a result, the HZ6-300 minimizes material handling and reduces operator fatigue, optimizing job site safety and productivity. We offer a range of customization options and accessories that help expand our equipment's functionality, efficiency and productivity, including forklift pockets and lifts hooks.
We, at LJ Welding, try to bring you the best products that satisfy your demands.
If you are looking for a similar product with different specs, have a look at our:
LJ Welding's engineering department provides a progressive approach to solving the
unique problems that inevitably arise in our industry, resulting in efficient design,
fabrication, and timely delivery of custom equipment.
Found the right pipeline rollers?
Looking to buy, rent or lease pipeline rollers?
Fill in our express quote request today:
*Product specifications and accessories
may be changed at any time. Please consult
with your LJ Welding representative at any
time to confirm the actual specifications of
LJ products.
