TURNING ROLLS: HEIGHT ADJUSTABLE & BENCHTOP PIPE ROLLS

LJ Height Adjustable & Benchtop Pipe Rolls are used for pipe welding applications ranging from light tubes to extra-heavy walled pipe.

	Worker Ergonomics: Our Height Adjustable & Benchtop Pipe Rolls provide a comfortable environment for welders working at shop benches, a minimal shell/job handling and quick change-overs between different sized workpieces
	Durability: The extremely heavy-duty design allows you to work with a wide range of workpieces like API pipes, mounted vessels, boilers or barrels, and ensures durability over years of use
	Increased Productivity: Using our Height Adjustable & Benchtop Pipe Rolls enables you to perform smoother welds with decreased human interference resulting in cleaner welds and increased productivity
	Low Profile: Accommodate for pipe welding applications ranging from light tubes to extra-heavy walled pipe with the ability to adjust the height of the equipment
	Crane Dependency: Welding at suitable positions with a precise angle and accurate positioning resulting in shorter idle time, reduced need for skilled labour and a decreased usage of lifting or cranes

WHAT ARE HEIGHT ADJUSTABLE & BENCHTOP PIPE ROLLS?

LJ’s Height Adjustable Benchtop & Pipe Rolls are lightweight and portable pipe welding rolls designed for welding applications that require precise and quick pipe positioning. Providing a comfortable environment for welders working at shop benches, our height adjustable benchtop & pipe Rolls also allow for quick change-overs between different sized workpieces with minimal shell/job handling.

Lightweight, easily portable and customizable...

The evenely distributed loading capacity, ranging from 1,500 lbs (0.75 tons) up to 8,000 lbs (4 tons), makes these welding pipe rolls an ideal choice for both small and large welding applications. Moreover, the extremely heavy-duty design of these rolls enables fabricators to work with a wide range of workpieces, including API pipes, mounted vessels, boilers or barrels. Additionally, our height adjustable pipe rolls provide support for smoother welds with decreased human error and increased productivity.

These lightweight and portable pipe rolls give operators total control thanks to variable speed controls, allowing them to change speeds as well as forward and reverse speeds with ease. The welding pipe rolls also come equipped with drive shaft-free dual drives, enabling for maximum traction.

Lastly, our benchtop pipe rolls also feature a wide range of customization options. From custom controls, equipment mounting, head mounting to custom height range and gearbox capabilities, our pipe welding rollers can all be customized to meet client’s requirements.

Interested in our Height Adjustable & Benchtop Pipe Rolls? Contact Us Today!

LJ'S HEIGHT ADJUST & BENCHTOP PIPE ROLLS SELECTION

SHD-700/750 Pin Height Adjust Pipe Rolls

SHD-800/850 Geared Height Adjust Pipe Rolls

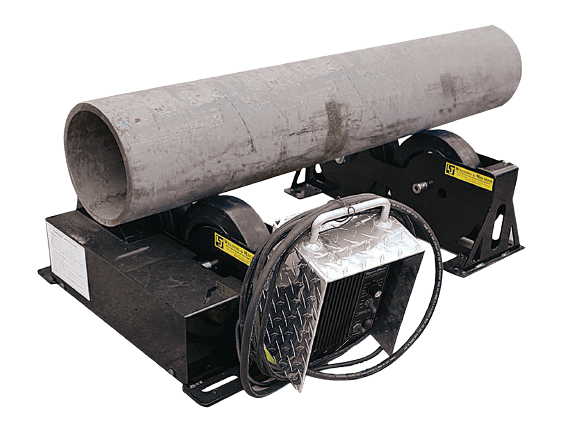

BPR-100/200 Benchtop Pipe Rolls

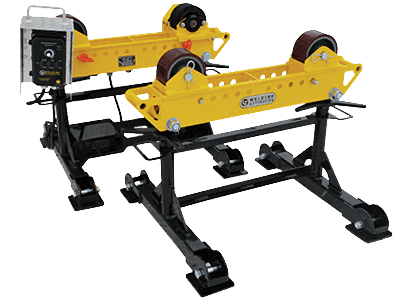

HD2L-100/150 Height adjustable pipe rolls

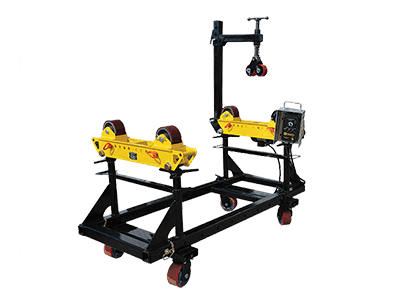

EMCC-300 Height Adjustable Rollers & Cart

FREQUENTLY ASKED QUESTIONS ABOUT WELDING PIPE ROLLS?

Is there a way to set preset heights in the height adjustable & benchtop pipe rolls for quicker adjustment times?

Yes, these models offer the option to set preset heights for quicker adjustment times. This allows users to easily adjust their pipe rollers to different heights without having to manually adjust each one individually. However, for convenience and safety, always double-check all adjustments before beginning any welding operations.

How much time can I expect to save using this equipment compared to manual methods?

Using Height adjustable benchtop and pipe rolls can save a considerable amount of time compared to manual methods thanks to their automated nature. With these machines, you can effortlessly adjust the rollers to different heights with just the push of a button, enabling users to complete welding operations quickly and efficiently without having to manually reposition each roller individually. Additionally, they offer preset height options so that users can select frequently-used settings with just one click, which further increases efficiency and productivity.

What types of materials can be welded using height adjustable & benchtop and pipe rolls?

The Height adjustable benchtop and pipe rolls can be used to weld a variety of materials including metals like aluminum, brass, stainless steel and carbon steel. They are powered by an electric motor that provides smooth operation for accurate welding results regardless of the material being used.

Side-By-Side Height Adjustable Vessel Rotators Comparison

Specifications	8-Ton Pin Height Adjust Pipe Rolls (SHD-700/750)	8-Ton Geared Height Adjust Pipe Rolls (SHD-800/850)	4-Ton Height Adjustable Pipe Rolls (HD2L-100/150)	1.5 Ton Benchtop Pipe Rolls (BPR-200/300)	4 Ton Height Adjustable Roll & Cart (EMCC-300)
Loading Capacity	Driver: 8,000 lbs (4-ton); Idler: 8,000 lbs (4-ton)	Driver: 8,000 lbs (4-ton); Idler: 8,000 lbs (4-ton)	Driver: 4,000 lb (2-ton); Idler: 4,000 lb (2-ton)	Driver: 1,500 lbs (0.75-ton); Idler: 1,500 lbs (0.75-ton)	8,000 lbs (4-ton)
Footprint	Driver: 34" x 55-1/8" x 21-1/2"; Idler: 34" x 56-1/8" x 21-1/2"	Driver: 43-1/8" x 55-3/16" x 29-3/8"; Idler: 43-1/8" x 56-1/8" x 29-3/8"	Driver/Idler: 30-3/8'" x 36-1/4" x 27-5/8"	Driver: 13-1/4" x 25-1/2" x 10-1/2"; Idler: 10" x 24-7/8" x 10-1/2"	116-⅝ x 41" x 103-3/16" (Max, fully extended state)
Diameter Range	2-⅜” - 48”	4"– 48"	2" – 36"	2" - 16"	4” - 36”
Tractive Effort	2,400 lbs (Single drive)	2,400 lbs	650 lbs	270 lbs	650 lbs
Turning Torque	12,000 in-lbs	12,000 in-lbs	2,000 in-lb	1,300 in-lbs	2,000 in-lbs
Turning Speed	5–50 in/min	5–50 in/min	8-80 in/min	8-120 in/min	8-80 in/min
Height Range	14” - 26” (top of wheel), Adjustable in 1-½” increments	29-5/16" - 41-5/16" (top of wheel), Manual or powered height adjustable	27-5/8" - 39-5/8" (top of wheel), Fine height adjustment	10-½” (Top of wheel), Fixed height	40-½” - 50-½” (top of wheel), Fine height adjustment
Power Requirements	110 V, 1-ph	110 V, 1-ph	110 V, 1-ph	110 V, 1-ph	110 V, 1-ph
Weight	Driver: 470 lbs; Idler: 274 lbs	Driver: 720 lbs; Idler: 545 lbs	Driver: 255 lbs; Idler: 150 lbs	Driver: 110lbs; Idler: 47lbs	880 lbs
