KEY SPECIFICATIONS
Loading Capacity |
16,000 lbs (8-ton) |
Footprint |
43” x 55-⅛” x 28-⅞” |
Diameter Range |
8"- 60" |
Height Range |
28-⅛” - 40-⅞” (top of wheel), Fine screw height adjustment |
Weight | 612 lbs |
Loading Capacity |
16,000 lbs (8-ton) |
Footprint |
43” x 55-⅛” x 28-⅞” |
Diameter Range |
8"- 60" |
Height Range |
28-⅛” - 40-⅞” (top of wheel), Fine screw height adjustment |
Weight | 612 lbs |

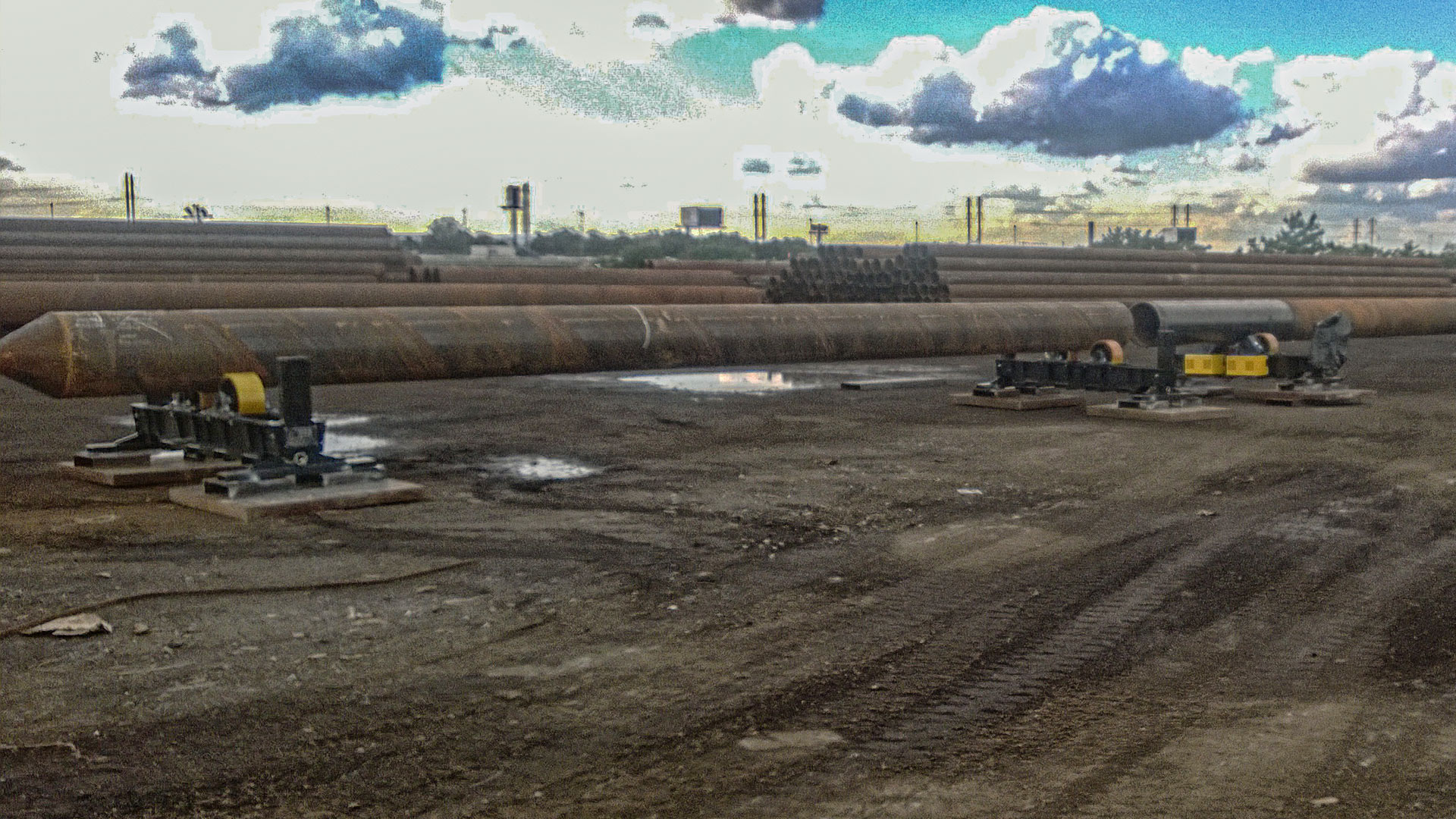

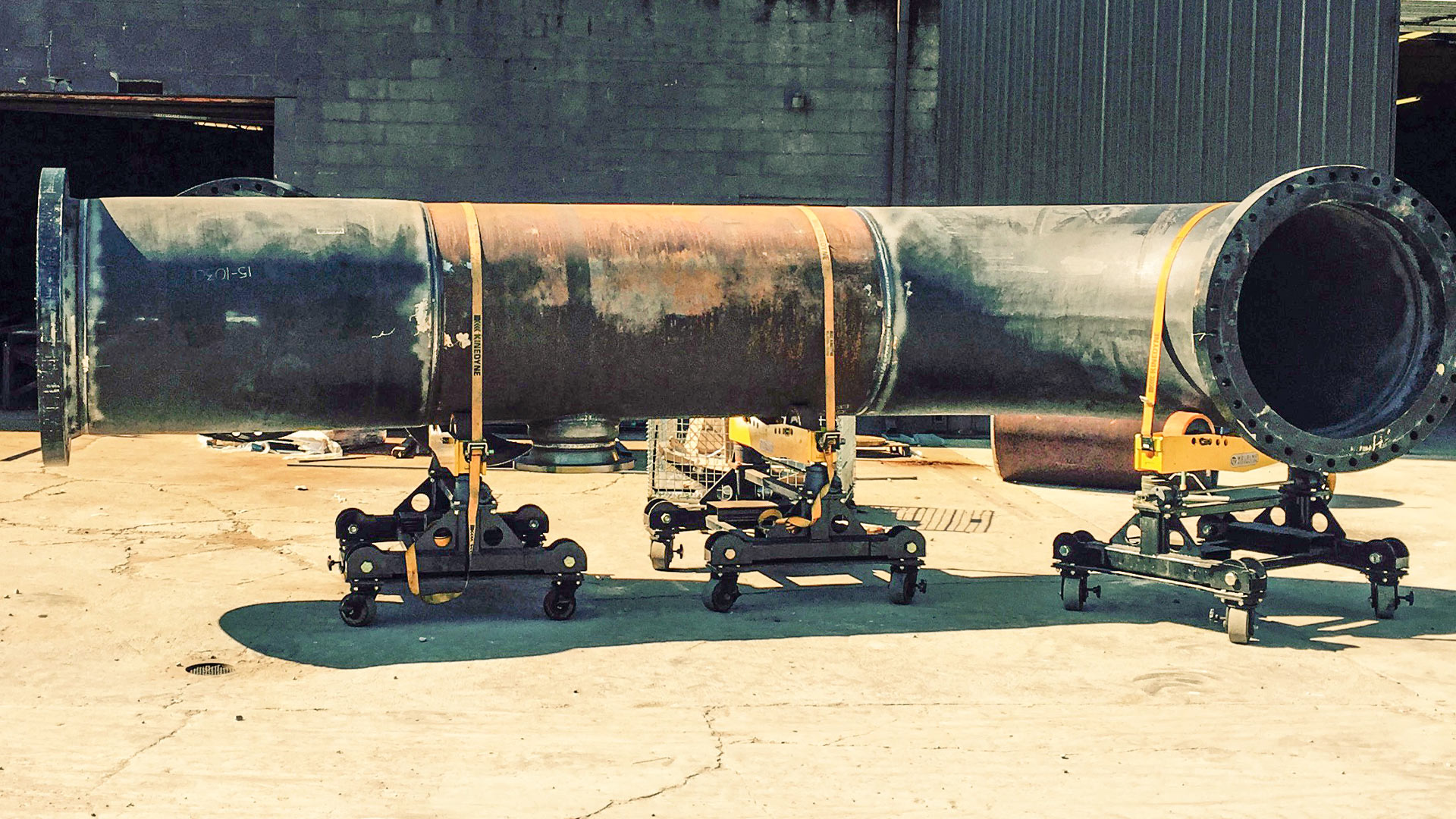

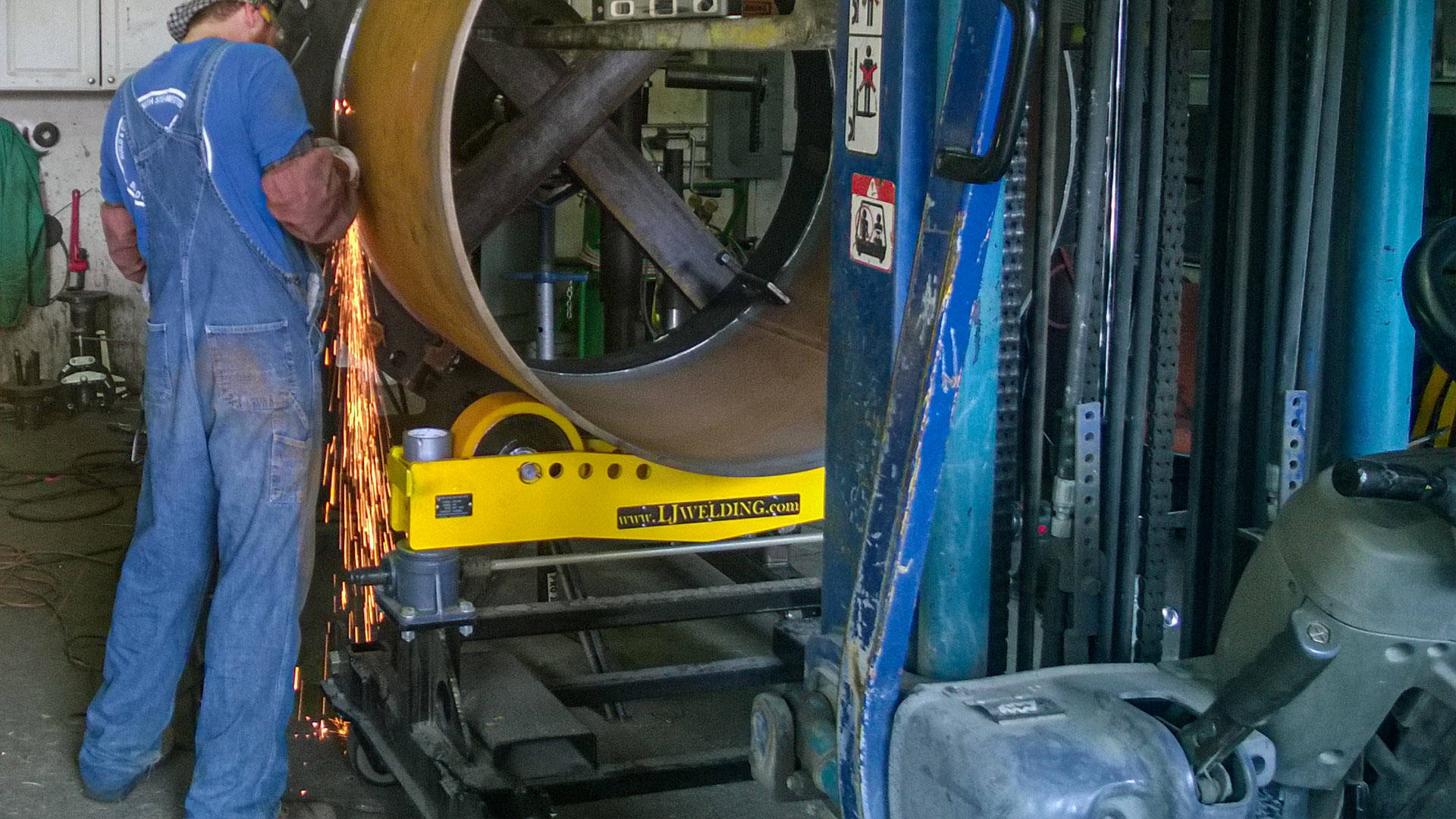

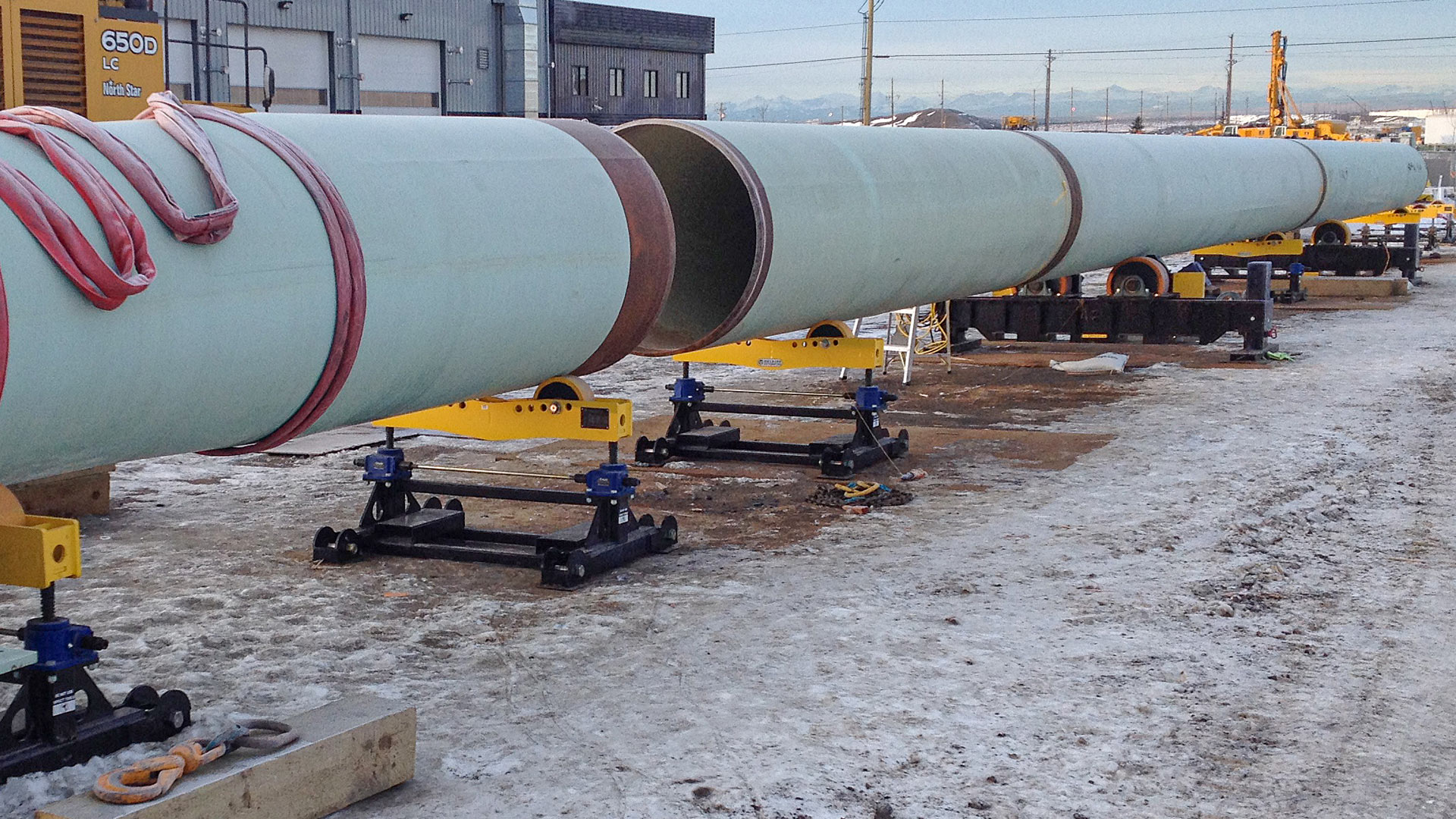

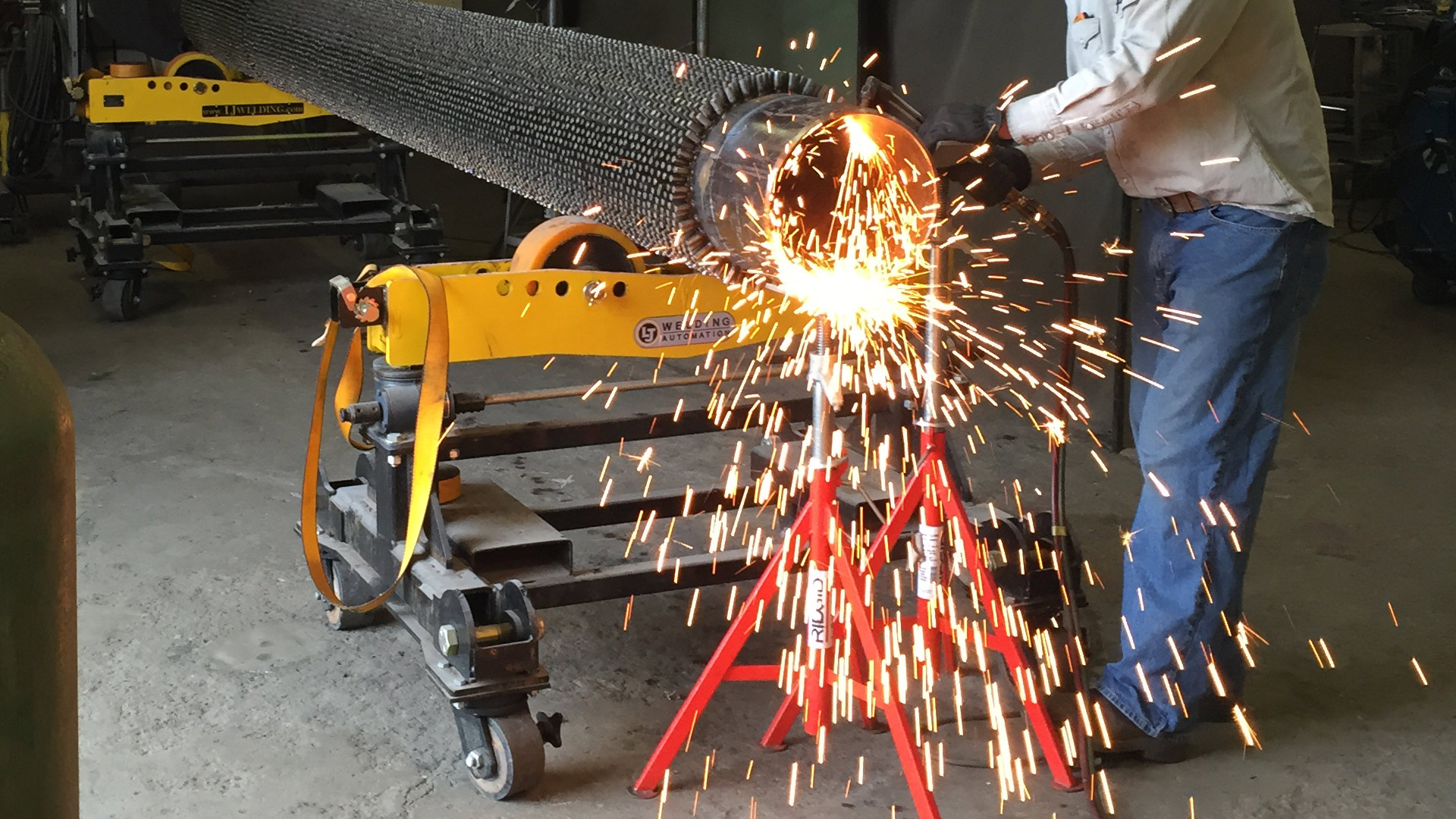

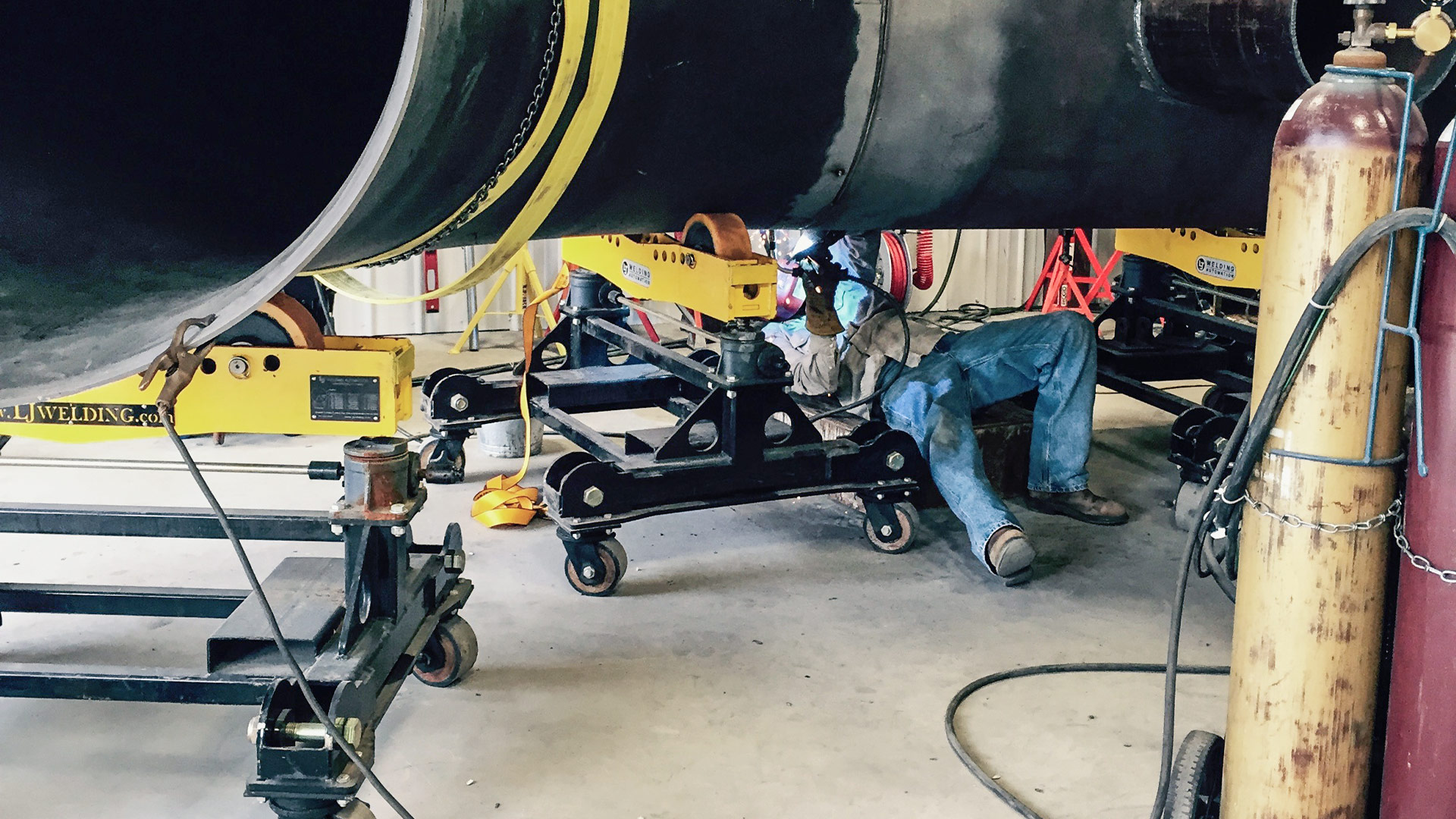

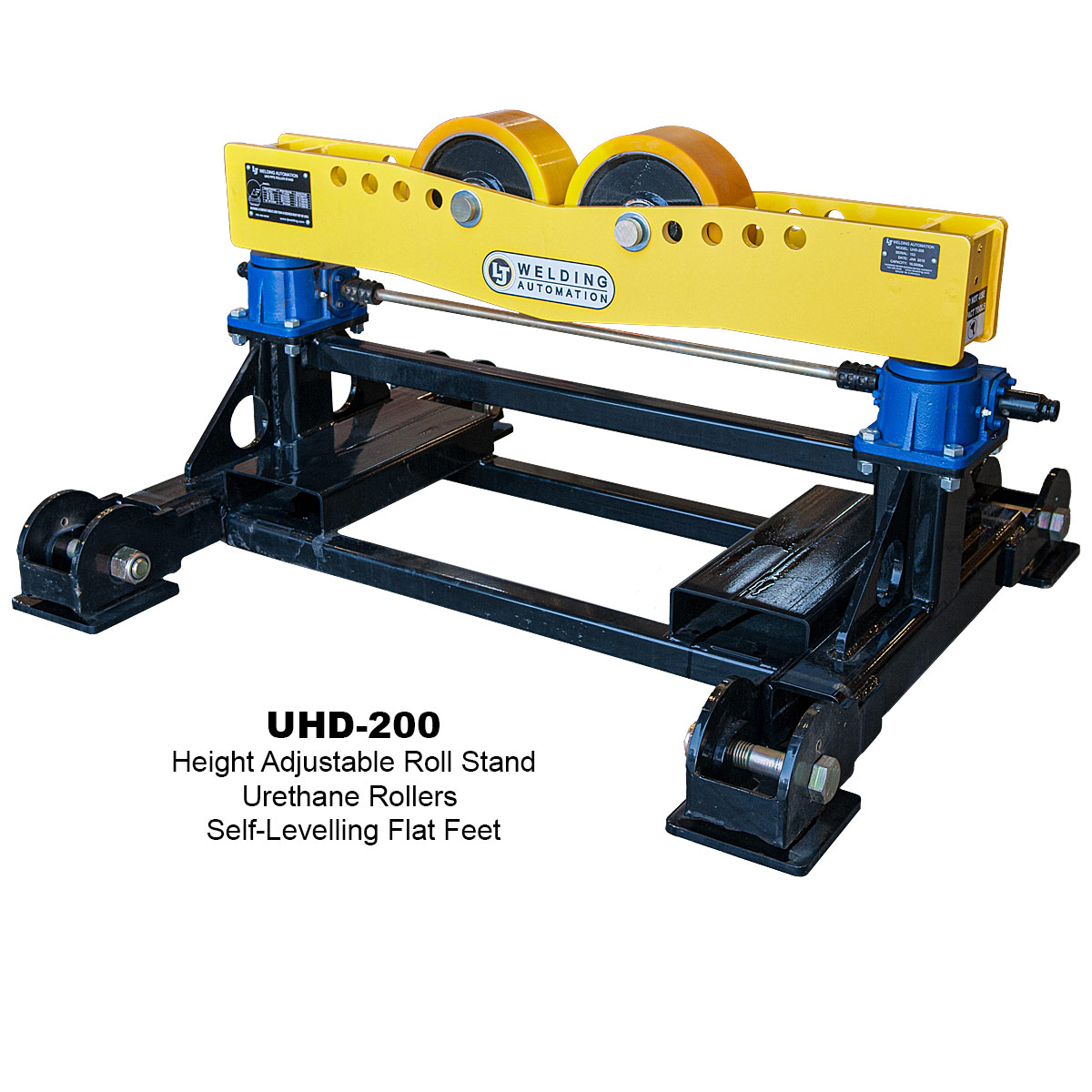

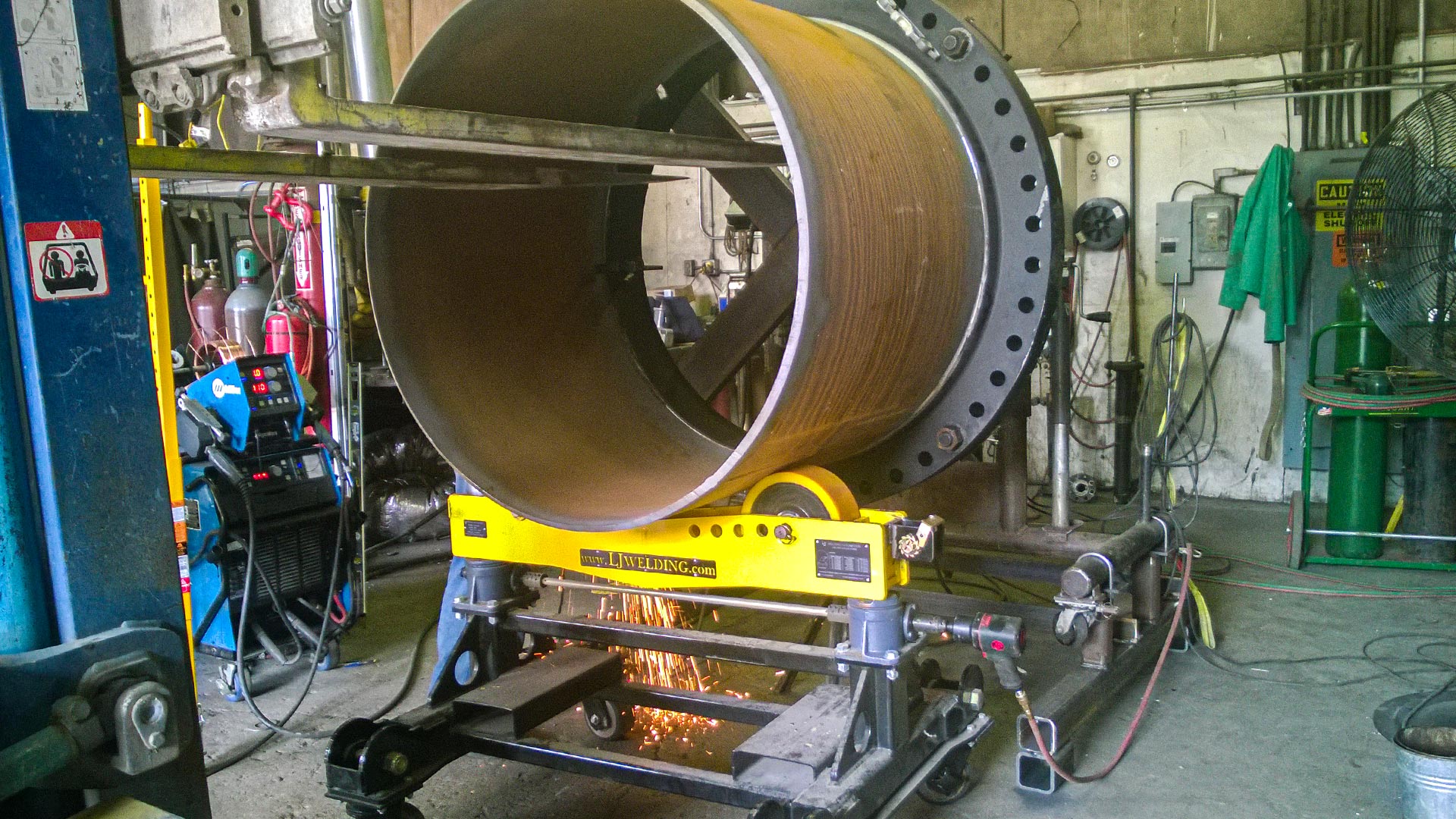

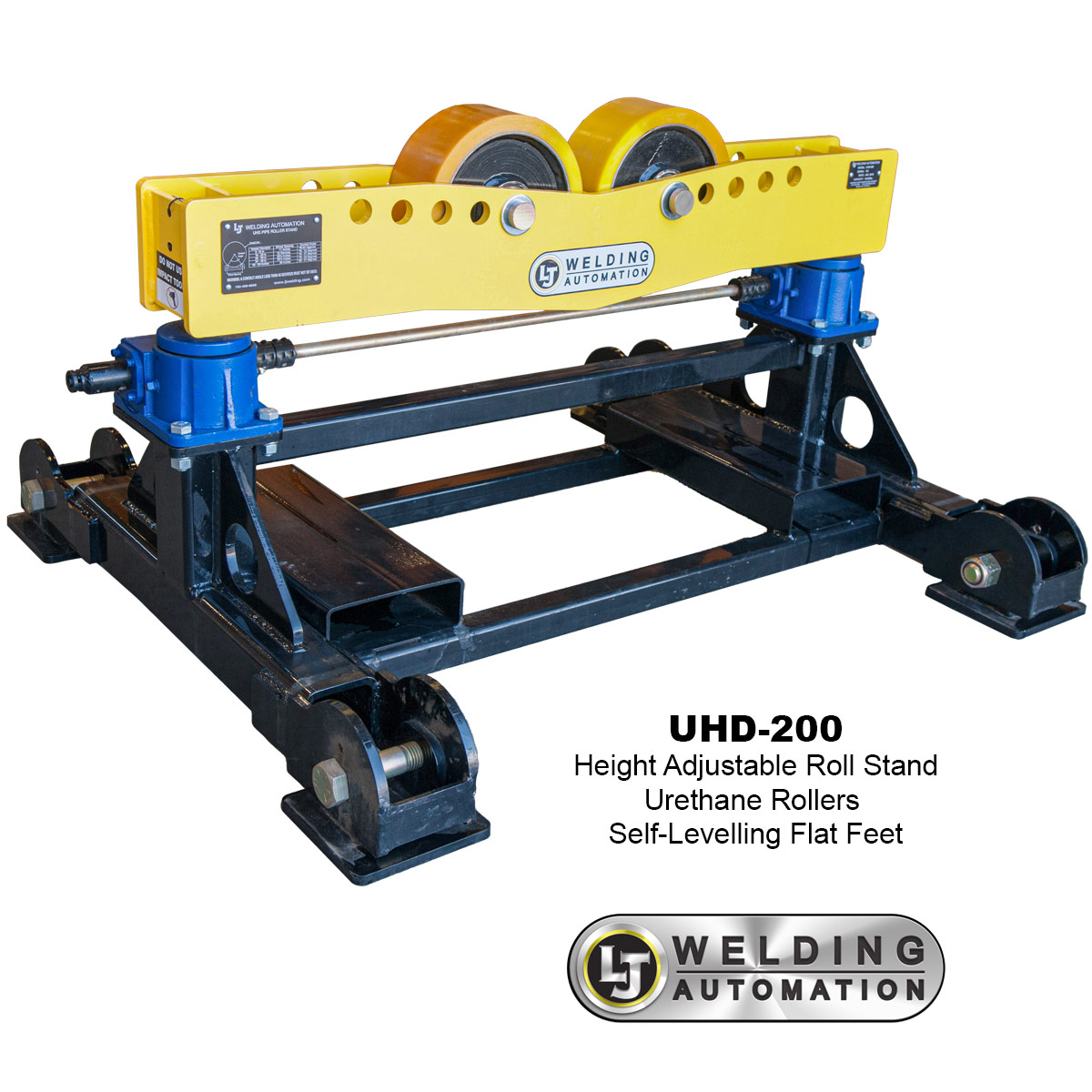

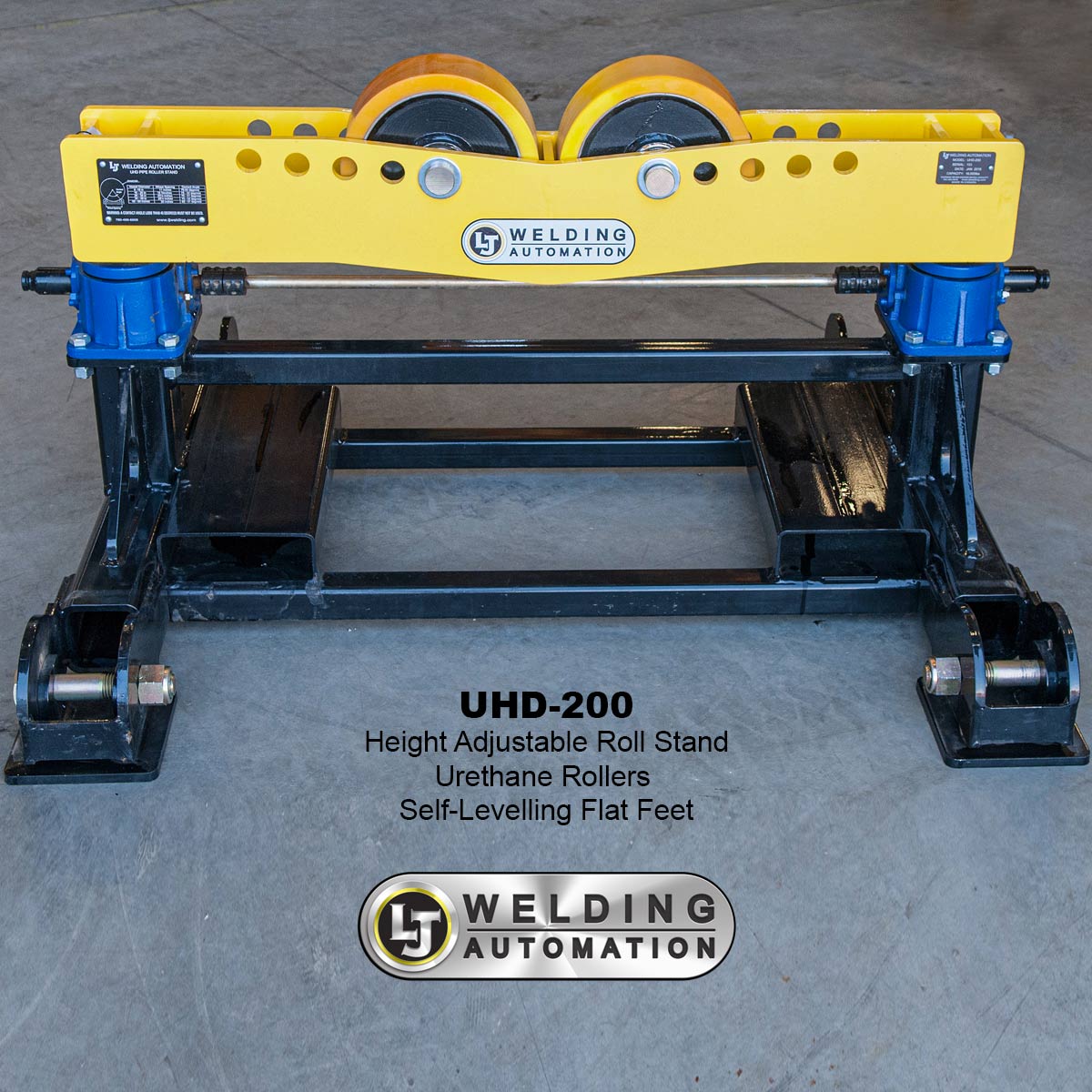

The UHD-200 is ideal for heavy-duty processes involving pipes, tanks and cylinders with a diameter between 8” - 60”. It features geared dual screw jack height adjustability that allows for fast vertical adjustments between 30” - 42” under loads of up to 8 tons. Height adjustability makes it easier for workers to perform fusion applications with greater precision and efficiency, allowing smoother welds and consistent quality and spooling productivity. In addition, it ensures efficient pipe handling by minimizing material handling and lowering the risk of damage to the pipe coating and equipment while reducing the workload stress on operators. The roller base on the UHD-200 makes it adaptable to various conditions on the job site and easy to move in the shop. And it can also be used as static support when rolling is unnecessary.

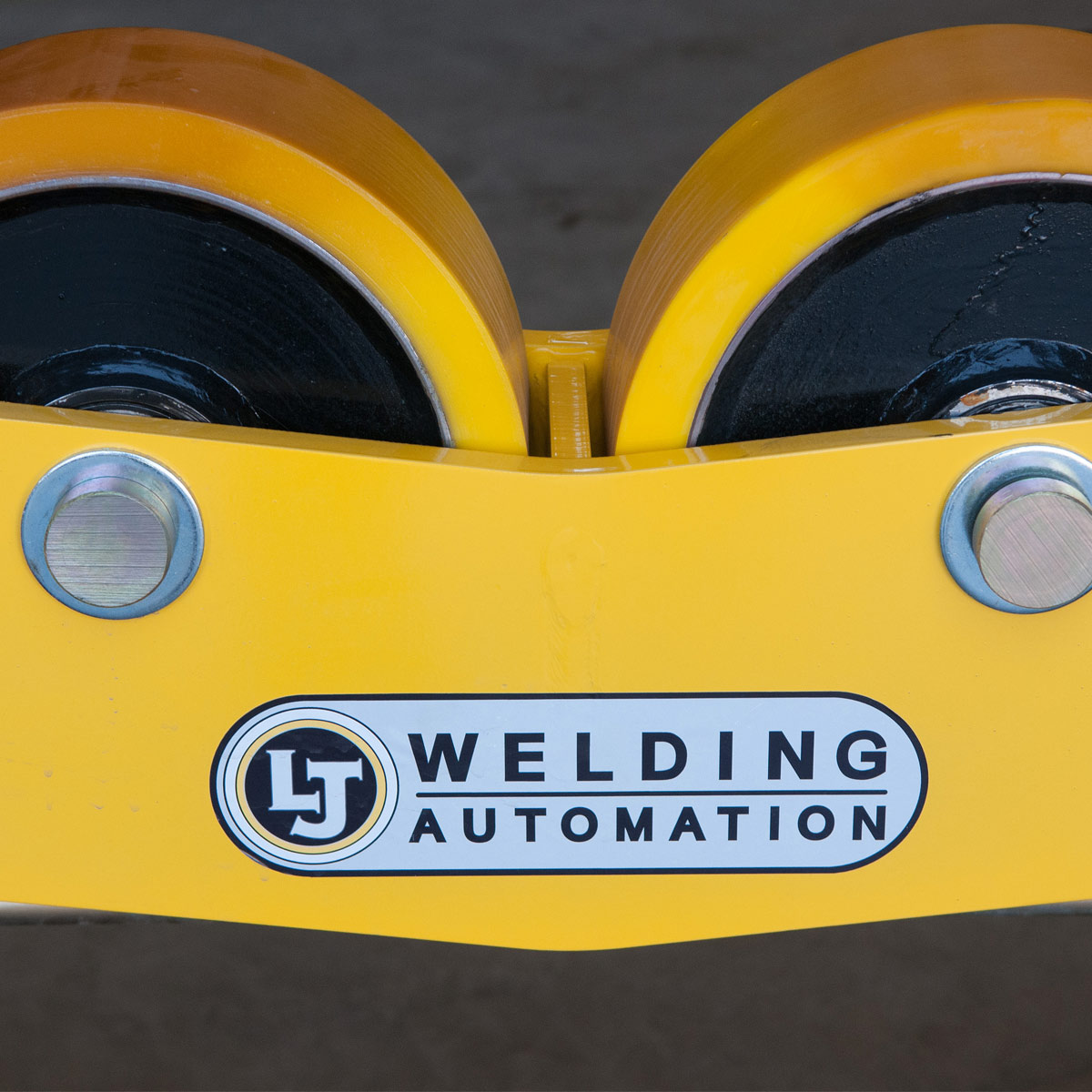

Knowing no one solution fits all, we provide our customers with various customization options and accessories that best meet your application requirements. Standard options include roller wheels in urethane, steel, or other custom material, and custom tops with your choice of multidirectional ball transfers, vee rollers, flat rollers, and accessories, including sawhorse tops and vee tops. We know that productivity is the heart of your business, and our equipment provides exceptional solutions that help operators deliver dependable, top-quality work, with exceptional solutions with the ultimate performance and reliability. If your job requires turning rolls with different specifications, look at our other modular pipe roller stands, such as the SHD-850, which has a load capacity of 4 tons.
We, at LJ Welding, try to bring you the best products that satisfy your demands.
If you are looking for a similar product with different specs, have a look at our:
LJ Welding's engineering department provides a progressive approach to solving the
unique problems that inevitably arise in our industry, resulting in efficient design,
fabrication, and timely delivery of custom equipment.
Found the right modular roller support stands?
Looking to buy, rent or lease
modular roller support stands?
Fill in our express quote request today:
*Product specifications and accessories
may be changed at any time. Please consult
with your LJ Welding representative at any
time to confirm the actual specifications of
LJ products.
