10,000 lb/5,000 lb Welding Floor Turntable: TRN10HS-100

High-precision, low-cost positioning and rotating, ensuring cost-effective operation

Compact and powerful design, offering high capacity in a small footprint

Greater efficiency and consistent, high-quality welds with adjustable rotation speed

Reduced material handling and worker fatigue through ergonomic horizontal axis positioning

Increased workplace safety and productivity with the integration of automated systems

Heavy-duty and long working life, made for durable and long-lasting operation

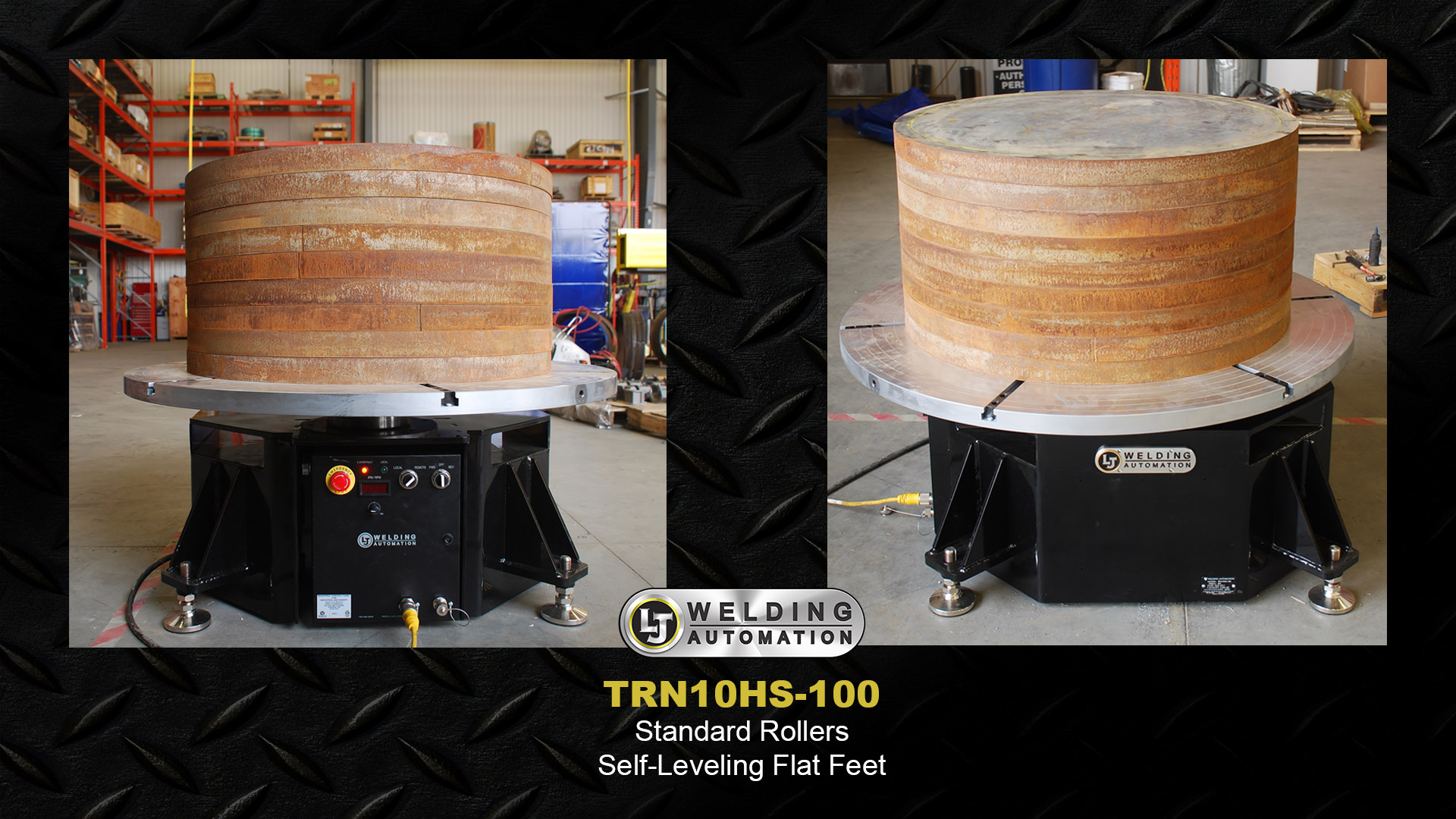

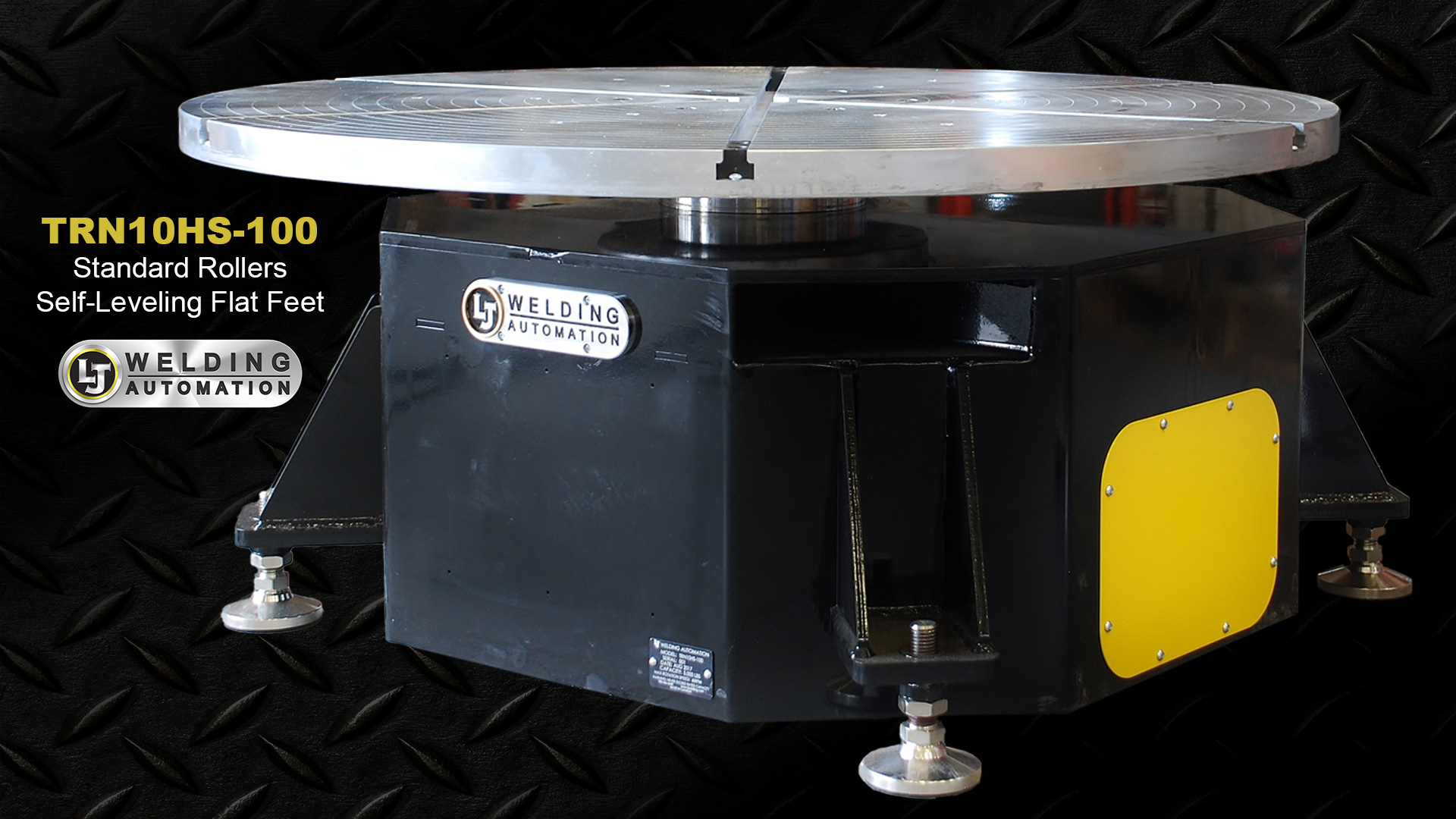

Experience the enhanced productivity and efficiency that LJ's Low-Profile Turntables bring to your industrial needs. The TRN10HS-100 model presents a compact yet powerful solution, capable of handling a dual loading capacity of 5,000 lbs or 10,000 lbs. This floor turntable facilitates precise and effortless rotation of cylindrical workpieces with diameters up to 48 or 52 inches. With rotation speeds ranging from 3 -60 rpm or 1.5 - 30 rpm, it is ideal for welding the circumference or periphery of lighter workpieces. Moreover, the optimal ergonomic design allows the weldments to be positioned flat or horizontally, thereby minimizing worker fatigue, enhancing workplace safety, and promoting efficiency and productivity.

Designed for robust use and extended service life, the 5 or 2.5 ton welding low profile turntable, TRN10HS-100, integrates seamlessly with column and boom manipulators and robots, amplifying productivity. LJ encourages customization, providing a range of options and accessories to upgrade and expand the functionality of the TRN10HS-100 to suit your unique requirements. Enhance your control with our additional options like cabled or wireless hand pendants, either with or without a digital readout, and variable speed or bi-directional foot switches. Unleash superior performance and precision with our 10,000/5,000 lbs welding floor turntable, shaping the future of your industrial operations. For welding floor turntables with different specs, check out our TRN10-700, TRN40-100 or TRN20-200.

Another Application

We, at LJ Welding, try to bring you the best products that satisfy your demands.
If you are looking for a similar product with different specs, have a look at our:

Loading Capacity	5,000 lbs (10,000 lbs variant)
Footprint	48” x 48” x 21-⅜”
Turning Torque	20,000 in-lbs
Turning Speed	3 - 60 RPM (10,000 lbs variant: 1.5 - 30 RPM)
Mounting Plate Diameter	48", optional: 52” (T-Slot Plate with 6 x 5/8" slots)
Power Requirements	480V, 11A, 3-ph, 60Hz
Weight	1,900 lbs
