20,000 LBS PIPELINE ROLLER: HZM10-200

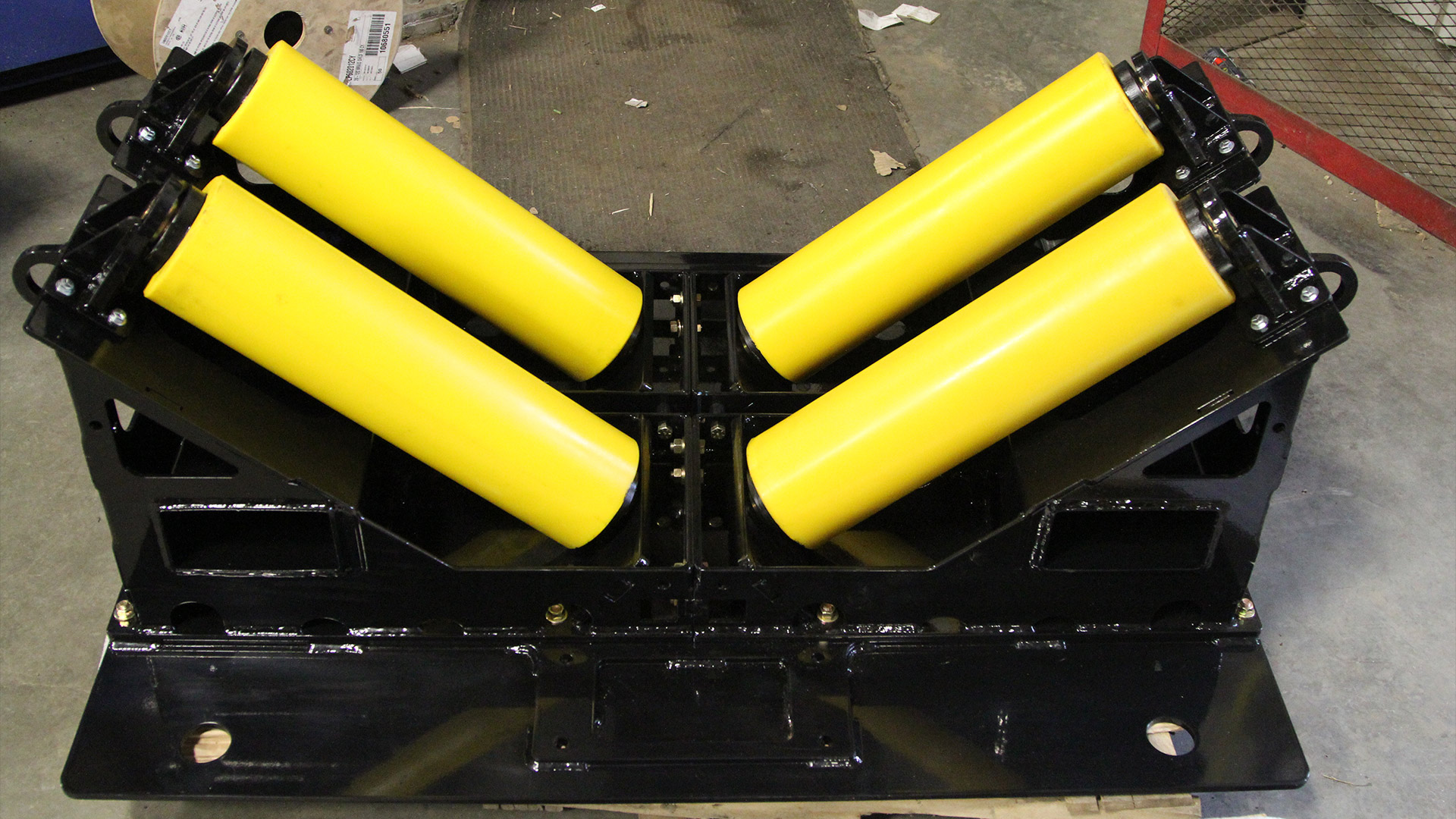

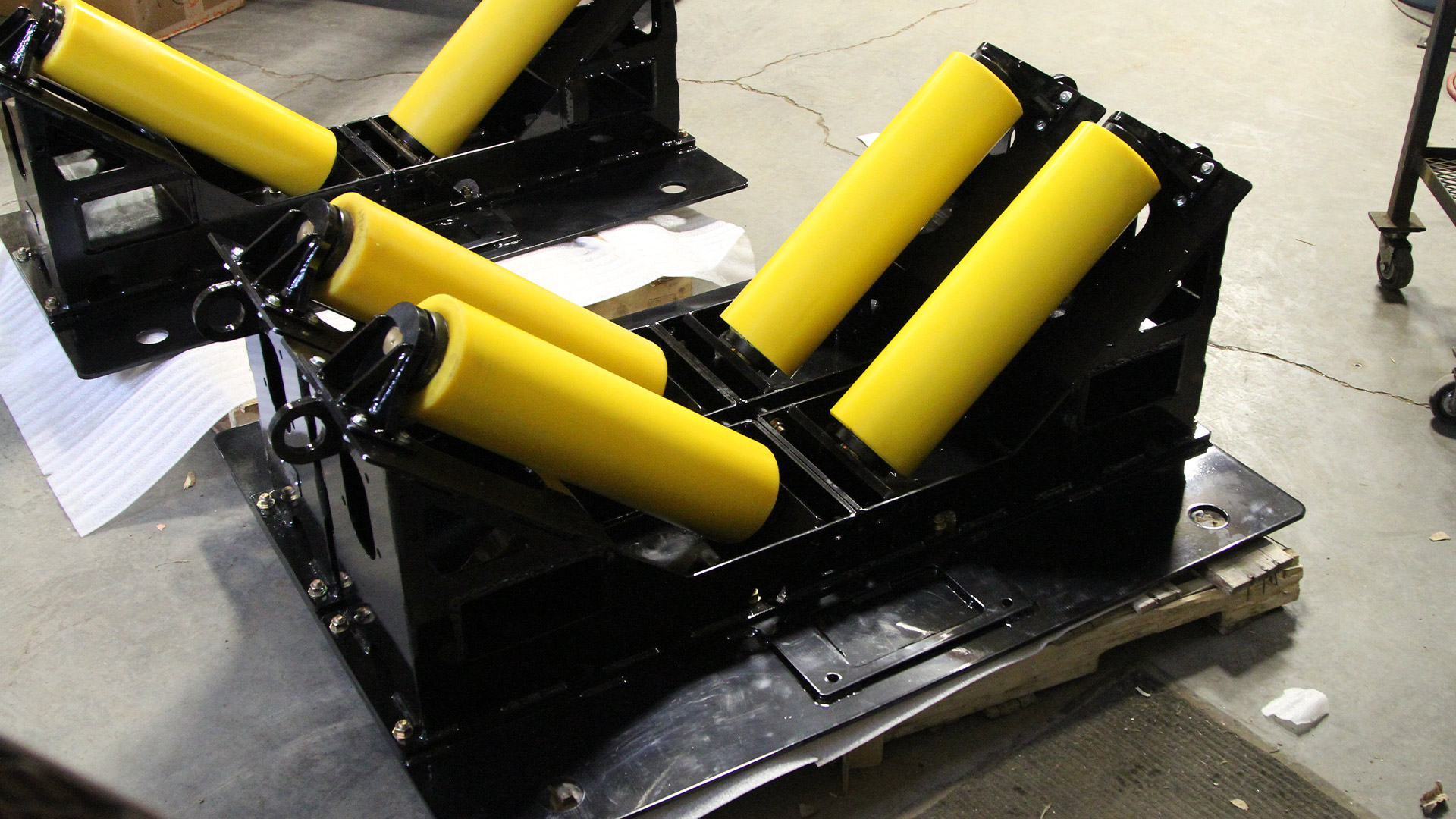

Pipeline rollers are essential for the smooth installation of pipes, especially during river and road crossings. The HZM10-200, a 20,000 lbs pipeline roller, elevates this process by keeping pipes above ground, shielding them from dirt and contaminants, while minimizing drag force during horizontal drilling. Engineered to support petroleum, crude oil, and natural gas transportation, its 10-ton loading capacity and 12 - 48-inch diameter range (with options for smaller sizes with a center roller) make it versatile and effective in various applications. The HZM10-200 pipeline rollers are not only durable but also lightweight, featuring V-style roller mounting with four 6-1/4” OD urethane side rollers that ensure smooth rotation and safeguard the pipe from damage.

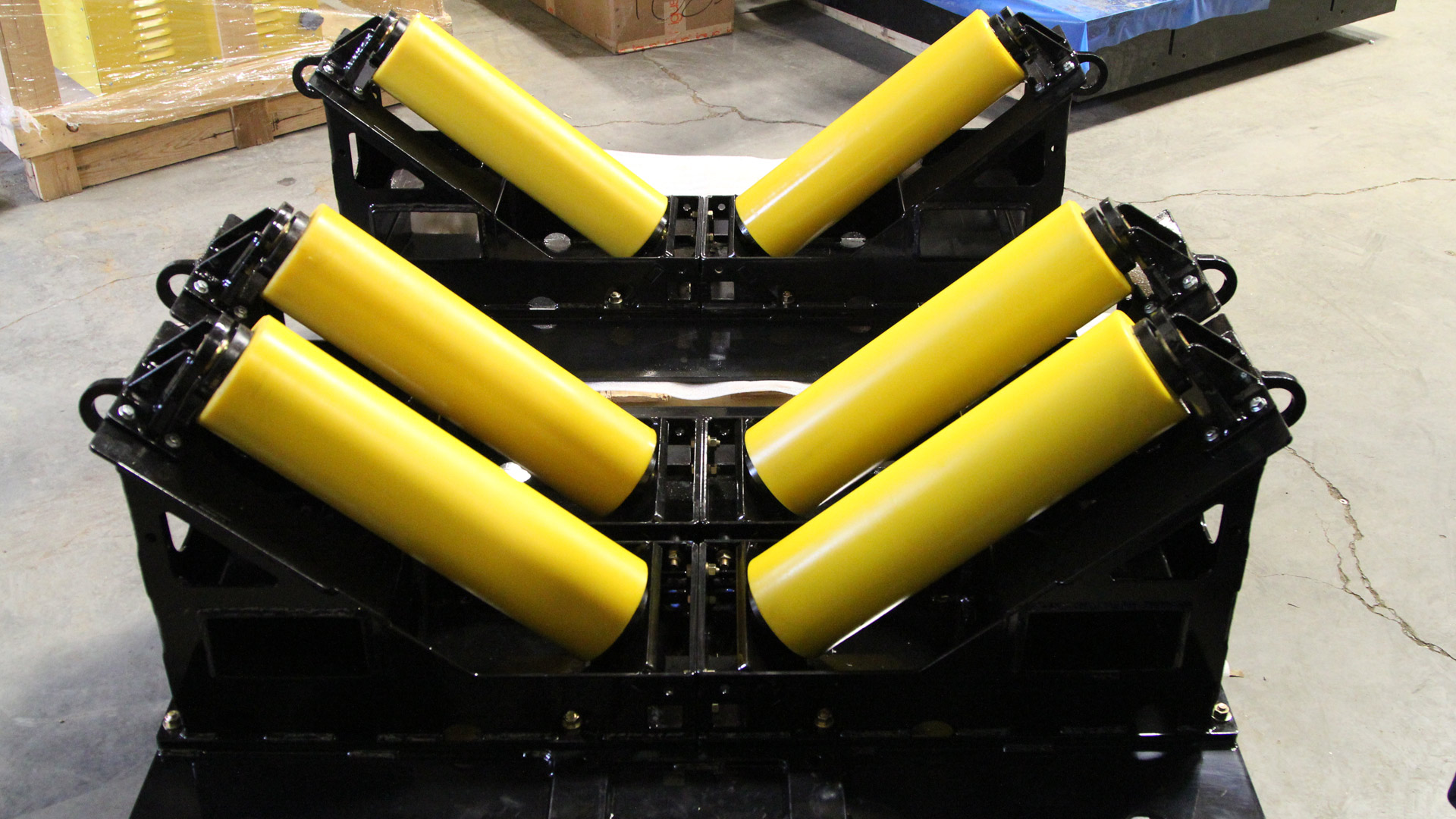

Its modular design caters to curved pulls and promotes easy lifting with chains, straps, or forks. By significantly minimizing material handling and reducing operator fatigue, the 10 ton pipeline roller enhances job site safety and productivity. Customization options like forklift pockets and lift hooks add to its functionality, efficiency, and productivity, making it an indispensable tool in pipeline operations. If interested in pipeline rollers with different specifications, make sure to check out our 2,000 lbs Pipeline Roller: HZ6-300, 10,000 lbs Pipeline Roller: HZM5-200, 40,000 lbs Pipeline Roller: HZM303-100 or 80,000 lbs Pipeline Roller: HZM405-100.
