8000 lb Gear Elevated Pipe Roller Stands SHD-850

New Call-to-action

LJ's geared, height-adjustable pipe stands with roller base serve as the key tool for welding applications that include rolling and handling pipes

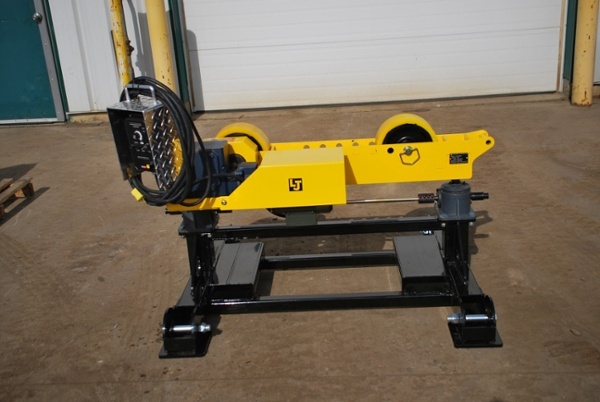

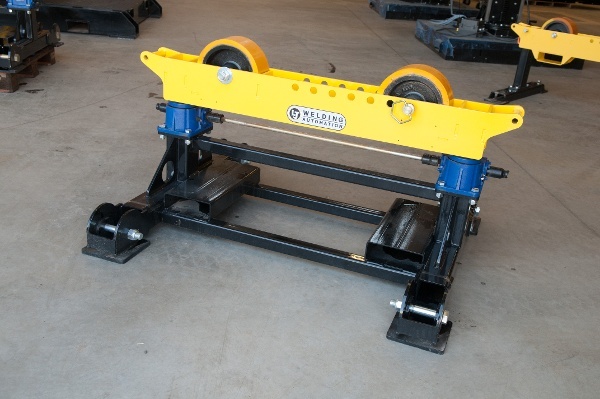

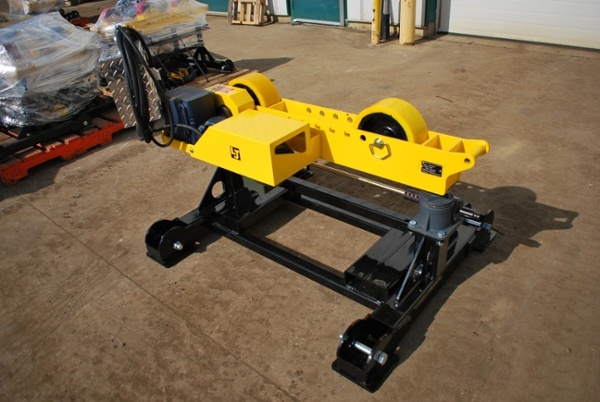

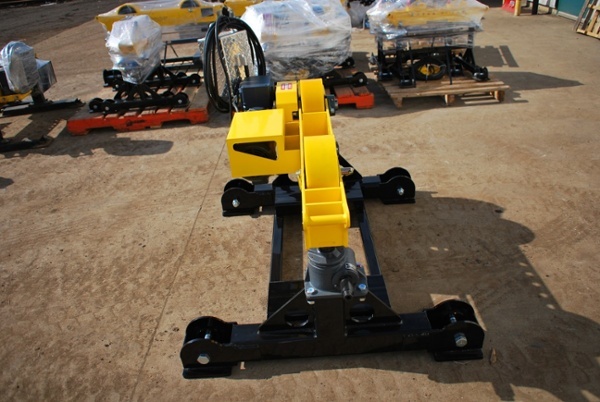

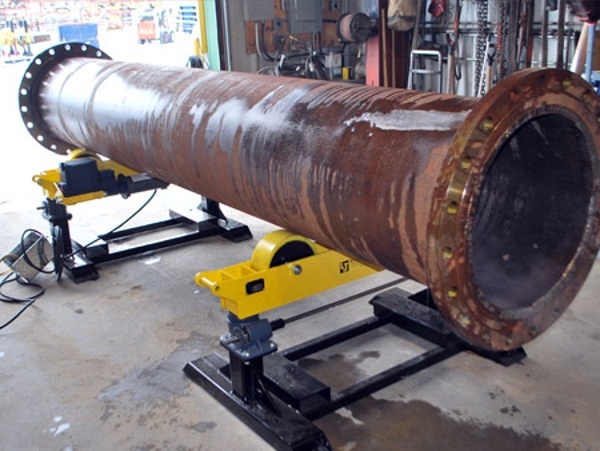

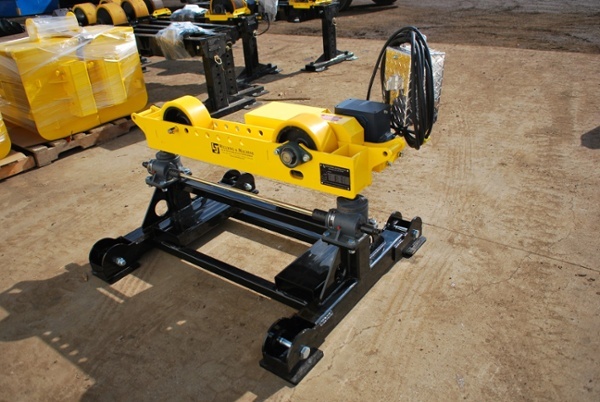

Our welding pipe stand SHD-850 comes with geared height adjustability which ensures smooth transitions even when the pipe support is under a load. This allows welders to raise or lower the pipe to the same level as the machine and avoid human factor failures. By bringing the pipe in parallel to the machine it is much easier to adjust hi/low and achieve a square face-off. Our welding pipe roller stands can also be used to support pipes when rolling is not required. This allows all worked on pipes to be staged in one location, keeping the fusion machine stationary and minimizing the downtime between fusion joints.

Our pipe stand SHD-850 has a loadability of 4 tons, height range of 30"-42" and a diameter range of 4"-48". We provide solutions in which our pipe stands serve as a support to column/boom positioners and welding manipulators. When it comes to features, we offer a variety of accessories and options that can be added upon the customer’s demand. This includes roller wheels that are available in different materials (urethane, steel, or other custom material) custom tops (multidirectional ball transfers, vee rollers, and flat rollers), sawhorse tops and vee tops. As far as custom modifications go, there is a possibility of mounting multiple SHD-850 Pipe Stands together with a roller frame.

We, in LJ Welding, try to bring you the best products that satisfy your demands, so make sure to look at our other modular pipe roller stand with a load capacity of 8 tons e.g. UHD-200 if you’re looking for turning rolls with different specs.
