Pipe & Vessel Alignment Roll Fit-Up Systems

LJ alignment rolls are designed for specialty applications where pipe or vessels require precise, fast alignment and fine levelling for fit-up and welding, and offer compensation for inconsistencies in shop floor or ground. Often used in pipe double-jointing systems for maximum efficiency and safety.

Side-By-Side Modular Alignment Roll Systems Comparison

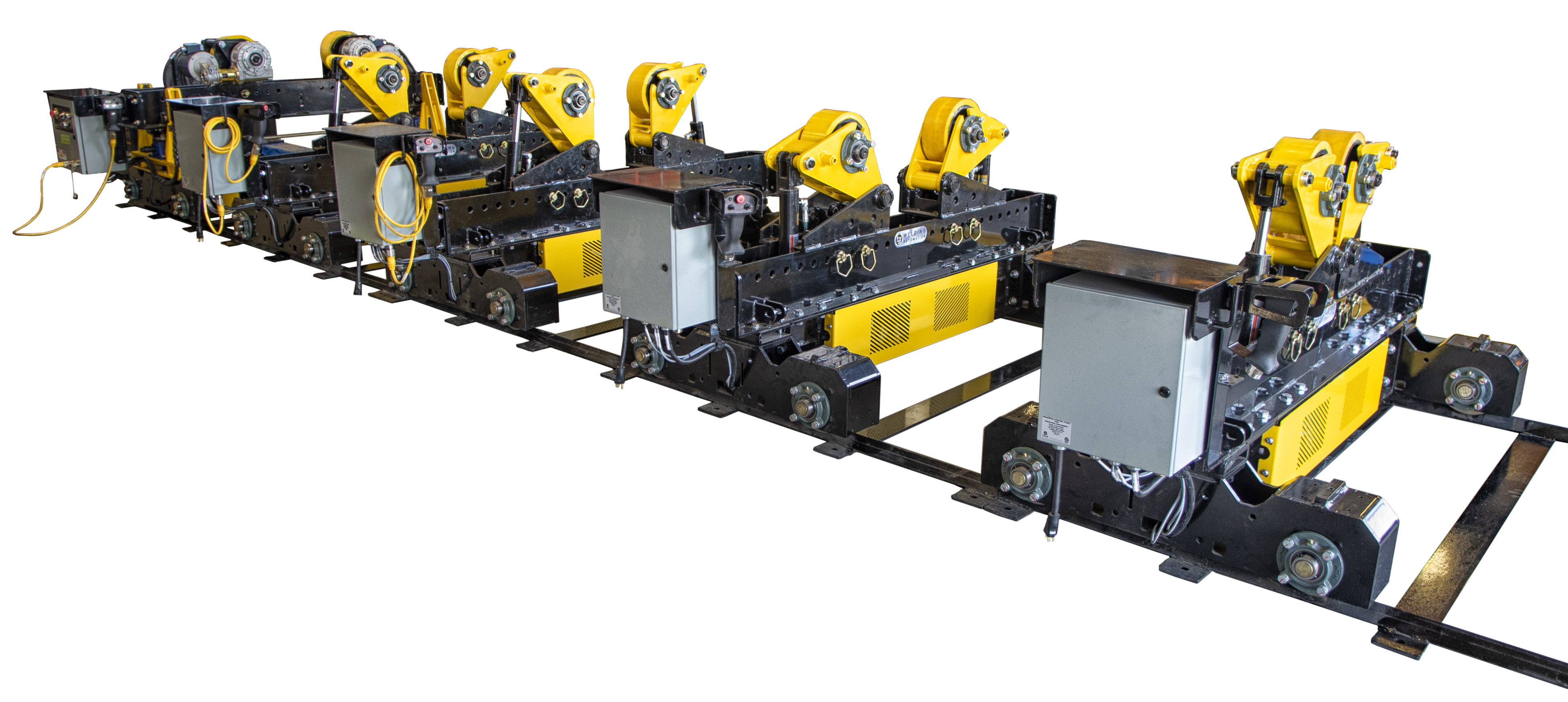

Specifications 10-Ton Capacity Modular Pipe Alignment Roll Fit-Up System (10TMR-100) 10-Ton Capacity Modular Tank and Vessel Alignment Roll Fit-Up System (10TMR-GL-100) 20-Ton Capacity Modular Pipe AlignmentFit-Up Roll System (20TSR-100/200)

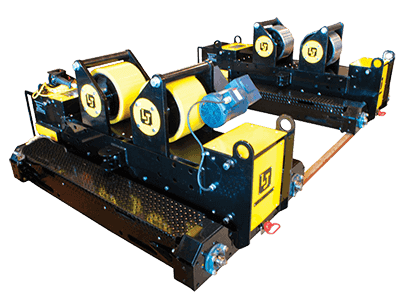

20-Ton Capacity Modular Pipe

AlignmentFit-Up Roll System

(20TSR-100/200)

Load Capacity (Driver & Idler Set):

Driver: 10,000 lbs

Idler: 10,000 lbs

Driver: 10,000 lbs

Idler: 10,000 lbs

Driver: 20,000 lbs

Idler: 20,000 lbs

Driver: 12,000 lbs

Idler: 12,000 lbs

Diameter Range:  6" - 96" 6" - 96" 6" - 60" 6" - 48"

Tractive Effort:

Output Torque:



Dual Drive, 3,400 lbs

17,000 in-lbs

Dual Drive, 2,400 lbs

12,000 in-lbs

Single Drive 5,700 lbs

40,000 in-lbs

Single Drive 3,500 lbs

25,000 in-lbs

Power Requirements:  480 V, 3-ph 480 V, 3-ph 480 V, 3-ph 110 V, 1-ph
Rotation Speed:  5 - 50 in/min 10 - 50 in/min 0 - 80 in/min  5 - 50 in/min
Traverse Speed Range:  1 - 24 ft/min 1 - 24 ft/min 1 - 24 ft/min

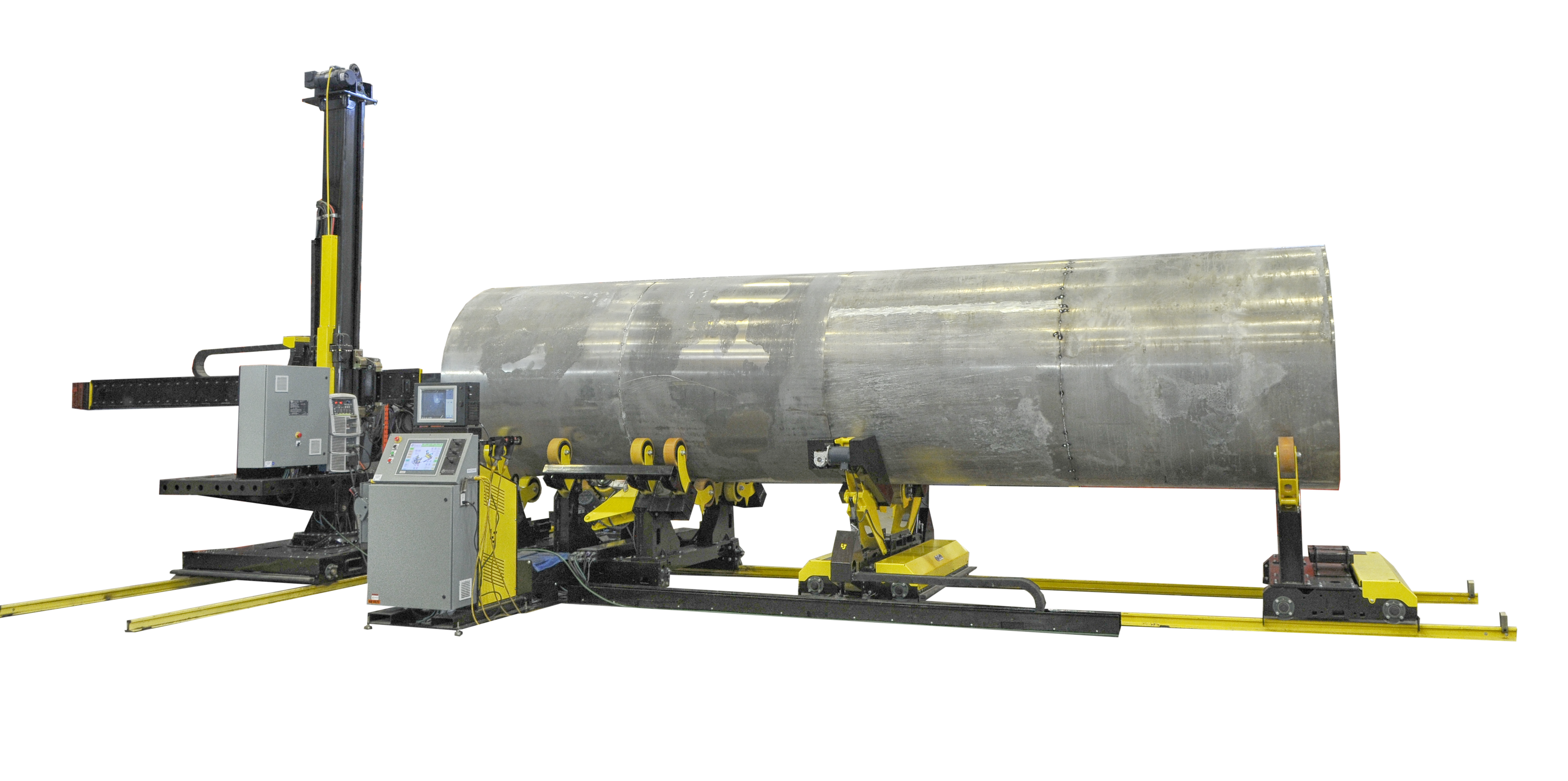

Make A Fully Automated Welding Cell With
