10 Ton Unidirectional - Beam Clamp Roller: HZDD60-200

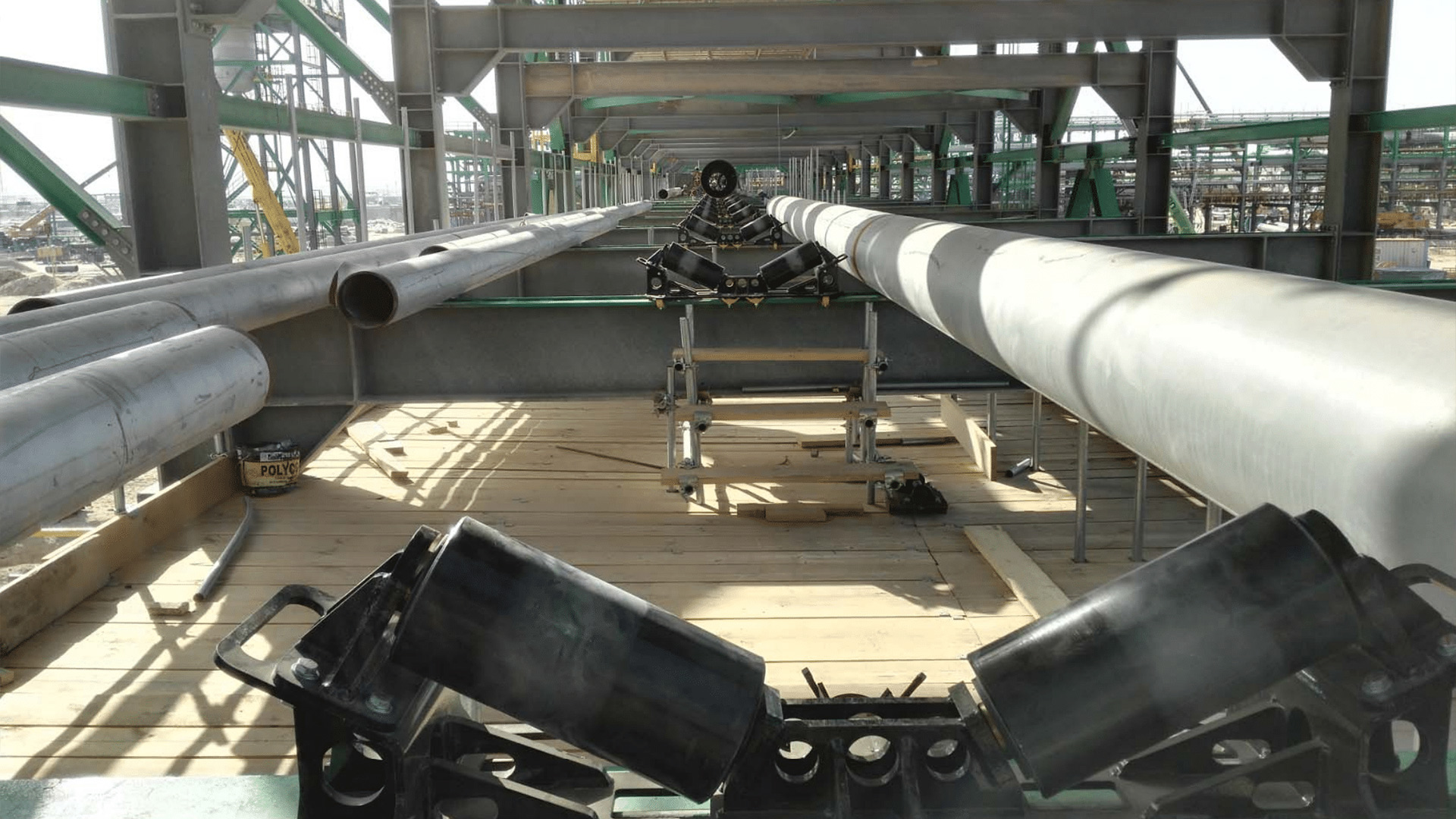

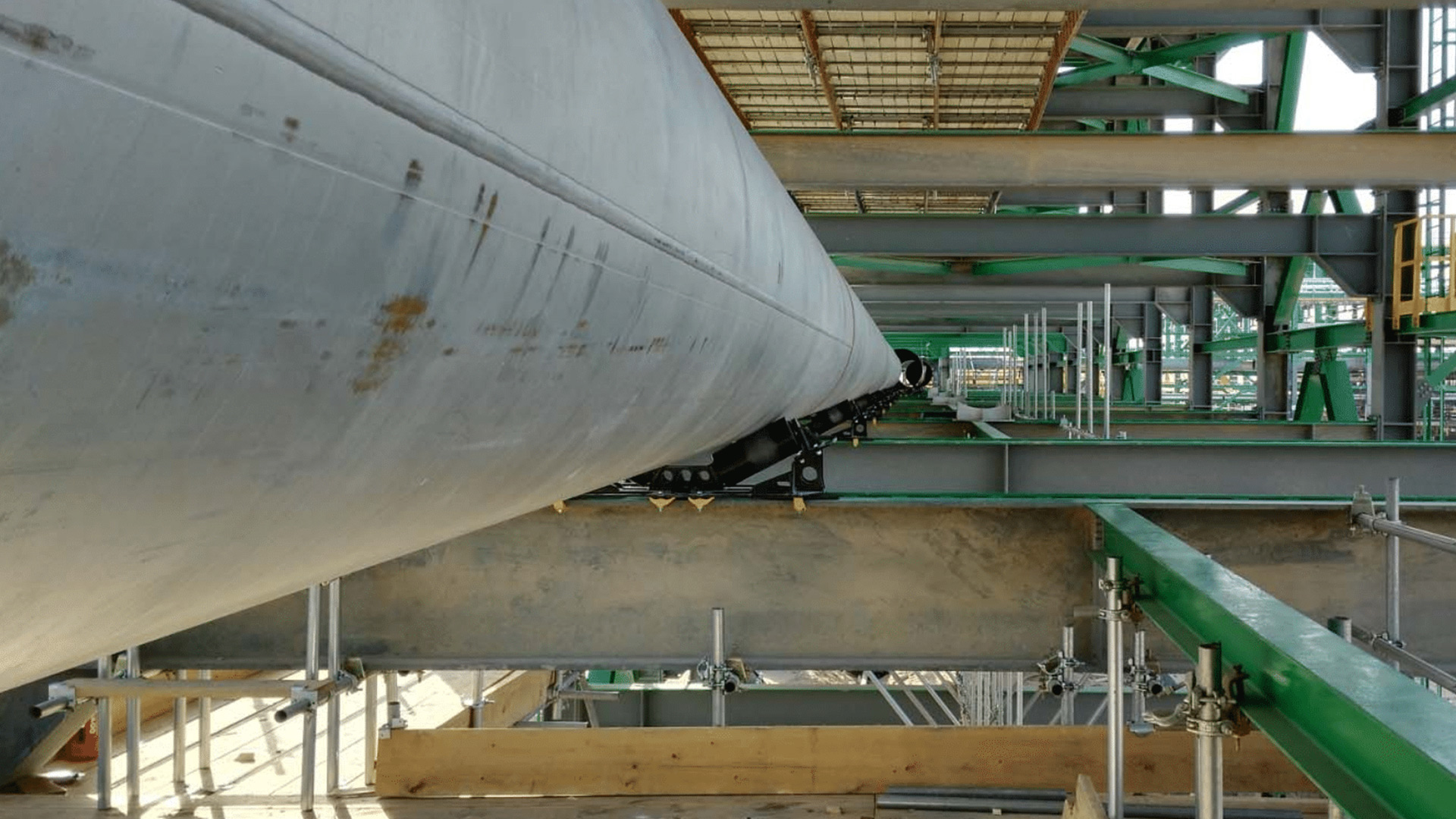

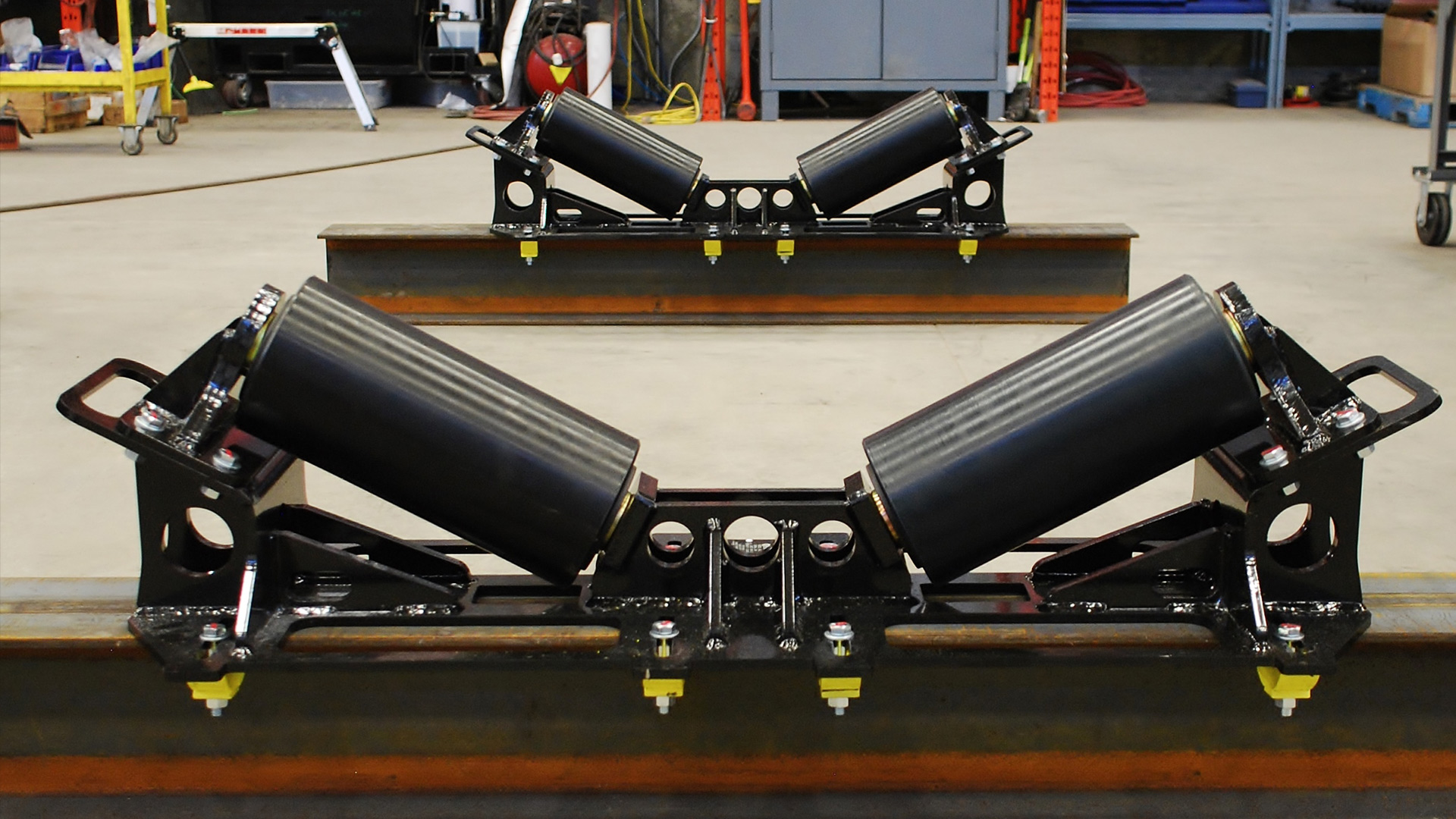

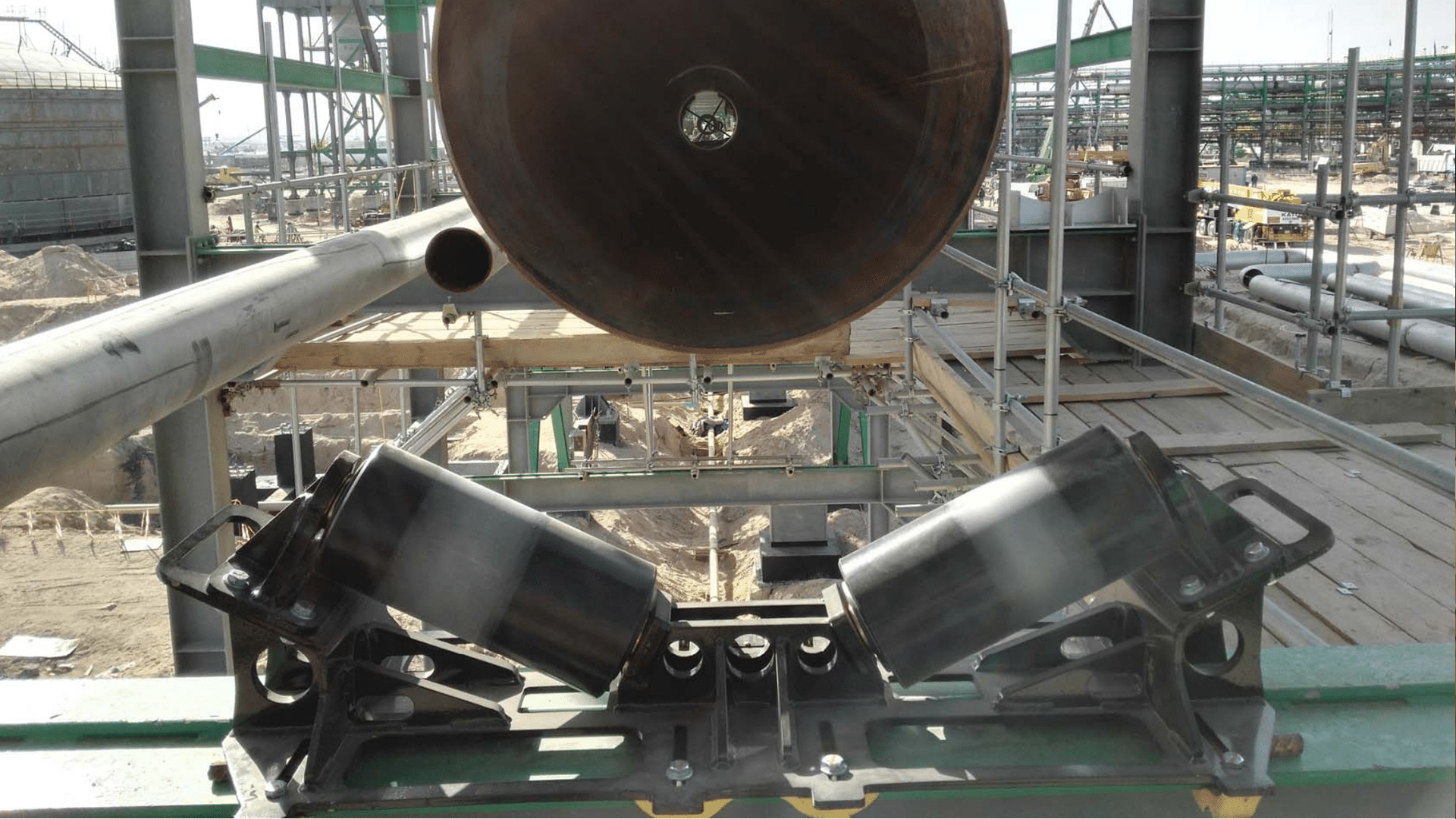

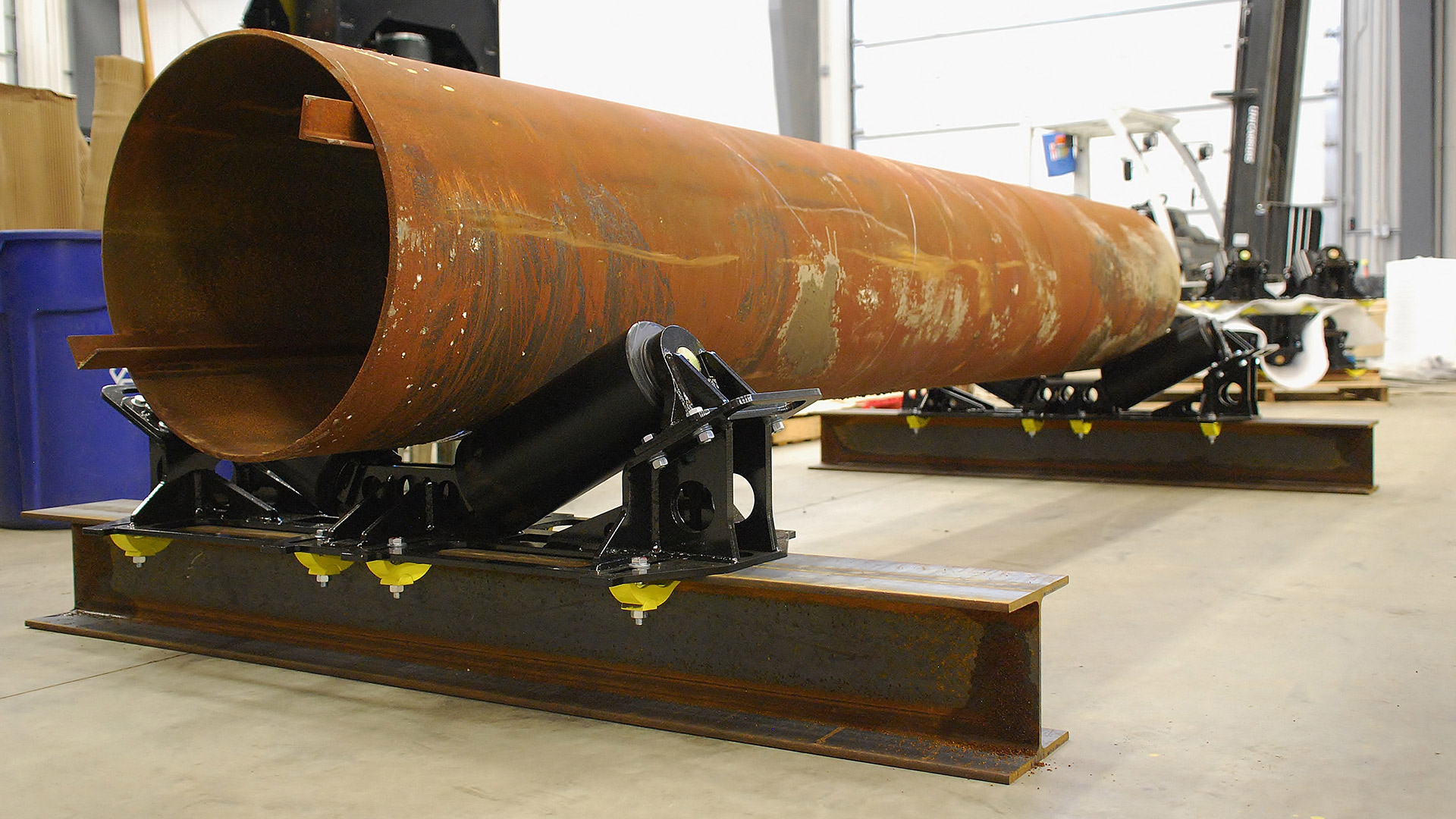

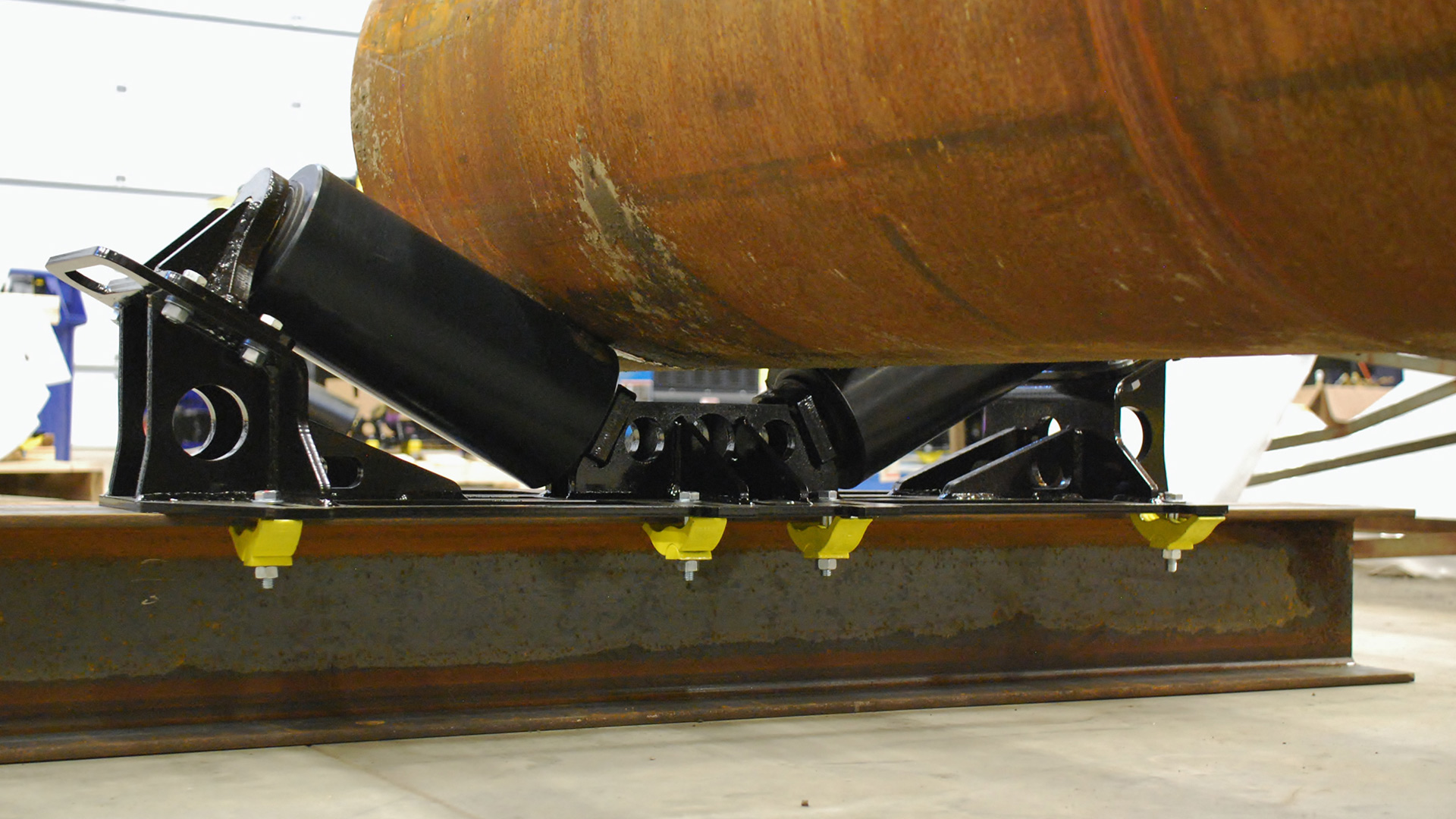

Unidirectional pipe rigging rollers streamline the installation and removal of pipe, making it safer, faster, and easier. The HZDD60-200, a 10 ton unidirectional beam clamp roller, is specifically designed to handle heavy loads, with a robust loading capacity of 20,000 lbs. Ideal for loading pipe onto racks or modular construction pipe systems at refineries, power plants, and other industrial facilities, this roller minimizes pinch points and tugging, enhancing job site safety and productivity. With a compact footprint of 19-⅛” x 49-⅜” x 12-½”, this heavy-duty roller decreases crane time by up to 40 percent, which equates to tangible savings in labor and equipment costs. The 20,000 pipe rigging roller is equipped with handles for effortless moving, lifting, and installation and features unidirectional urethane rollers, ensuring improved grip and shock absorption while safeguarding the pipe coating.

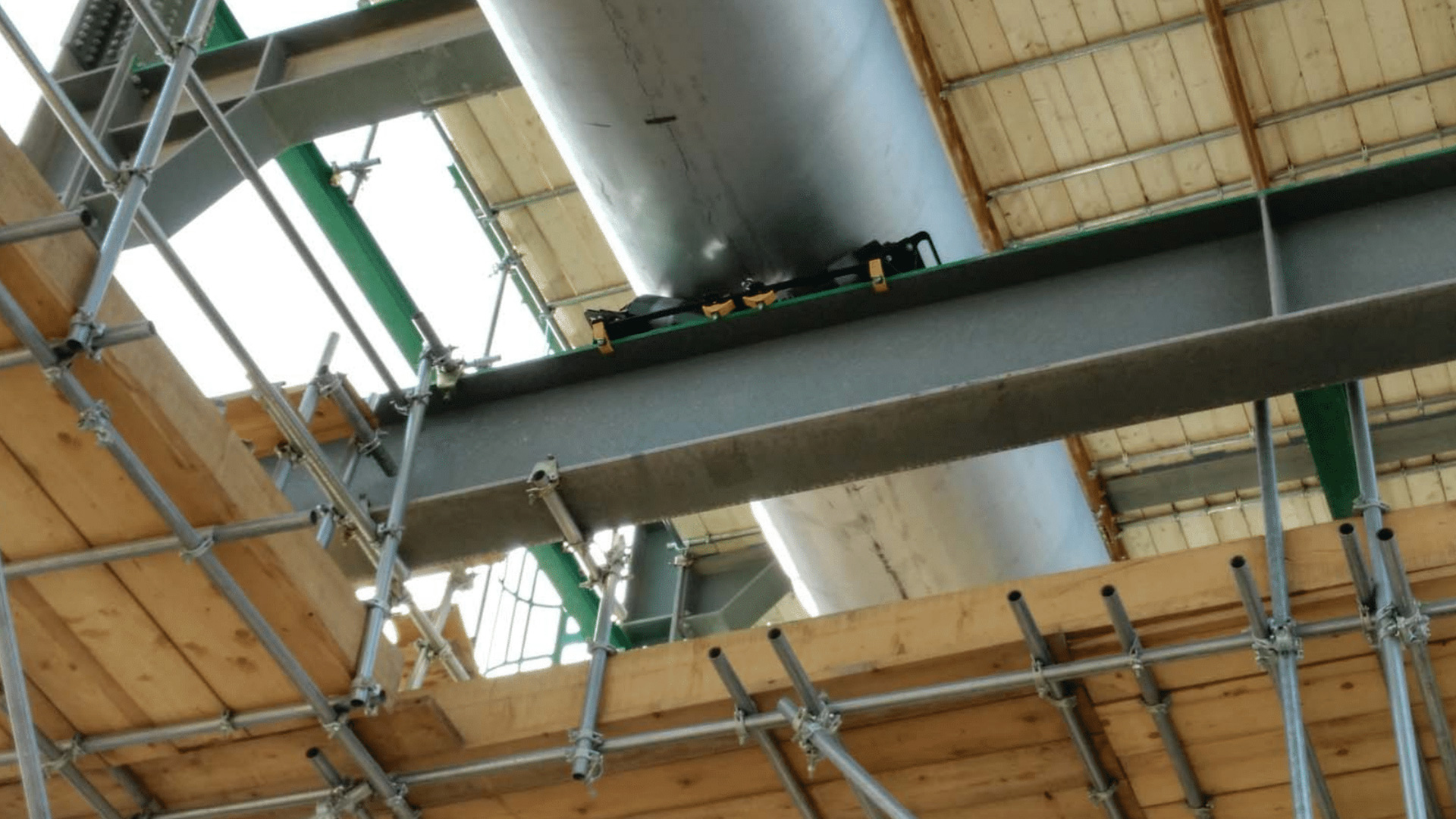

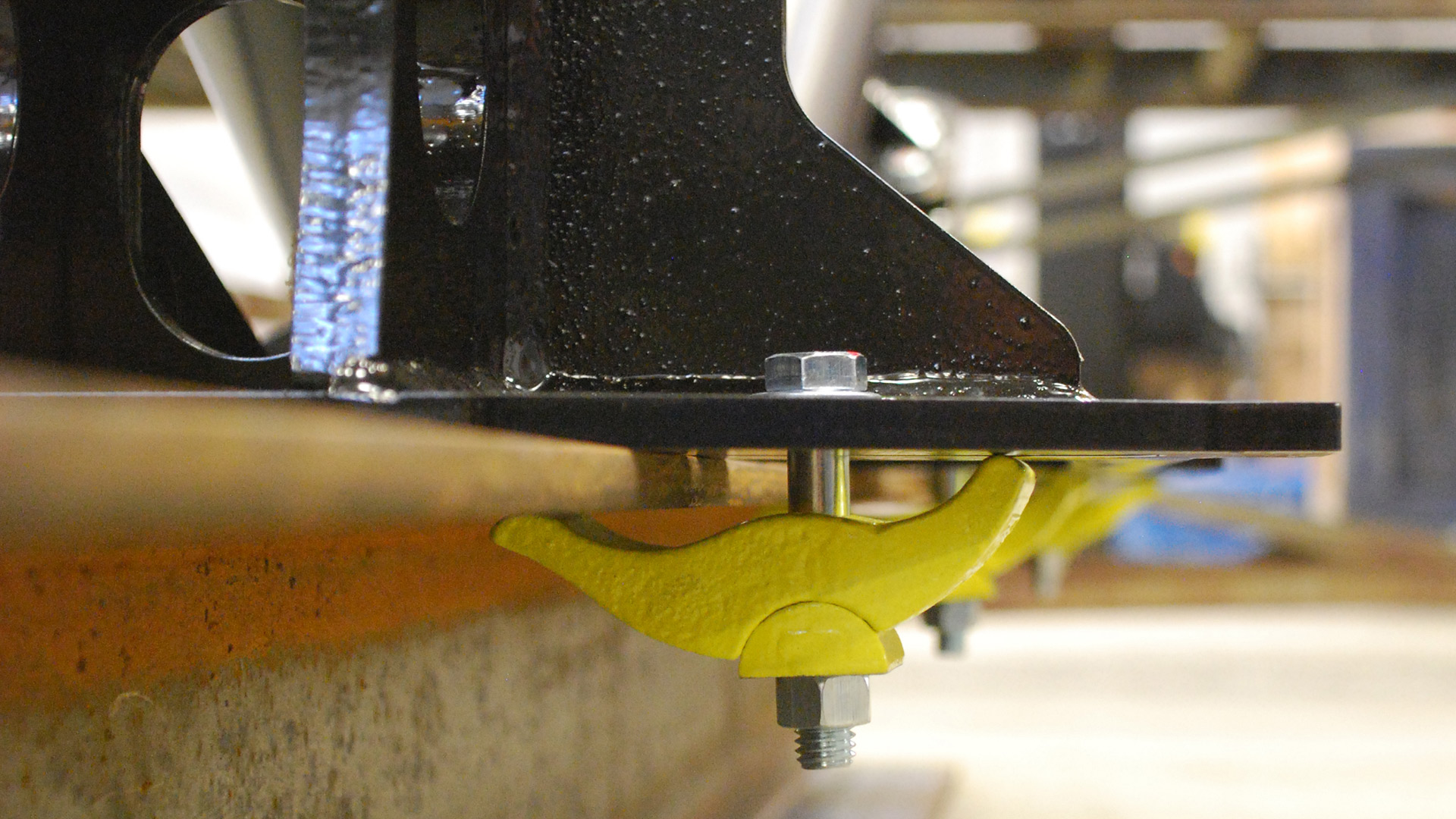

Engineered for durability and a long working life, the HZDD60-200 is versatile with a diameter range of 16” - 60”. It can be securely clamped to I-beams or other support structures, offering added stability and functionality, thanks to its quick clamp system that accommodates a 5 - 12-inch structural beam flange range. For further convenience, the HZDD60-200 can be customized with optional jacking systems for easy loading and unloading, and a selection of high-grade urethane rollers or cones to protect and guide pipes effectively. If interested in beam clamp rollers with different specifications, please check out our 1 Ton Unidirectional Beam Clamp Roller: HZD12-100, 1 Ton Unidirectional Beam Clamp Roller: HZ6-200, 2 Ton Unidirectional Beam Clamp Roller: HZ2-100 or 5 Ton Unidirectional Beam Clamp Roller: HZD-100.
