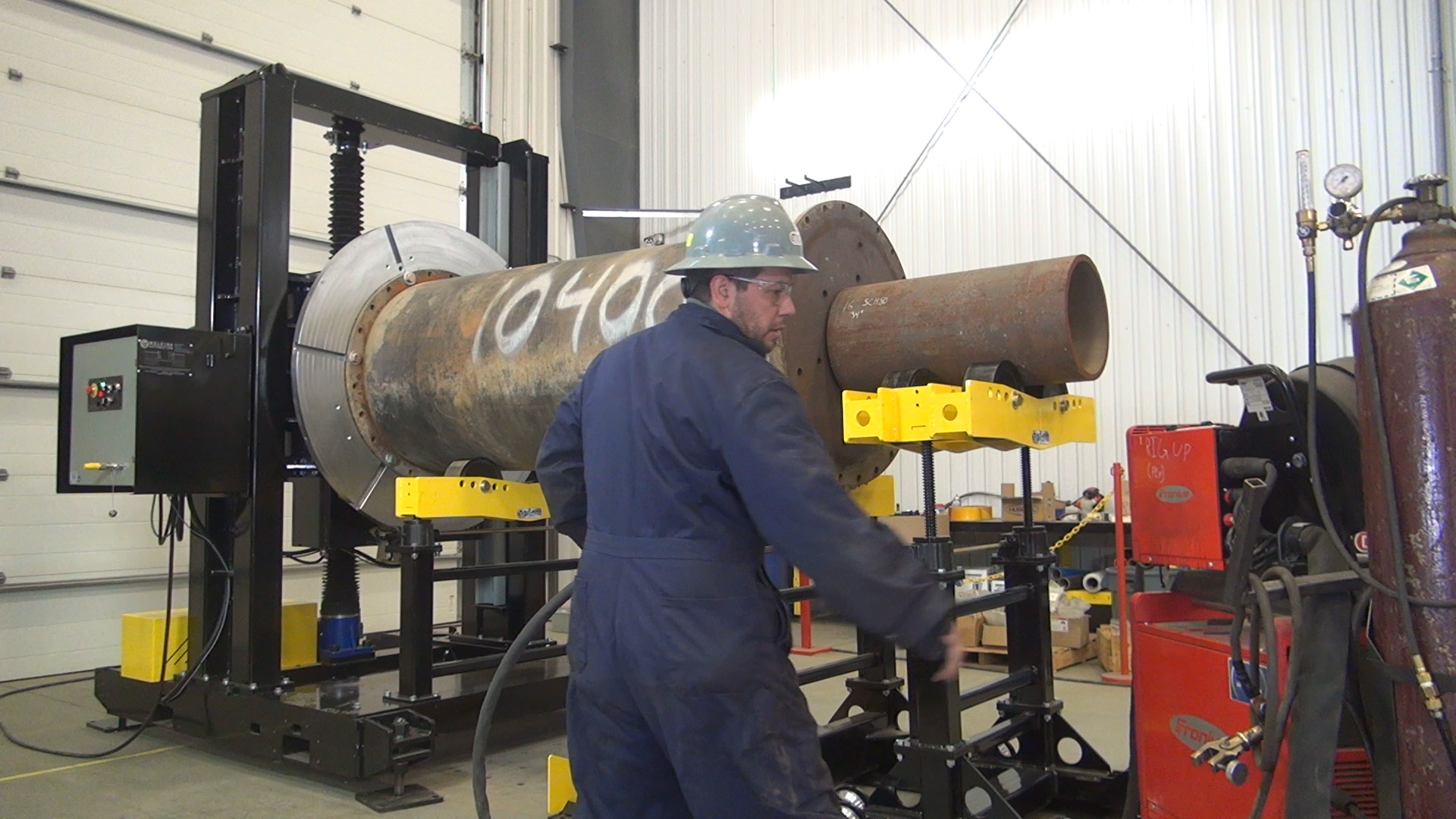

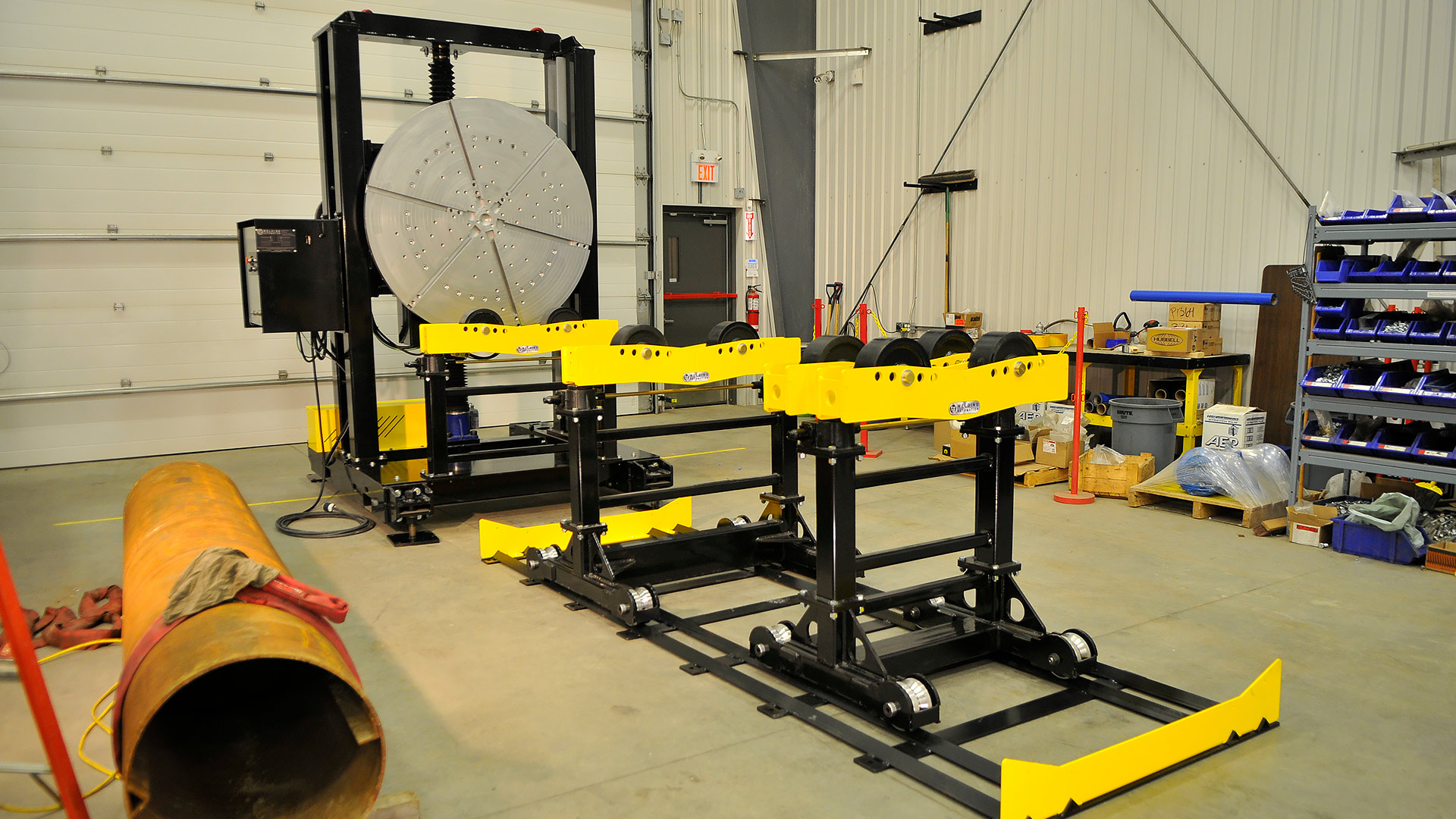

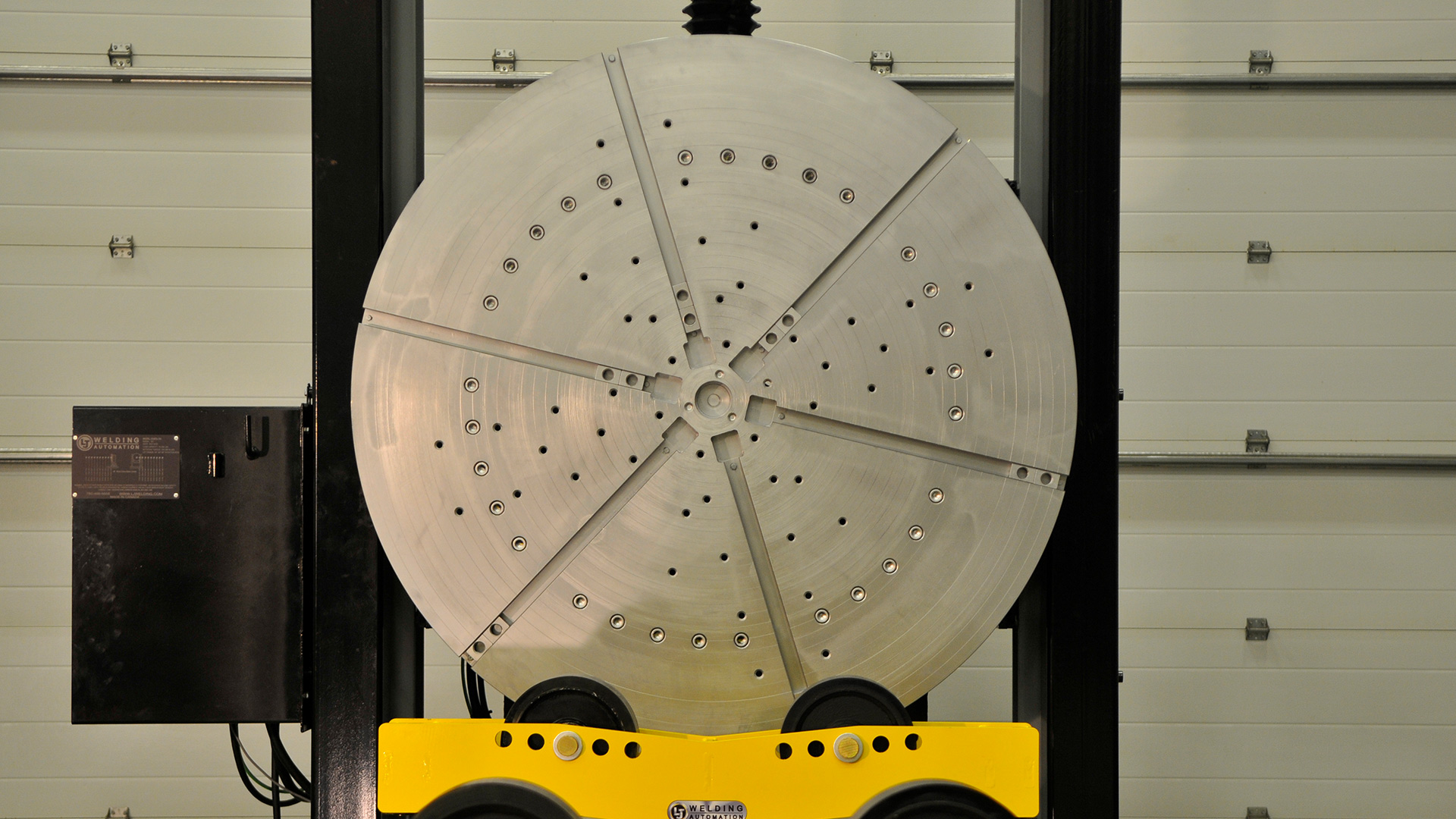

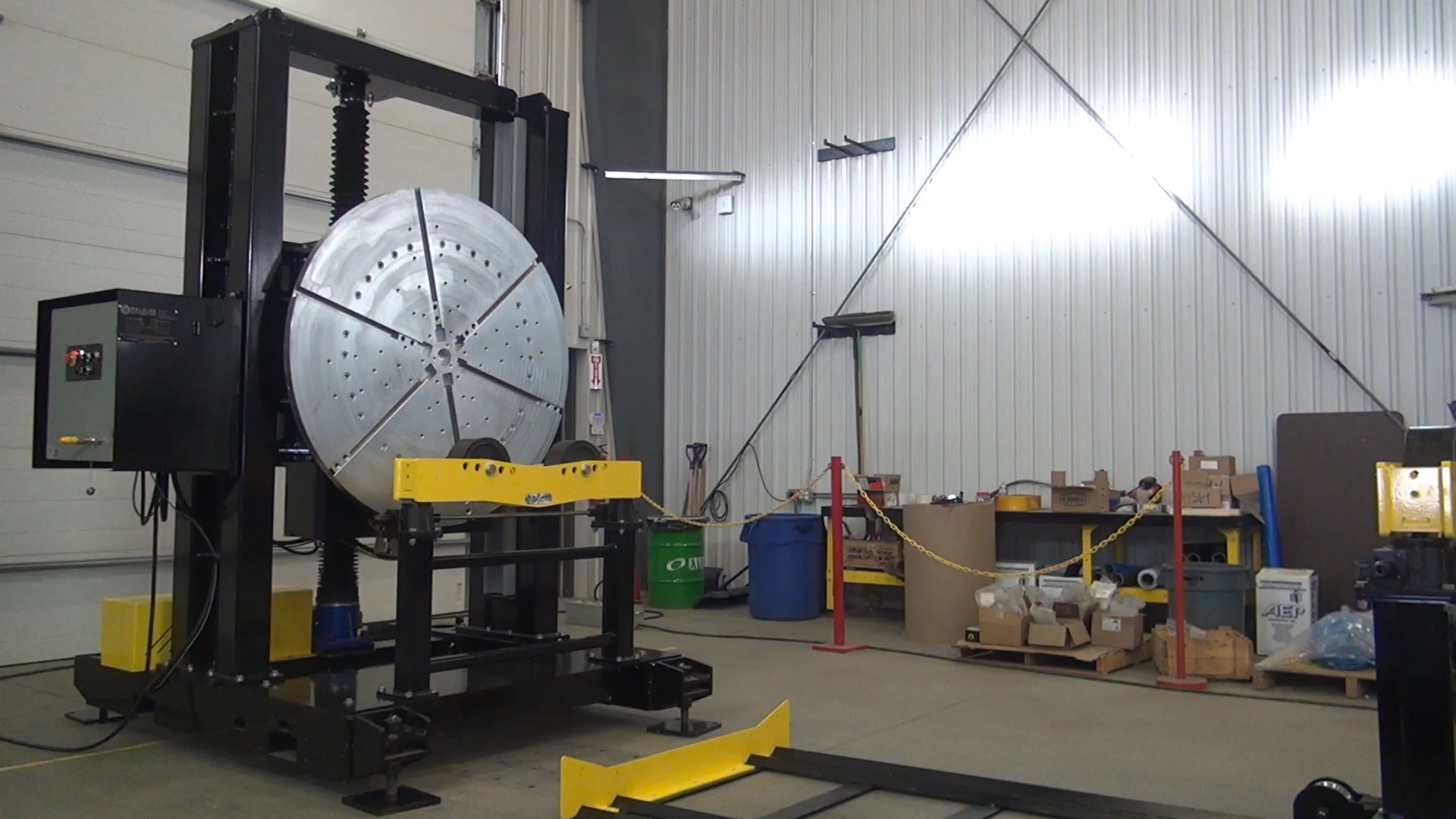

24,000 lb Pipe Turning Positioner: H24PS-100

Built for heavy-duty use and long working life and engineered for maximum flexibility, the 24,000 lb Pipe Turning Positioner H24PS-100 can be fully integrated with a manipulator or paired with a robot for complete automation and optimal productivity. Automated height and rotation adjustments enable fast alignment and the smooth, controlled rotation of heavy workpieces, minimizing material handling and reducing production costs associated with the need for extra labour and equipment and optimizing workplace safety, efficiency and productivity.

Automated powered adjustments can be controlled remotely with a wireless hand pendant, footswitch, or locally at the push of a button. Powered height adjustability between 42-96 inches can be modified to meet the specific requirements of our customers.

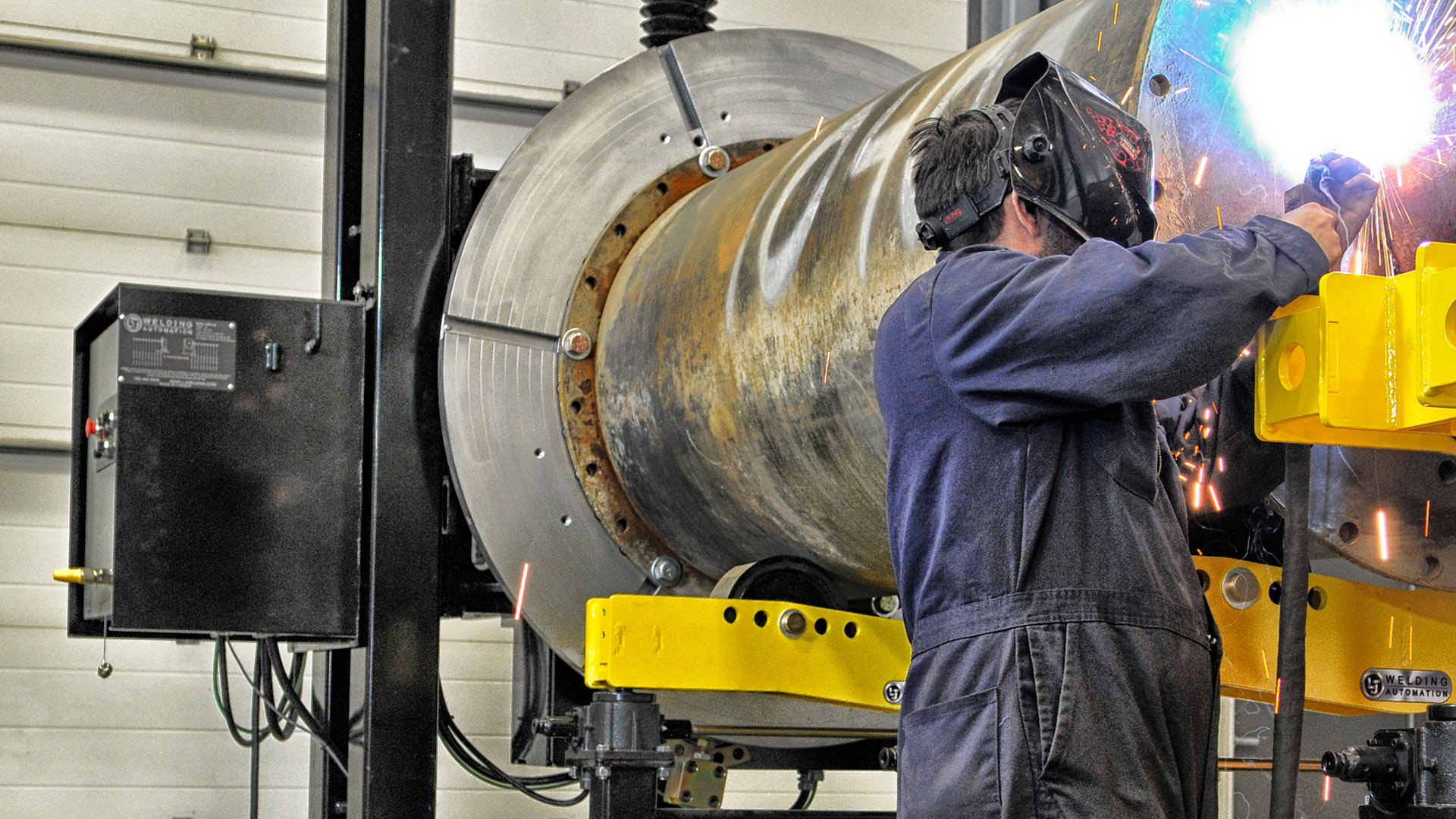

It allows the optimal alignment of workpieces and the most effective torch position for welders or a robotic interface, allowing operators to deliver the most efficient, consistent, and highest-quality welds.

Robust and durable, this positioner has 250,000 in-lbs turning torque and a rotation speed that is adjustable between 0.05 - 1.2 rpm that can be modified to meet customer requirements. Its load capacity is 24,000 lbs at the mounting plate and doubles to 12 tons when used in tandem with a powered tailstock. This enables digitally synchronized rotation at the press of a button and allows the precise elevation and rotation of longer and heavier loads, significantly expanding the power, functionality and productivity. If you are interested in powered headstock positioners with different specs, make sure to check out our 6,000 lb Pipe Turning Positioner or 12,000 lb Pipe Turning Positioner.
