30,000 lbs Cable Reel Roller: CRR68-100

Key Benefits

LJ - ICONS-THUMBSUP-Jan-11-2023-10-34-15-5235-AM

Faster, safer and more accessible

Maximize task productivity on the job site

LJ - ICONS-CROSSHAIR-Jan-11-2023-10-34-30-2982-AM

Best-in-class performance and safety features

LJ - ICONS-GEAR1-Jan-11-2023-10-34-36-0632-AM

Heavy-duty use and long working life

Minimize material handling and worker fatigue

Improve workplace safety and optimize productivity

Available Accessories

Hand Pendants

Bidirectional style

Foot Switch

Forward/Reverse standard

Rollers

Hourglass style rollers to protect, support, and guide cable

Input Power Options

As per standard spec or to customer requirements

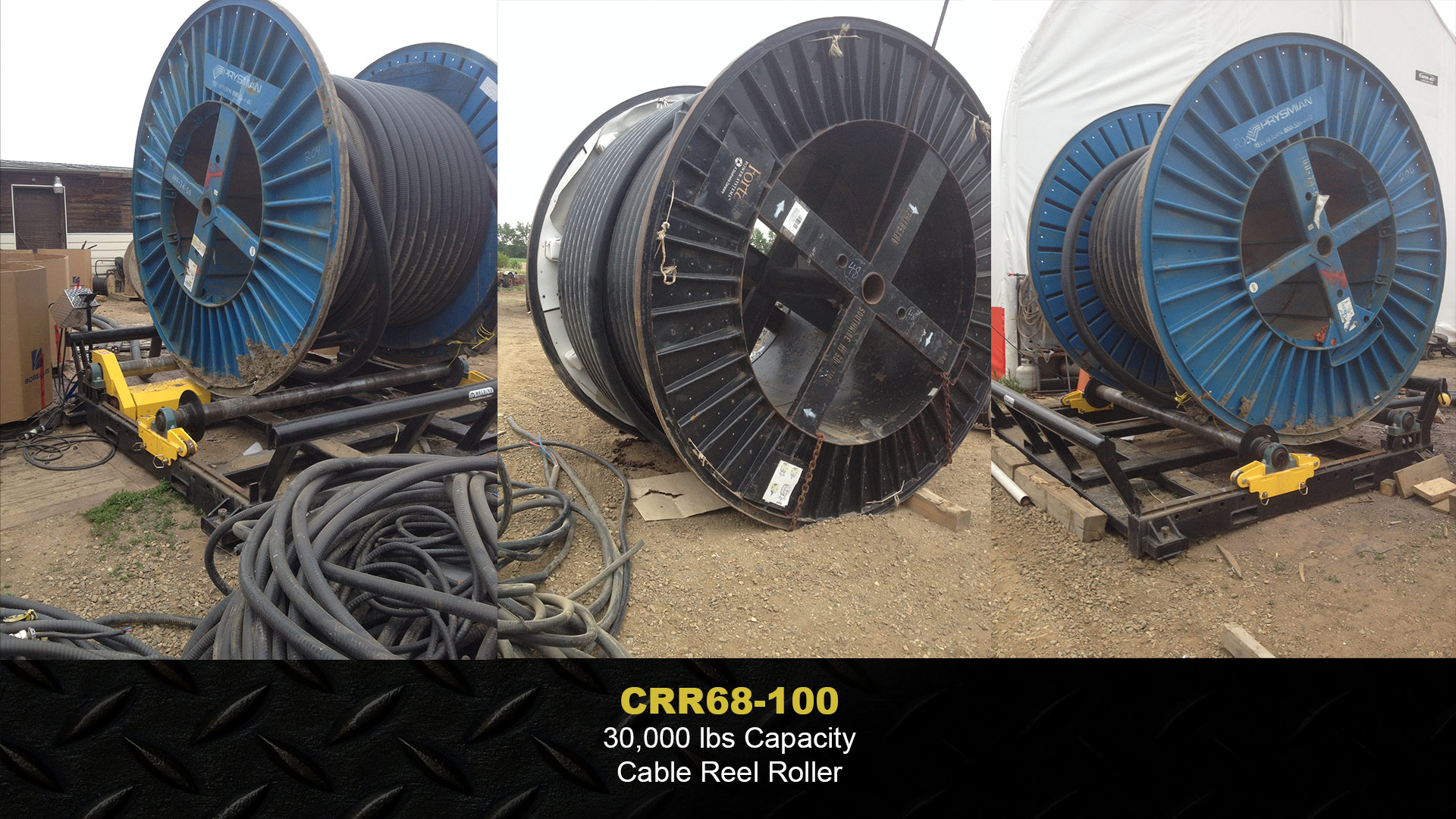

LJ's cable reel rollers are used for unwinding, rolling or handling heavy spool cables. The CRR68-100 is a low-profile, high-capacity cable reel roller that makes handling and rolling heavy spool cables faster, safer and easier. It is designed to maximize task productivity on the job site and offers best-in-class performance and safety features. Engineered for heavy-duty use and long working life, the CRR68-100 has a load capacity of 15 tons and a spool size range between 2–12 ft in diameter with an 8 ft maximum width. Powered by 5,000 in-lbs output torque, the rotational speed is adjustable between 48 - 480 in/min and can be remotely controlled with variable speed bi-directional controls.

The CRR68-100 reduces reeling start and stops, freeing up time for other value-add activities and the need for additional labor and equipment. It minimizes material handling and worker fatigue, improving workplace safety and optimizing productivity. It has a slip clutch for gearbox and over-torch protection, a quick-adjust carriage for diameter settings, and forklift pockets. In addition, we offer a range of customization options and accessories that help expand our equipment's functionality, efficiency, and productivity. These include input power supply and control options such as hand pendants and bi-directional or variable speed foot switches. And optional anti-tipping safety catch and levelling feet.

Another Application

We, at LJ Welding, try to bring you the best products that satisfy your demands.
If you are looking for a similar product with different specs, have a look at our:

LJ Welding's engineering department provides a progressive approach to solving the
unique problems that inevitably arise in our industry, resulting in efficient design,
fabrication, and timely delivery of custom equipment.

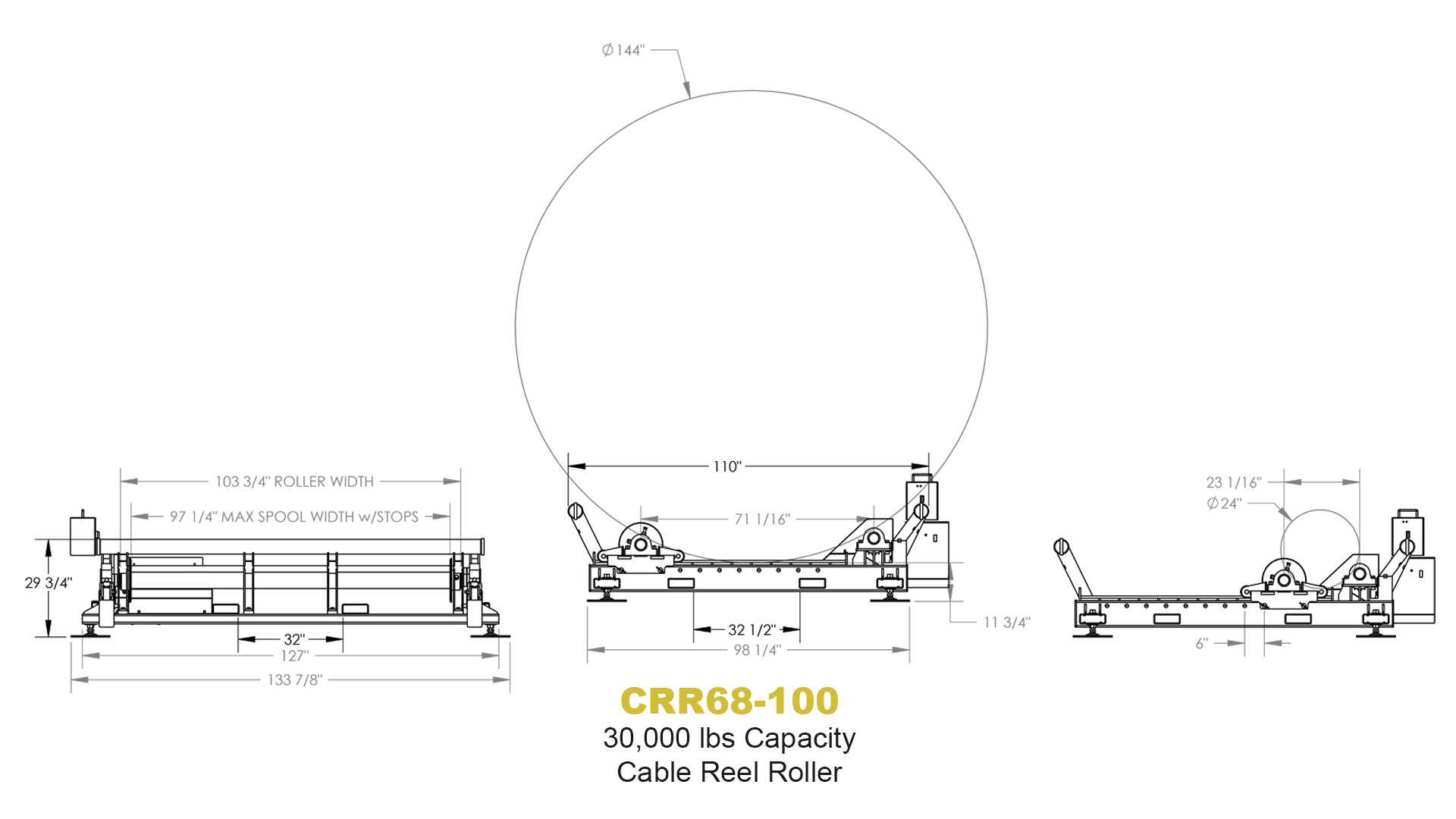

Loading Capacity	30,000 lbs (15-ton)
Footprint	132” x 110” x 29-¾”
Spool Size Range	OD: 24” - 144”, Roll Width: 96” Max
Tractive Effort	2,100 lbs
Turning Torque	5,000 in-lbs
Turning Speed	3 - 30 RPM (48 – 480 in/min)
Height Range	26-3/16”” - 29-3/16” (top of roller), Fine height adjustment
Power Requirements	220V, 1-ph
Weight	3,015 lbs
Brake Torque	Adjustable slip clutch - consult LJ Welding for specifications
Controls	Variable Speed, Forward/Reverse AC Drive, optional foot or hand switches
