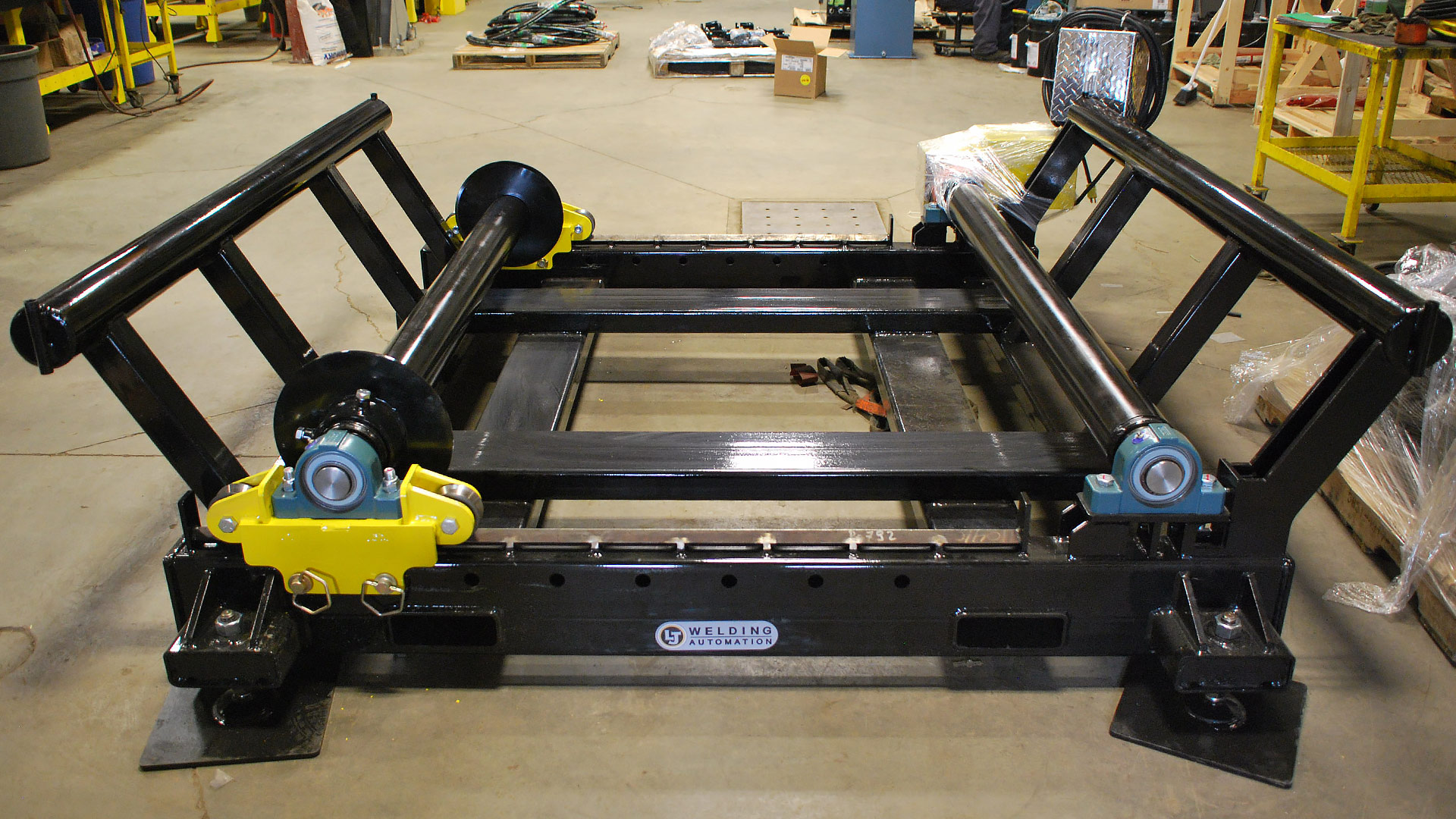

20,000 lbs Cable Reel Roller: CRR55-100

KEY SPECIFICATIONS

Loading Capacity	20,000 lbs (10-ton)
Footprint	104-3/16” x 95-¾” x 29-¾”
Spool Size Range	OD: 24” - 96”, Roll Width: 63” Max
Tractive Effort	880 lbs
Turning Torque	2,200 in-lbs
Turning Speed	2.5 - 47.5 RPM (30 - 750 in/min)
Height Range	19-1/8”” - 22-1/8” (top of roller), Fine height adjustment
Power Requirements	220 V, 1-ph
Weight	2,200 lbs
Brake Torque	Adjustable slip clutch - consult LJ Welding for specifications
Controls	Variable Speed, Forward/Reverse AC Drive, optional foot or hand switches

Faster, safer and more accessible cable handling operations

Maximize task productivity on the job site with adjustable rotational speed

Best-in-class performance and safety features in a compact design

Heavy-duty use and long working life ensured by robust construction

Minimize material handling and worker fatigue with the quick-adjust carriage

Improve workplace safety and optimize productivity using bi-directional control options

Our CRR55-100 20,000 lbs cable reel roller is designed for impeccable efficiency and safety during unwinding, rolling or handling of heavy spool cables. With a load capacity of 10 tons, this cable drum roller accommodates a spool size range between 2–8 ft in diameter and a maximum width of 5 ft. Offering best-in-class performance, it is powered by an impressive 2,200 in-lbs output torque and features an adjustable rotational speed between 2.5 - 47.5 RPM, or 30 - 750 in/min. This reliable and compact piece of equipment is equipped with variable speed bi-directional controls for ultimate precision. Designed with an eye for user safety, the CRR55-100 reduces frequent reeling starts and stops, thereby enhancing productivity while minimizing worker fatigue.

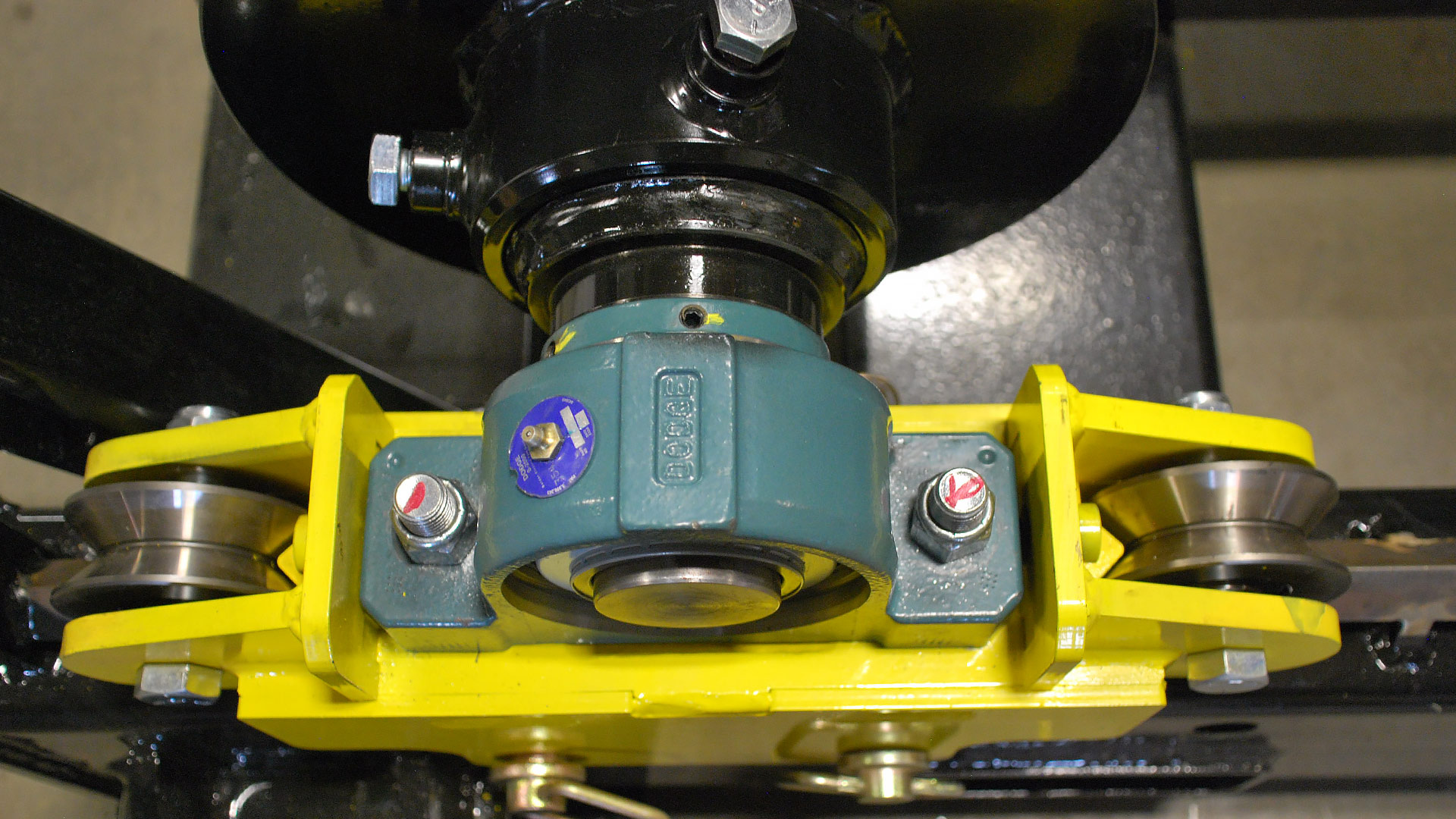

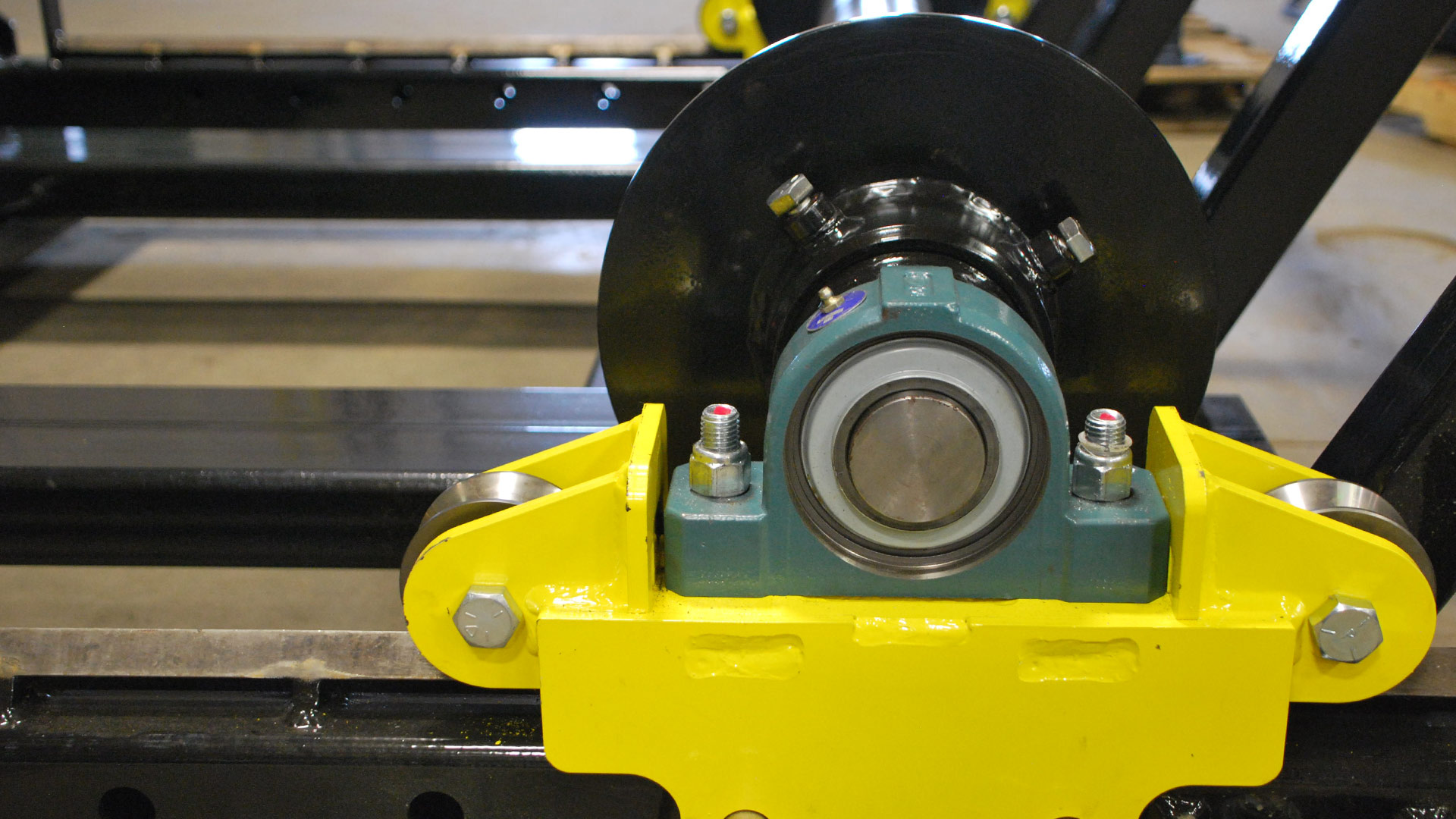

It boasts a fine height adjustment mechanism and comes with a slip clutch for gearbox and over-torch protection. Moreover, for better site maneuverability, it features a quick-adjust carriage for diameter settings, forklift pockets and an optional anti-tipping safety catch. With a range of customization options, including different input power supplies and control choices such as hand pendants or variable speed foot switches, this versatile 20,000 lbs cable reel roller stands out for its functionality, efficiency, and productivity. If you are interested in a cable reel roller with different specs like loading capacity or footprint, make sure to check out our 30,000 lbs Cable Reel Roller: CRR68-100 or 80,000 lbs Cable Reel Roller: CRR810-100.

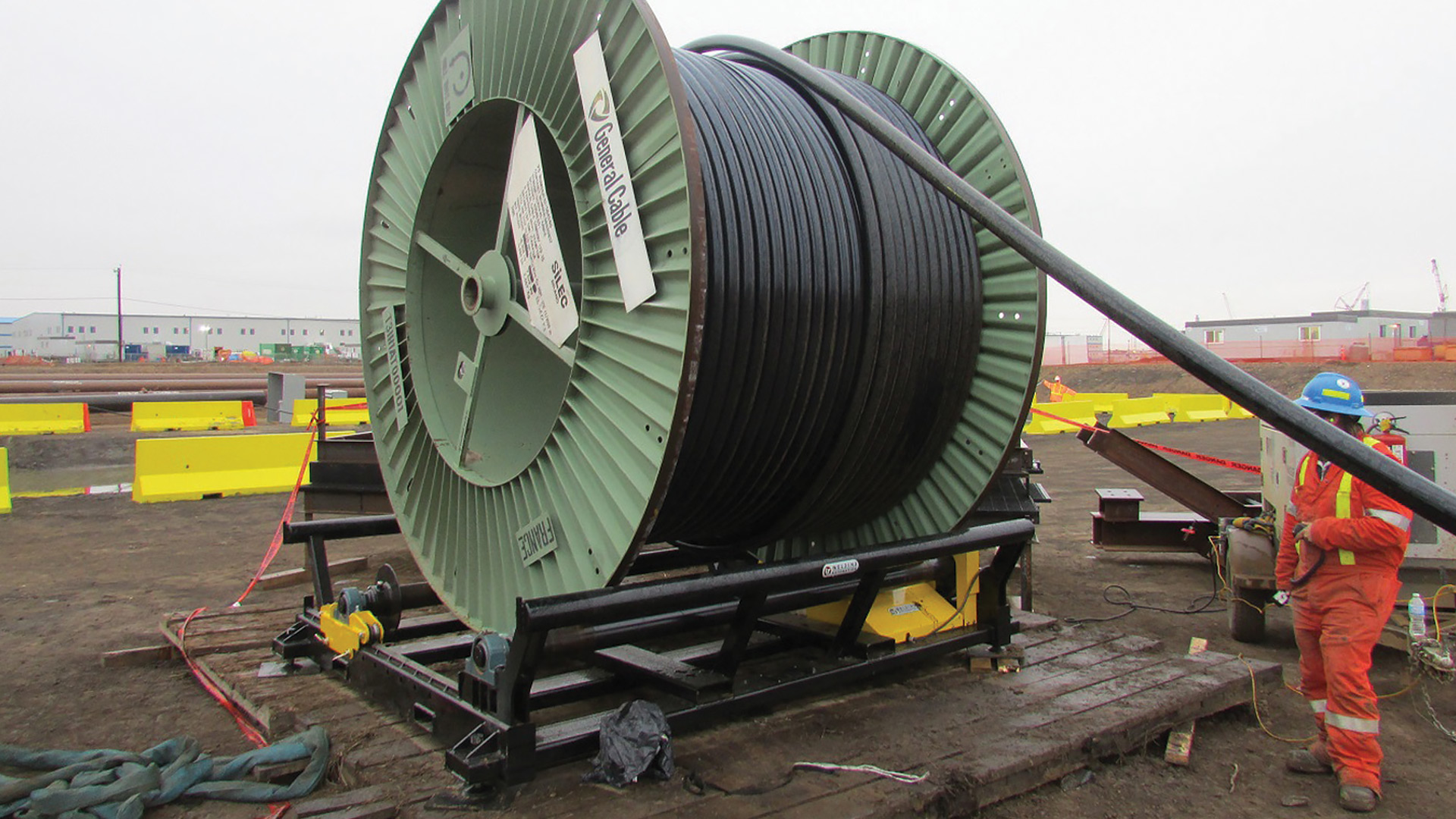

Another Application

We, at LJ Welding, try to bring you the best products that satisfy your demands.
If you are looking for a similar product with different specs, have a look at our:

CRR68-100
30,000 lbs Cable Reel Roller

CRR810-100
80,000 lbs Cable Reel Roller

LJ Welding's engineering department provides a progressive approach to solving the
unique problems that inevitably arise in our industry, resulting in efficient design,
fabrication, and timely delivery of custom equipment.
