KEY SPECIFICATIONS

Loading Capacity

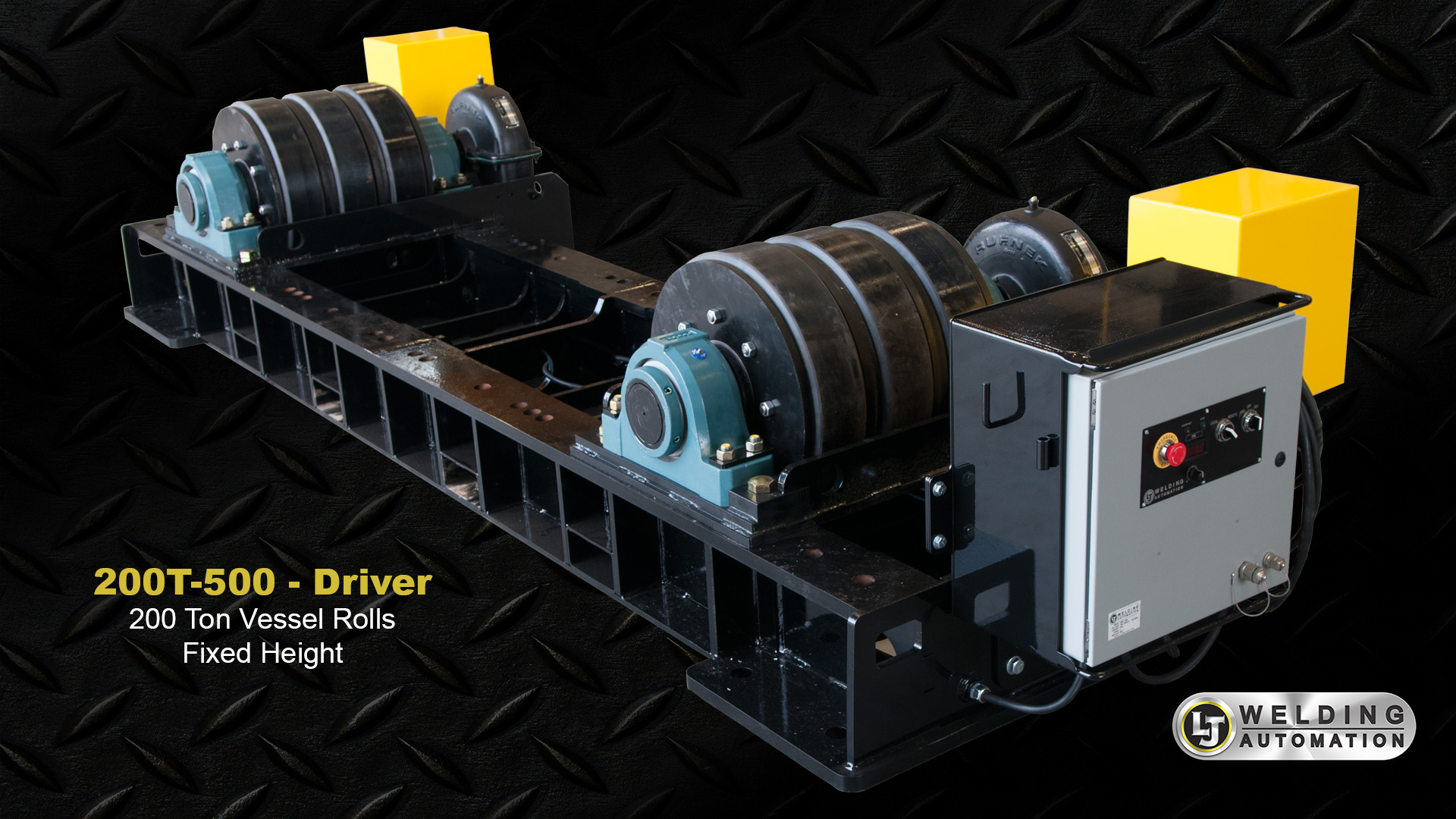

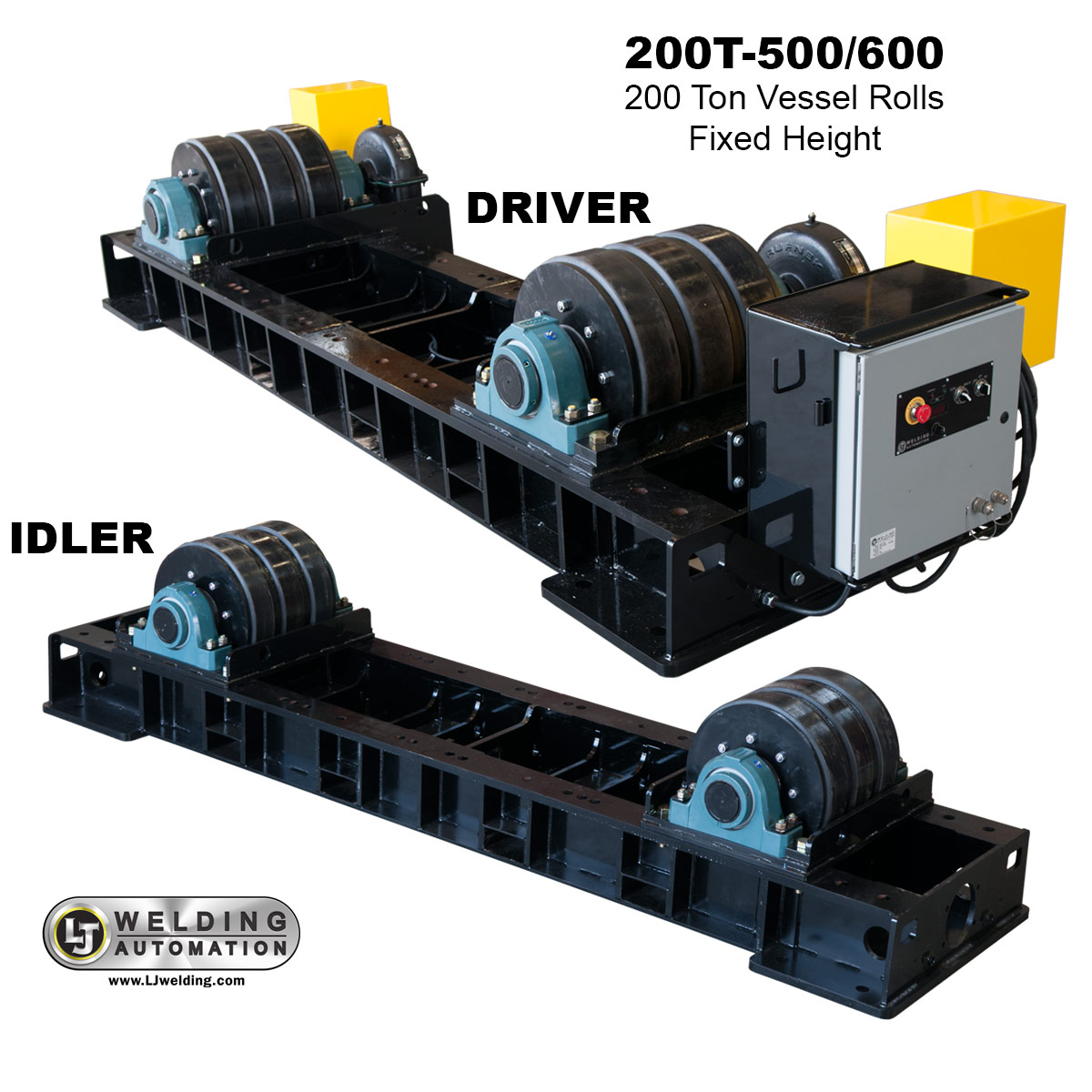

Driver: 200,000 lbs (100-ton);

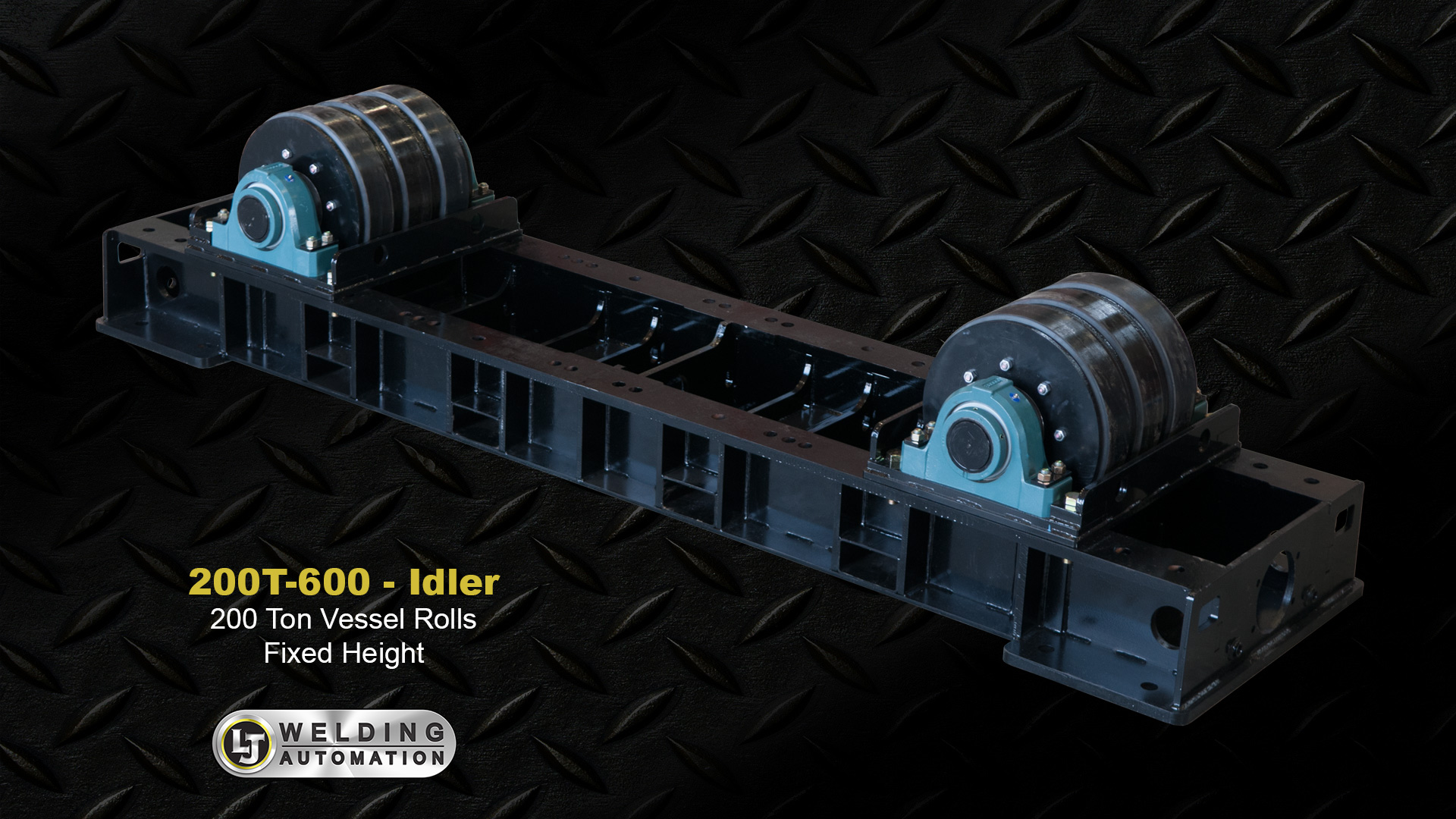

Idler: 200,000 lbs (100-ton)

Footprint

Driver: 55-3/4" x 188-1/8" x 34-5/8";

Idler: x 42" x 162-1/4" x 31-1/2"

Diameter Range

18” - 312”

Tractive Effort

20,400 lbs (Dual drive)

Turning Torque

240,000 in-lbs

Turning Speed

5–50 in/min

Height Range

31-½” (Top of wheel), Fixed height

Power Requirements

480 V, 3-ph

Weight

Driver: 9,500 lbs;

Idler 7,535 lbs
