- LJ Tank Fit-Up Rolls are designed for specialty applications where pipe or vessels require precise, fast alignment and fine leveling for fit up and welding, and offer compensation for inconsistencies in shop floor ground.
 |
Improved Productivity: Fast and safe alignment and fit-up |
 |
Shock Resistance: LJ's Tank Fit-Up Rolls provide durable design that is absorbs shock during automatic welding |
 |
Multiple Sections: The modular design allows users to add sections for longer tanks, without compromising support |
 |
Higher ROI: Reduce reliance on expert welders, reduce skilled operators costs and enjoy high ROI on your welding investments |
Side-By-Side Tank Fit Up Roll Comparison
| Specifications |

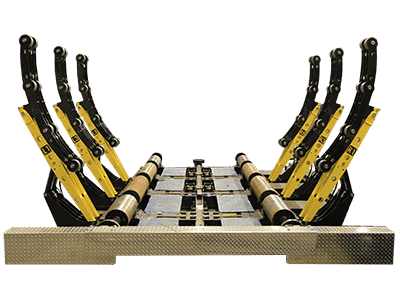

ALG-412 Tank Fit Up Rolls (Roller Bed Style)
|
ALG-512 Tank Fit Up Rolls (Fully Automated Rolls)
|
| Load Capacity | Up to 60 tons (4 tons per 8-foot section) |
Up to 20 tons (5 tons per 5-foot section) |
| Diameter Range | 3 ft - 14 ft | 5 ft - 14 ft |
| Drive System | Dual Drive, Drive-Shaft Free Style | Dual Drive, Drive-Shaft Free Style |
| Tractive Effort | 6,000 lbs | 6,000 lbs |
| Footprint | Varies depending on customer requirements | Varies depending on customer requirements |
| Power Requirements | 480 V, 3-ph | 480 V, 3-ph |
| Rotation Speed | 5 - 96 in/min | 5 - 96 in/min |
| Equipment Mass | 8,300 lbs (5 sections) | 11,300 lbs (5 sections) |
