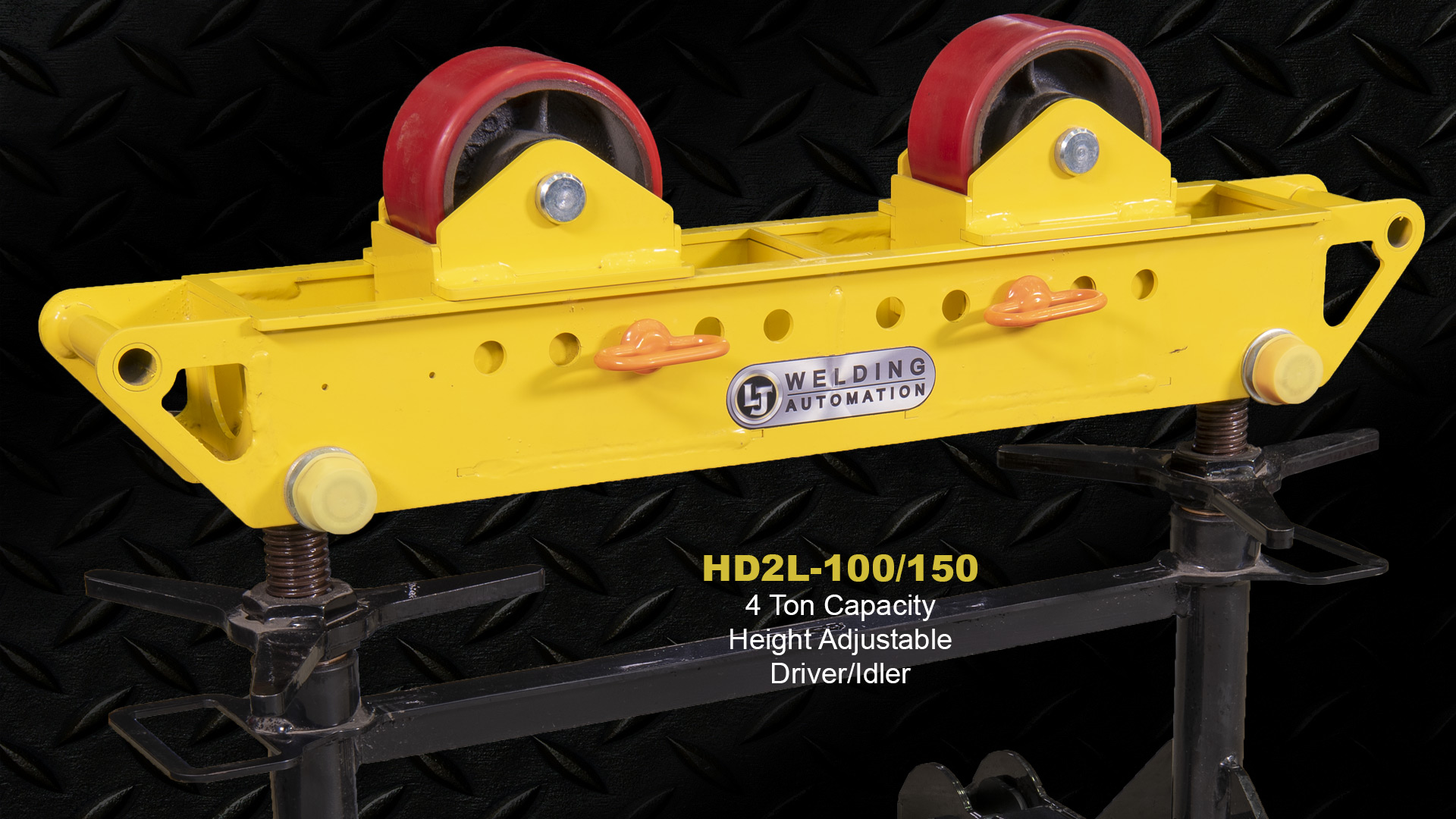

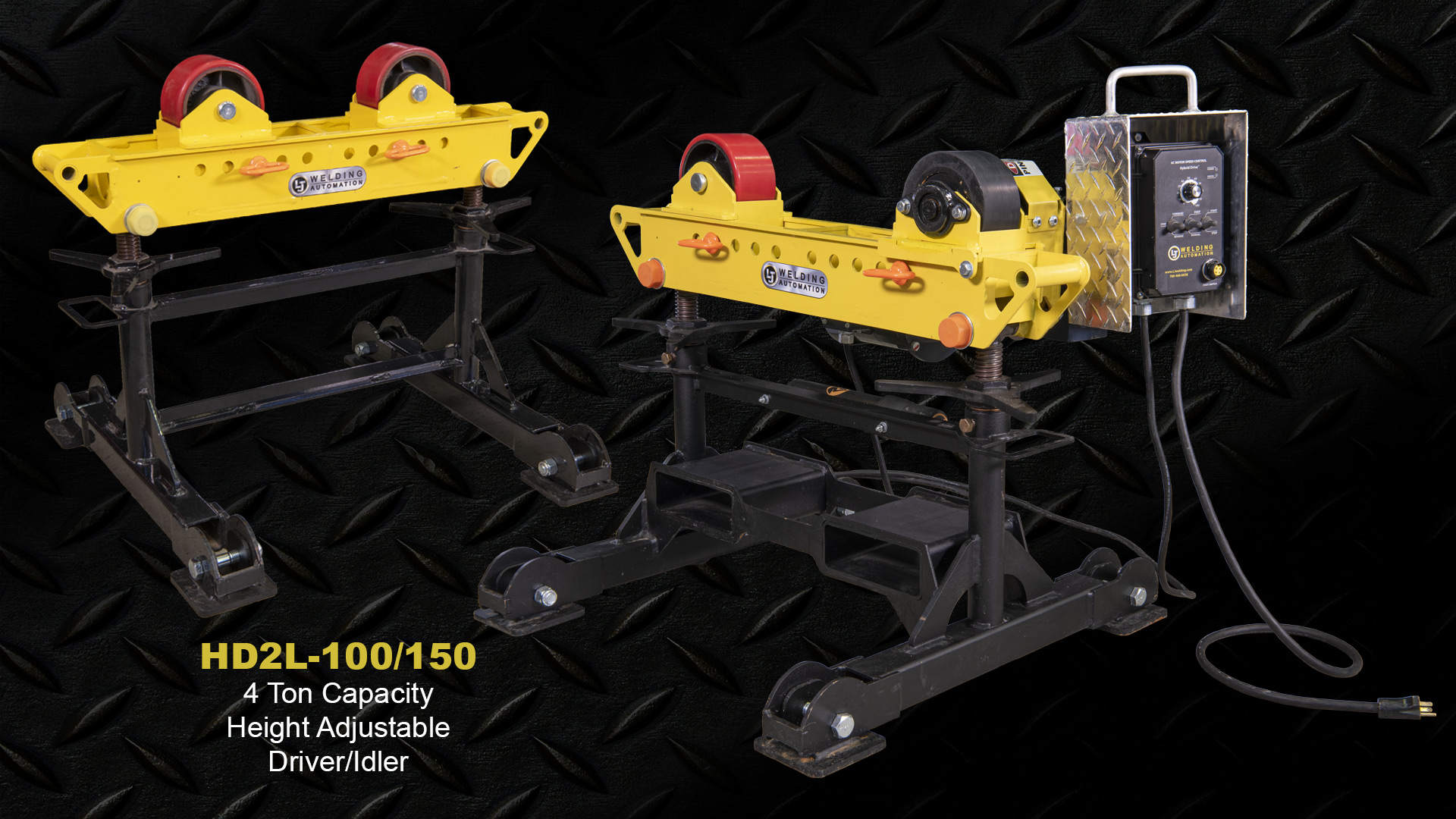

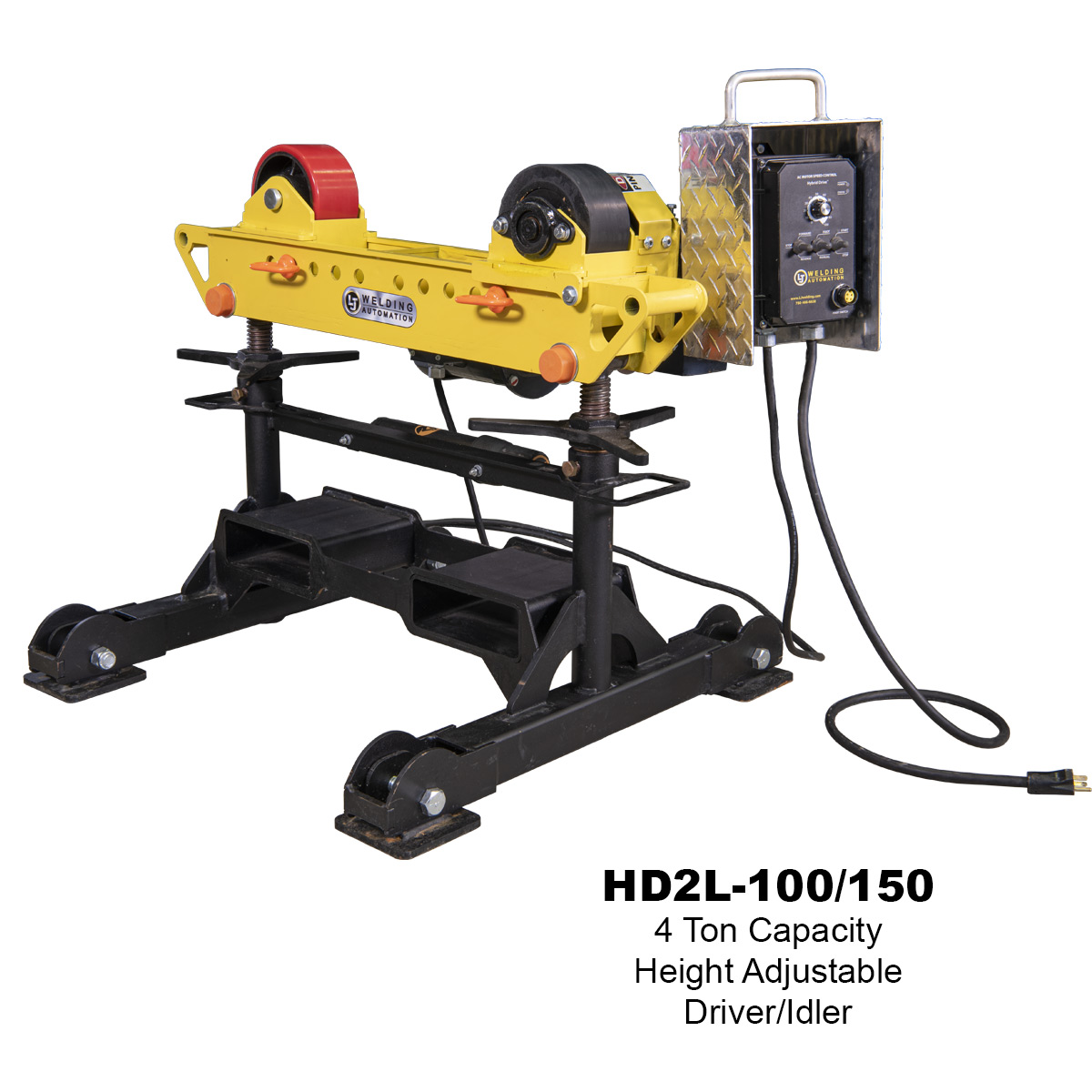

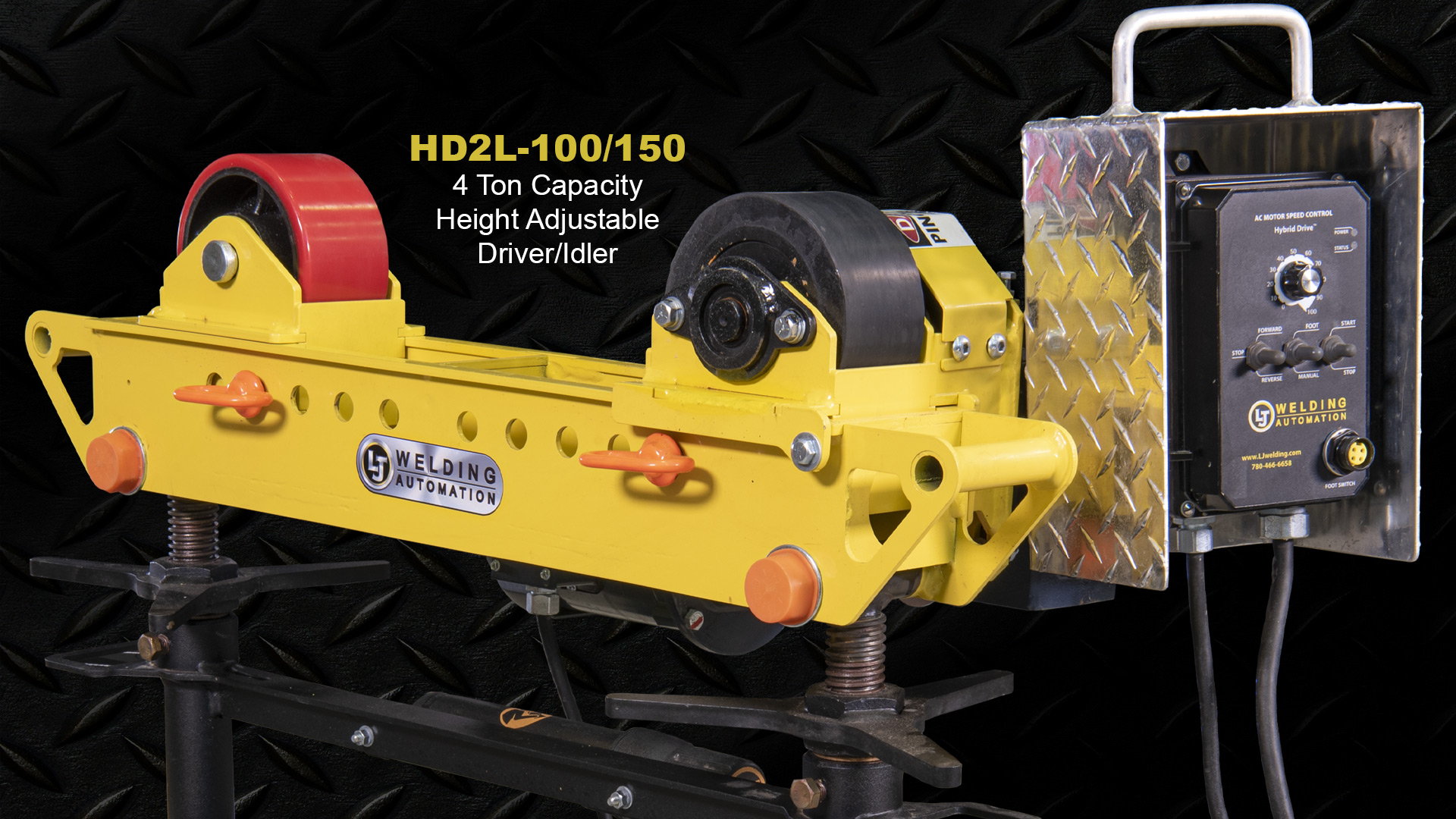

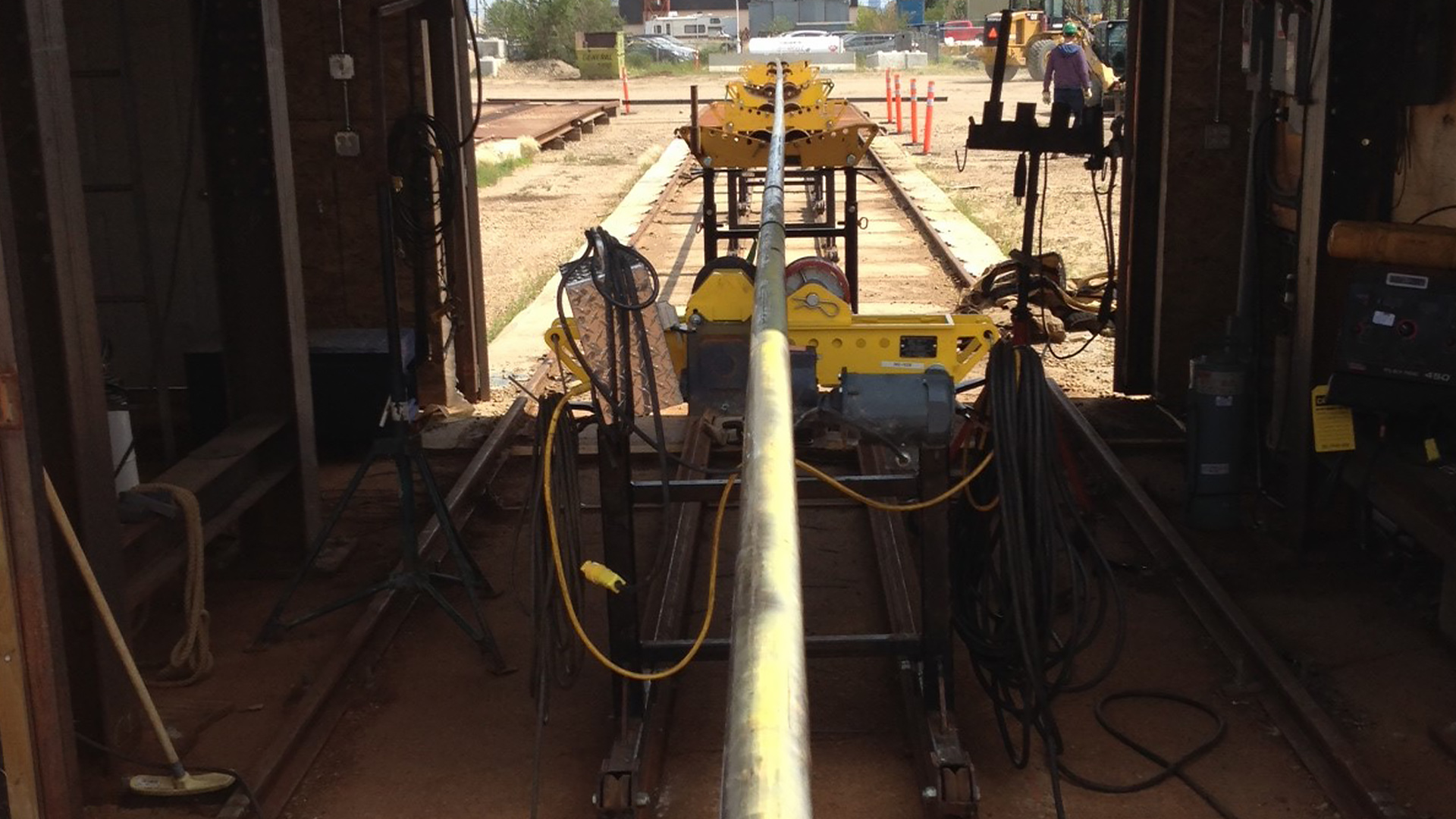

4 TON HEIGHT ADJUSTABLE DRIVER/IDLER: HD2L-100/150

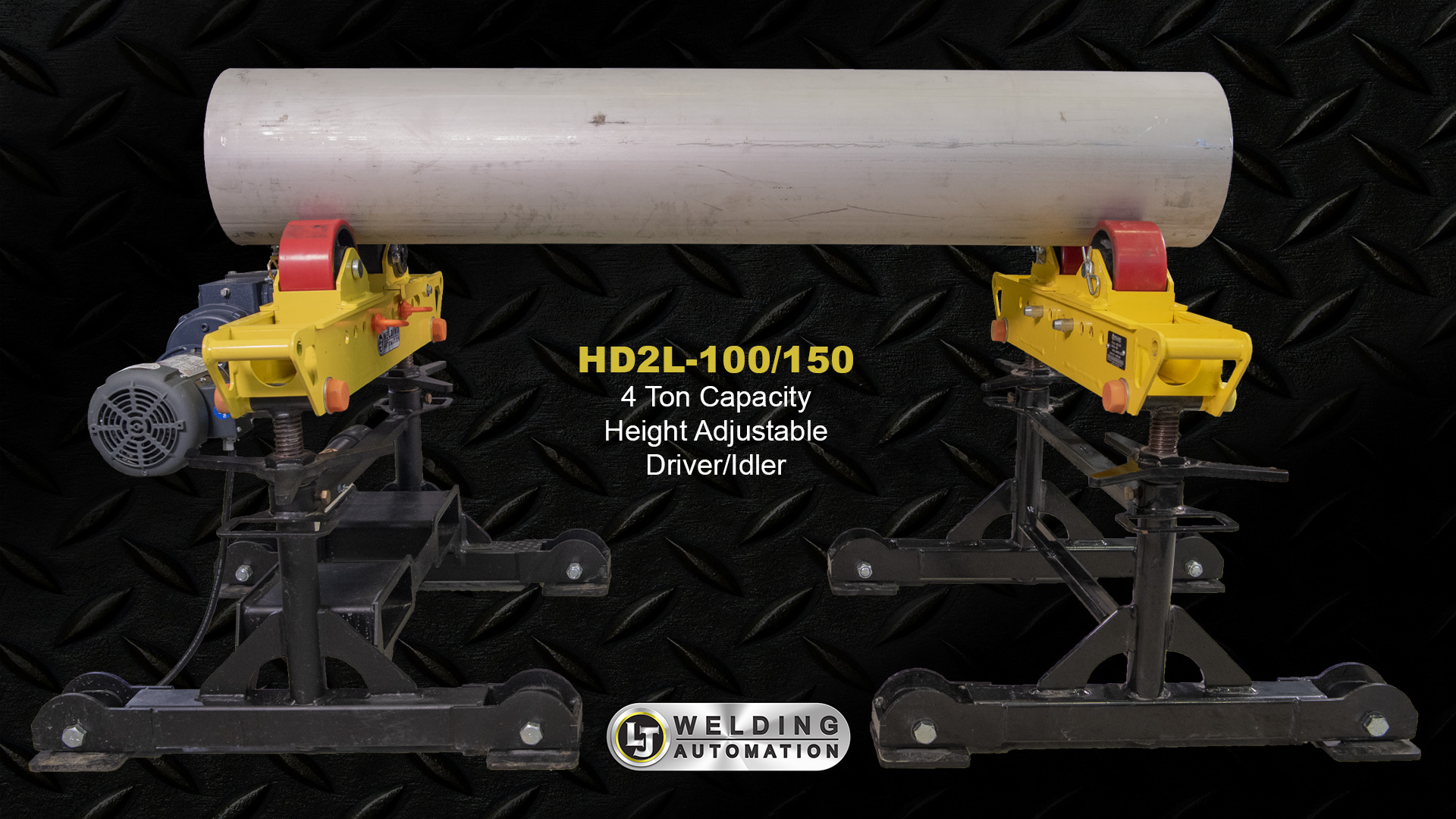

LJ Welding's 4-Ton Height Adjustable Pipe Rolls are cost-effective and user-friendly equipment for pipe welding applications ranging from light tubes to extra-heavy walled pipe. It provides precise rotation for pipe fabrication that requires minimal floor space, and they are built for reliability and endurance for the longest possible service life. With a load capacity of 8,000 lbs, which is evenly distributed between the driver and idler, this positioner is designed for welding cylindrical workpieces with a diameter range of 2” to 36”. The HD2L-100/150 features a rotation system with a tractive effort of 650 lbs, a turning torque of 2,000 in-lbs and a turning speed of 8-80 in/min. The height of the top of the wheel ranges from 27-5/8" - 39-5/8", and the device has a fine height adjustment feature.

The HD2L-100/150, can significantly improve your welding operations. Our equipment provides fast and efficient production, precise welds, and reduces the need for highly skilled labor. Additionally, using our equipment is more convenient and comfortable for welders working at a shop bench, which leads to improved production. Our machines help capture quality circumference joints on shells and require less usage of lifting or cranes for optimal performance. Furthermore, our equipment is built for longevity of service and reliability, and it offers many options and features that can be added to the machine depending on the customer's demands. If you're looking for pipe turning equipment with different technical specifications, make sure to check out our 8-ton low profile pipe roll stand SHD-700/750 or the 8-ton geared height-adjustable pipe roller stand SHD-800/850.
