TURNING ROLLS: HEIGHT ADJUSTABLE VESSEL ROTATORS

  • LJ's Height Adjustable Turning Rolls with dual adjustable drive heads designed such that load can always be centered on rolls; urethane wheels to protect and grip the workpiece. Standard features include height adjustability for safe and stable clearance of fittings
5-removebg-preview Faster Cycle Times: Reducing changeover effort and delivering optimal weld performance resulting in faster cycle times
10-removebg-preview Longevity: Our Height Adjustable Vessel Rollers provide durability and quality pipe rolling even after years of use
LJ_-_ICONS-GRAPH1-removebg-preview Precise Rotation & Positioning: Significantly improving the efficiency and quality of circumferential joints while decreasing the production cost of materials
LJ_-_ICONS-THUMBSUP-removebg-preview Worker Ergonomics: Available features maximize operator performance with improved ergonomics and reduced physical strain while delivering consistently high-quality welds
4-removebg-preview Seamless Integration: Using our turning rolls ensure minimum shell/job handling and seamless integration with manipulator applications

LJ'S HEIGHT ADJUSTABLE VESSEL ROTATORS SELECTION

Side-By-Side Height Adjustable Vessel Rotators Comparison

Specifications

12-Ton Tank Turning Roll Set (06R-100A/200)

06R-100A-200-Thumbnails-2

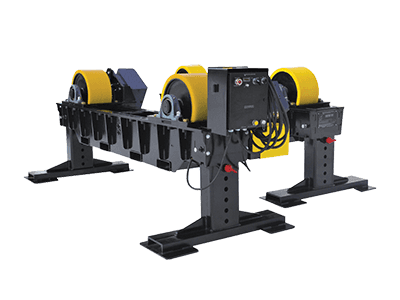

20-Ton Tank Turning Roll Set (10TRV-100/200)

10TRV-500-600-thumb-300-2

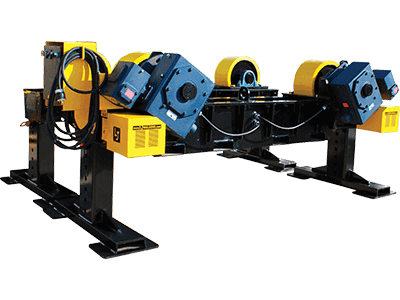

40-Ton Tank Turning Roll Set (20TRV-100/200)

20TRV-500-200-thumb-300-1

Loading Capacity

Driver: 12,000 lbs (6-ton);

Idler: 12,000 lbs (6-ton)

Driver: 20,000 lbs (10-ton);

Idler: 20,000 lbs (10-ton)

Driver: 40,000 lbs (20-ton);

Idler: 40,000 lbs (20-ton)

Footprint

Driver: 34-5/8" x 104-3/8" x 26-3/4";

Idler: 34" x 103-1/4" x 26-3/4"

Driver: 44" x 123-7/16" x 33";

Idler: 44" x 112-5/8" x 33"

Driver: 44" x 136-1/8" x 34-5/8";

Idler: 44" x 155-5/8" x 31-1/4"

Diameter Range 6” - 144” 12” - 168” 12” - 168”
Tractive Effort 3,500 lbs 6,000 lbs (Dual drive) 8,700 lbs (Dual drive)

Turning Torque

25,000 in-lbs 50,000 in-lbs (Dual drive) 80,000 in-lbs (Dual drive)
Turning Speed 5–50 in/min 5–50 in/min 5–80 in/min
Height Range

23-3/4" - 39" (top of wheel),

Adjustable in 3" increments

27" - 45" (top of wheel),

Adjustable in 3" increments

30" - 48" (top of wheel),

Adjustable in 3" increments

Power Requirements 115V, 1-ph or 208/230V, 1-ph 240V, 3-ph or 480V, 3-ph
480V, 3-ph (optional: 240V, 3-ph)
Weight Driver: 1,150 lbs;
Idler: 735 lbs

Driver: 3,825 lbs;

Idler: 1,700 lbs

Driver: 3,825 lbs;

Idler: 1,700 lbs
