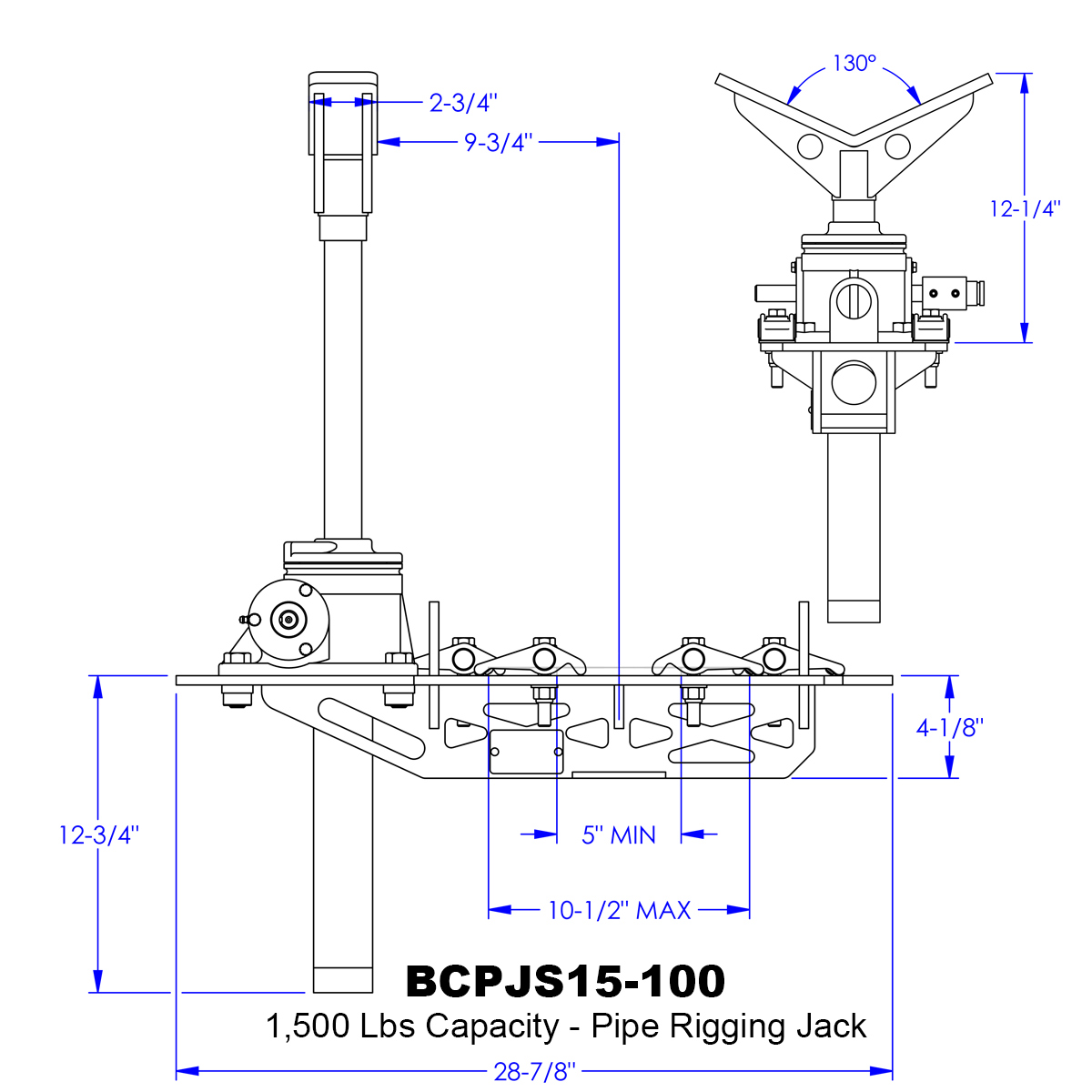

KEY SPECIFICATIONS

Loading Capacity

1,500 lbs

Pipe Diameter Range

0-12" OD

Beam Width

5" - 10.5"

Height Range

12" - 24" and screw jack adjustable

Beam Size Height (Web Height)

8" - 15"

Equipment Mass

34 lbs

Footprint

28" x 6.5"

APPLICATIONS

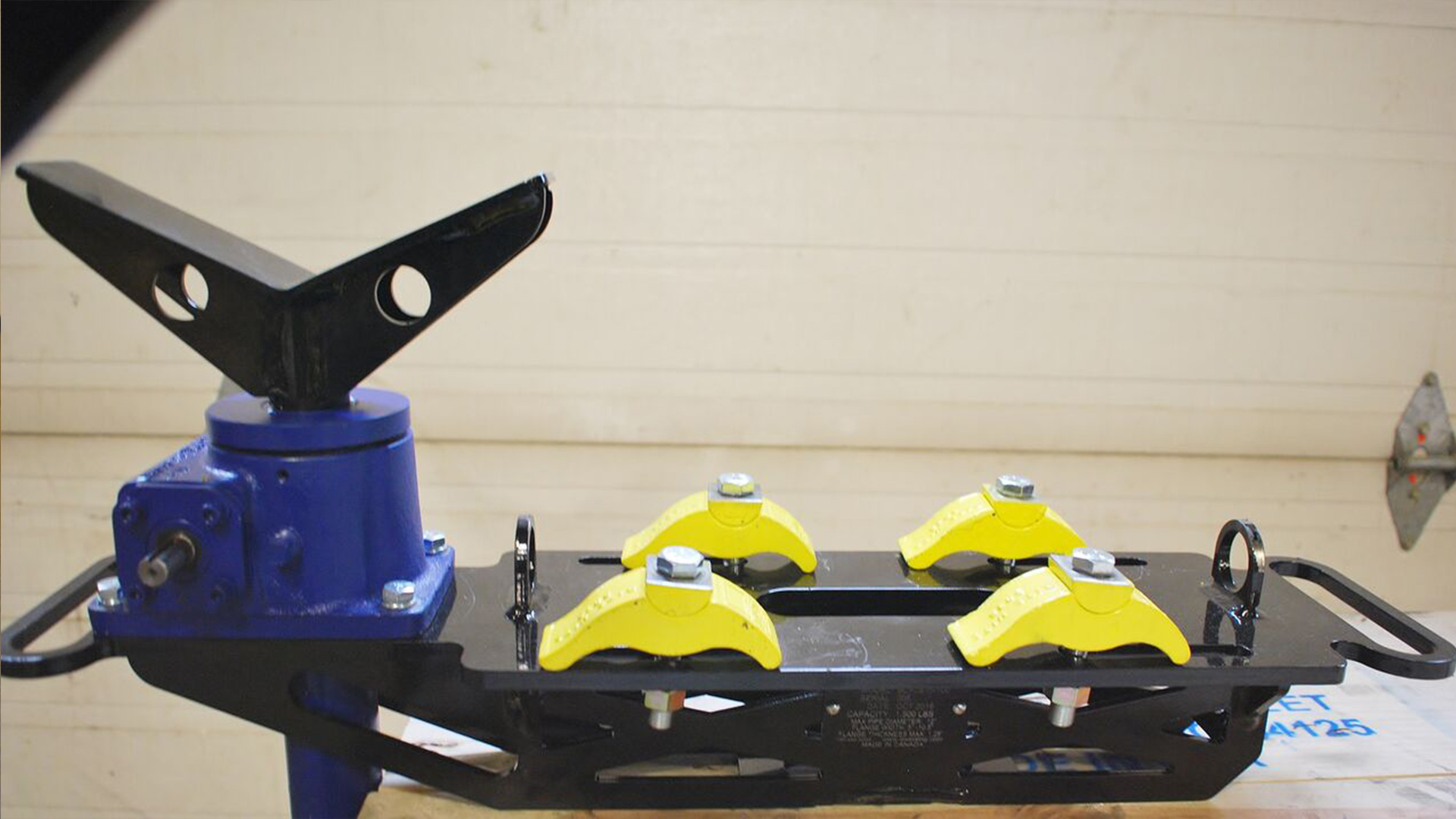

Pipe lifting jacks are used to lift and lower pipe on or off of pipe racks during installation and pipe removals. It's considered a perfect compliment to the LJ pipe rigging rollers to avoid the need for cumbersome slings, jacks, or chain hoists to set pipe on or lift off of rollers.
