KEY SPECIFICATIONS

Loading Capacity

12,000 lbs (at 12” overhung load)

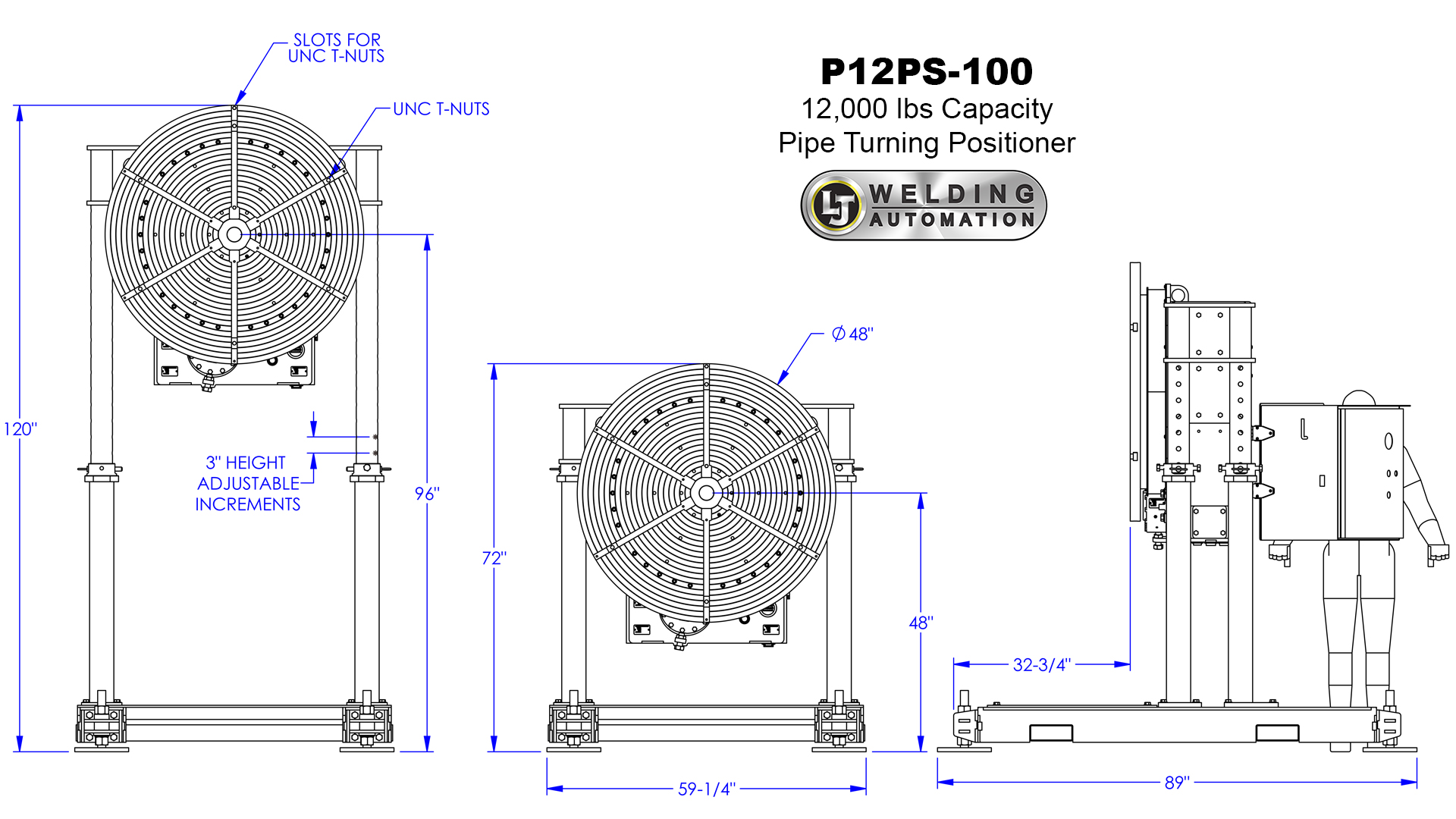

Footprint

89” x 59-¼” x 72”

Turning Torque

125,000 in-lbs

Turning Speed

0.05 - 2.2 RPM

Height Range

48” - 96” (at mounting plate), Adjustable in 3” increments

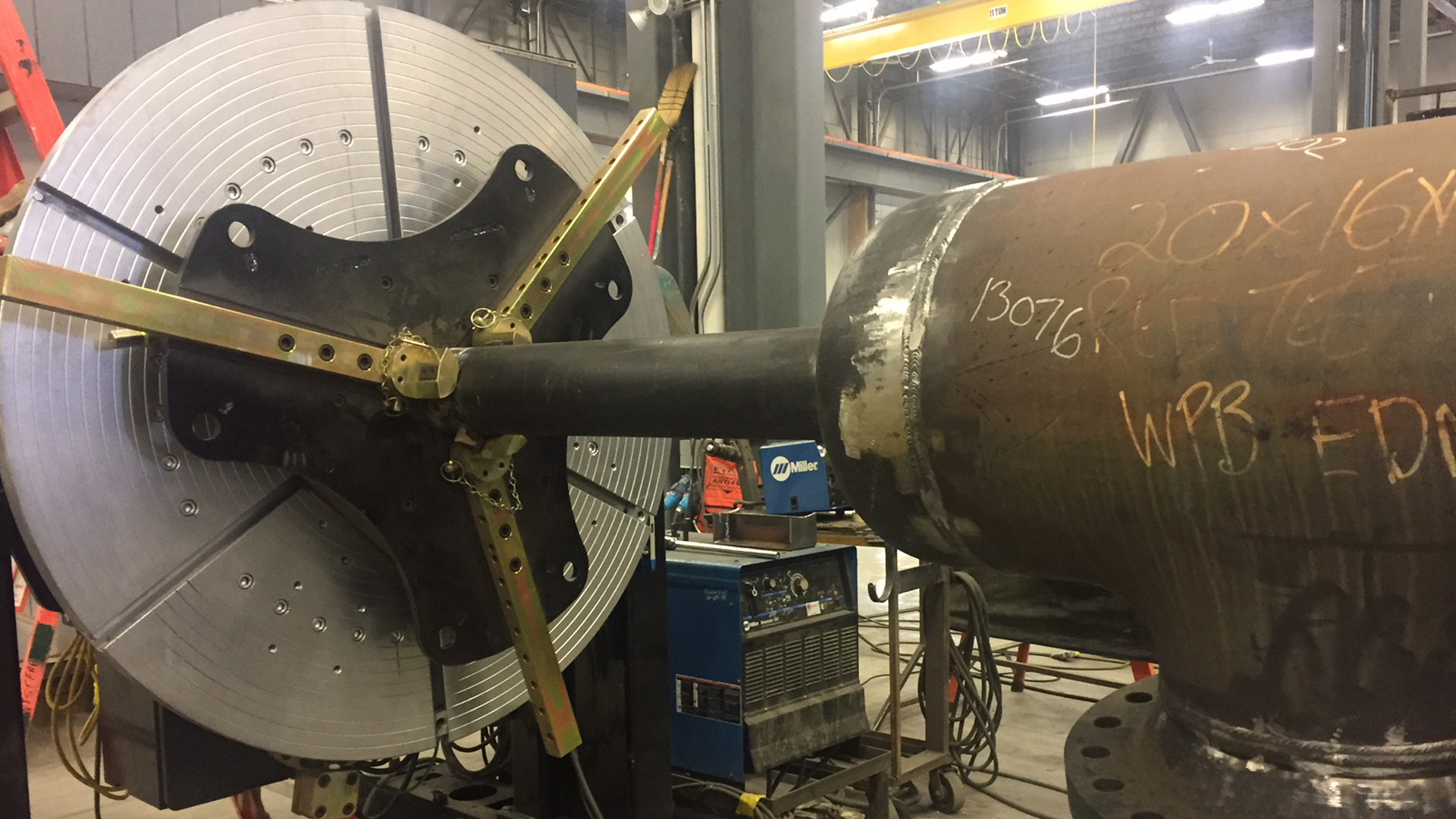

Mounting Plate Diameter

48” (T-Slot Plate with 6 x 3/4" slots)

Power Requirements

480V, 11A, 3-ph, 60Hz

Ground Capacity

1,500 Amps

Weight

5,000 lbs
