60-TON FIXED HEIGHT VESSEL ROLLERS: 60T-100/200

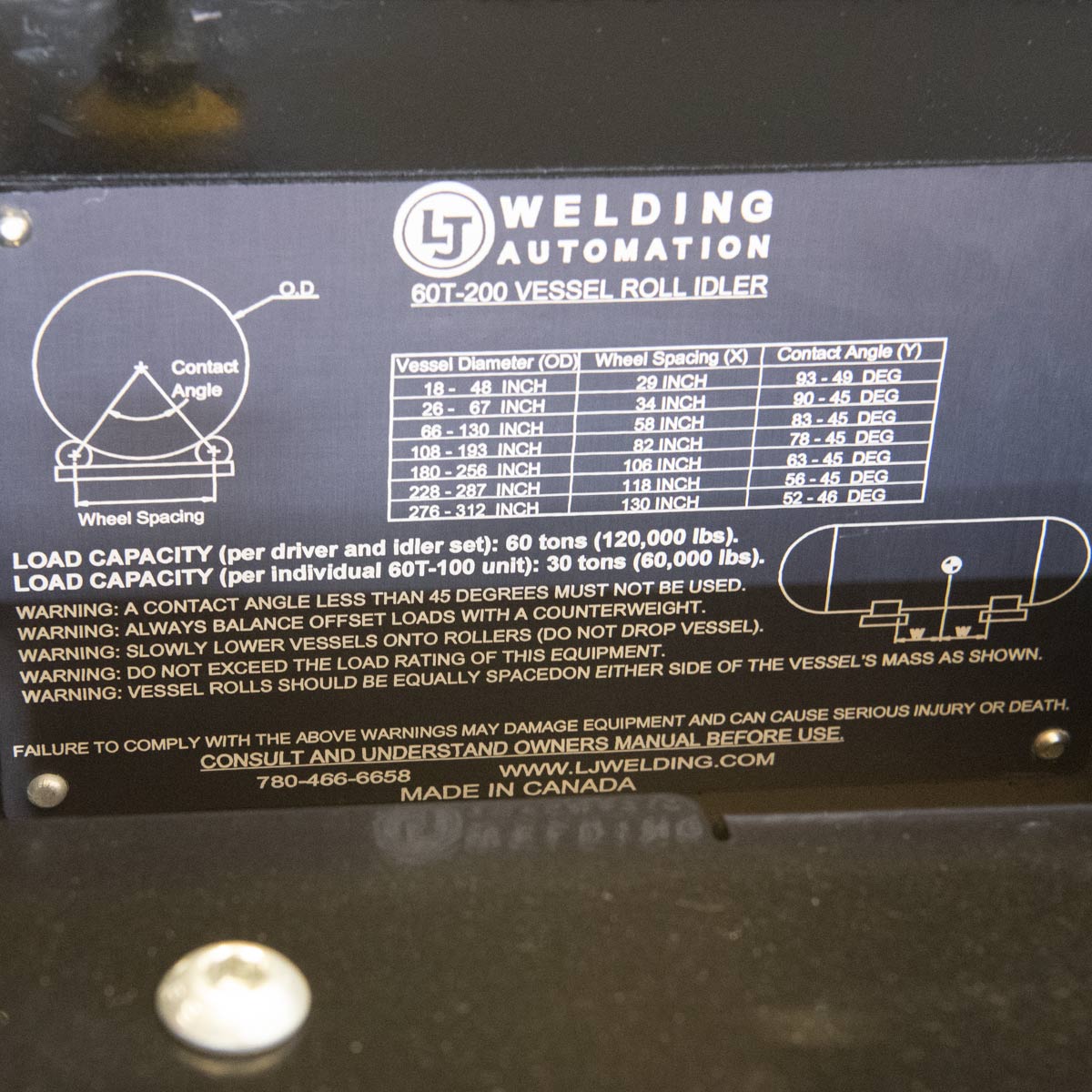

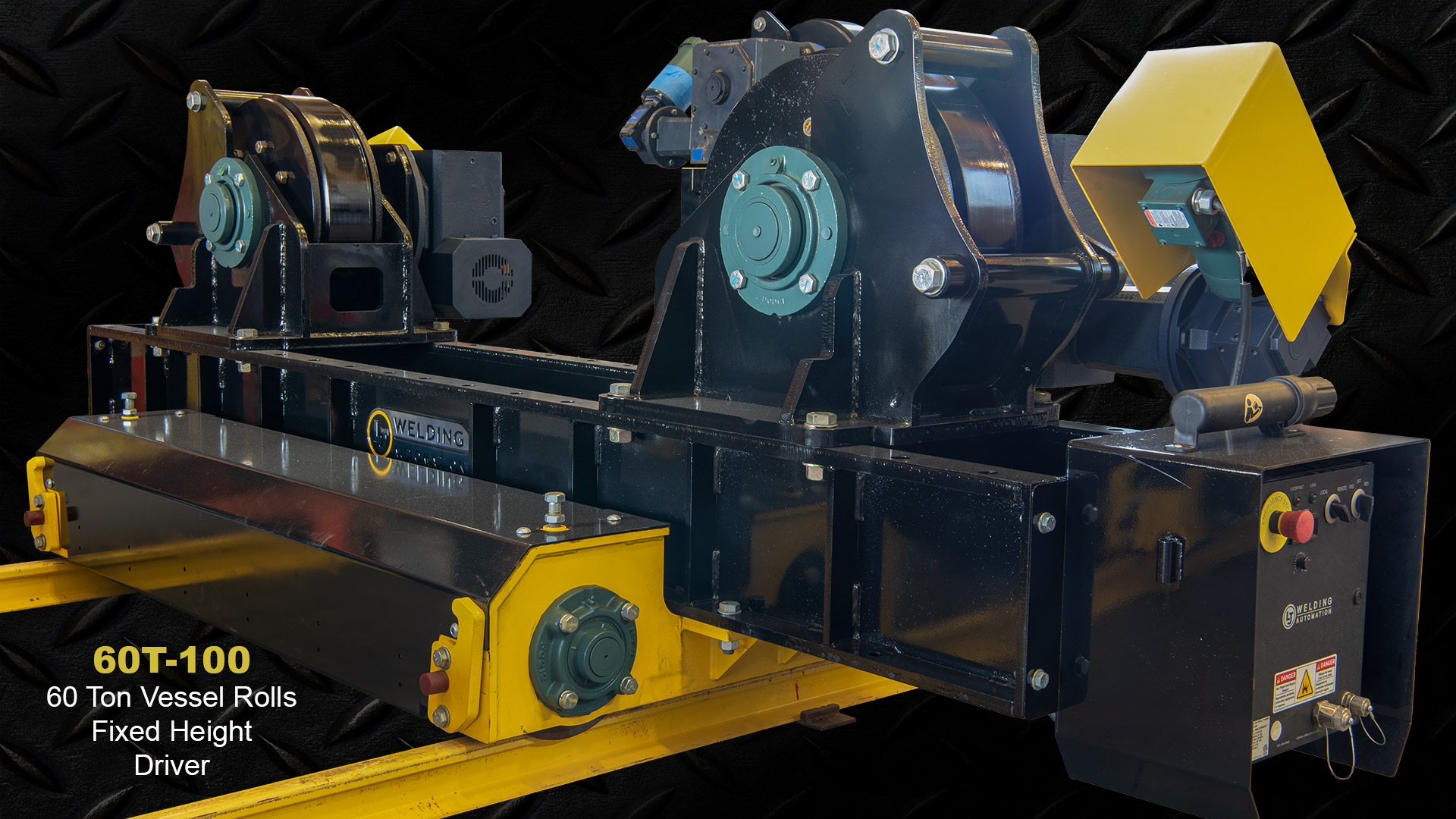

With a robust loading capacity of 60,000 lbs (30 tons) each for both the driver and idler, the 60-Ton Fixed Height Vessel Rollers, model 60T-100/200, offer unmatched strength and reliability. These 120,000 lbs fixed height vessel rollers are expertly designed to handle large and heavy cylindrical workpieces, such as pipes, during welding applications. Ranging from light tubes to extra-heavy walled pipes, these turning rolls provide unparalleled support. Our 60T-100/200 fixed height turning rolls stand out due to their substantial diameter range (from 12” to 216”) and load capacity, marking them as class leaders. The seamless integration with column and boom manipulators aids in significantly reducing idle time, labor, and equipment costs, thereby minimizing the need for cranes. With a tractive effort of 8,800 lbs and a turning torque of 120,000 in-lbs, this unit ensures maximum traction and control over your workpieces.

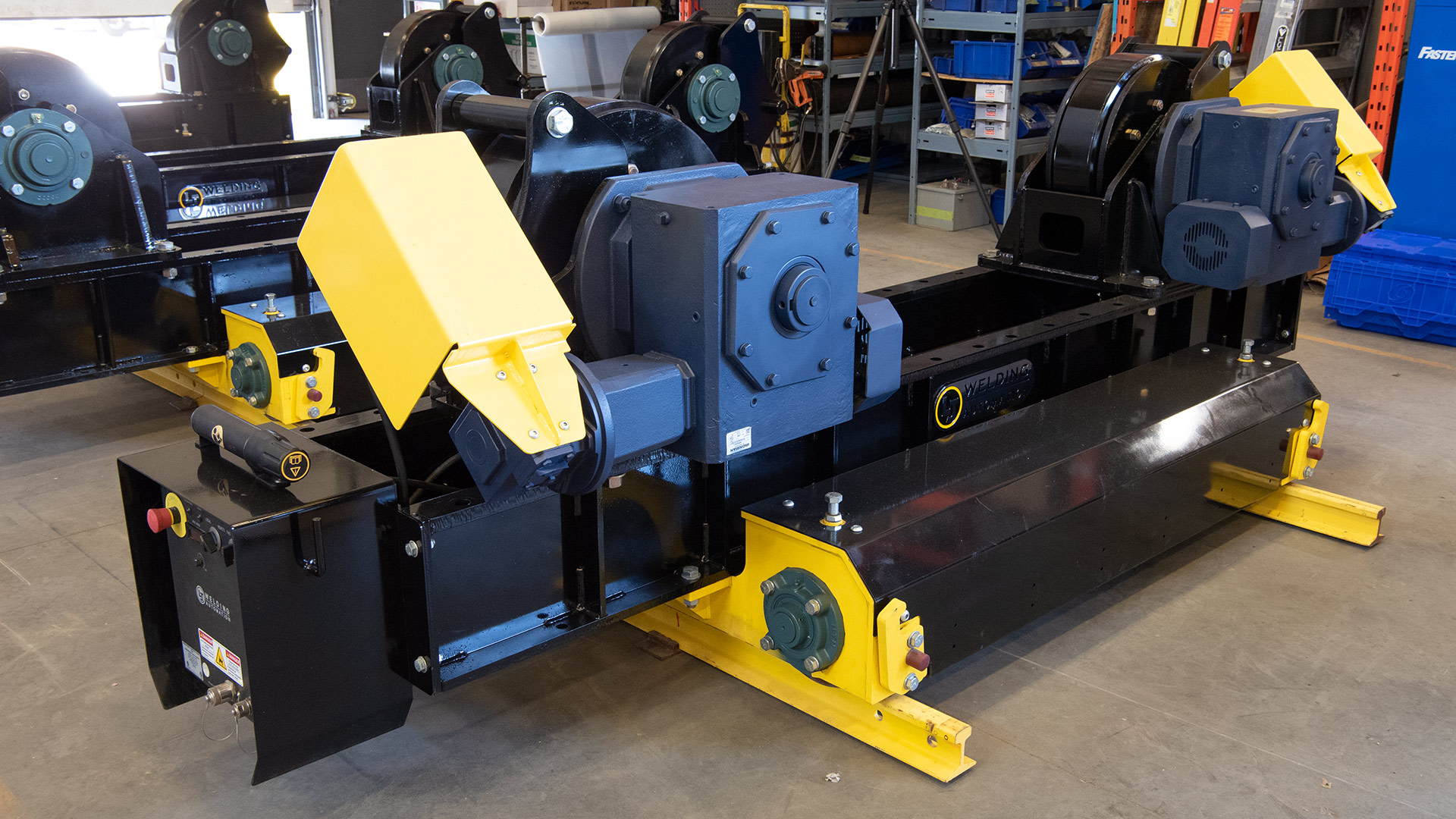

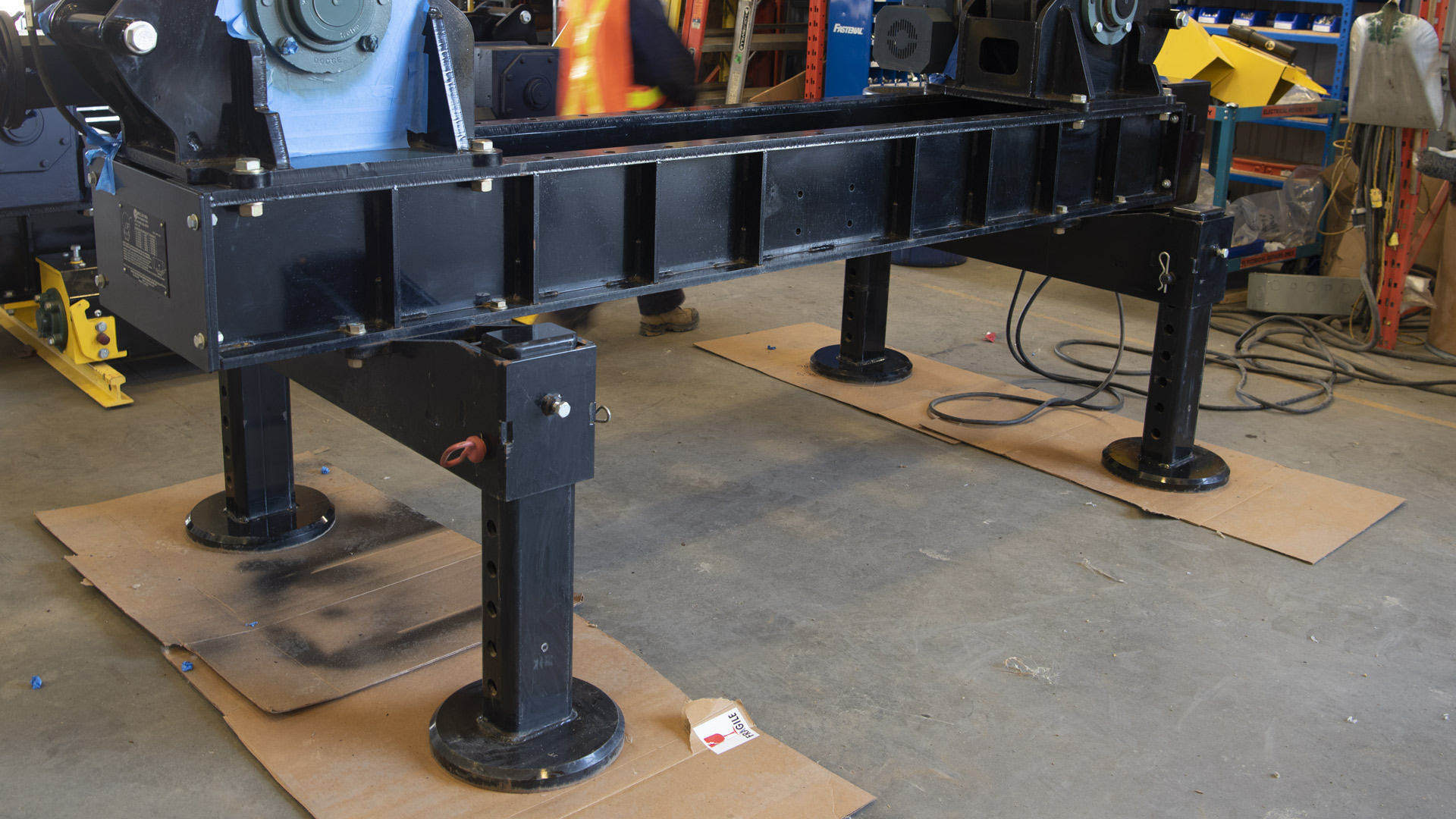

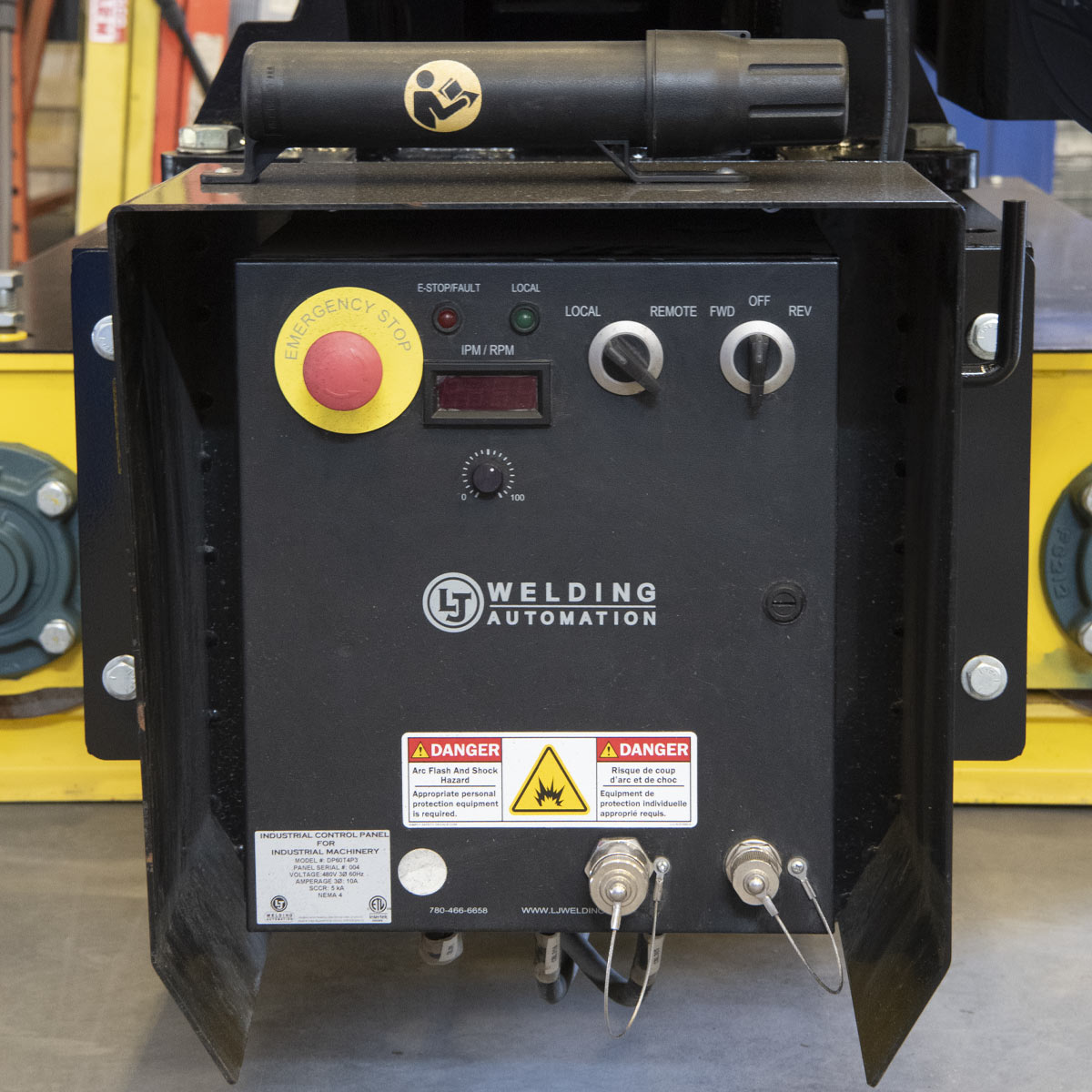

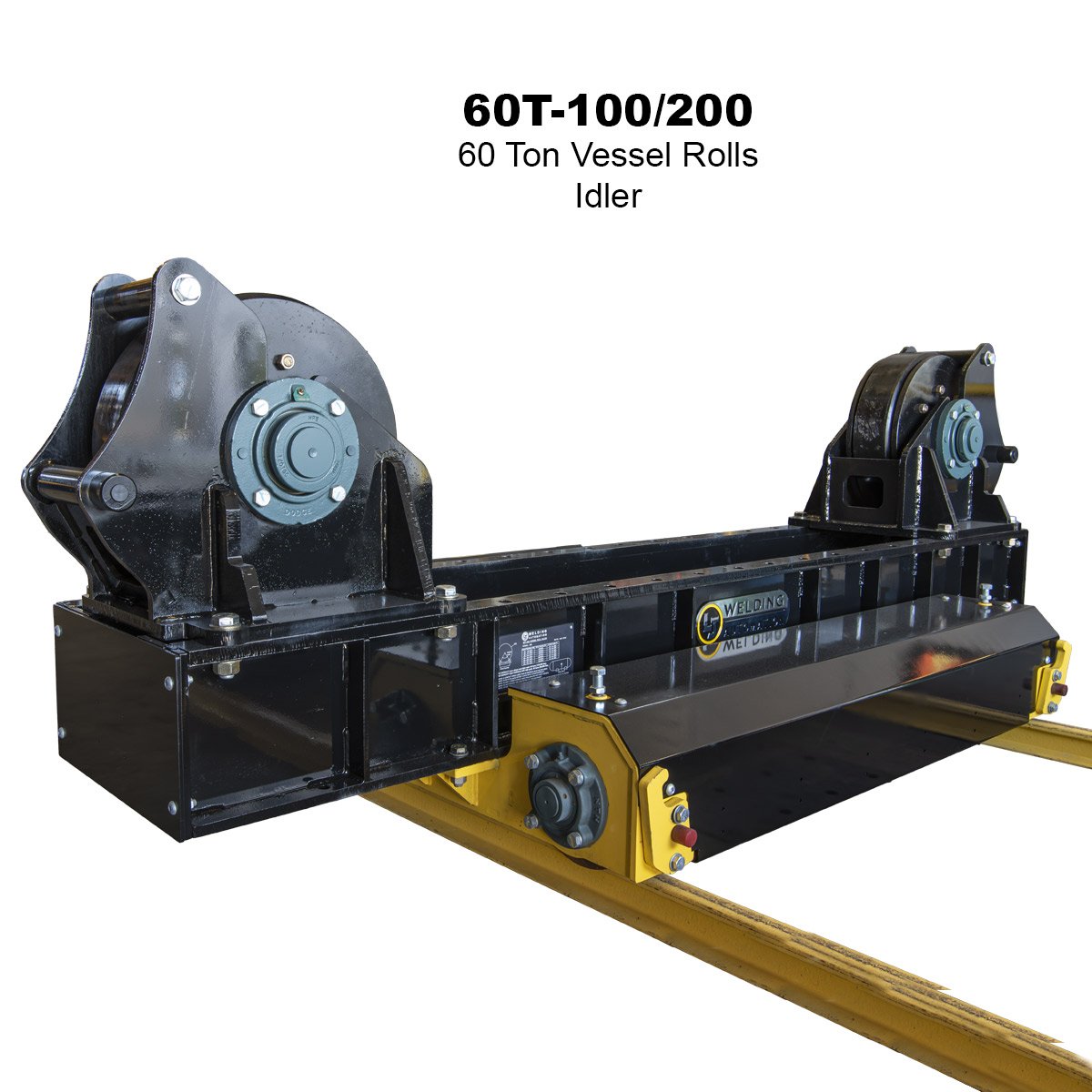

The 60T-100/200 is power-driven and equipped to deliver quick changeovers between workpieces of varying sizes. This leads to a considerable reduction in material handling time and worker fatigue, contributing to improved workplace safety and enhanced efficiency. Its unique feature of height adjustability in 3" increments between 44-5/8" - 65-5/8" (top of wheel) gives the 60T-100/200 a competitive edge. Adjustments to accommodate the diameter of the workpiece can be made manually or by upgrading to control options. The 60T-100/200 operates on 208V, 3-ph power, with optional power requirements of 480V, 3-ph or 600V, 3-ph. Weighing 5,020 lbs for the driver and 4,159 lbs for the idler, these 60 ton fixed height turning rolls uphold LJ Welding's commitment to providing world-class solutions. If your specifications require a different tank turning roll, we also provide other models, including the 120T-500/600 - 120-ton tank turning rolls and the 200T-500/600 - 200-ton tank turning rolls.
