PIPE STANDS: MODULAR ROLLER SUPPORT STANDS

  • Our Modular Roller Support Stands are generally used for rolling, supporting, and handling pipe safely and efficiently often in conjunction with welding positioner and column and boom manipulator applications.
LJ_-_ICONS-THUMBSUP-removebg-preview Better Working Conditions: Using our pipe stands eventually reduces wear and tear on machinery and strain produced on operators resulting in a more comfortable working environment
LJ_-_ICONS-ROBOT1-removebg-preview Minimize Downtime: Our pipe stands can also be used to support pipes when rolling is not required, allowing all worked on pipes to be staged in one location, keeping the fusion machine stationary and minimizing the downtime between fusion joints
12-removebg-preview Save Time: LJ Modular Roller Support Stands can significantly boost productivity and lower the amount of manual labour, essentially saving a lot of operator’s time
5-removebg-preview Height Adjustability: Height ranges on our Modular Roller Supports allow for the precise leveling of workpieces with a machine, making it easier for welders to perform fusion applications

LJ'S MODULAR ROLLER SUPPORT STANDS SELECTION

Side-By-Side Modular Roller Support Stands Comparison

Specifications

2 Ton Modular Roll Stand: Tall (HD2-300)

HD2-300-thumb-300

2 Ton Modular Roll Stand: Low-Profile (HD2L-200)

HD2L-200-thumb-300-1

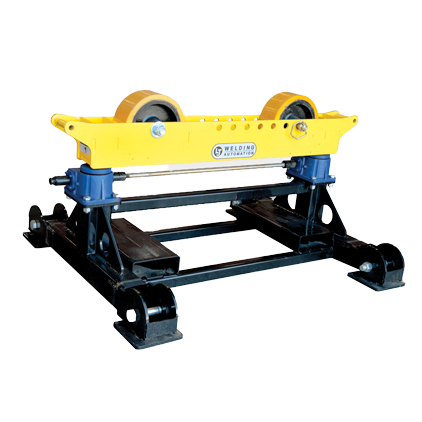

4 Ton Geared Height Adjust Roll Stand (SHD-850)

shd-850-modular-pipe-roller-stand-2-1-1

8 Ton Geared Height Adjust Roll Stand (UHD-200)

UHD-200-thumb-300-3

Loading Capacity 4,000 lbs (2-ton) 4,000 lbs (2-ton) 8,000 lbs (4-ton) 16,000 lbs (8-ton)
Footprint 34" x 36-1/2" x 39" 30-3/8" x 24-1/2" x 36-3/4" 36" x 50" x 29" - 42" 43” x 55-⅛” x 28-⅞”
Diameter Range 2" – 48" 2" – 48" 4" – 48" 8" – 60"
Height Range 38-1/2" - 64-5/8" (top of wheel), Adjustable in 3-1/8" increments & fine height adjustment

24" - 37-3/4" (top of wheel),

Fine height adjustment

30"- 42" (Dual screw jack geared height adjust) 28-⅛” - 40-⅞” (top of wheel),
Fine screw height adjustment
Weight 186 lbs 147 lbs 450 lbs 612 lbs
