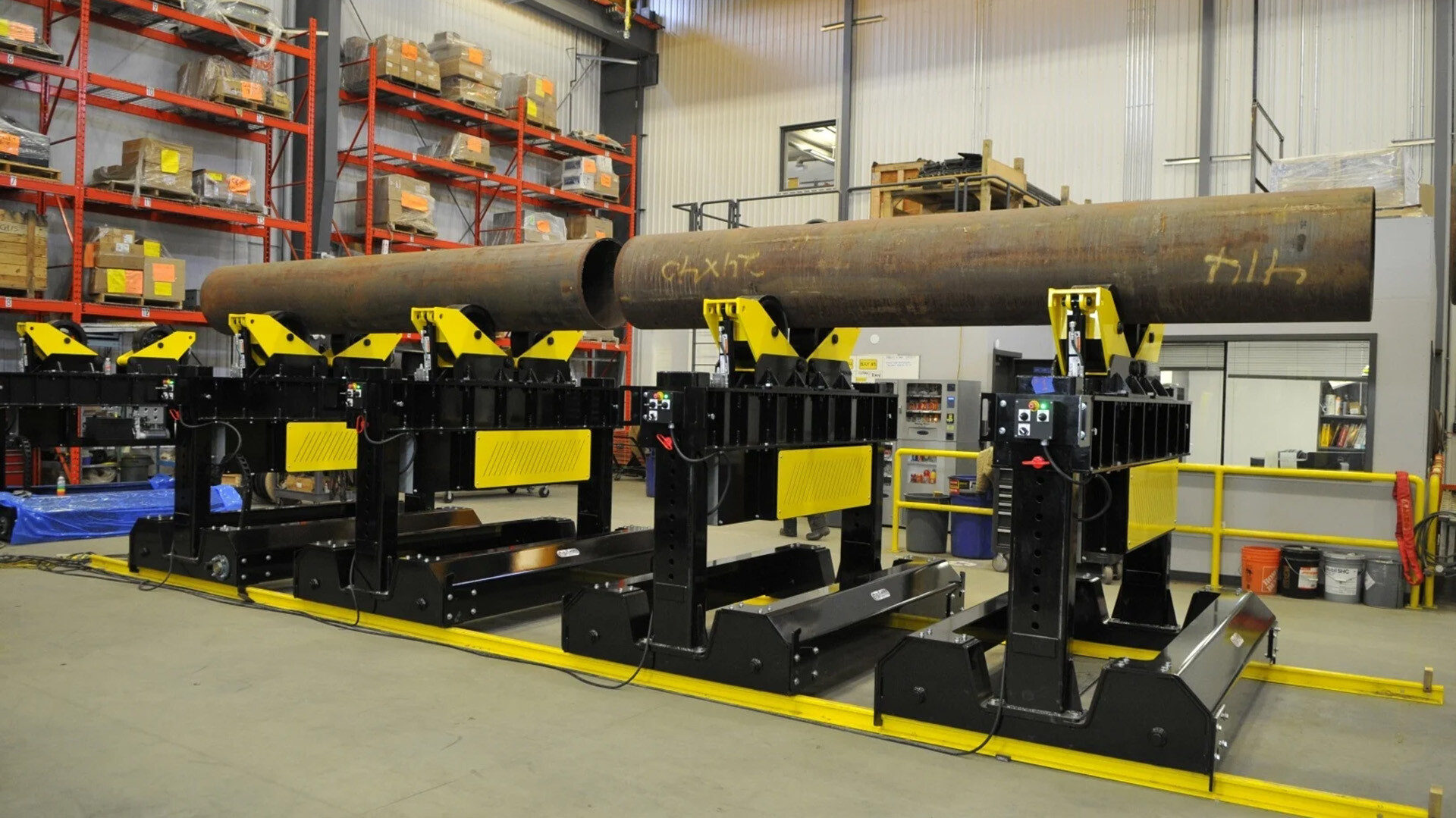

40TMR For Pipe Double-JoinTing: Pipe Fit Up Turning Rolls


Read 40TMR Case Study

alignment rolls


Our alignment turning rolls are built for specialty applications where vessels, pipes, and other cylindrical objects need fine leveling for fit-up and welding and precise, fast alignment. LJ’s pipe alignment rolls offer compensation for inconsistencies on the shop floor or ground.

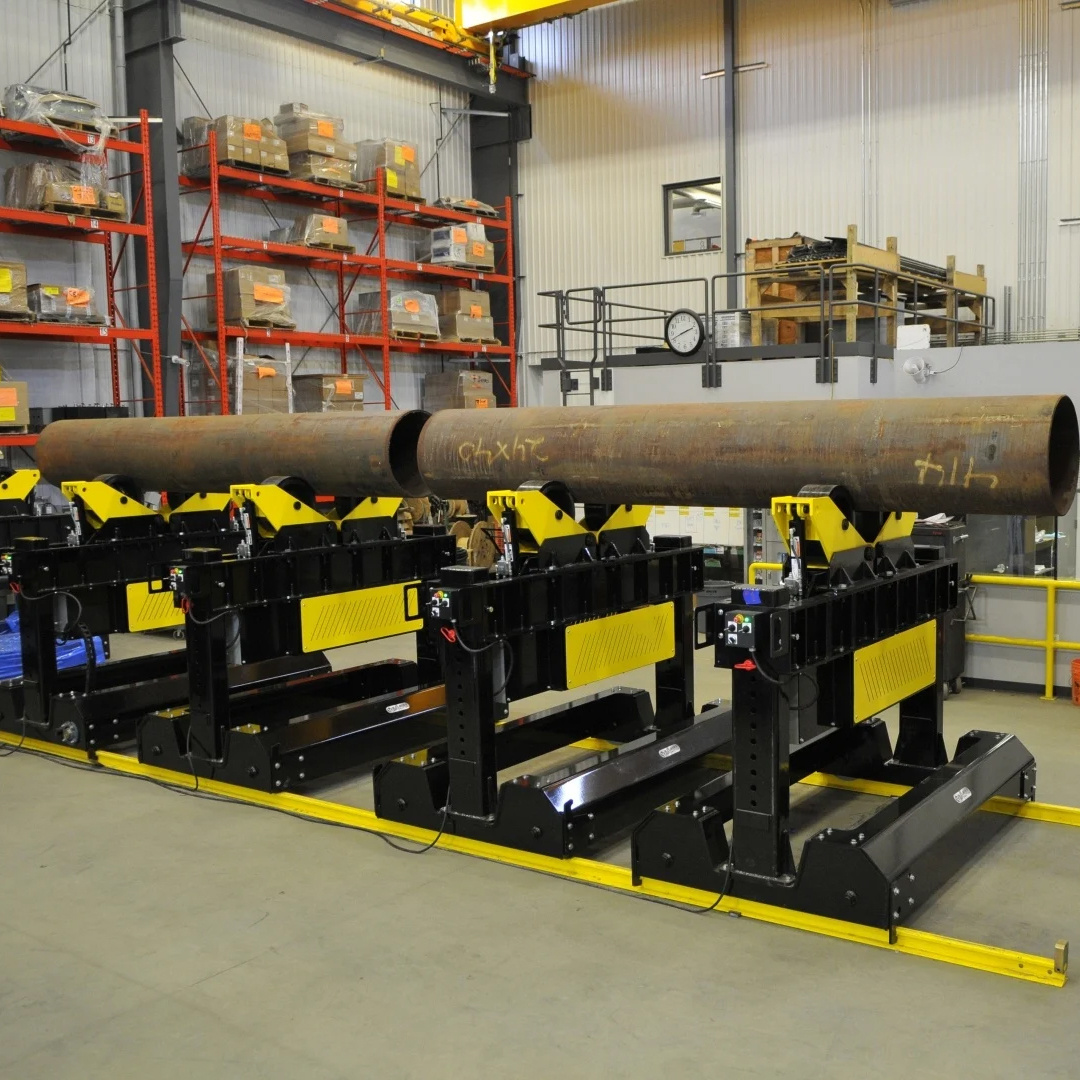

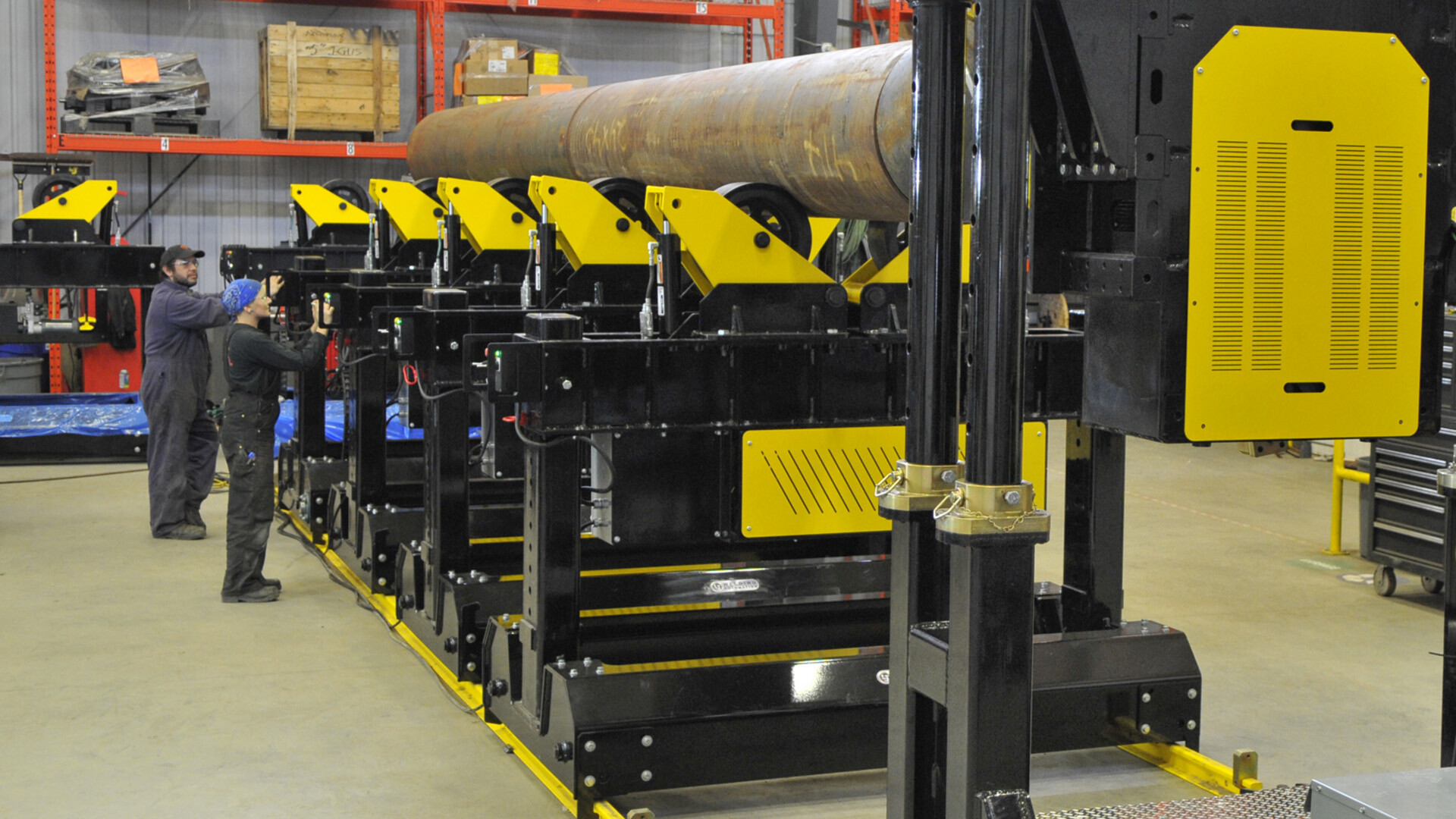

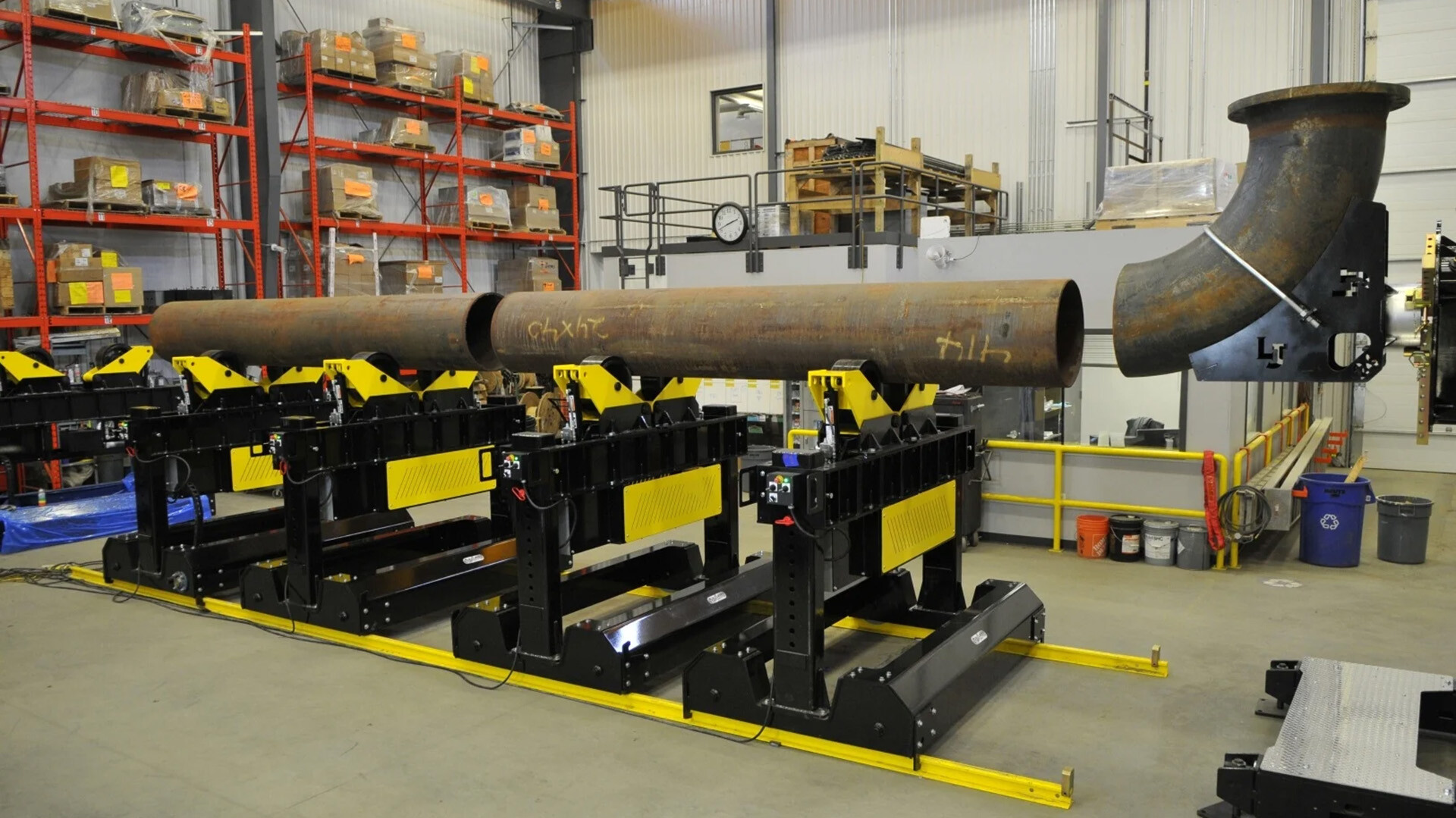

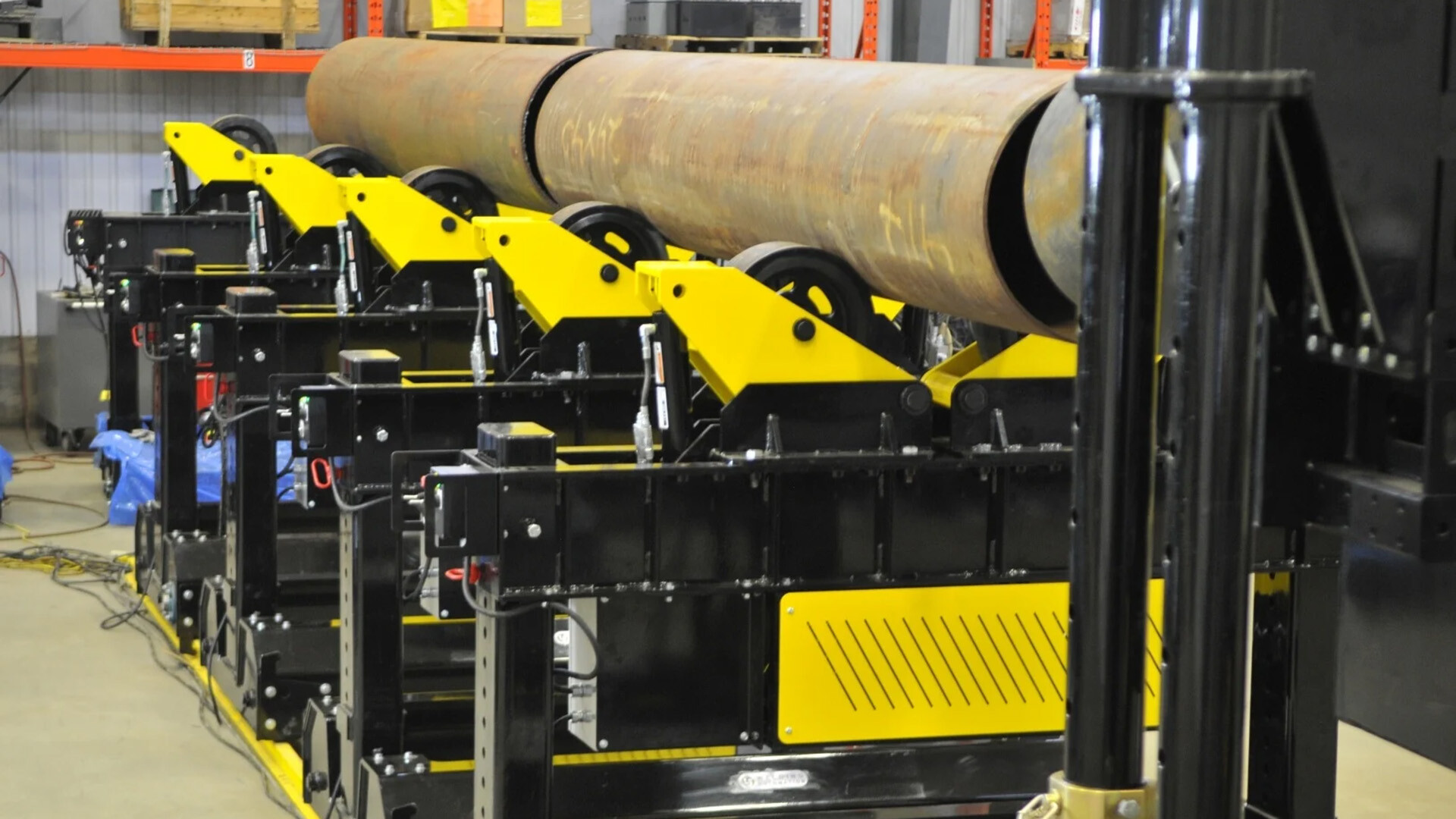

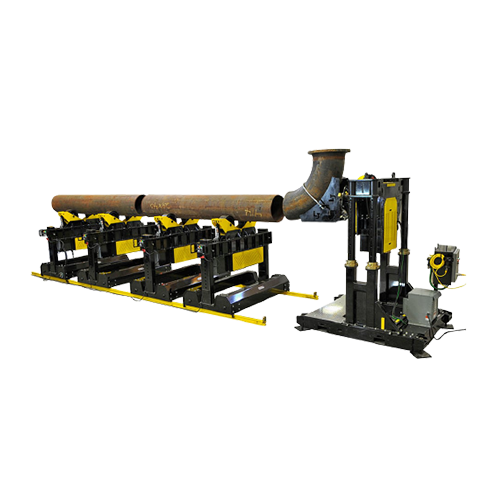

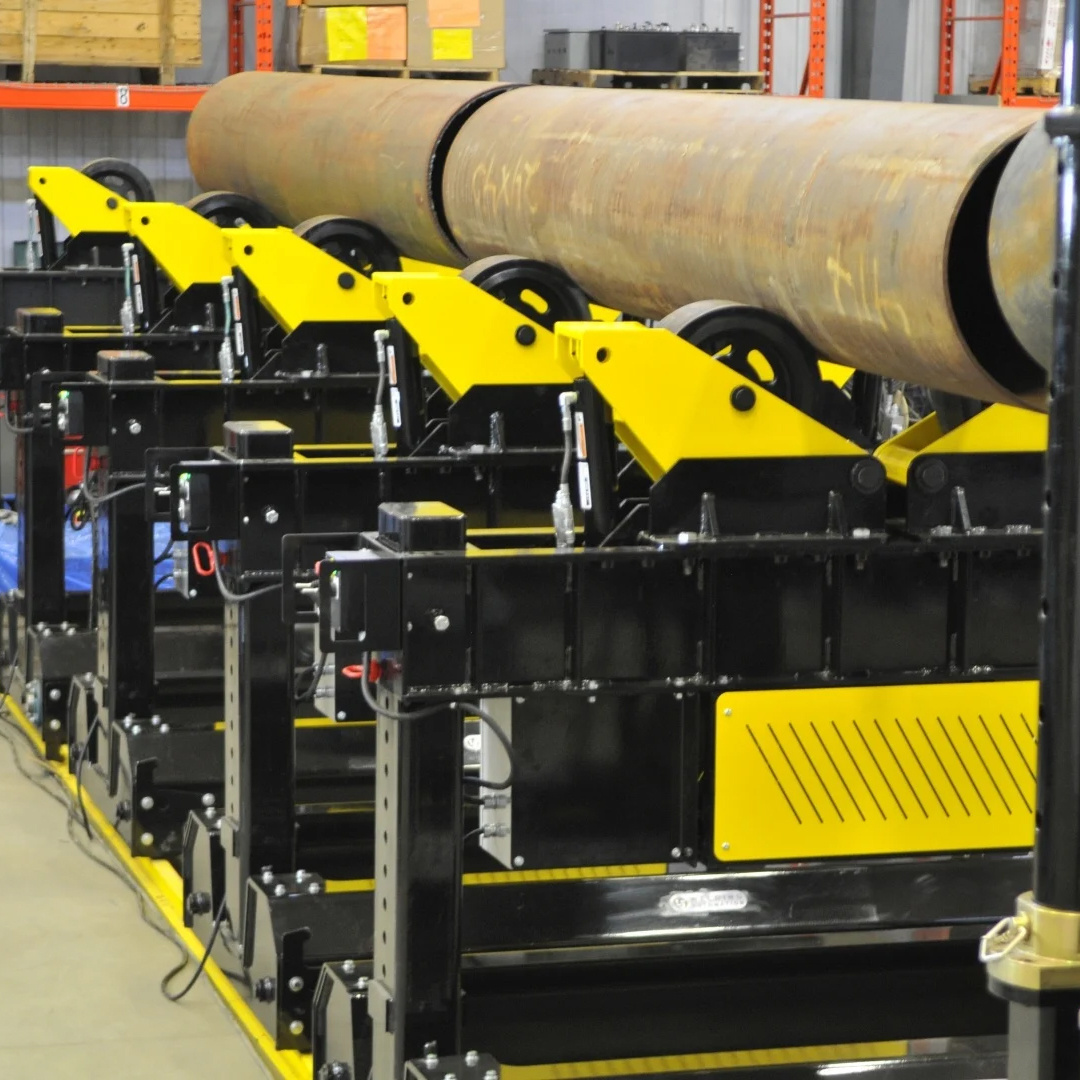

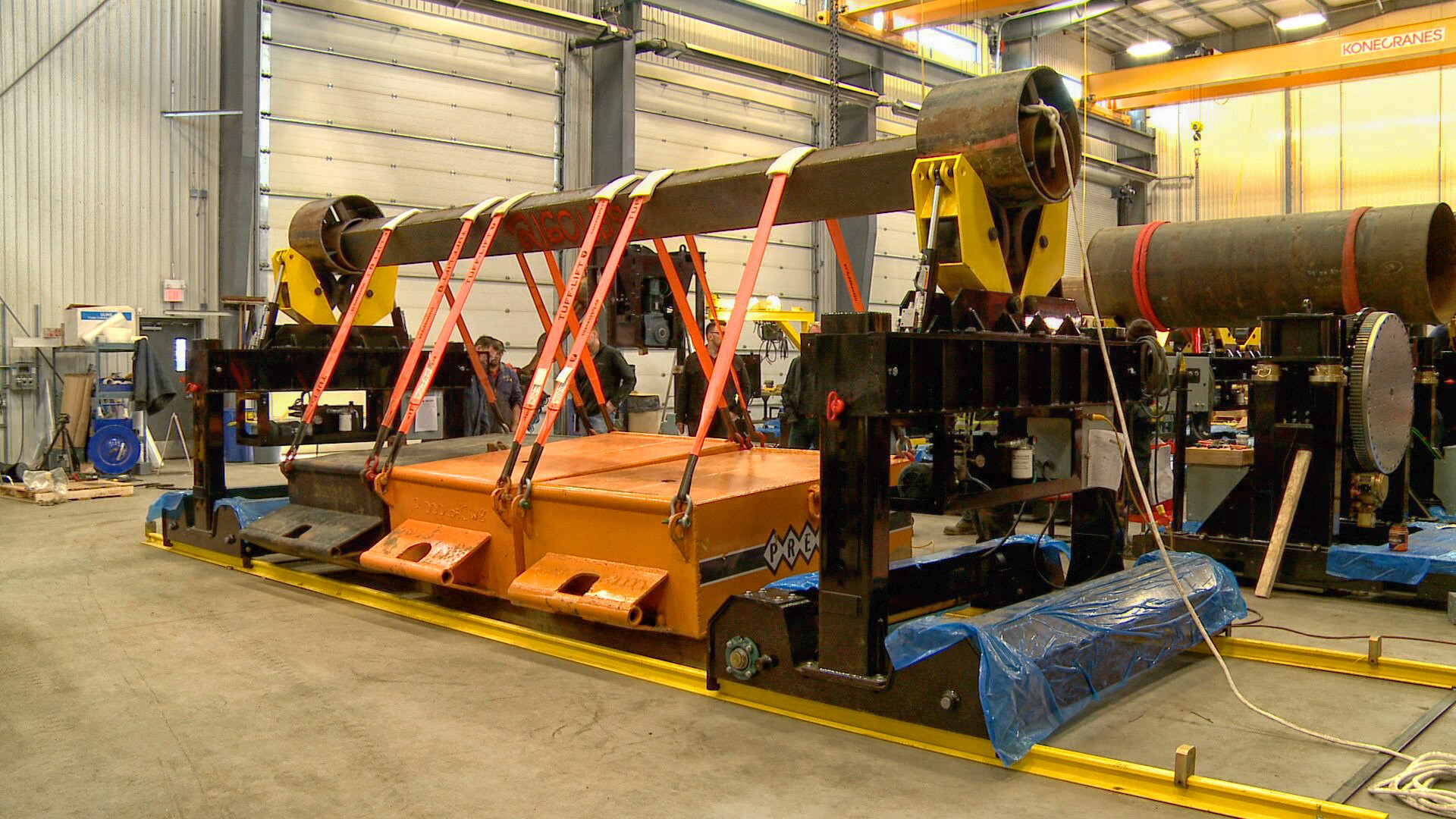

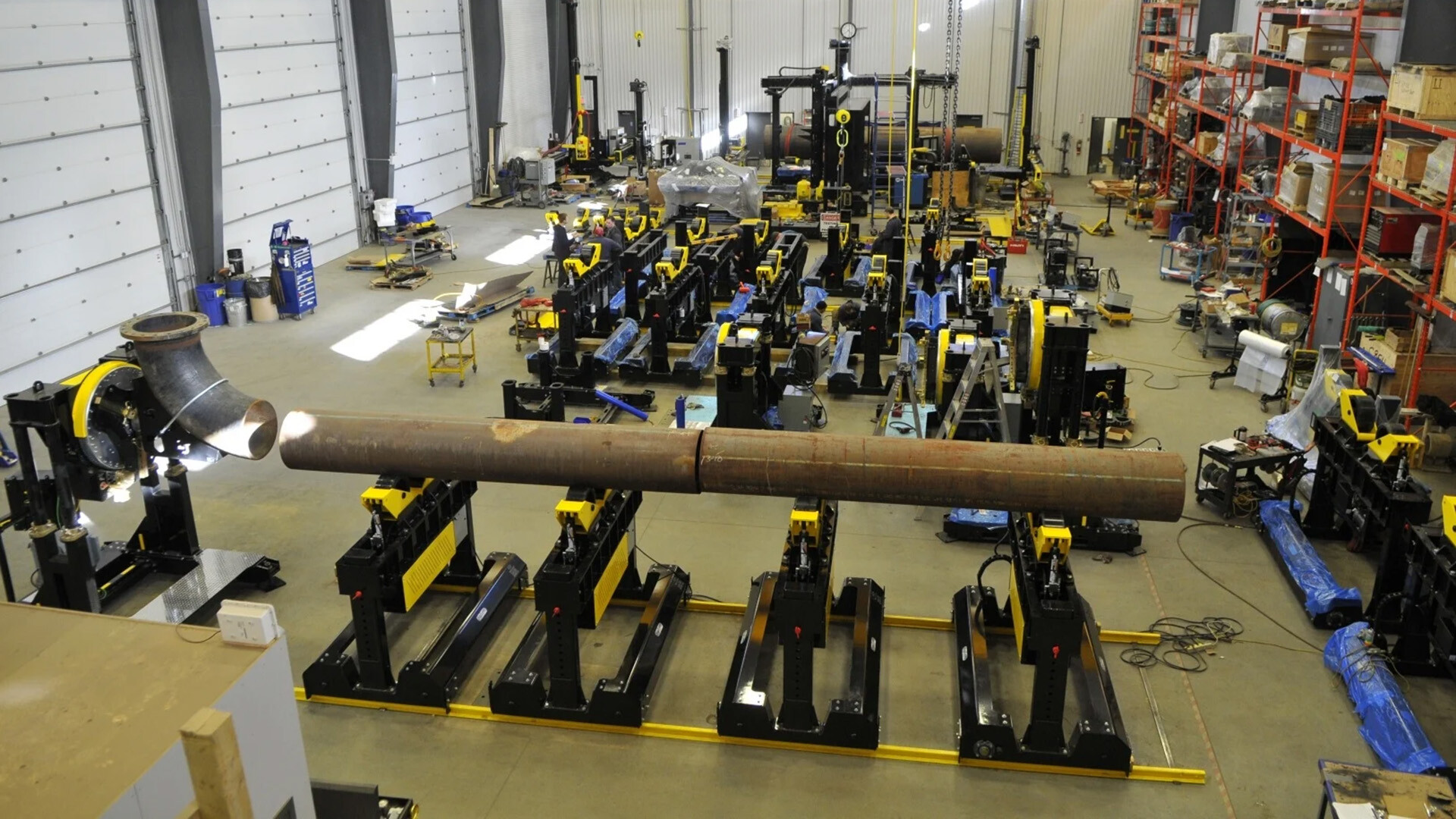

LJ’s 40TMR is usually used in pipe double-jointing systems for maximum efficiency and safety, with up to 65% decrease in fit up cycle times. It provides even weight distribution, constant rotation speeds and is adaptive to a wide range of work-piece diameters without the need for separate adjustment. Pipe alignment turning roll 40TMR reduces worker fatigue as well as provides a secure way to position cylindrical parts. Vessel pipe alignment rolls provide constant centerline capabilities making the set-up and alignment quick and the workflow more efficient

40TMR offers a load capacity of up to 15 tons. Pipe alignment turning rolls for welding are adaptive to a wide range of workpieces without a need for a separate adjustment. They also enable constant rotation speeds and maintain a constant centerline when rotating workpieces that are unbalanced, thin-walled and/or heavy, and have diameters ranging from 24" to 60". 40TMR also provides certain alignment features that include height adjustability, up to 30" pinned and 8" hydraulic, side shift, and powered track drive.

If you’re looking for pipe alignment equipment with different technical specs, make sure to check out other products by LJ Welding e.g. 20TSR-100/200 20-ton pipe alignment turning rolls, 10TMR-100 modular pipe alignment rolls or 10TMR-GL-100 tank & vessel modular alignment rolls.
