KEY SPECIFICATIONS

Loading Capacity

Driver: 120,000 lbs (60-ton);

Idler: 120,000 lbs (60-ton)

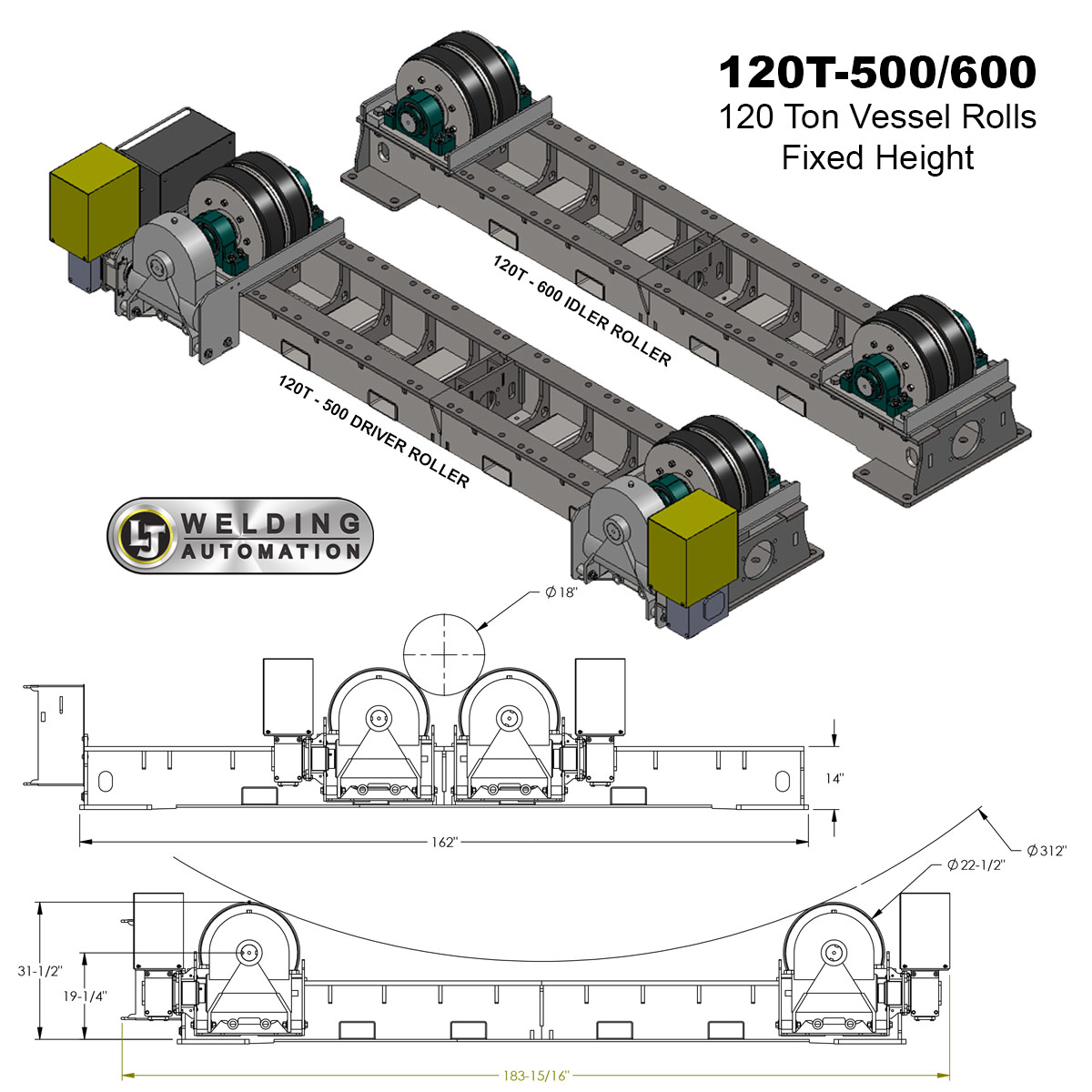

Footprint

Driver: 49-1/2" x 190-1/4" x 38";

Idler: 36" x 162" x 31-1/2"

Diameter Range

18” - 312”

Tractive Effort

20,400 lbs (Dual drive)

Turning Torque

240,000 in-lbs (Dual drive)

Turning Speed

5–70 in/min

Height Range

31-½” (Top of wheel), Fixed height

Power Requirements

480 V, 3-ph

Weight

Driver: 6955 lbs;

Idler: 5,075 lbs
