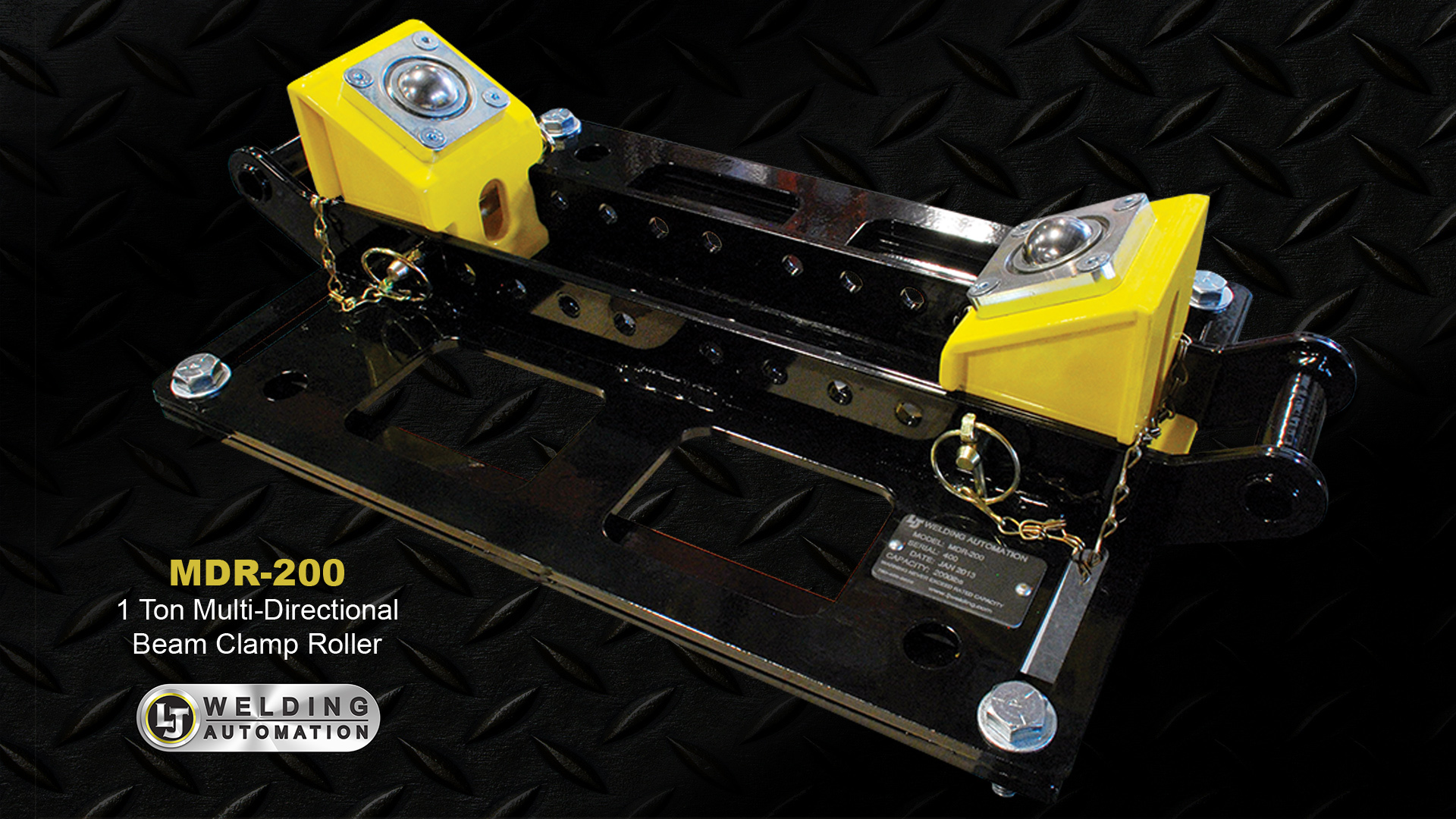

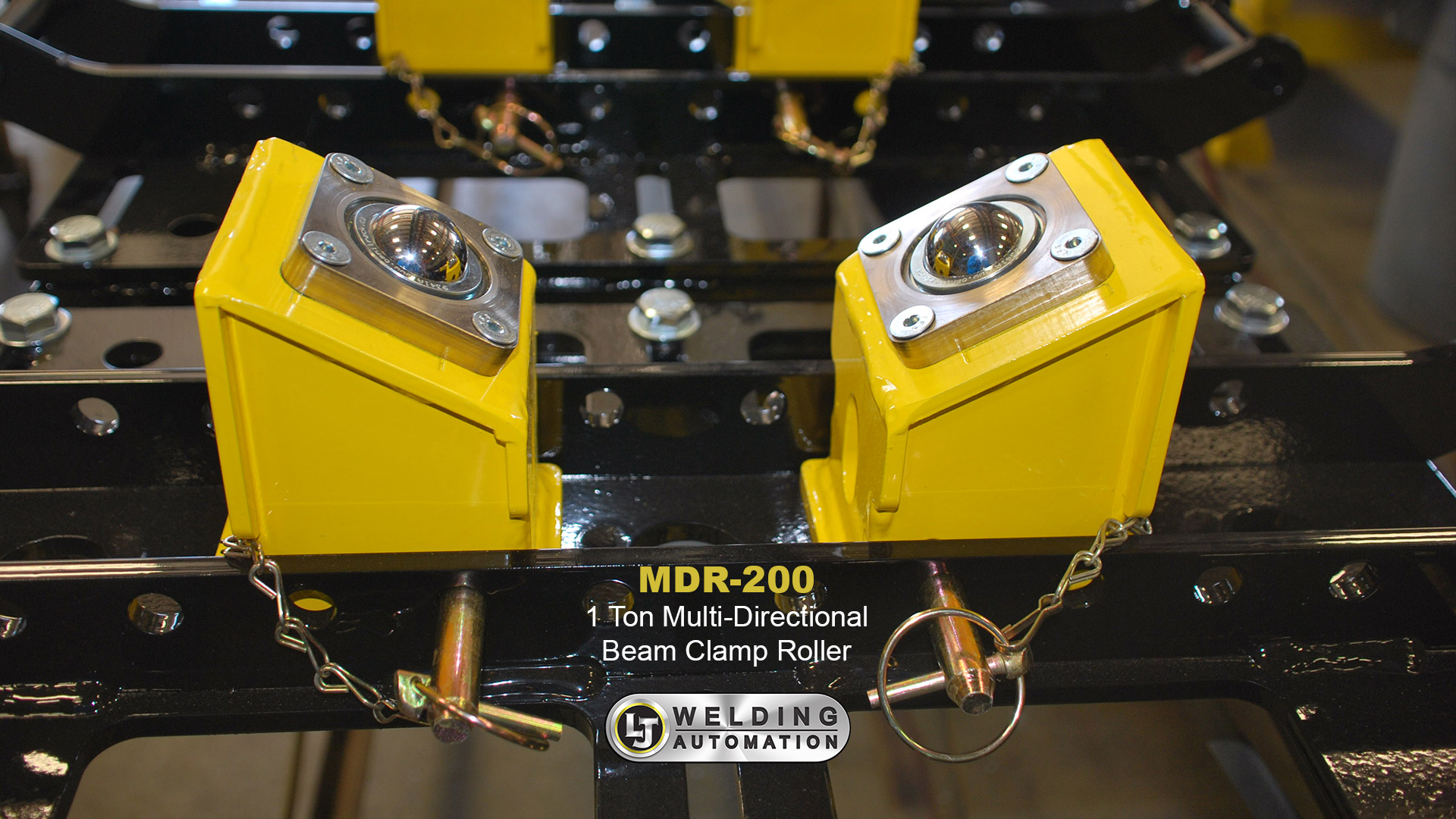

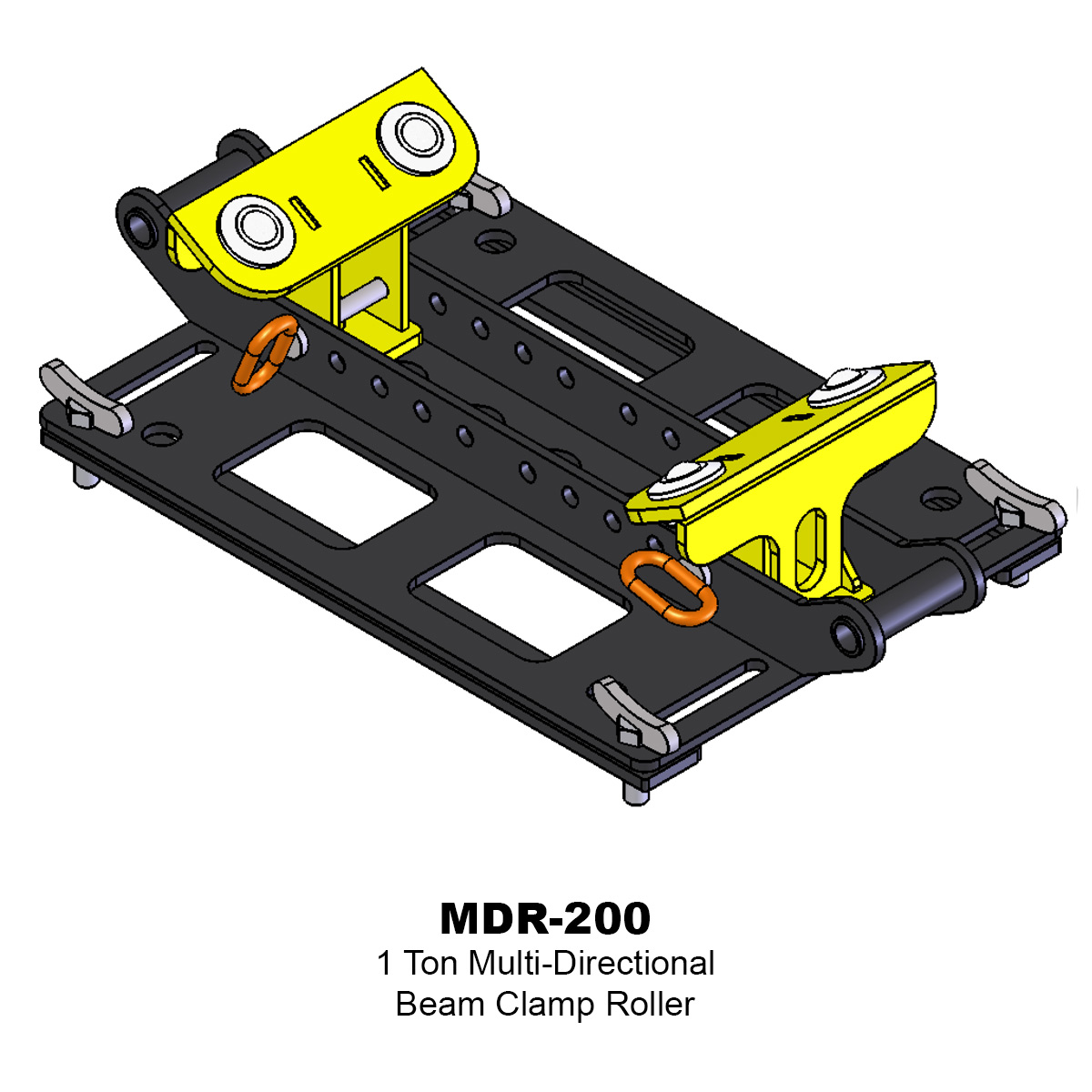

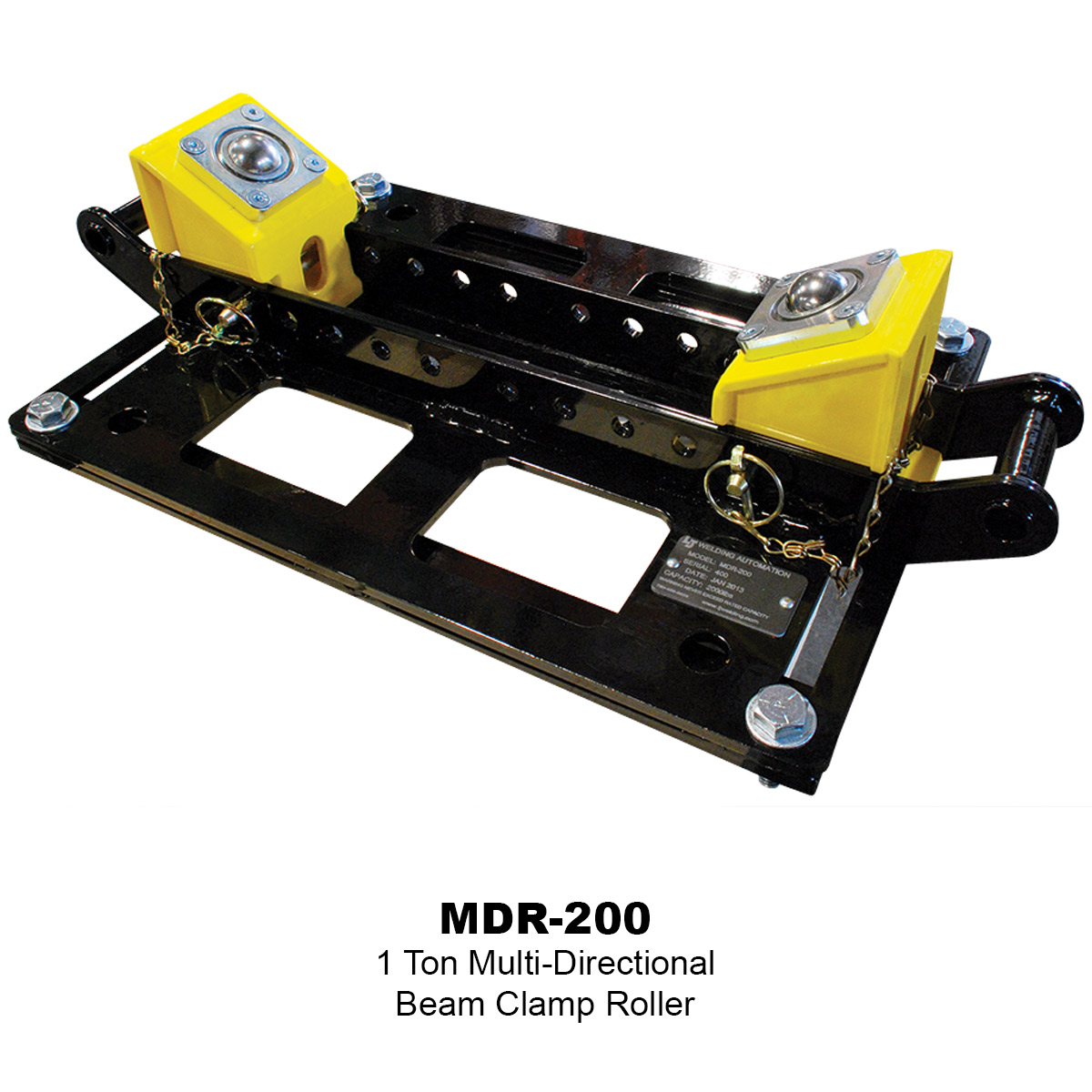

1 Ton Multi-Directional -
Beam Clamp Roller: MDR-200

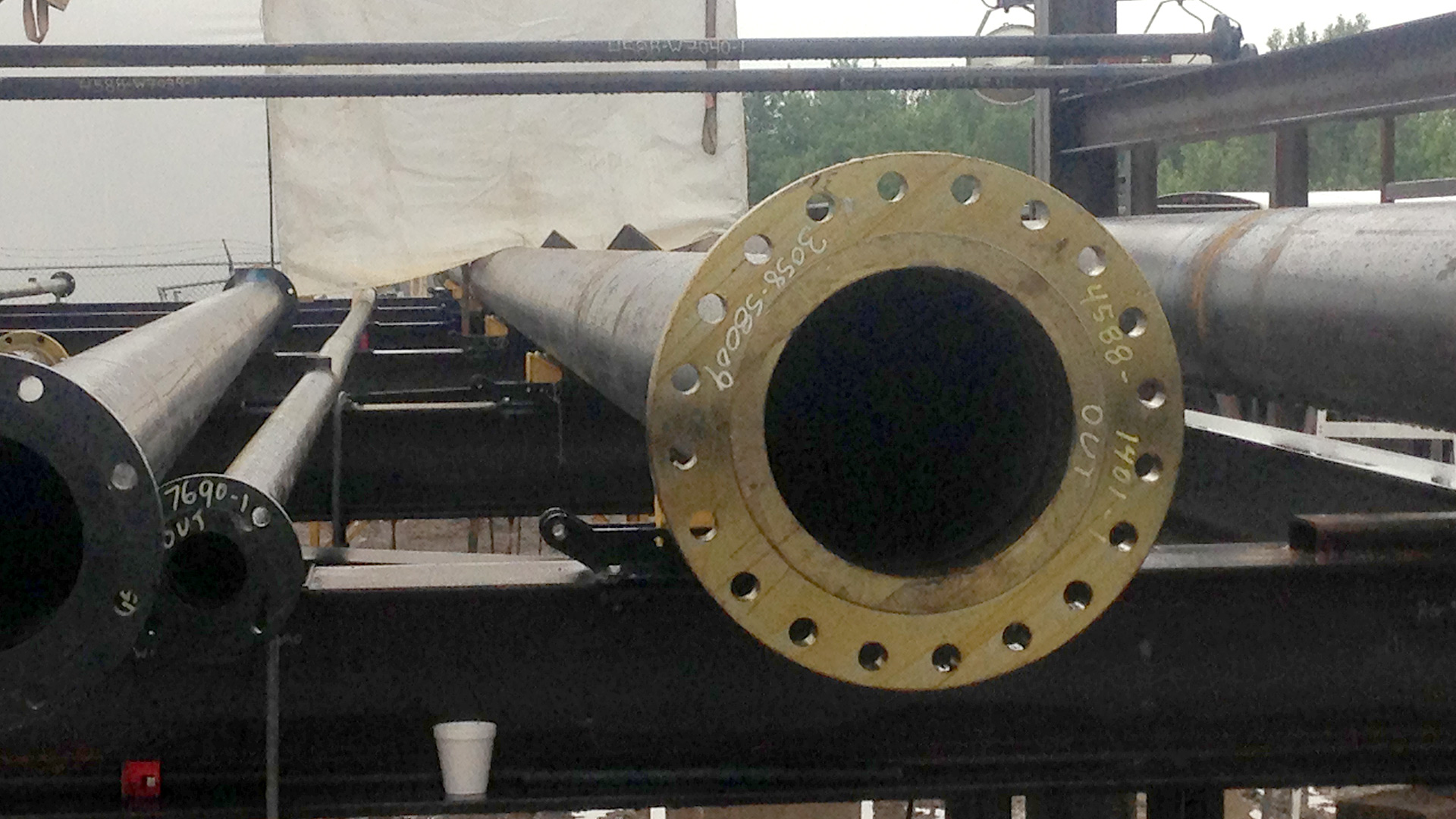

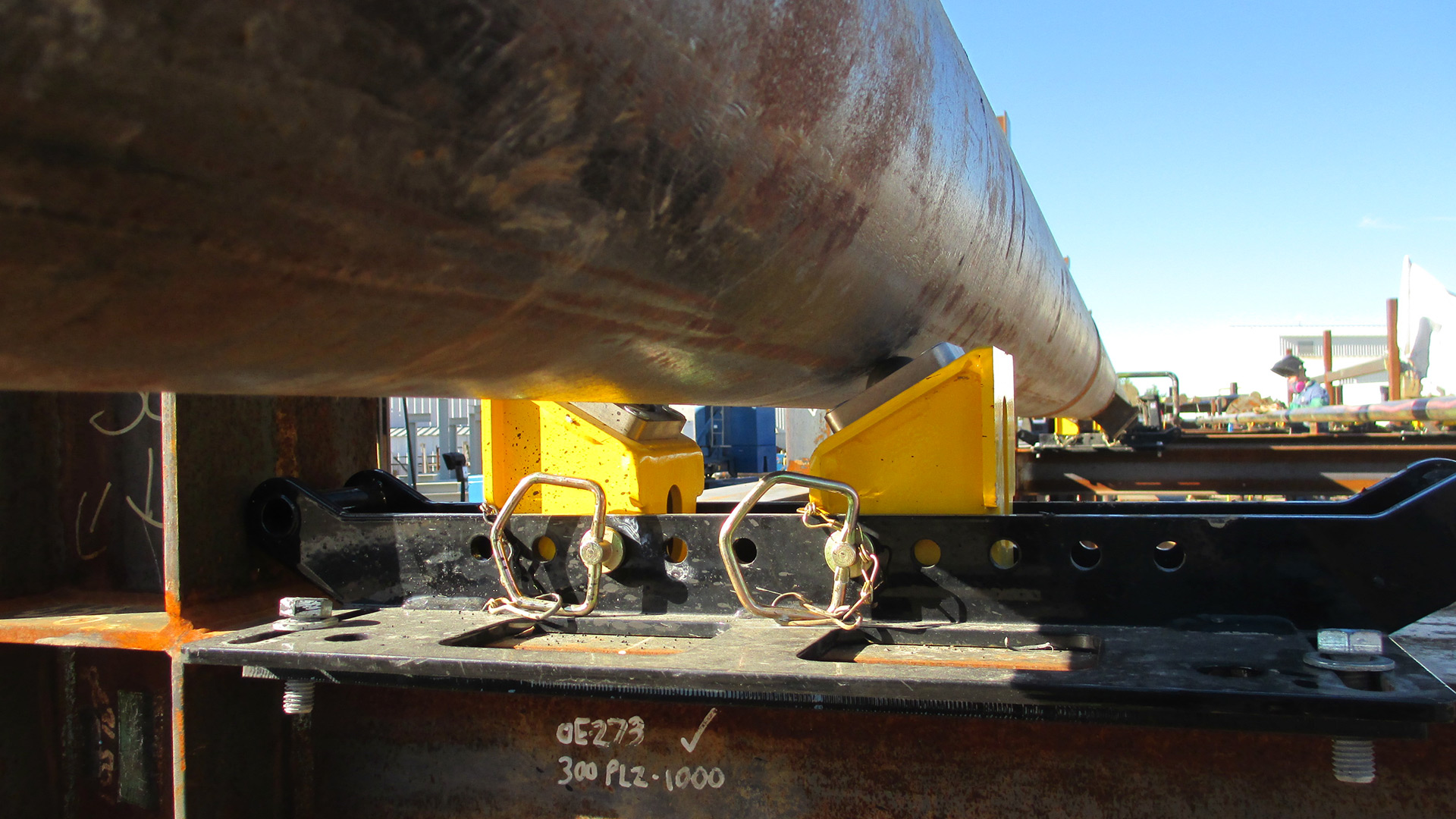

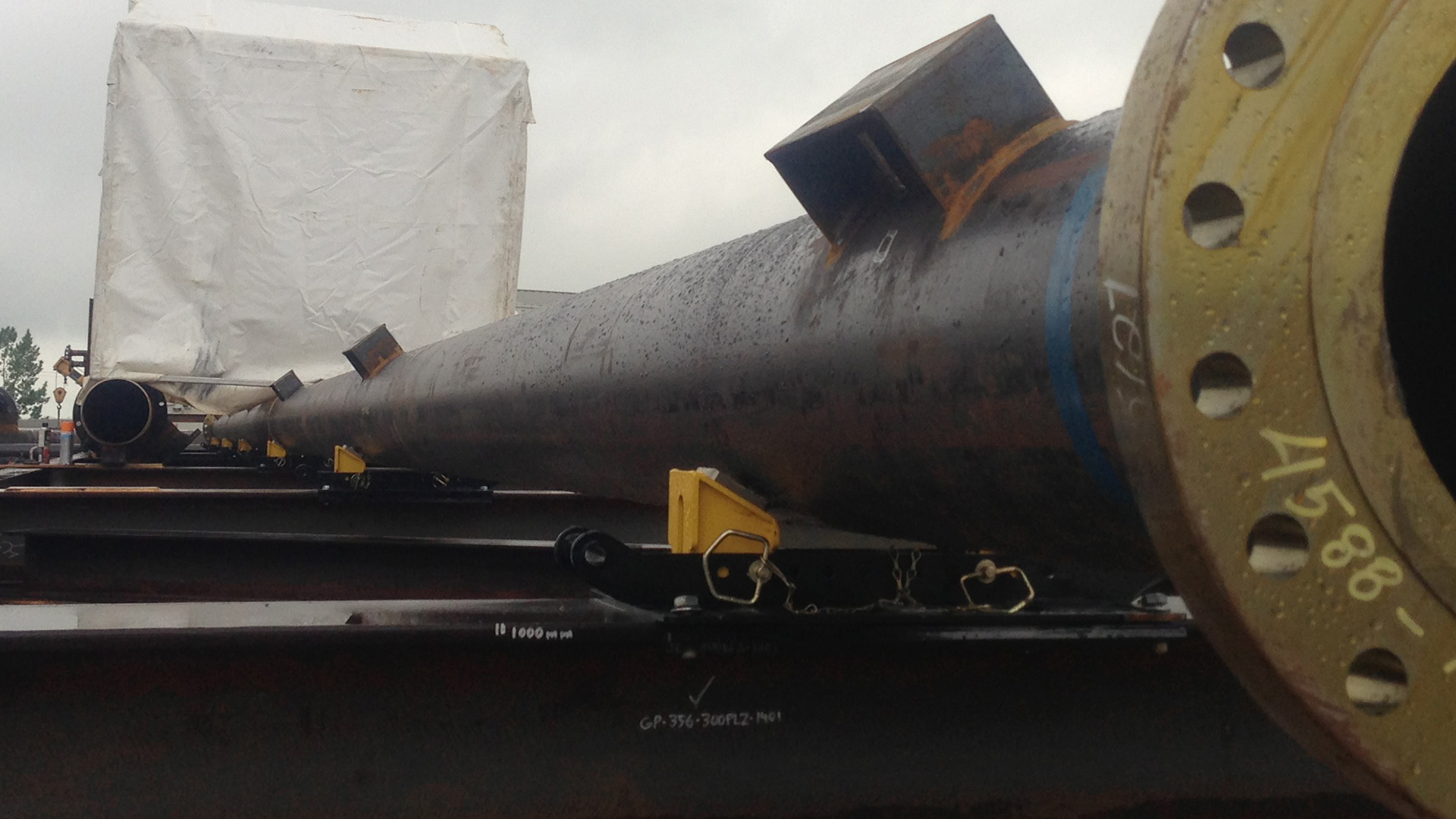

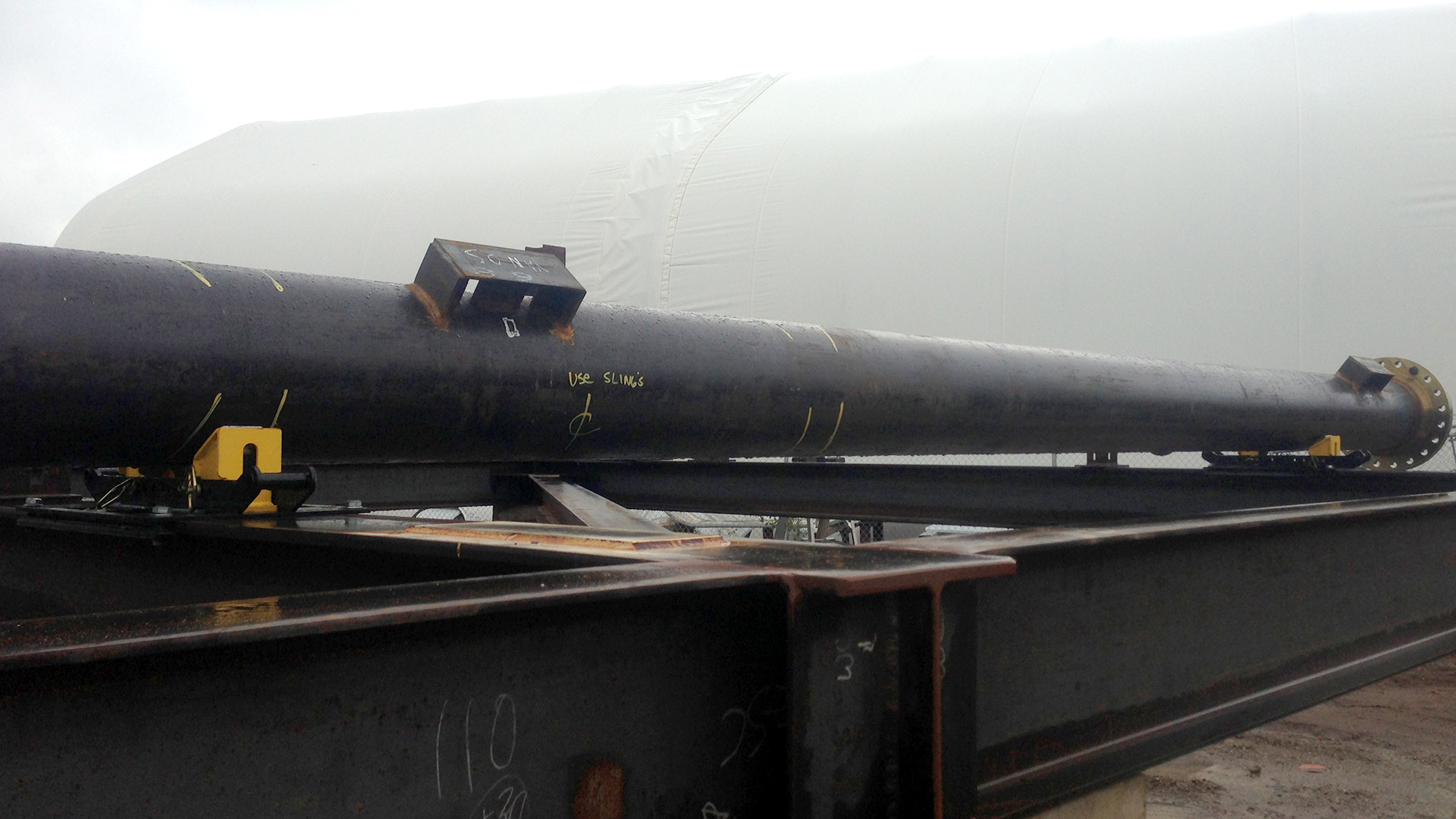

Pipe rigging rollers make the installation and removal of pipe safer, faster, and more manageable. The MDR-200 is a compact, multi-directional pipe rigging roller designed to move, turn, and push pipe in multiple directions. It can also be clamped to I-beams or other support structures for added stability and functionality. It is useful for various industrial applications and is ideal for loading pipes onto racks or modular construction pipe systems at refineries, power plants, and other industrial facilities. The MDR-200 provides is a safer way of installing spooled pipe with fewer pinch points, less tugging, and less crane time and offers measurable efficiency gains---minimizing material handling and decreasing crane time by up to 40 percent. This means lower production costs associated with labor, equipment and material damage and increased job site safety and productivity.

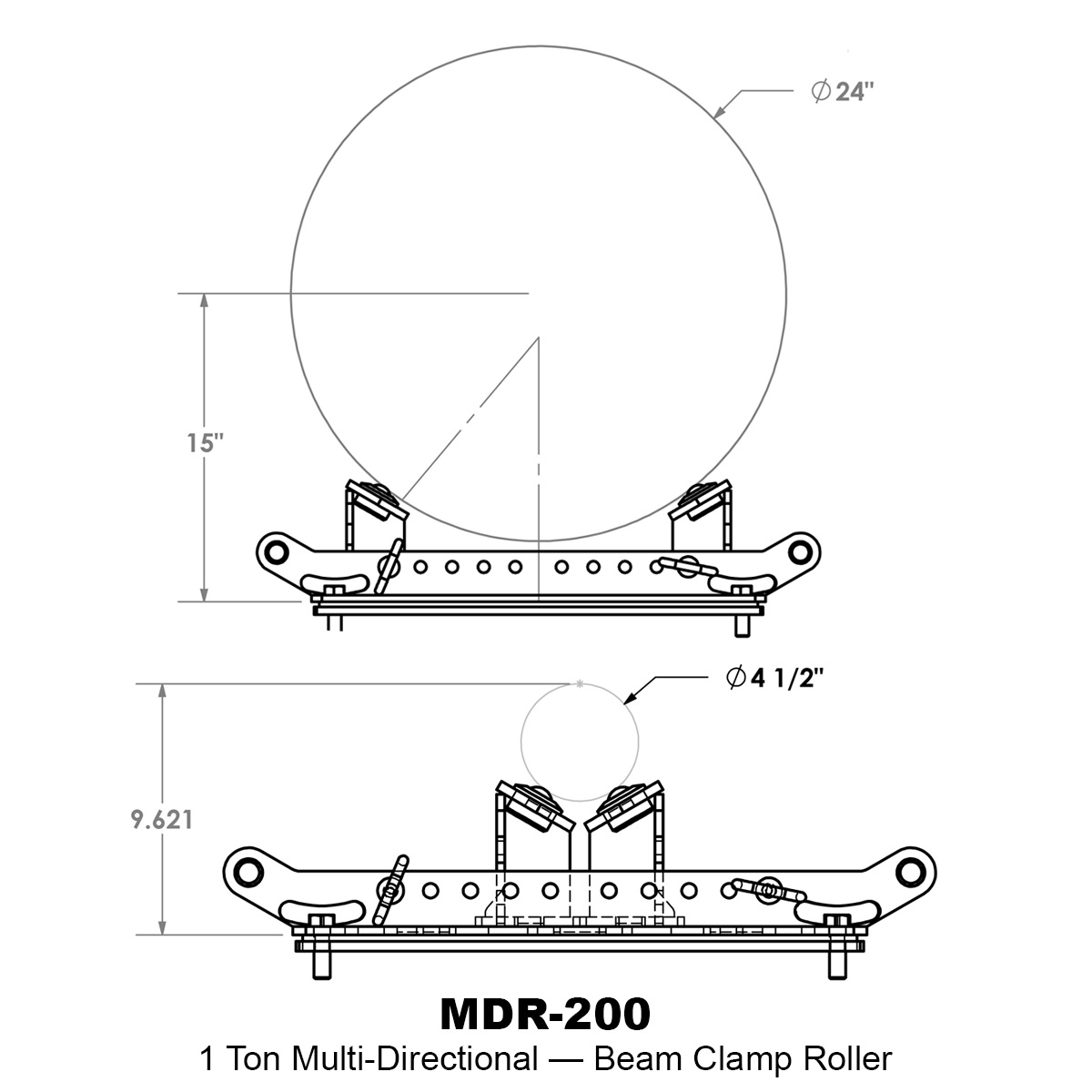

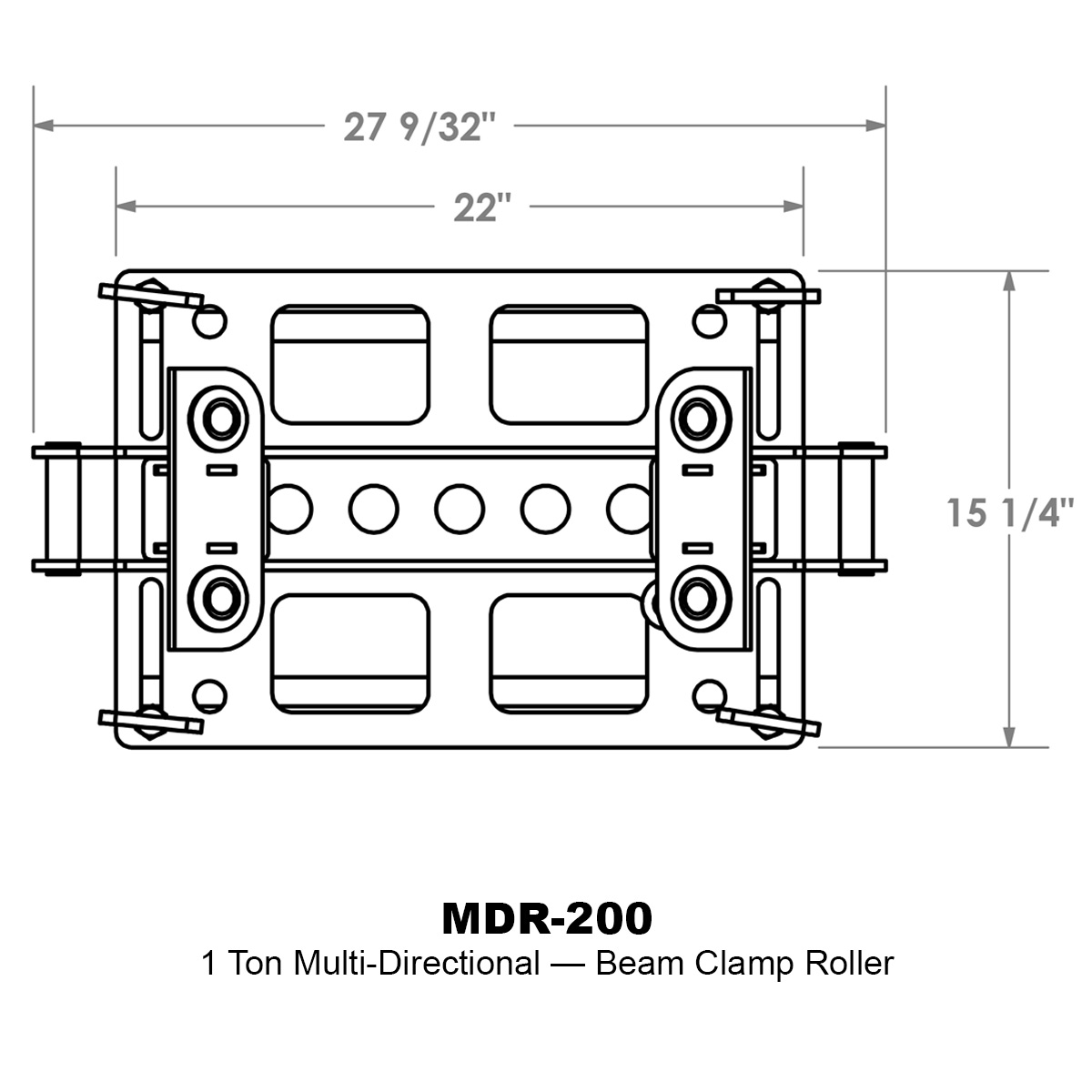

Compact and engineered for productivity and long working life, the MDR-200 has a load capacity of up to 2,000 lbs and a diameter range from 2 – 24 inches. Beam clamp flange size range of 6-12 inches, and flange widths up to one inch thick. The MDR-200 comes equipped with handles for easy lifting and installation. In addition, high-grade urethane rollers provide improved grip and shock absorption and help protect the pipe coating. The MDR-200 is available with jacking systems for easy loading and offloading, and extra small footprint or extra-large capacity options are available. In addition, customization options and accessories are available to help further expand functionality productivity.
