1 Ton Multi-Directional - Beam Clamp Roller: MDRN-100

MDRN-100 2000 lbs pipe rigging equipment

MDRN-100 2000 lbs beam clamp pipe rollers

Minimize material handling for efficiency in operations

Decrease crane time by up to 40% to enhance workflow

Lower labor costs through streamlined process

Lower equipment and material damage for sustained quality

Increase job site safety and productivity with robust design

Safer, faster and easier installation and removal of pipes

The MDRN-100 is a 1-ton multidirectional roller designed to move and guide pipes in all directions with ease.
This roller clamps securely to various structures, supporting loads up to 2,000 lbs with stability.
It accommodates pipe diameters ranging from 2 to 8 inches, making it versatile for different applications.
With its compact size, the MDRN-100 fits perfectly in tight or confined spaces, ideal for industrial environments.
The MDRN-100 helps reduce pinch points and minimizes the need for manual handling during pipe installation.
This roller decreases crane time by up to 40%, which helps lower production costs and increases overall productivity.
High-grade urethane rollers provide excellent grip, effective shock absorption, and protection for pipe coatings.

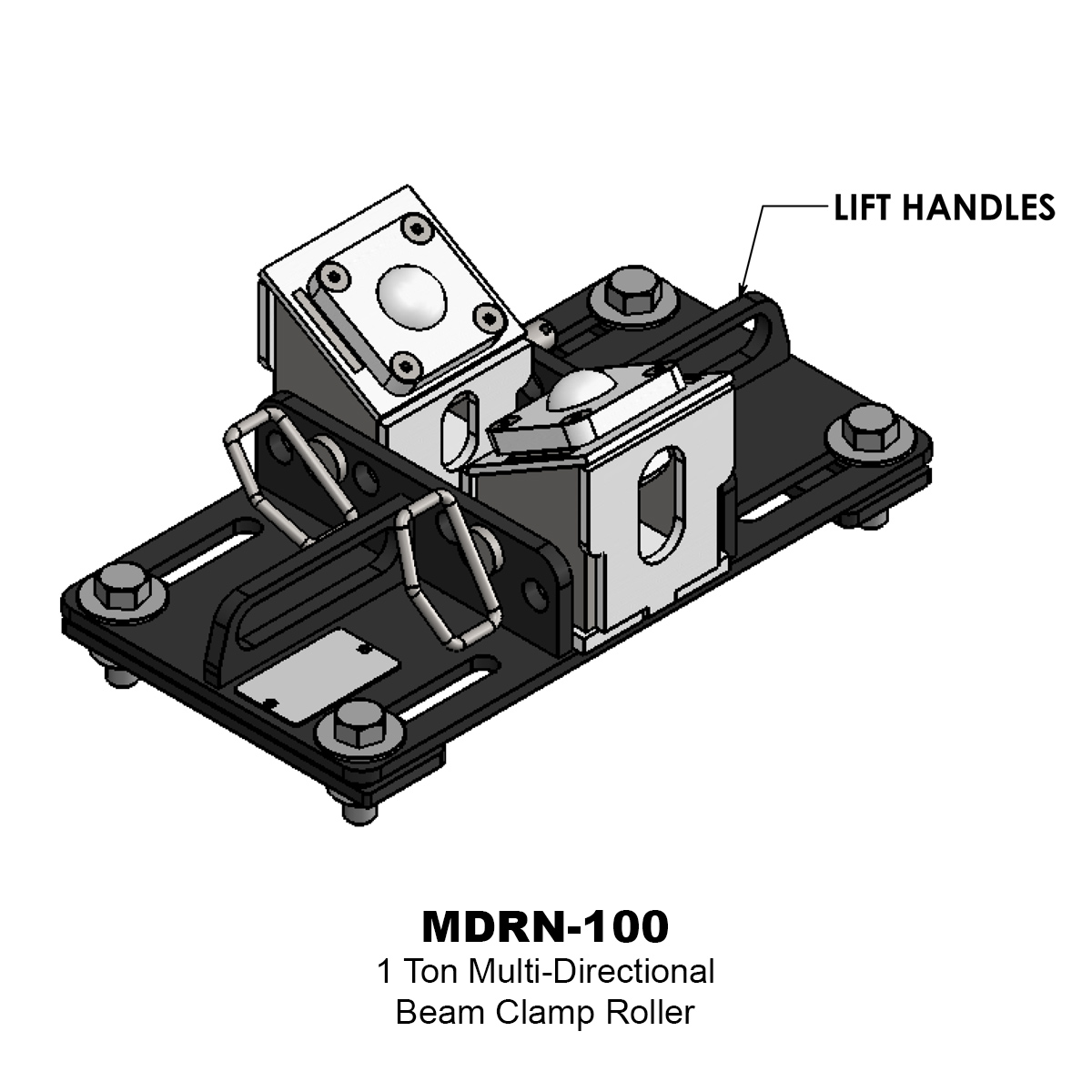

Ergonomically designed handles make the roller easy to lift and install, enhancing user convenience.
The MDRN-100 can be customized and equipped with jacking systems for added functionality and efficiency.
Other models, such as 2 Ton Multi-directional Beam Clamp Roller: MDR-700 or 1 Ton Multi-directional Beam Clamp Roller: MDR-200, are available to meet different specifications and needs.

Similar Equipment

At LJ Welding, we're dedicated to providing top-quality products that meet your needs.
If you're looking for a similar product with different specifications, be sure to check out our:

HZDD60-200
10 Ton Unidirectional - Beam Clamp Roller

MDR-200
1 Ton Multi-Directional - Beam Clamp Roller

MDR-700
2 Ton Multi-Directional - Beam Clamp Roller

LJ Welding's engineering department provides a progressive approach to solving the
unique problems that inevitably arise in our industry, resulting in efficient design,
fabrication, and timely delivery of custom equipment.

Loading Capacity	2,000 lbs (1-ton)

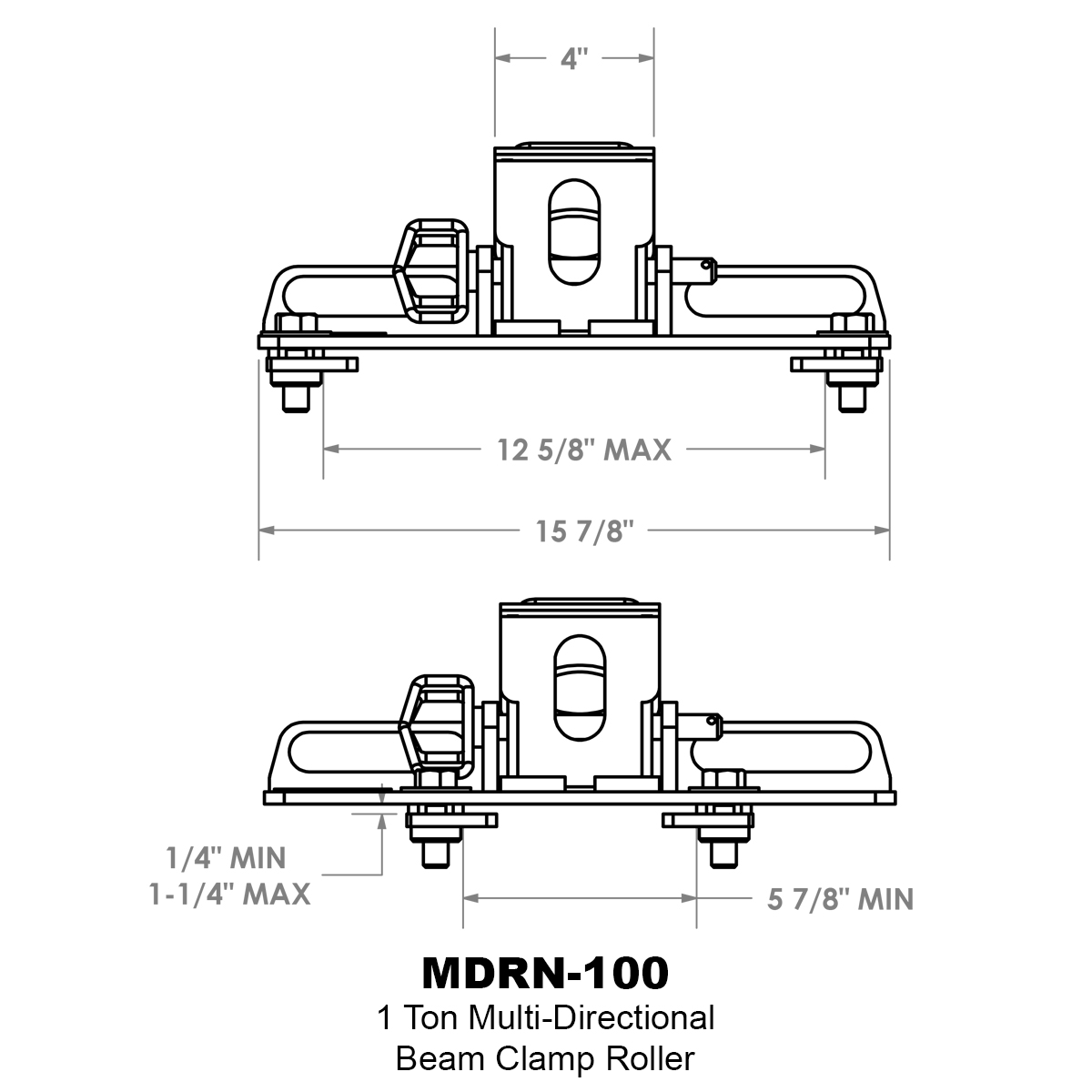

Footprint	19-⅜” x 9 x 5-1/16”
Diameter Range	2” - 8”
Rolling Surface	Multi-Directional Roller
Beam Clamp Flange Size Range	6” - 12” Wide x 1/4” - 1-3/4” Thick
Weight	40 lbs

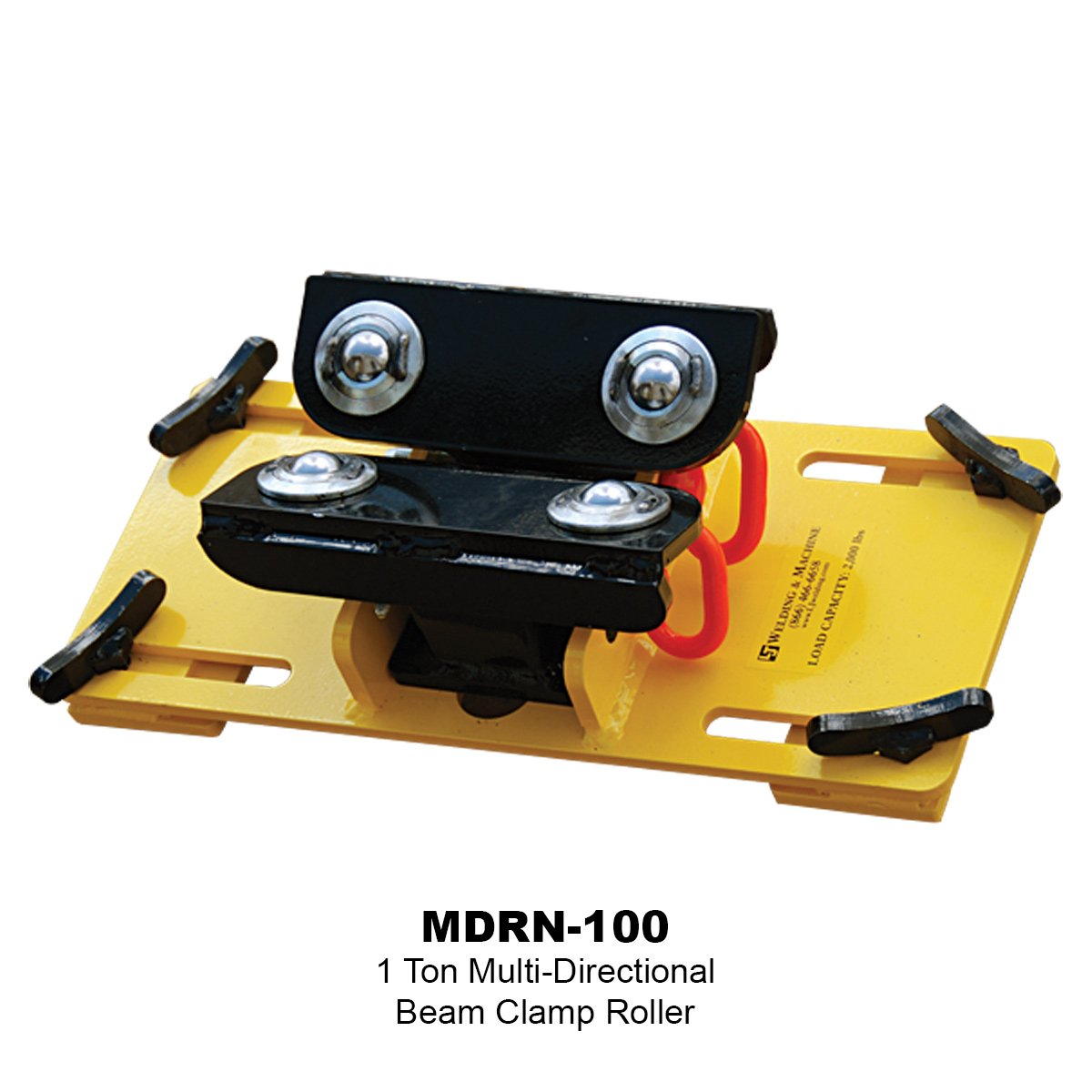

1 Ton Multi-Directional - Beam Clamp Roller: MDRN-100

KEY SPECIFICATIONS

EQUIPMENT BENEFITS & DESCRIPTION

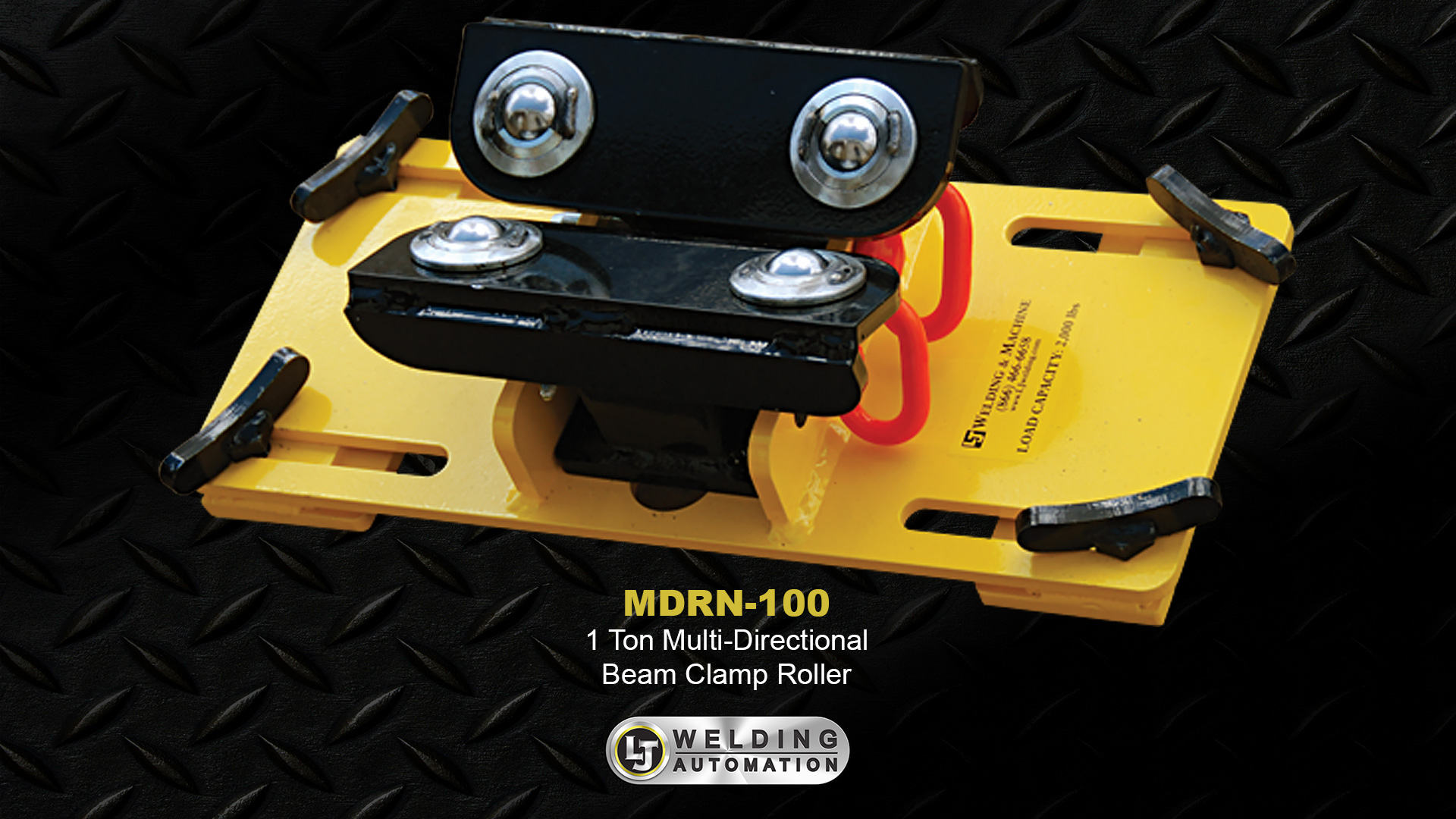

PHOTO GALLERY
