1 Ton Unidirectional -
Beam Clamp Roller: HZ6-200

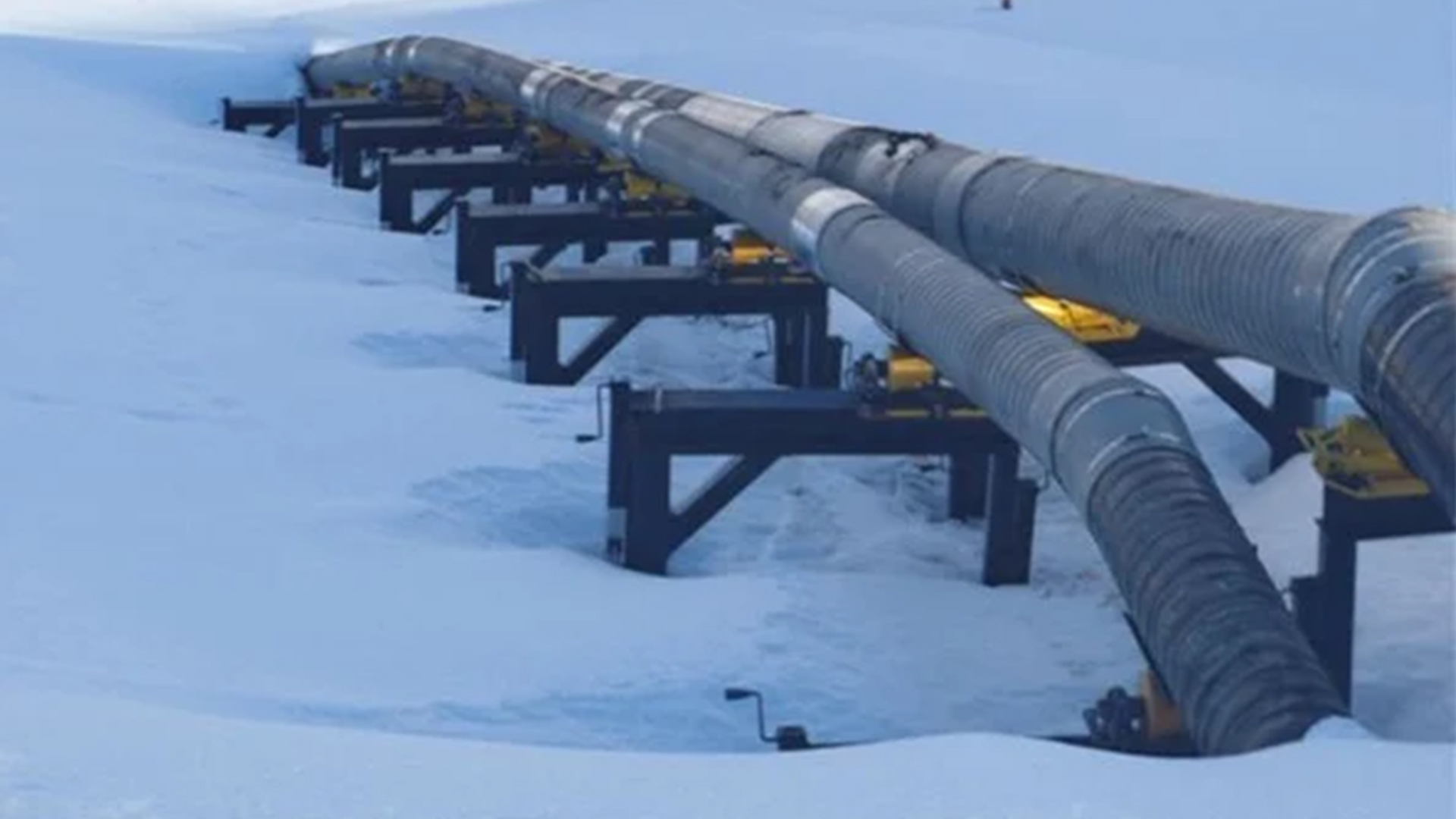

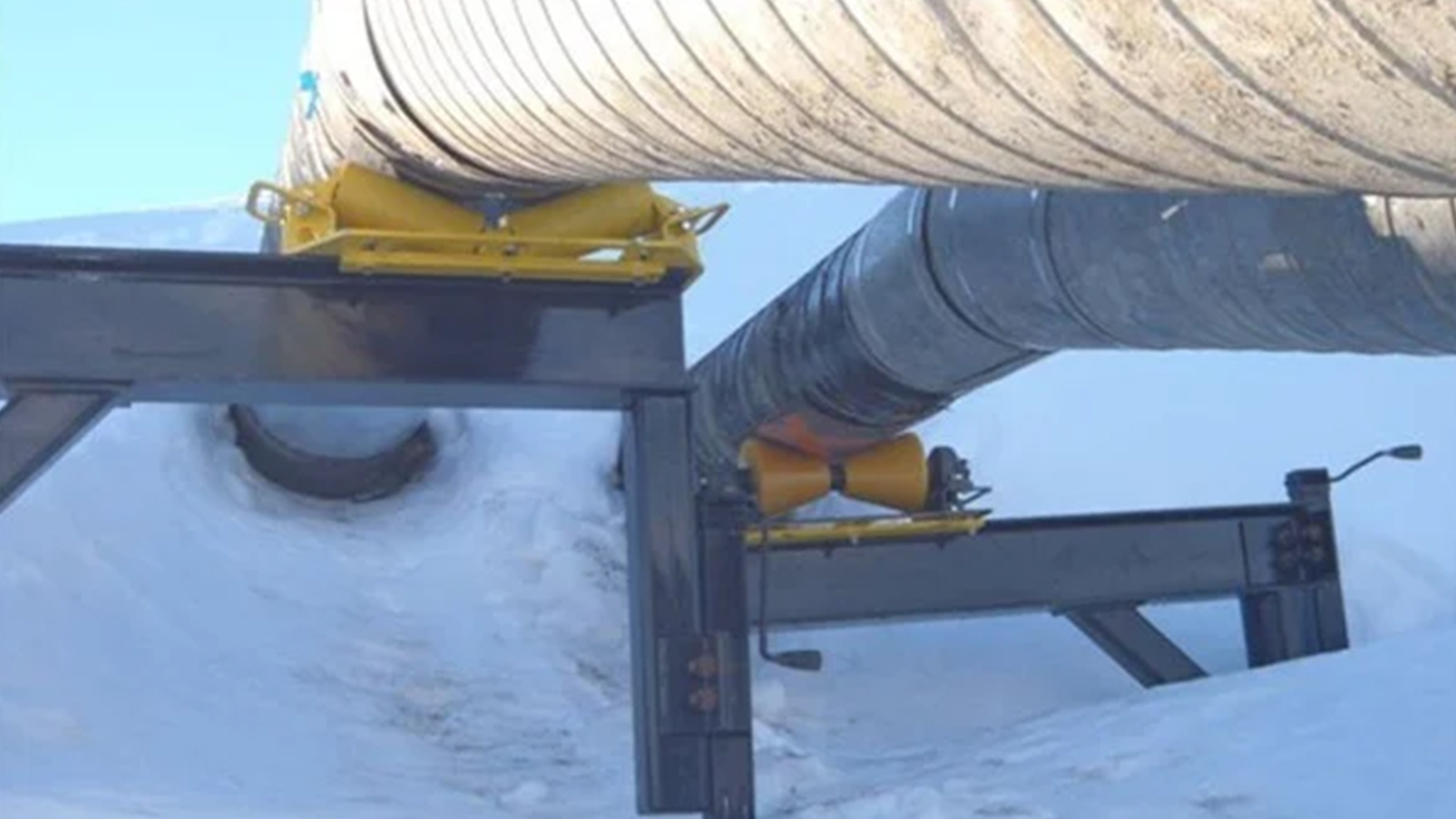

Pipe rigging rollers make the installation and removal of pipe safer, faster and easier. The HZ6-200  is a compact unidirectional pipe rigging roller designed for lighter loads. It is ideal for loading pipe onto racks or modular construction pipe systems at refineries, power plants, and other industrial facilities. The HZ6-200 offers a safer way of installing spooled pipe in narrow and cramped spaces with fewer pinch points, less tugging, and less crane time and offers measurable efficiency gains---minimizing material handling and decreasing crane time by up to 40 percent. This means lower production costs associated with labor, equipment and material damage and increased job site safety and productivity.

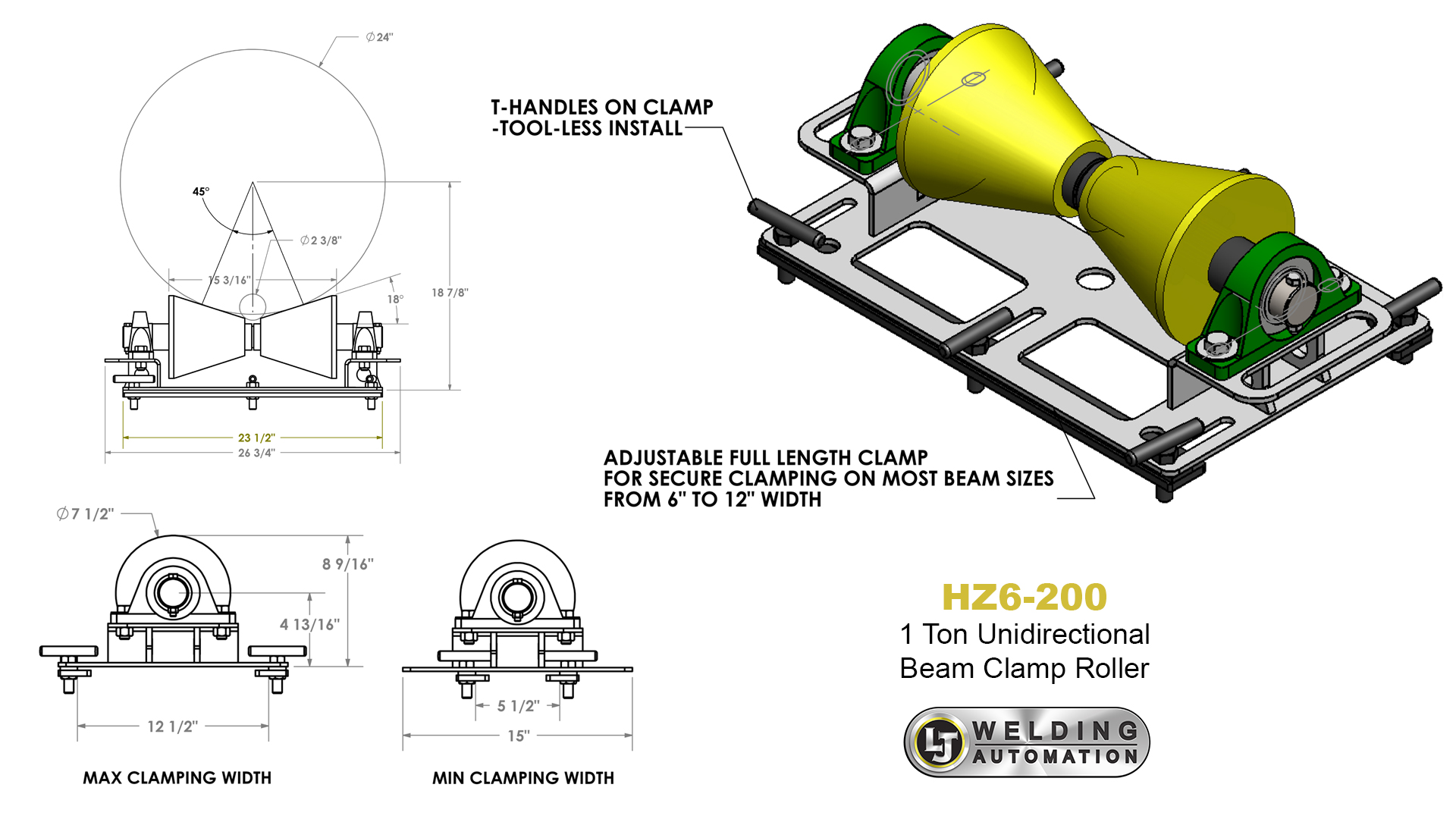

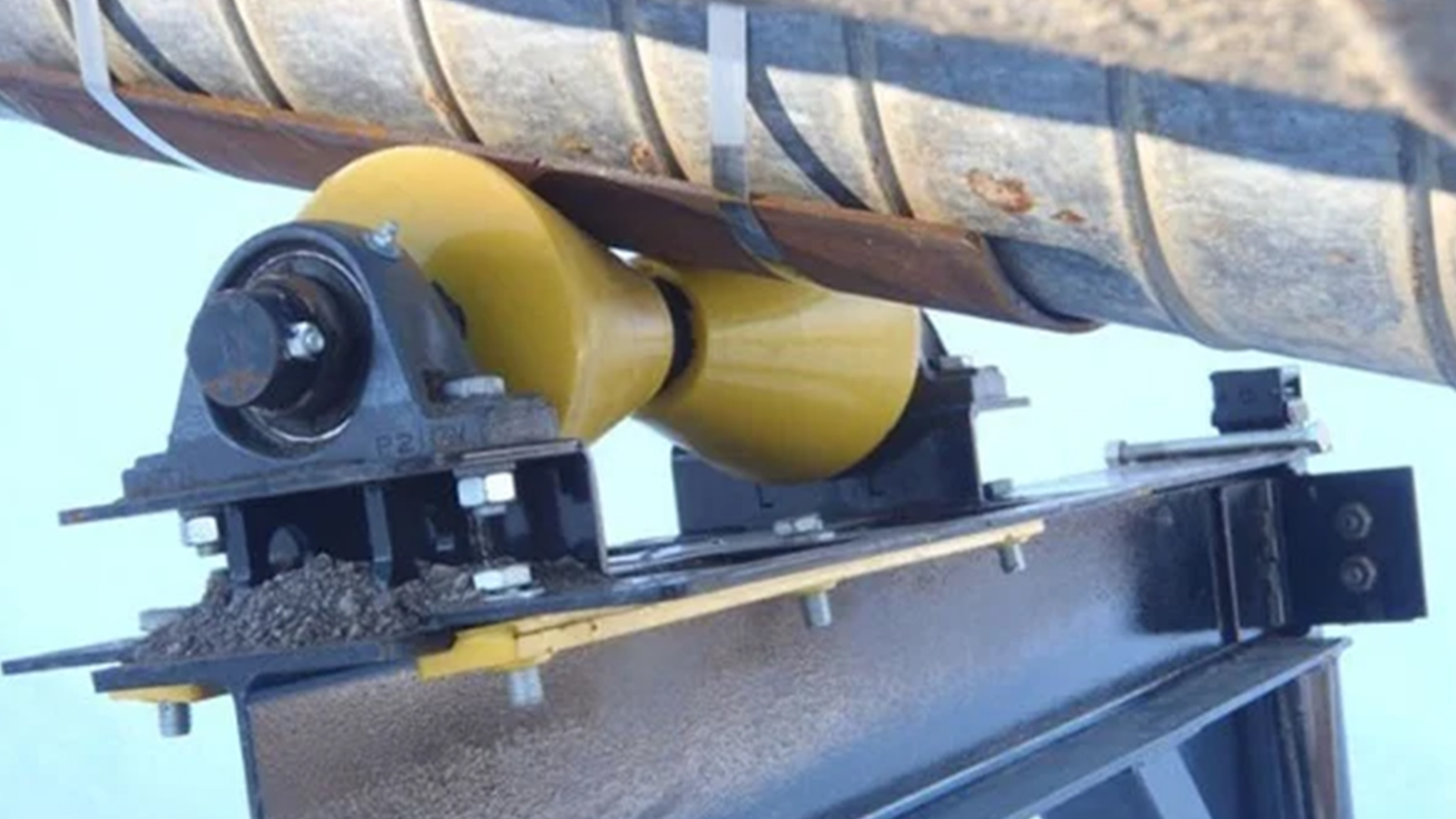

Compact and engineered for productivity and long working life, the HZ6-200 has a load capacity of 2,000 lbs and a diameter range of  2-3/8 - 24 inches. It can be clamped to I-beams or other support structures for added stability and functionality. In addition, it comes equipped with handles for easy moving, lifting and installation, and unidirectional urethane rollers provide improved grip and shock absorption and help protect the pipe coating.
