- LJ Welding Pipe Double-Jointing System offers a complete pipe handling and welding automation functionality that is fully integrated into a single user-friendly system resulting in maximum productivity and safety.
 |
Reduced Cycle Times: Our double- jointing systems provide maximum safety and efficiency, with up to 65% decrease in fit up cycle times |
 |
Decreased Crane Dependency: The system enables alignment utilizing hydraulically actuated idlers, and lateral track motion for bringing the pipe sections together, without the use of wood cribbing, manual jacks, and constant crane reconfigurations |
 |
Increased Adaptability: LJ Pipe Double-Jointing System provides even weight distribution, constant rotation speeds and is adaptive to a wide range of work-piece diameters without the need for separate adjustment |
 |
Worker Safety: Our system reduces worker fatigue as well as provides a secure way to position cylindrical parts |
 |
Uneven Shop Floor: LJ Pipe Double-Jointing System offers compensation for inconsistencies on the shop floor or ground |
Side-By-Side Pipe Double-Jointing System Comparison
| Specifications |

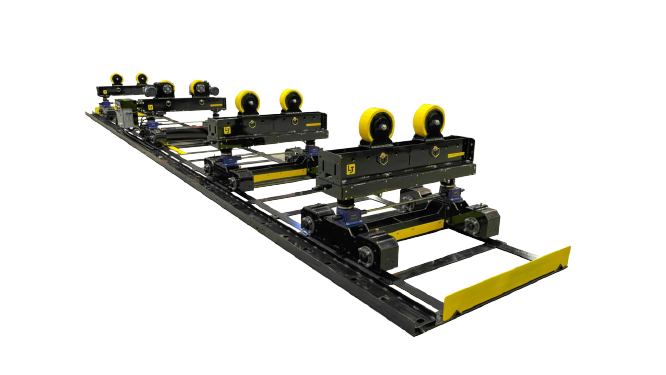

PIPE DOUBLE-JOINTING SYSTEM: 10TMR
|
PIPE DOUBLE-JOINTING SYSTEM: 40TMR
|
||||||
| Load Capacity | Total: 20,000 lbs (10-ton) Driver: 10,000 lbs (5-ton) Idler: 10,000 lbs (5-ton) |
Total: 30,000 lbs (15-ton) Driver: 15,000 lbs Idler: 15,000 lbs |
||||||
| Diameter Range | 6" - 96" nominal pipe diameter | 24" - 60" | ||||||
| Driver | 40" x 60" x 36" height |
Various welding positioner options available 40TMR Video uses a 60P pipe welding positioner |
||||||
| Idler | 40" x 55" x 36" height | 94" width x 56-1/2" depth x 62" height | ||||||
| Tractive Effort | Single Drive: 3,500 lbs | N/A | ||||||
| Driver System | Dual Drive | N/A | ||||||
| Rotation Speed | 5 - 50 in/min (applies to driver unit only) | 5 - 50 in/min | ||||||
| Power Requirements | 480 V, 3-Ph | 12 - 120 in/min | ||||||
| Alignment Features |
|
(+/- ) 7-1/2" (15" of side to side travel) 30" (pinned, 3" increments) 8" (hydraulic)
*dependent on pipe diameter
|
||||||
| Make A Fully Automated Welding Cell With |
4' x 5' Portable Welding Manipulator 6' x 6' Column Boom Manipulator 9' x 9' Column Boom Manipulator |
Welding Positioners
4' x 5' Portable Welding Manipulator 6' x 6' Column Boom Manipulator 9' x 9' Column Boom Manipulator |
