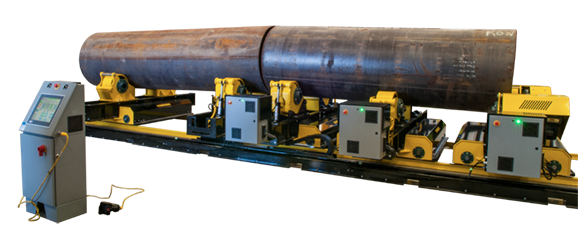

GROWING LINE Fit Up Bed SYSTEMS

LJ specializes in an innovative growing line system used for fast alignment, leveling, fit up and indexing of large pipe and vessels up to 60 tons and 20ft diameter. Growing lines can reduce fit up time by up to 65% when compared with traditional methods, minimize crane handling and maximize operator safety.

Side-By-Side Comparison Between Growing Line Welding Systems

Specifications 40TA-000 Growing Line Pipe Alignment System 60TA-000 Growing Line Pipe Alignment System 80TA-000 Growing Line Pipe Alignment System
Load Capacity 80,000 lbs 120,000 lbs 160,000 lbs
Diameter Range 24" - 240" 24" - 240" 24" - 240"
Minimum Workpiece Length 144" 144" 144"
Rotation Speed 5 - 50 in/min 5 - 50 in/min 5 - 50 in/min
Track Drive Speed 12 - 120 in/min 12 - 120 in/min 12 - 120 in/min
Input Power 480 V, 3-Ph 480 V, 3-Ph 480 V, 3-Ph
Optional Extras For Fully Automated System Column Boom Welding Manipulator Column Boom Welding Manipulator Column Boom Welding Manipulator
