COLUMN & BOOM WELDING MANIPULATORS

LJ Column & Boom Welding Manipulator advanced systems give your company an edge over your competitors. A great way to improve your automated processes for inner, outer and circumferential welding applications.

	Production Output: Enhance fabrication output while maintaining high weld quality
	Maximize ROI: Reduce welding time and labour costs
	Height & Reach Adjustability: Maximize workflow and customize to your needs
	Weld Boom Stiffness: Ensure better precision when welding and less rework
	Weld Seam Accessibility: Reduce rejection rates and increase deposition rates
	Mechanized Automation: The welding processes can executed and monitored by an operator
	Customization: No two systems alike! Get a custom solution for your unique application

LJ'S COLUMN & BOOM WELDING MANIPULATOR SELECTION

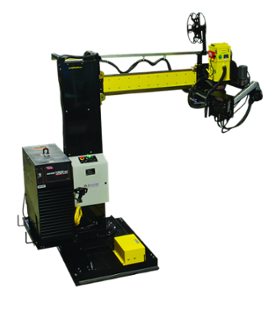

4′ X 5′ Portable Column and Boom Welding Manipulators, MNP-600

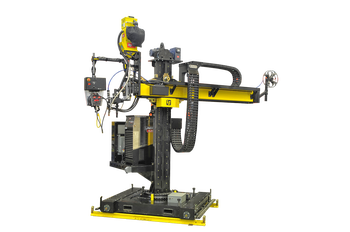

6′ x 6′ Column and boom welding manipulators, MN6-100

6-x-6-submerged-arc-welding-column-boom-weld-manipulators-mn6-100,jpg

9′ X 9′ Column and boom welding manipulators, MN9-300

9-x-9-submerged-arc-column-boom-welding-manipulators-mn9-300

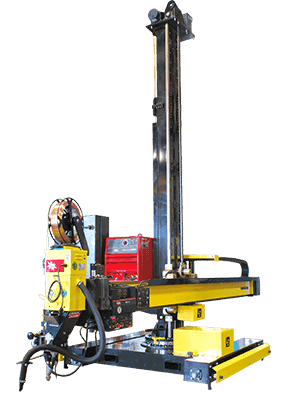

12′ X 12′ Column and Boom Welding Manipulators MN12-200

12-x-12-column-boom-welding-manipulators-mn12-200

16′ X 16′ Column and Boom Welding Manipulators MN16-100

mn16_welding_manipulator-1

SIDE-BY-SIDE COLUMN & BOOM MANIPULATOR COMPARISON

Specifications	4' x 5' Column & Boom Welding Manipulator (MNP-600)	6' x 6' Column & Boom Welding Manipulator (MN6-100)	9' x 9' Column & Boom Welding Manipulator (MN9-300)	12' x 12' Column & Boom Welding Manipulator(MN12-200)	16' x 16' Column & Boom Welding Manipulator (MN16-100)
Load Capacity (at boom end):	250 lbs	500 lbs	500 lbs	500 lbs	250 lbs
Boom Stroke:	42"	72"	108"	144"	192"
Column Stroke:	58"	72"	108"	144"	192"
Boom Traverse Speed Range:	5 - 120 in/min	5 - 120 in/min	5 - 120 in/min	5 - 120 in/min	5 - 120 in/min
Mast Traverse Speed Range:	5 - 120 in/min	5 - 120 in/min	5 - 120 in/min	5 - 120 in/min	5 - 120 in/min
Travel Car Speed:	5 - 120 in/min	5 - 120 in/min	5 - 120 in/min	5 - 120 in/min	5 - 120 in/min
Power Requirements:	480 V, 3-ph	480 V, 3-ph	480 V, 3-ph	480 V, 3-ph	480 V, 3-ph
Equipment Mass:	4,400 lbs	7,500 lbs	8,500 lbs	9,000 lbs	9,500 lbs
Optional System Extras:	Welding Positioners, Tank Fit Up Rolls, Vessel Rotators, Pipe Turning Rolls, Pipe Stands, Pipe Alignment Rolls, Double Jointing Systems or Growing Lines	Welding Positioners, Tank Fit Up Rolls, Vessel Rotators, Pipe Turning Rolls, Pipe Stands, Pipe Alignment Rolls, Double Jointing Systems or Growing Lines	Welding Positioners, Tank Fit Up Rolls, Vessel Rotators, Pipe Turning Rolls, Pipe Stands, Pipe Alignment Rolls, Double Jointing Systems or Growing Lines	Welding Positioners, Tank Fit Up Rolls, Vessel Rotators, Pipe Turning Rolls, Pipe Stands, Pipe Alignment Rolls, Double Jointing Systems or Growing Lines	Welding Positioners, Tank Fit Up Rolls, Vessel Rotators, Pipe Turning Rolls, Pipe Stands, Pipe Alignment Rolls, Double Jointing Systems or Growing Lines

Know What Manipulator You'd Like? Fill Out Our Online Form Today:
