Tank Fit-Up Rolls

Tank Turning Rolls – For tank fit-up applications

For fitting range or length and diameter tanks or thin walled vessels. Modular design allows users to add sections for longer tank. Tube rolls allow support along entire length of concentric tanks or vessels, for applications where regular turning rolls are not adequate and extra vessel support is required.

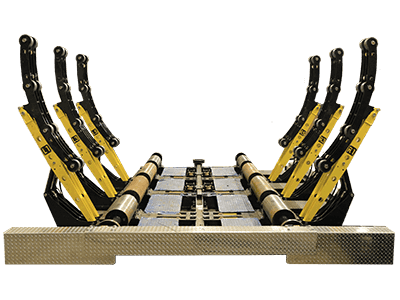

MODULAR TANK VESSEL FIT-UP ROLLS ALG-412

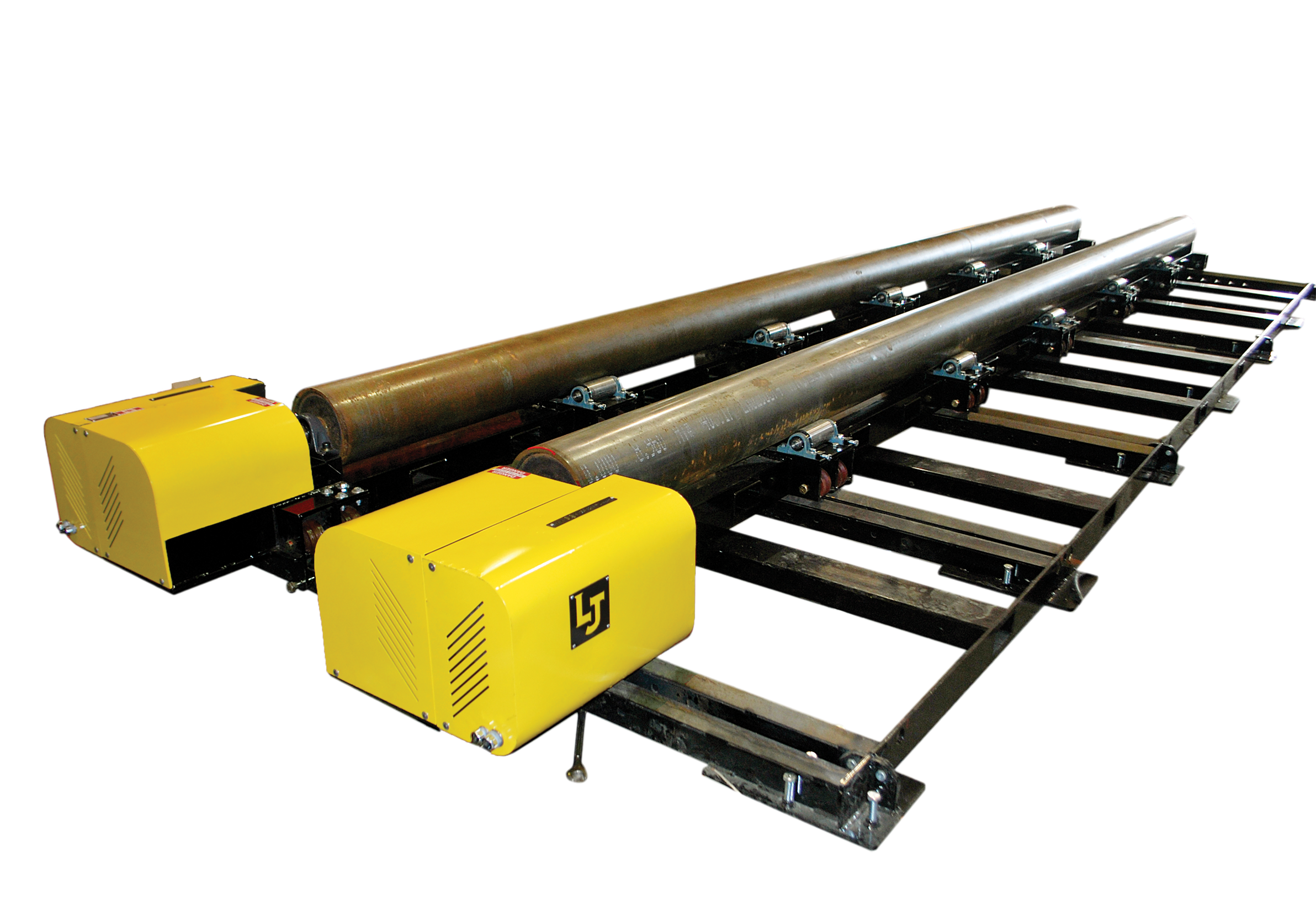

MODULAR TANK VESSEL FIT-UP ROLLS ALG-512

Side-By-Side Tank Fit Up Roll Comparison

Specifications	ALG-412 Tank Fit Up Rolls (Roller Bed Style)	ALG-512 Tank Fit Up Rolls (Fully Automated Rolls)
Load Capacity: Load per Section:	Up to 60 tons 4-ton per 8-foot section	Up to 20 tons 5-ton per 5-foot section
Diameter Range:	3 ft - 14 ft	5 ft - 14 ft
Drive System:	Dual Drive, Drive-Shaft Free Style	Dual Drive, Drive-Shaft Free Style
Tractive Effort:	6,000 lbs	6,000 lbs
Footprint:	Varies depending on customer requirements	Varies depending on customer requirements
Power Requirements:	480 V, 3-ph	480 V, 3-ph
Rotation Speed:	5 - 96 in/min	5 - 96 in/min
Equipment Mass:	8,300 lbs (5 sections)	11,300 lbs (5 sections)
Make Your Fully Automated Welding Cell With:	4' x 5' Portable Welding Manipulator 6' x 6' Column Boom Manipulator 9' x 9' Column Boom Manipulator 12' x 12' Column Boom Manipulator 16' x 16' Column Boom Manipulator	4' x 5' Portable Welding Manipulator 6' x 6' Column Boom Manipulator 9' x 9' Column Boom Manipulator 12' x 12' Column Boom Manipulator 16' x 16' Column Boom Manipulator

Know What You Need? Fill Out An Online Quote Request Today:

New And Used Pipe Rolls And Vessel Rotators For Sale Or Rent

LJ Welding Automation tank fit-up rollers and vessel rotators are available for short term rental or long term lease. We also sell new or used welding equipment, including pipe rolls, industrial footswitches, used tank turning rolls, and used vessel rolls.

If you have an application requiring specifications that you do not see in the advertised options, please contact us for information on custom built pipe rolls and vessel rotators to suit your application.
