| Specifications |
10TMR |

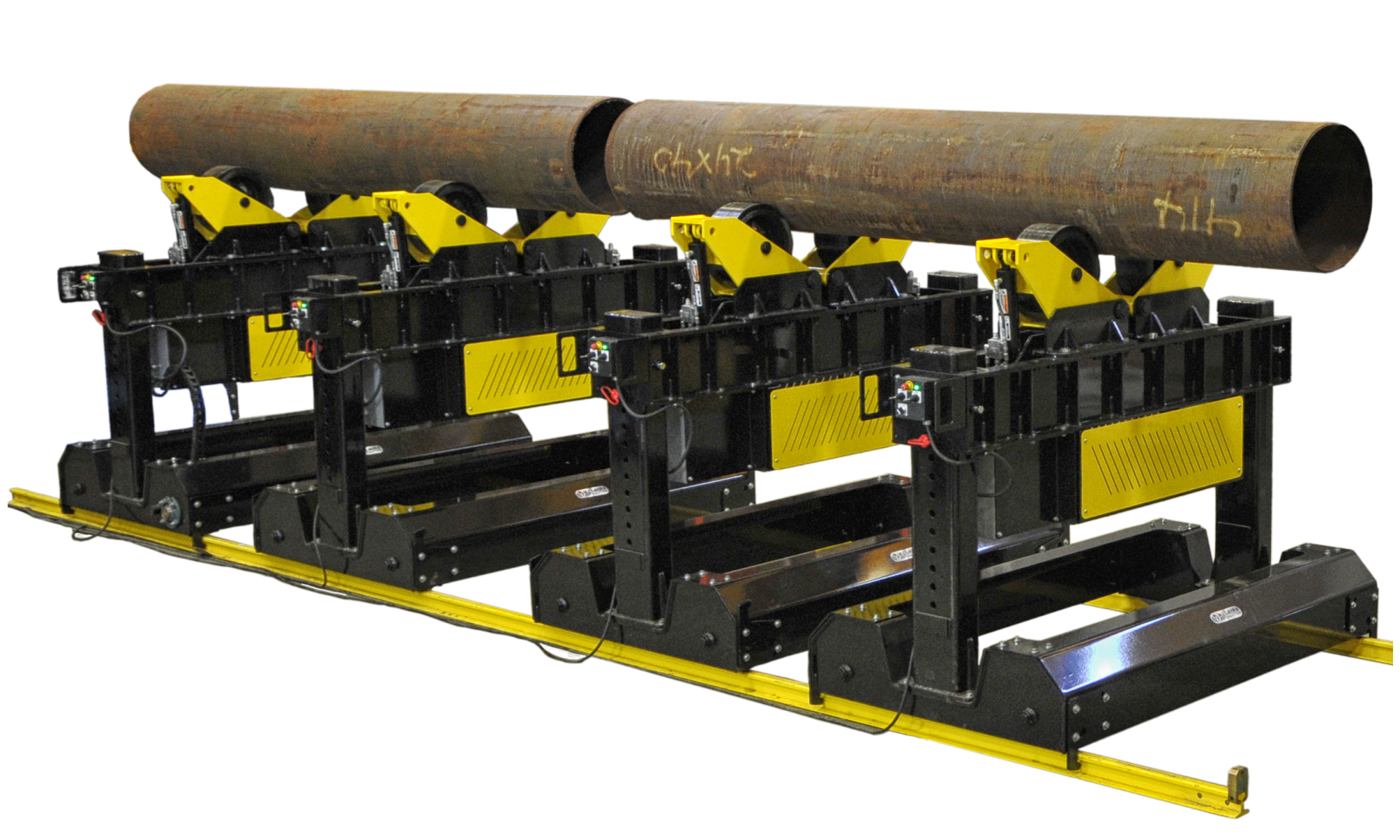

40TMR |
| Load Capacity |
- Total: 20,000 lbs (10-ton)
- Driver: 10,000 lbs (5-ton)
- Idler: 10,000 lbs (5-ton)
|
- Total: 30,000 lbs (15-ton)
- Driver: 15,000 lbs
- Idler: 15,000 lbs
|
| Diameter Range |
6" - 96" nominal pipe diameter |
24" - 60" |
| Driver |
40" x 60" x 36" height |
Various welding positioner options available
40TMR Video uses a 60P pipe welding positioner
|
| Idler |
40" x 55" x 36" height |
94" width x 56-1/2" depth x 62" height |
| Tractive Effort |
Single Drive: 3,500 lbs |
N/A |
| Driver System |
Dual Drive |
N/A |
| Rotation Speed |
5 - 50 in/min (applies to driver unit only) |
5 - 50 in/min |
| Power Requirements |
480 V, 3-Ph |
12 - 120 in/min |
| Alignment Features |
| Side Shift* |
+/- 2" (4" of side to side travel) |
|
Height Adjustability*
Powerered Track Drive
|
6" (up/down) |
| *using cordless drill |
48" travel (powered rail) |
|
(+/- ) 7-1/2" (15" of side to side travel)
30" (pinned, 3" increments)
8" (hydraulic)
*dependent on pipe diameter
|
