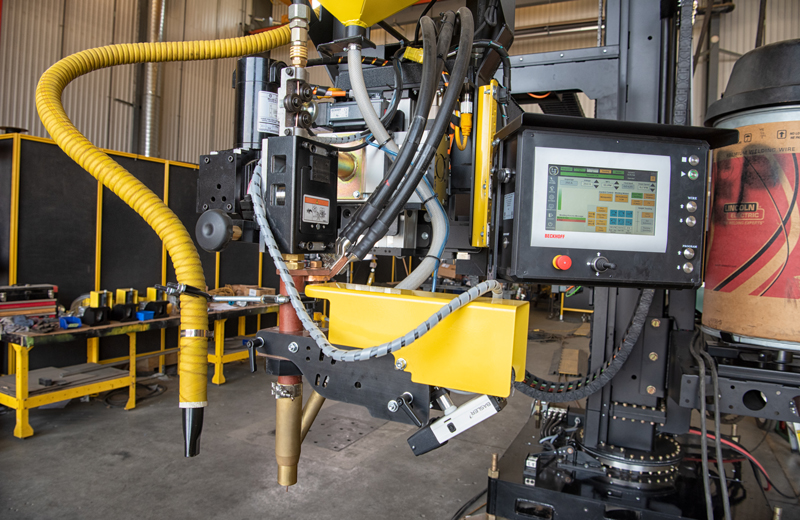

MNX12 introduces an option of having a manipulator with dual opposing GMAW and SAW automated weld heads. Combining GMAW and SAW processes in one machine saves on shop space and improves productivity, since there is no need to change the machine, and all the GMAW and SAW processes can be done with MNX12 only.

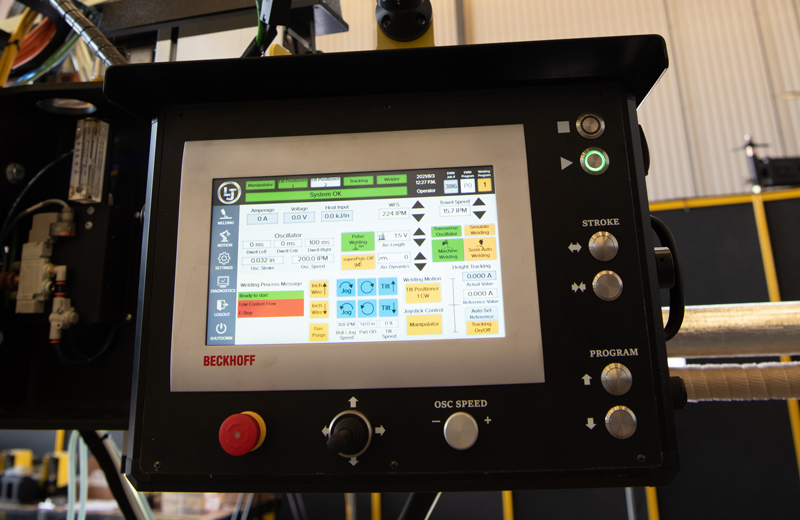

Dual Opposing MIG/SAW Welding Manipulator MNX12-100 delivers clear visualization of the welding process using integrated laser illumination and optics. Moreover, the welding process is monitored by Through Arc Height Tracking (TAHT) which guarantees consistently accurate height tracking to ensure optimum weld quality. When it comes to user control, LJ’s MNX12-100 is outfitted with platform and weld head-mounted touchscreen displays combined with industry-leading ‘Top Flight’ tactile controls. The HMI displays allow the operator full control over weld parameters as well as a precision manipulator and positioner control. Lastly, the heavy-duty MNX manipulator can easily be rotated to use the SAW process on the same workpiece in the same footprint.

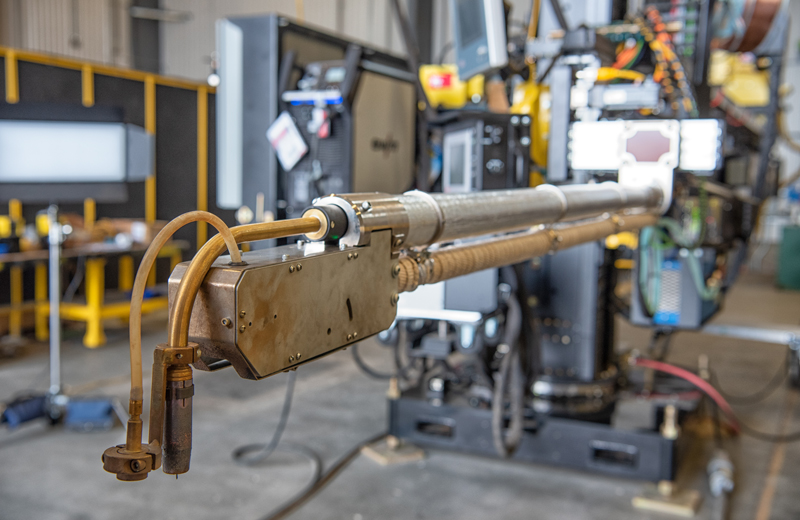

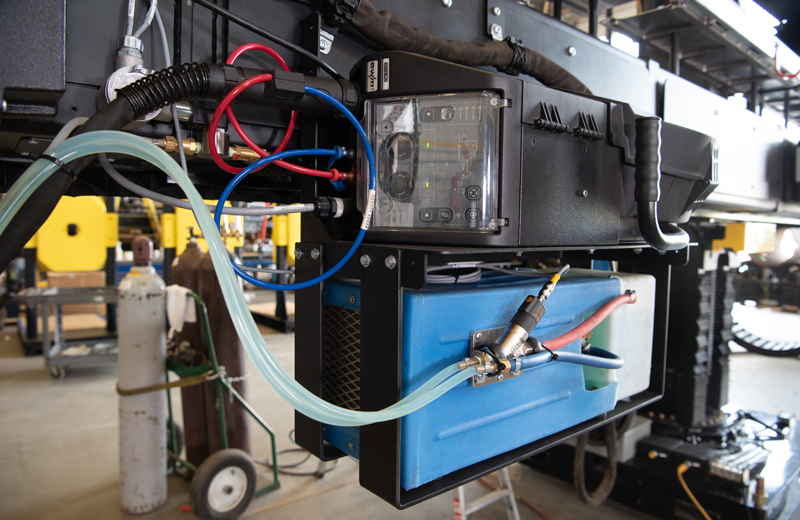

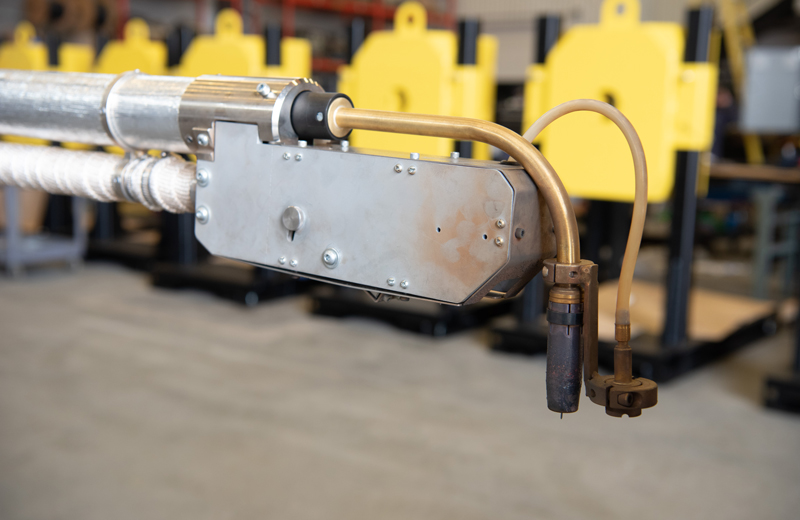

The Dual Opposing MIG/SAW Welding Manipulator MNX12 features dual opposing GMAW and SAW automated weld heads. Combining these two processes in one machine saves on shop space and improves productivity. Besides having GMAW and SAW processes in one machine, this manipulator is also equipped with a torch and camera that are liquid-cooled to withstand the extreme heat conditions of small-bore ID welding. On top of that, the small-bore extended torch lance with alignment camera reaches inside 8” ID (GMAW), for both circular and long seam welds.
We, at LJ Welding, try to bring you the best products that satisfy your demands.
if you are looking for a Welding Manipulator with different specs, have a look at our:
LJ Welding's engineering department provides a progressive approach to solving the
unique problems that inevitably arise in our industry, resulting in efficient design,
fabrication, and timely delivery of custom equipment.
