|Loading capacity||60,000 lb
(at 12” overhung load)
|Footprint||133"x 96"x 105"|
|Turning Torque||800,000 in-lb|
|Height Adjustability||73"– 145" in 8"
|Power Requirements||480V, 3-ph*|
|Operation Speed||0.04–0.8 RPM|
|Ground Capacity||1,500 Amps|
Accommodation to a wide range of swing diameters.

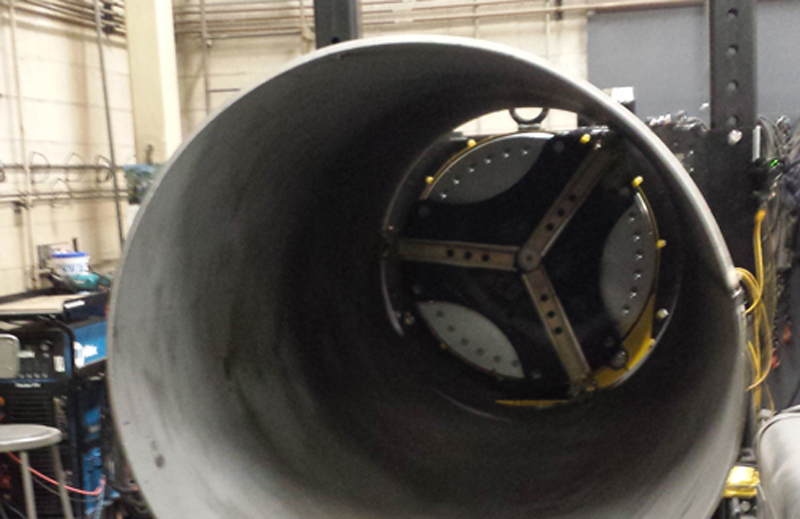

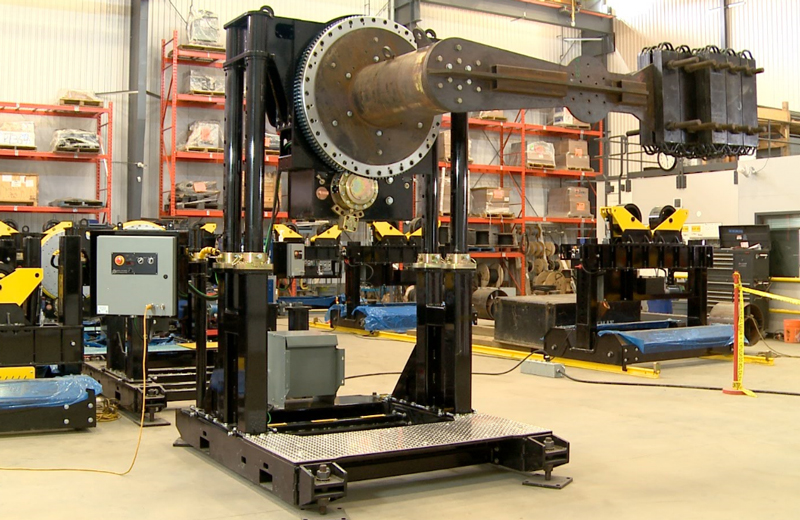

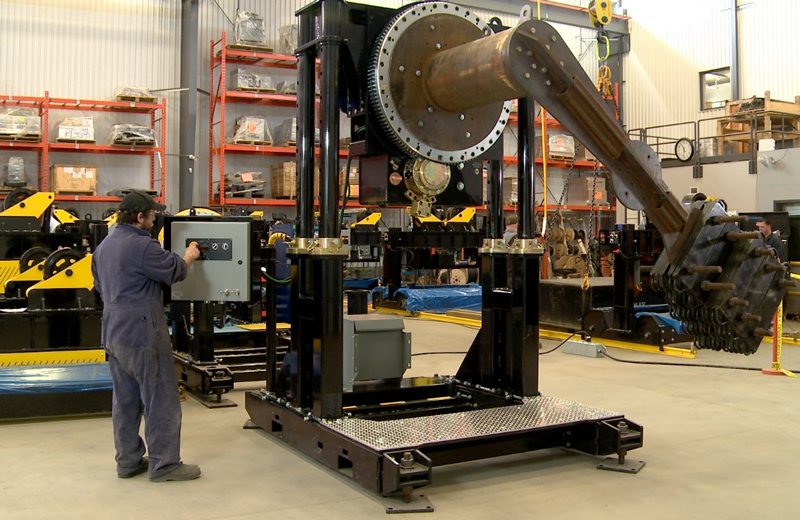

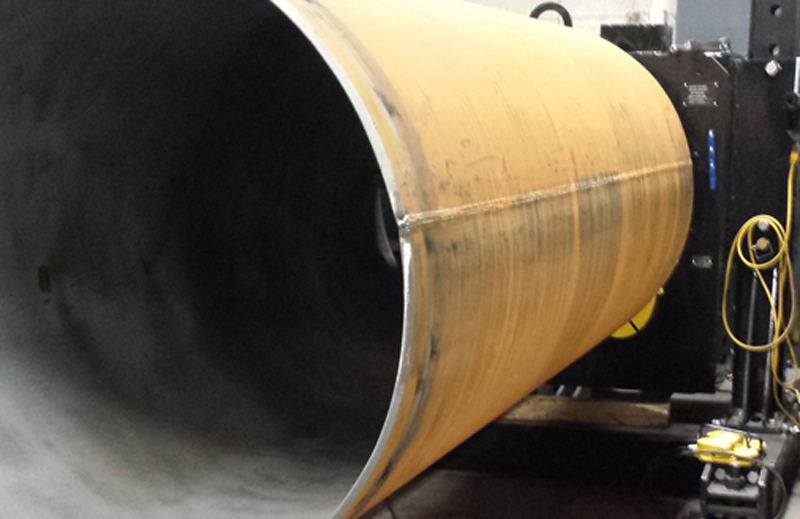

If you are a welding service provider or a contractor dealing with a wide range of pipe diameter sizes, LJ's 60,000 lb Pipe Turning Positioner Rental is right for you. Our rental pipe positioner has a load capacity of 30 tons and a turning torque power of 800,000 in-lb. Ideal for larger workpieces, The P60PS-200 has adjustable working heights ranging from 73" to 145" in increments of 8". It handles outer diameter (OD) pipe ranging from 2 to 60 inches.
The positioner has a footprint of 133" x 96" x 105". Its compact design makes it ideal for shops welding with limited floor space. The ground capacity of the equipment is 1,500 Amps and power requirements are 480V, 3ph., however; modifications to the power requirements and height ranges are possible.
Our 60,000 lb Pipe Turning Positioner Rental lowers costs by reducing start and stop functions and increasing the welding productivity of oddly shaped parts. Welding pipe positioners generally prevent worker fatigue and increase productivity due to the lack of worker movement. LJ’s Pipe welding positioners ensure repeatable quality between batches and operators. Furthermore, using our P60PS-200 rentals reduce rejection rates and increases deposition rates with improved weld seam accessibility. It can also consistently provide high-quality welds since no overhead or vertical runs are involved.
We, at LJ Welding, try to bring you the best products that satisfy your demands.
if you are looking for a Pipe Turning Positioner with different specs, have a look at our:
LJ Welding's engineering department provides a progressive approach to solving the
unique problems that inevitably arise in our industry, resulting in efficient design,
fabrication, and timely delivery of custom equipment.
