|Loading capacity||24,000 lb
(at 12” overhung load)
|Footprint||96"x 71"x 69"|
|Turning Torque||250,000 in-lb|
|Height Adjustability||48"– 96" in 6"
|Power Requirements||480V, 3-ph*|
|Operation Speed||0.05-1.2 RPM|
|Ground Capacity||1,500 Amps|
Accommodation to a wide range of swing diameters.

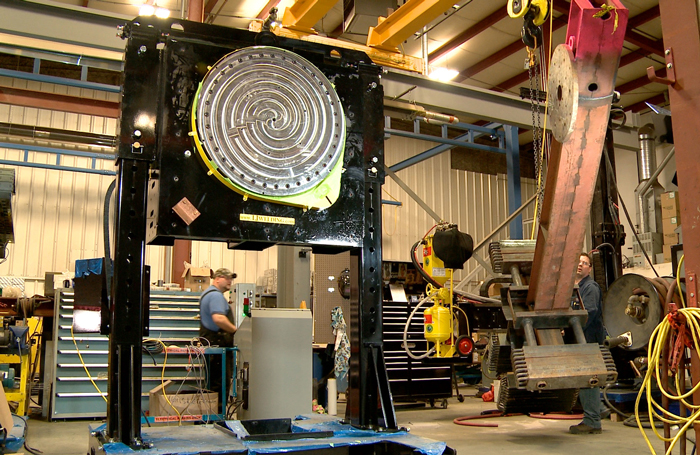

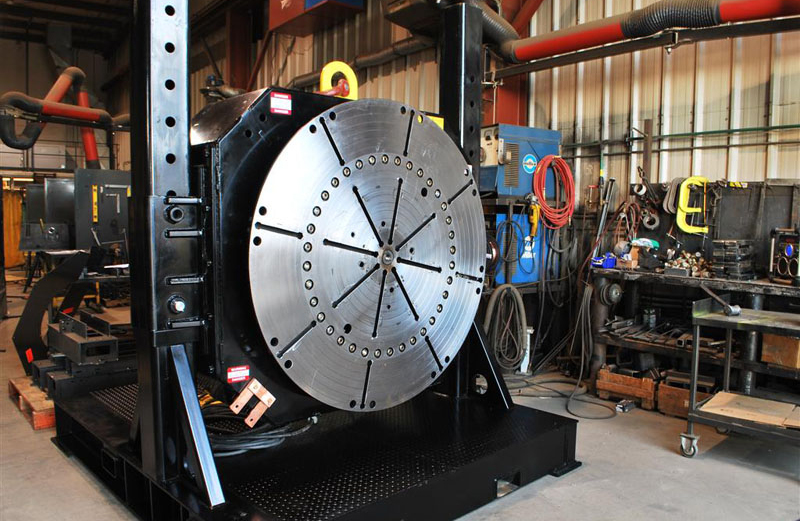

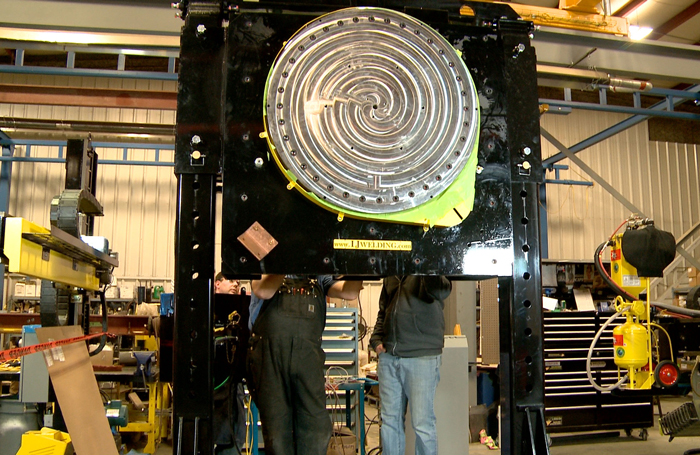

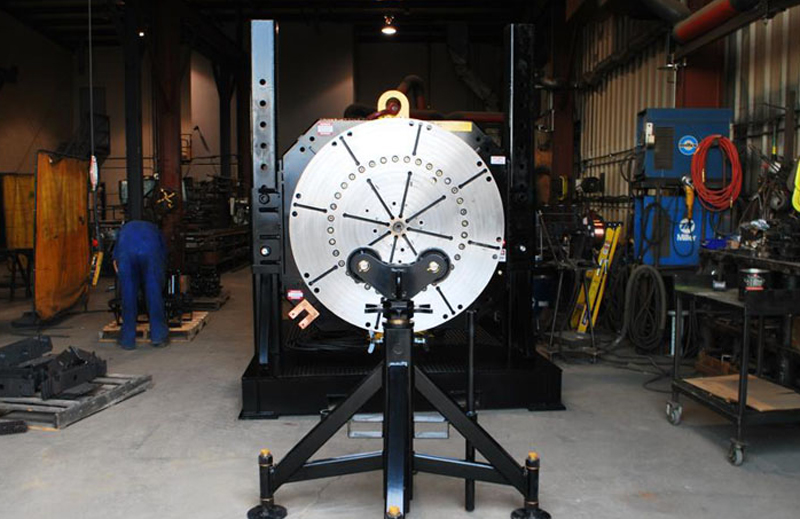

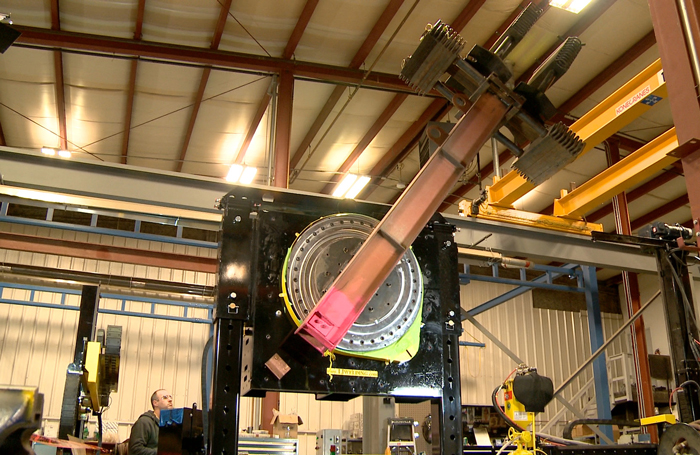

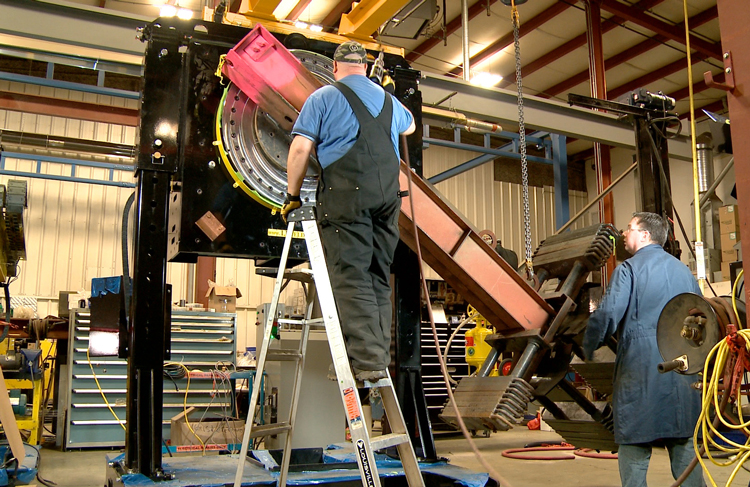

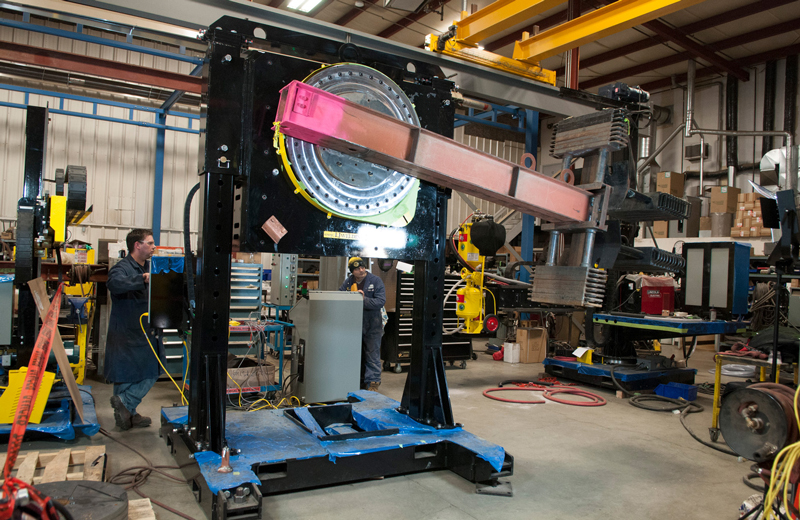

LJ's 24,000 lb Pipe Turning Positioner Rental has a load capacity of 12 tons at the mounting plate and a turning torque of 250,000 in-lb. Be it a large workpiece or small, this welding positioner will deliver flawless rotations every time. This welding positioner is specifically geared toward larger weldment jobs with an outer diameter (OD) capacity ranging from 2” up to 60” OD. Its working height range operates between 48" to 96" and can be adjusted in increments of 6" at a time. Adjusting the height is a simple and quick process that typically requires an overhead crane. The power requirement of this positioner is 480 or 208 V, 3 ph. Its ground capacity is 1500 Amps. But, it can be modified for different ground capacities too. The rotation speed ranges between 0.05 and 1.2 rotations per minute (RPM). The dimension of this positioner is 96” x 71” x 69” and it weighs 8,600 lb. without the gripper.
Our 24,000 lb Pipe Turning Positioner Rental lowers costs by reducing star stops and increasing the welding productivity of oddly shaped parts. Welding pipe positioners are generally one of the best solutions to welding applications that involve cylindrical objects since they add comfort for the welder who must perform on odd-shaped parts, such as tubular pipelines. Furthermore, using our P24PS-100 reduces rejection rates and increases deposition rates with improved weld seam accessibility. It can also consistently provide high-quality welds since no overhead or vertical runs are involved.
We, at LJ Welding, try to bring you the best products that satisfy your demands.
if you are looking for a Pipe Turning Positioner with different specs, have a look at our:
LJ Welding's engineering department provides a progressive approach to solving the
unique problems that inevitably arise in our industry, resulting in efficient design,
fabrication, and timely delivery of custom equipment.
