Loading capacity | 3,000 lb (at Mounting Plate) |
Footprint | 72"x 42"x 77" |
Turning Torque | 7,800 in-lb (with counterweight) |
Height Adjustability | 45"- 69" (at mounting plate), adjustable in 4" increments |
Power Requirements | 110V, 1-ph* |
Operation Speed | 0.3–3.0 RPM |
Ground Capacity | 400 Amps |
Accommodation to a wide range of swing diameters.

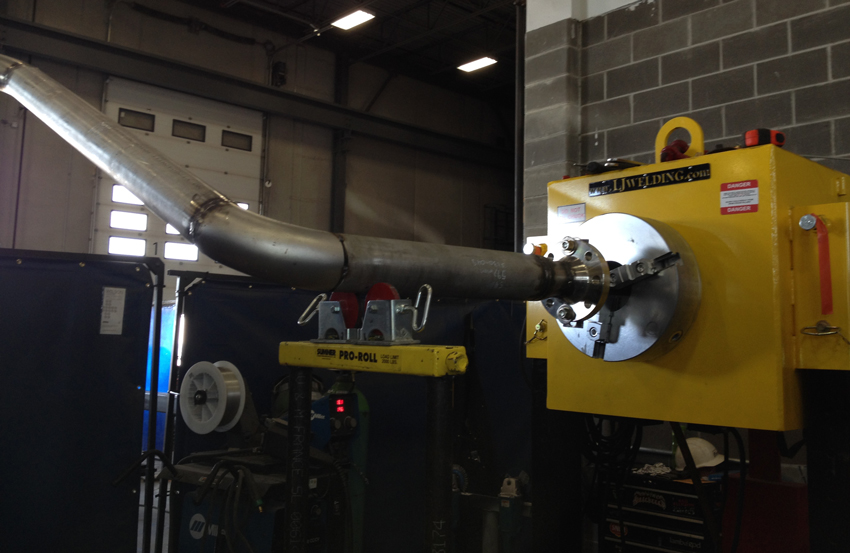

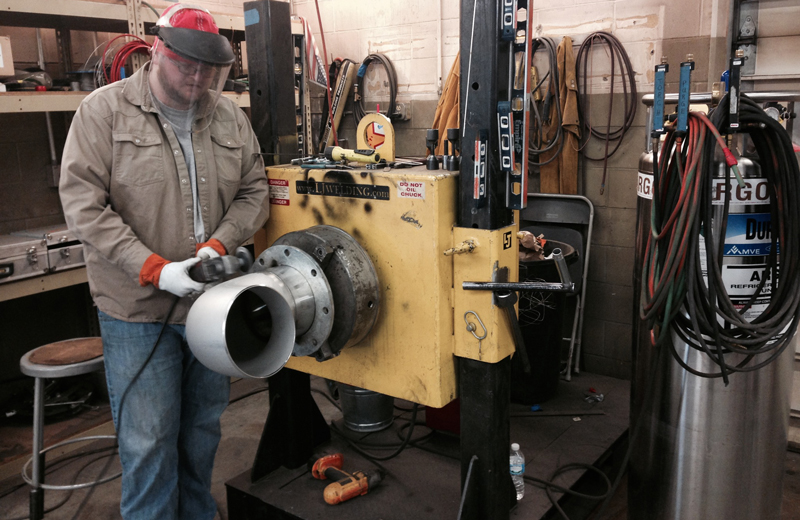

LJ’s 3,000 lb Pipe Turning Positioner Rental is a device that rotates around a 360° spin which allows a welder to stand in one position and constantly work on a level surface. Its loading capacity is 1.5 tons at the mounting plate and turning torque is 20,000 in-lb with an optional add-on counterweight, making it an excellent choice for wide range welding jobs. While the positioner is ideal for larger weldments, it is still very compact. It measures 72” x 42” x 77” and the total mass of the equipment excluding the gripper is 1,820 lb. You can adjust the height of the positioner between 45” and 69” in 4” increments. Its rotation speed range is between 0.3-3.0 RPM to make sure that you are able to work with utmost convenience.

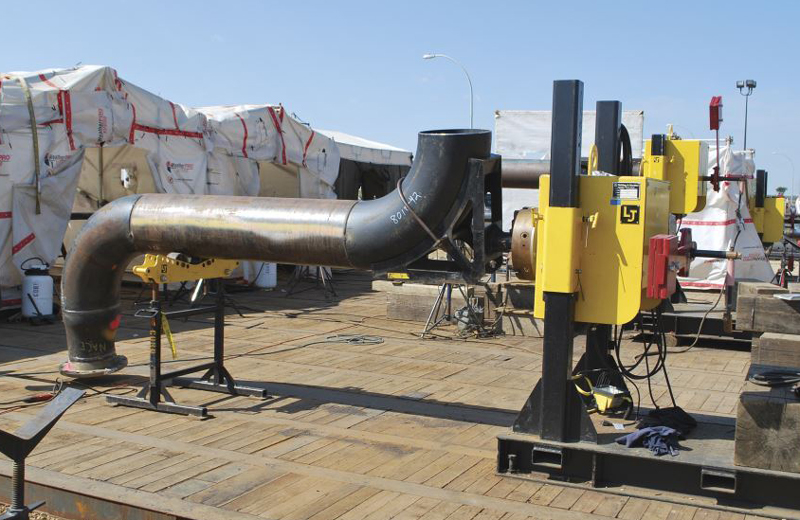

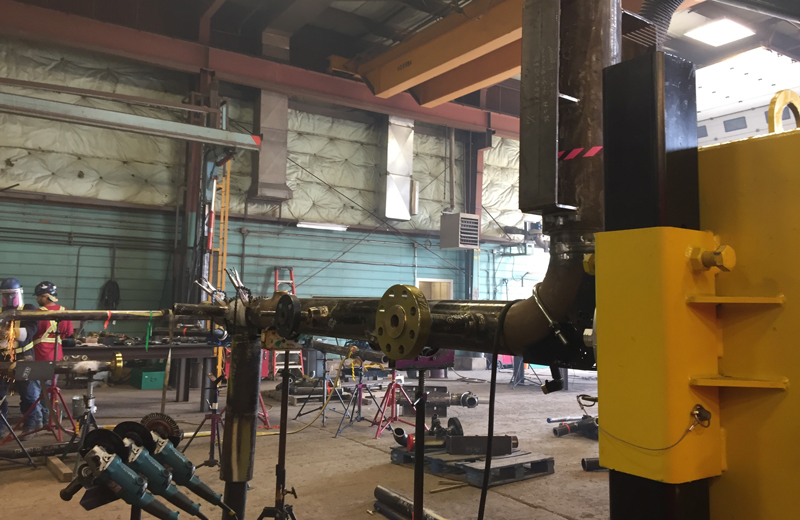

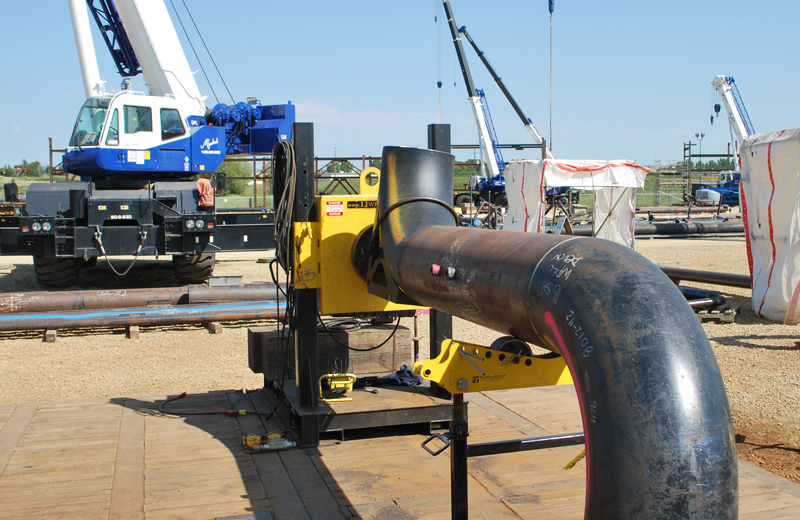

Our 3,000 lb Pipe Turning Positioner Rental prevents worker fatigue and increases productivity due to the lack of worker movement. This positioner also tends to provide consistently high-quality welds since no overhead or vertical runs are involved. Additionally, LJ’s pipe welding positioners greatly enhance productivity when welding pipe, shafts, wheels, elbows and other fittings. Using our 16P-700 rental pipe welding positioner also lowers the manufacturing costs by limiting welding start-stops as well as increasing welding speeds and deposition rates.
We, at LJ Welding, try to bring you the best products that satisfy your demands.
if you are looking for a Pipe Turning Positioner with different specs, have a look at our:
LJ Welding's engineering department provides a progressive approach to solving the
unique problems that inevitably arise in our industry, resulting in efficient design,
fabrication, and timely delivery of custom equipment.
