3,000 LB Tilt Positioner Rentals

KEY SPECIFICATIONS: T3PSX

Loading Capacity

3,000 lbs (@ 6” from chuck plate)

Footprint

41-1/2” x 49-1/4” x 68-9/16” (fully raised)

Tilting Range

-45° - 90°

(vertical mounting plate datum)

Tilting Torque

45,000 in-lbs

Tilting Speed

0.05 – 0.41 RPM (135° in 55 seconds)

Tilting Precision

<0.07° (<4 arc mins)

Turning Torque

15,000 in-lbs

Turning Speed

0.224–2.8 RPM

Turning Precision

<0.1° (<6 arc mins)

Height Range

33-1/2” – 57-1/2” (Center of chuck plate height), Adjustable in 3” increments

Mounting Plate Diameter

22-1/8" (Various tabletop options, tee-slot, customer or chuck mounting available upon request)

Power Requirements

240V, 1-ph, 9A, 60Hz (208V compatible W/ 120V & 480V options available upon request)

Ground Capacity

800 Amps

Weight

1,851 lbs
REQUEST QUOTE

PHOTO GALLERY

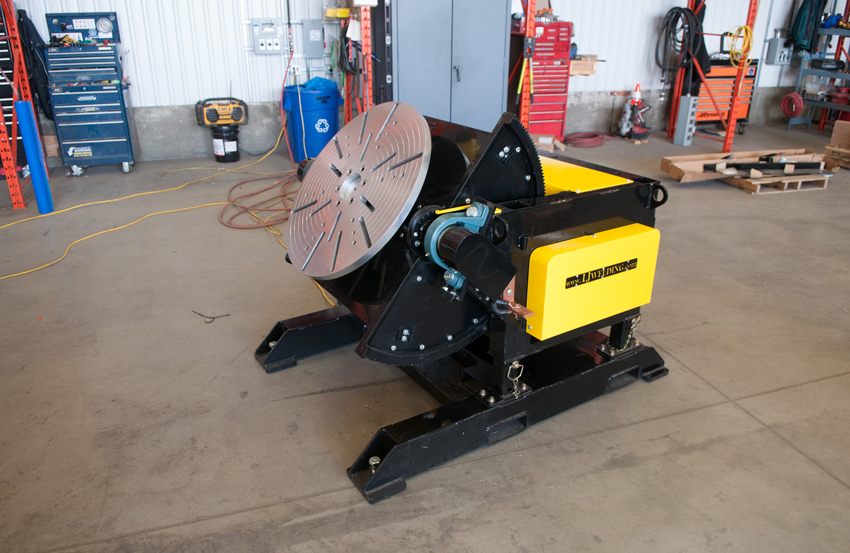

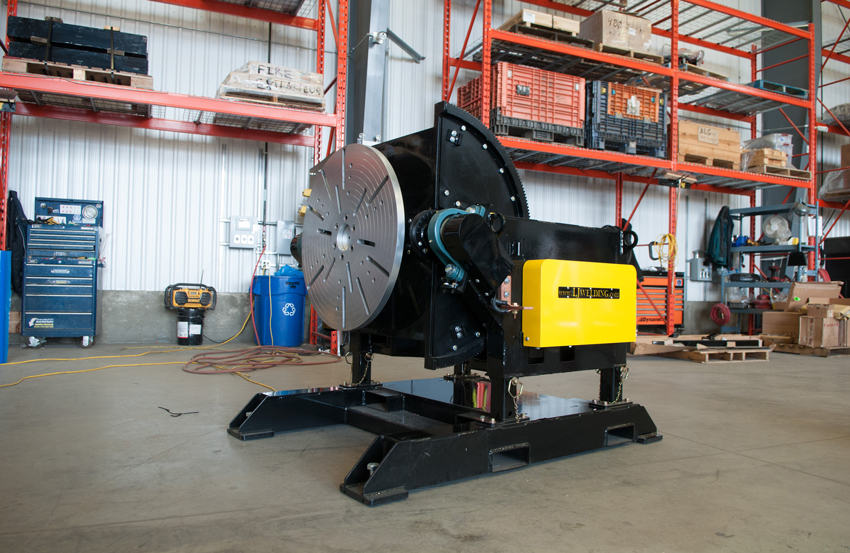

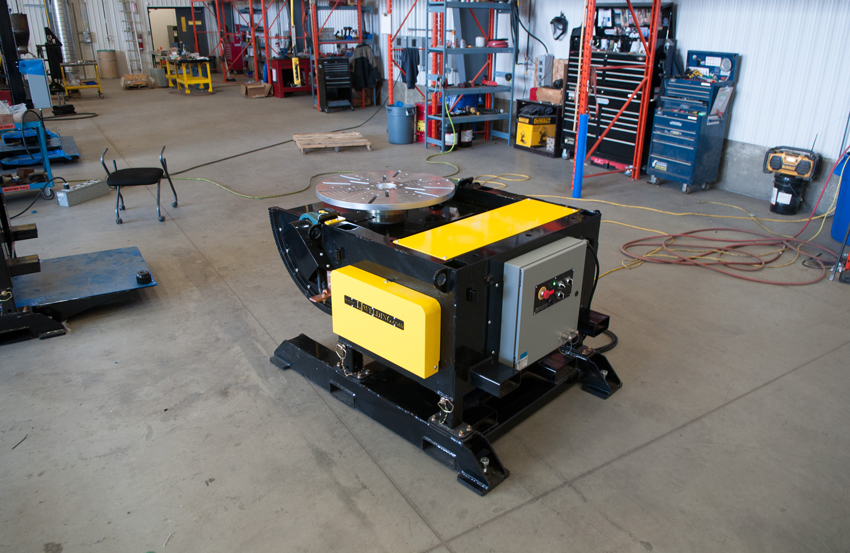

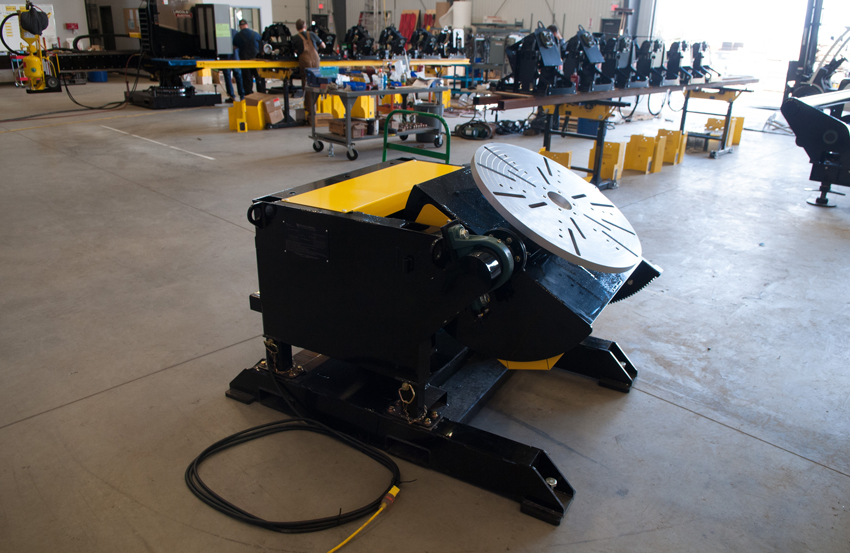

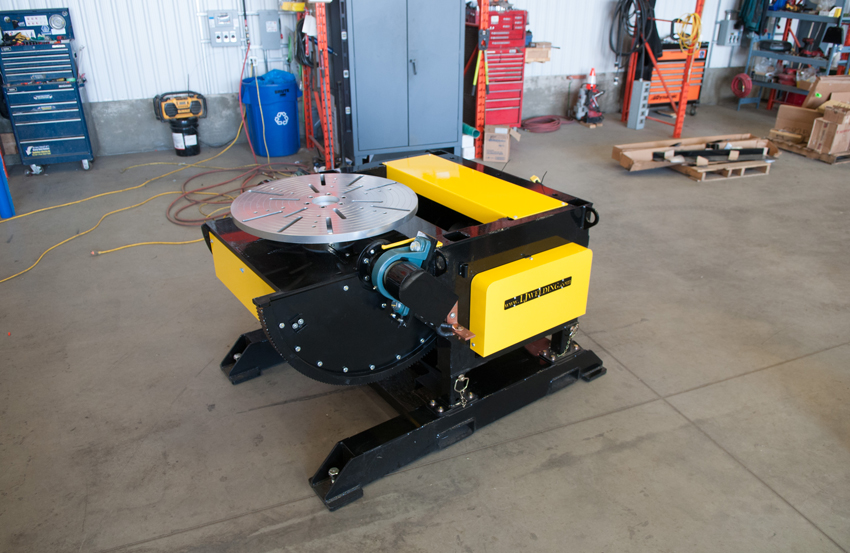

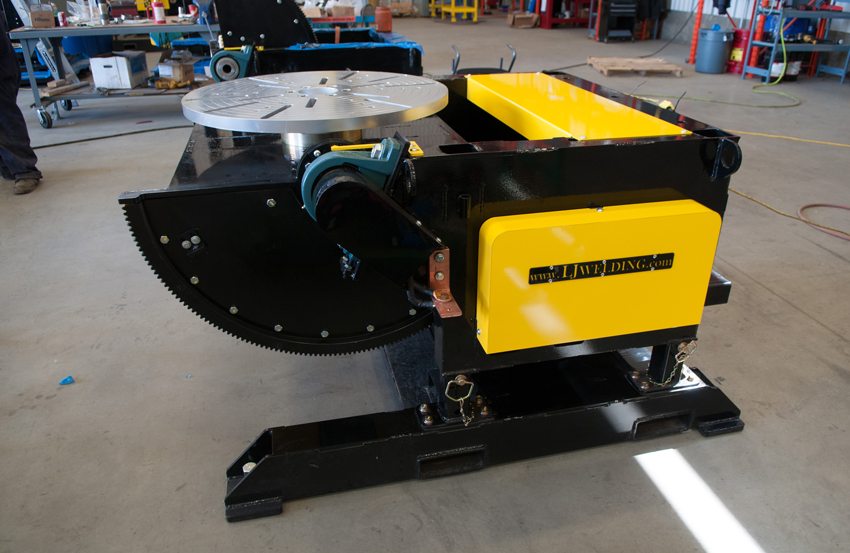

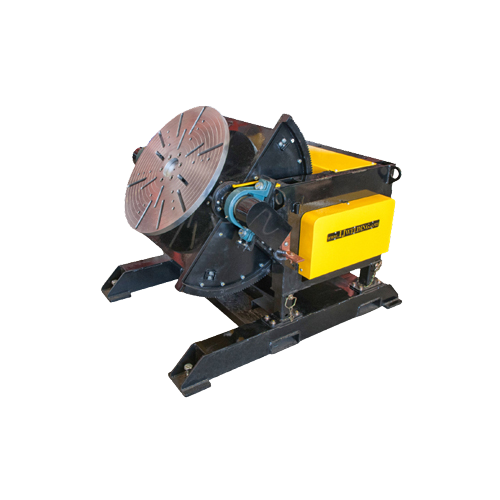

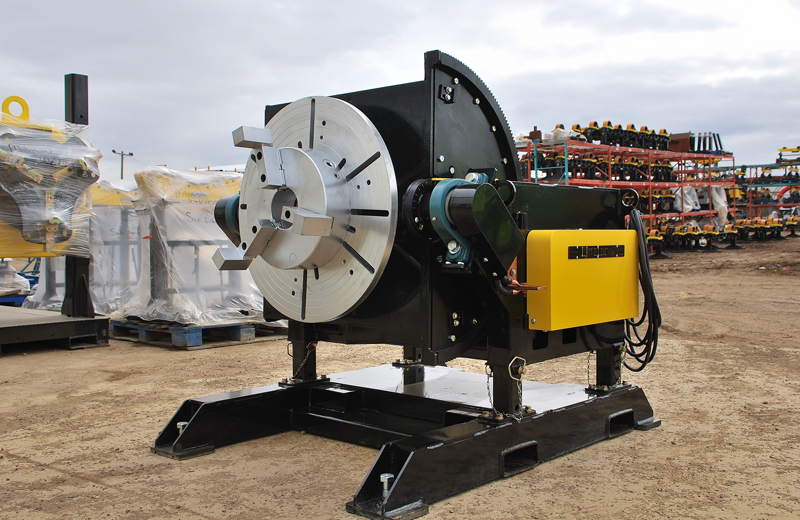

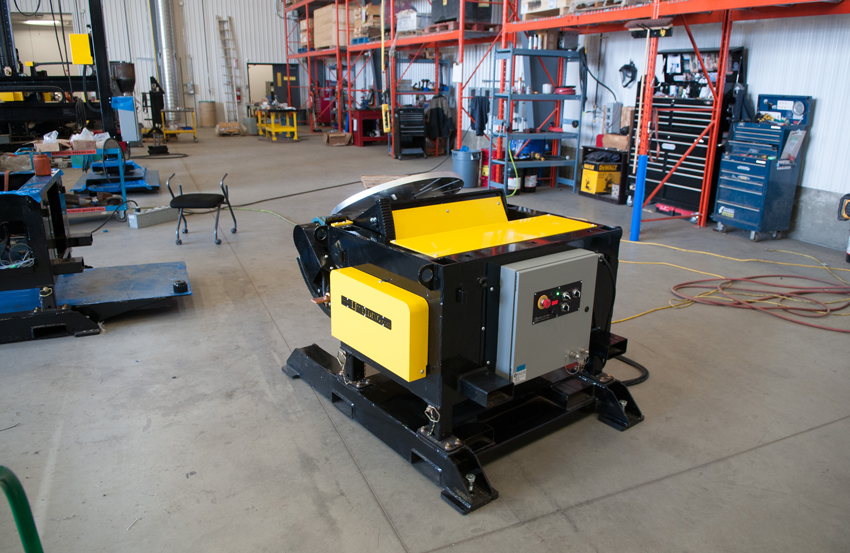

3,000 lb Tilt Positioner - T3PSX

Request quote

TILT POSITIONER RENTAL DESCRIPTION

The 3,000 lb T3PSX Tilt Positioner Rental provides an adjustable height range of 33-1/2” to 57-1/2”, adjustable in 3” increments for maximum flexibility. Its 22-1/8” mounting plate with various tabletop options (including tee-slots and custom chuck mounting) simplifies the process of securely mounting and fixing workpieces. The positioner’s precision tilting range of -45° to 90° and powered motor allow for 135° forward tilt in just 55 seconds, making it a highly efficient solution for welding and fabrication tasks. With a tilting torque of 45,000 in-lbs and turning torque of 15,000 in-lbs, the T3PSX can safely and effortlessly handle heavy workpieces. This heavy-duty positioner supports up to 3,000 lbs at 6” from the chuck plate, ensuring reliable performance for demanding applications.

TILT POSITIONER RENTAL BENEFITS

LJ's 3,000 lb T3PSX Tilt Positioner Rental delivers precise and efficient handling through its advanced triple-axis capability: lifting, rotating, and tilting. Each axis is engineered to support up to 1.5 tons, providing operators the ability to work with heavy objects while maintaining precise positioning to achieve superior weld quality. The T3PSX enhances productivity with reduced material handling time, improved operator safety, and increased weld consistency. Optional 800-amp grounding capabilities are available to ensure safer welding operations. Additional benefits include greater accessibility, precise workpiece control, and enhanced ergonomic support for operators, making it an ideal solution for industrial welding and fabrication projects.
