6,000 LB Gear Tilt Positioner Rentals

KEY SPECIFICATIONS: T6PS-1000

Loading capacity 6,000 lb
(at 12” overhung load)
Footprint 53” x 68” x 73”
Tilting Torque 125,000 in-lb
Tilting Speed 0.1-0.9 RPM
(135° in 25 seconds)
Height Adjustability 30"– 50" center height
adjustment in 5" increments
Table Diameter 42” T-Slot Plate
with 6 x 5/8” slots
Power Requirements 480V, 3-ph*
Rotation Speed 0.1–2.5 RPM
Turning Torque 60,000 in-lb
Ground Capacity 800 Amps

VARIABLE SPEED TILTING

Automate and increase welding productivity of
cumbersome, heavy work pieces.

REQUEST QUOTE

PHOTO GALLERY

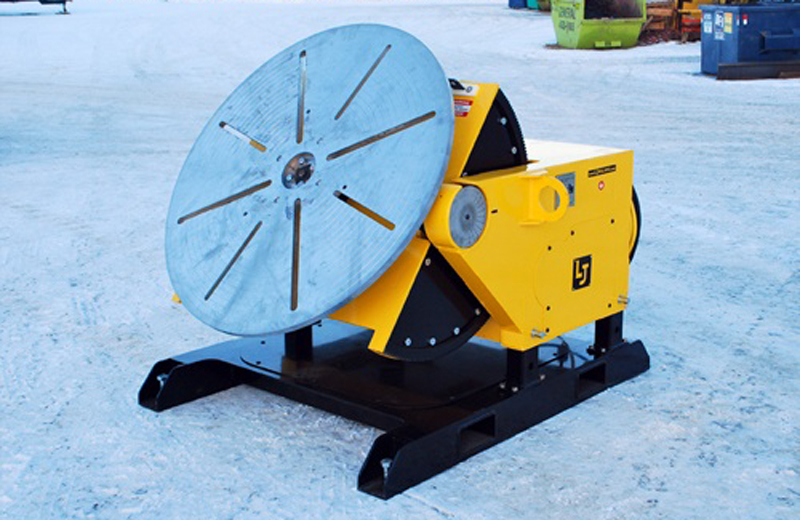

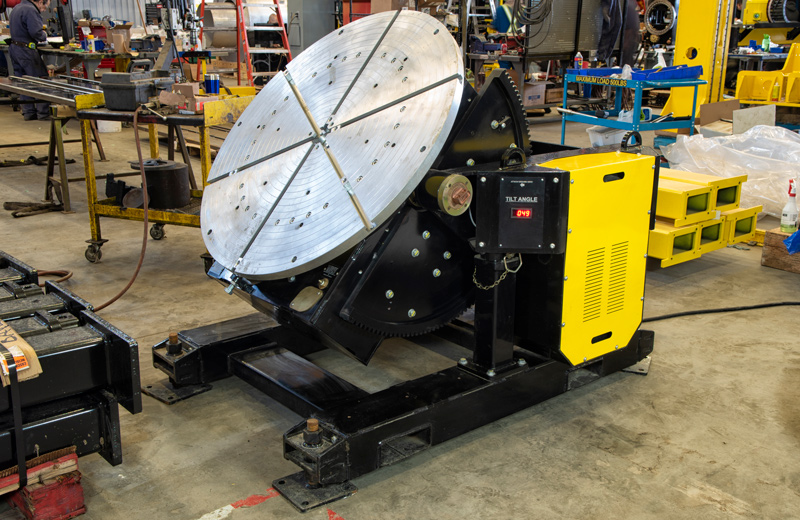

6,000 lb Gear Tilt Positioner - T6PS-100

Request quote

GEAR TILT POSITIONER RENTAL DESCRIPTION

LJ’s 6,000 lb Gear Tilt Positioner Rental enables rotation, lifting and tilting of a workpiece for welding. On rotation, the workpiece can be rotated at consistent speeds, ranging from 0.1 to 2.5 rotations per minute (RPM). The rotation speed can also be customized to customers' requirements. With a tilting torque of 60,000 in-lb. you can tilt your workpiece up to an angle of 135° in 25 seconds with ease. Its turning torque power of 60,000 lb. ensures shop floor safety and long-term equipment durability while working on heavy welding parts. The T6PS-100 is the lower to mid-range gear tilting welding positioner of the LJ welding positioner series. It can support up to 3 tons of weight at 0” to 12" overhung load.

GEAR TILT POSITIONER RENTAL BENEFITS

LJ’s 6,000 lb Gear Tilt Positioner Rental allows the operators to tilt, rotate and lift workpieces at consistent speeds. Each of these processes is able to support up to 3 tons of weight and T6PS-100 rental generally suits the industrial fabrications shops. This fact ensures the best quality welds. We also offer optional current grounding capabilities for safer welding. Other benefits the T6PS-100 rental model provides are increased accessibility, weld quality and operator safety or reduced material handling times.

similar products

We, at LJ Welding, try to bring you the best products that satisfy your demands.
if you are looking for a Welding Positioner with different specs, have a look at our:

1PT-300
3,000 LB GEAR TILT POSITIONER

Gear-Tilt-Positioner-For-Rent-1.5ton

T12PS-100
12,000 LB GEAR TILT POSITIONER

Rotary-Welding-Positioners-For-Lease-6ton

T24PS-100
24,000 LB GEAR TILT POSITIONER

Welding-Tilt-Turn-Positioner-For-Hire-12ton

LJ Welding's engineering department provides a progressive approach to solving the
unique problems that inevitably arise in our industry, resulting in efficient design,
fabrication, and timely delivery of custom equipment.
