24,000 LB Gear Tilt Positioner Rentals

KEY SPECIFICATIONS: T24PS-100

Loading capacity 24,000 lb
(at 12” overhung load)
Footprint 96"x 71"x 62"
Tilting Torque 550,000 in-lb
Tilting Speed 0.05-1.0 RPM
(135° in 23 seconds)
Height Adjustability 50.5"– 82" center height
adjustment in 4" increments
Table Diameter 62” T-Slot Plate OD faceplate
with 6” x 1” slots
Power Requirements 480V, 3-ph*
Rotation Speed 0.05–1.2 RPM
(Other speed options available)
Turning Torque 250,000 in-lb
Ground Capacity 1,500 Amps



VARIABLE SPEED TILTING

Automate and increase welding productivity of
cumbersome, heavy work pieces.

REQUEST QUOTE

PHOTO GALLERY

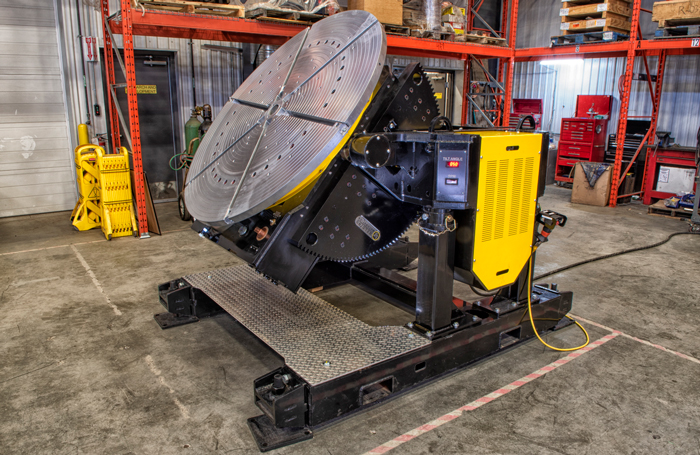

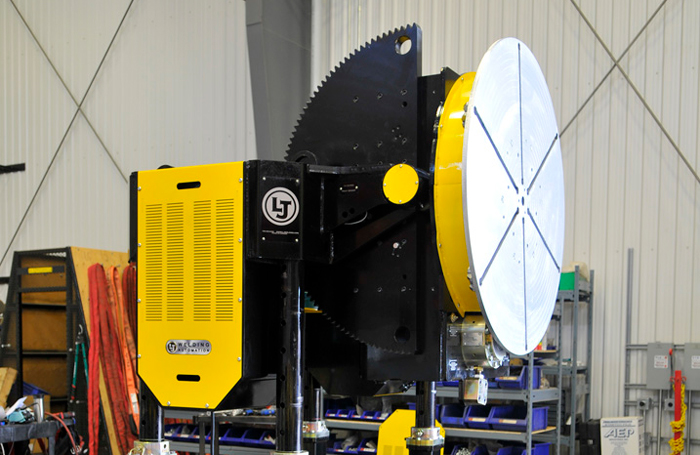

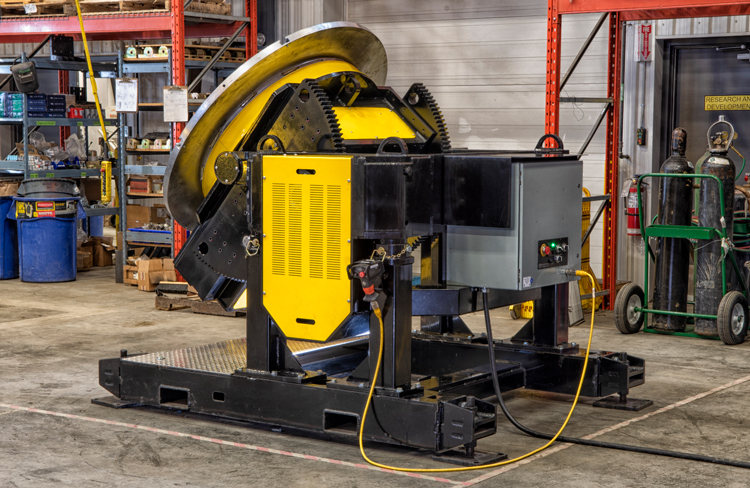

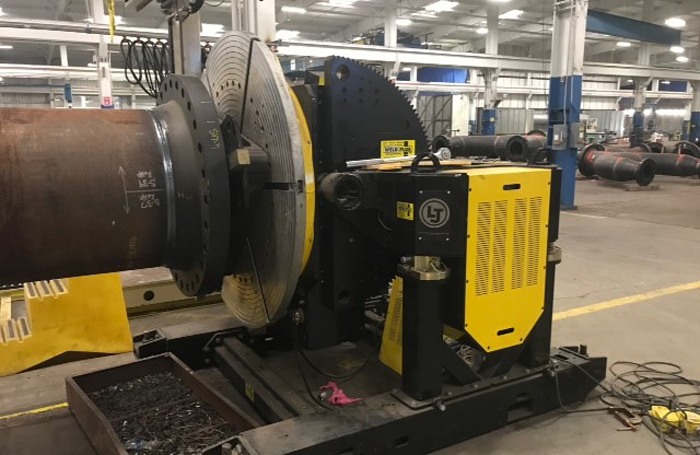

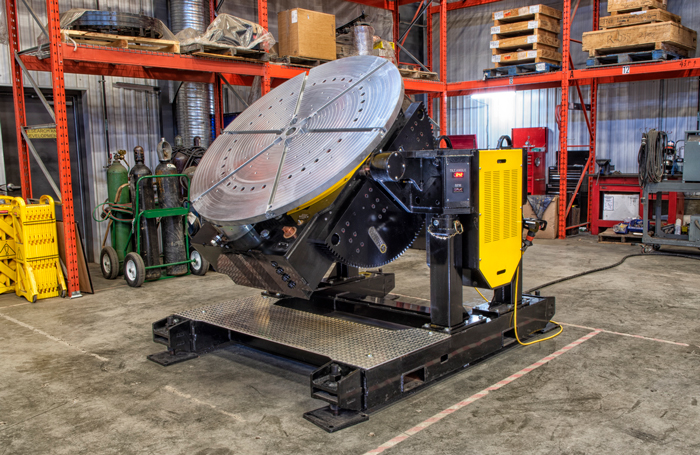

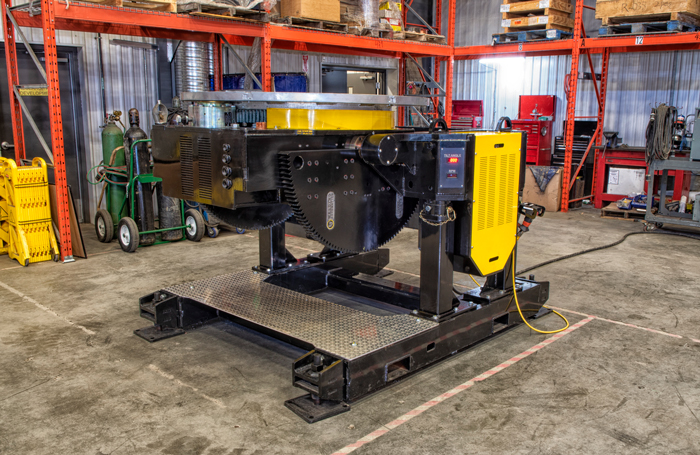

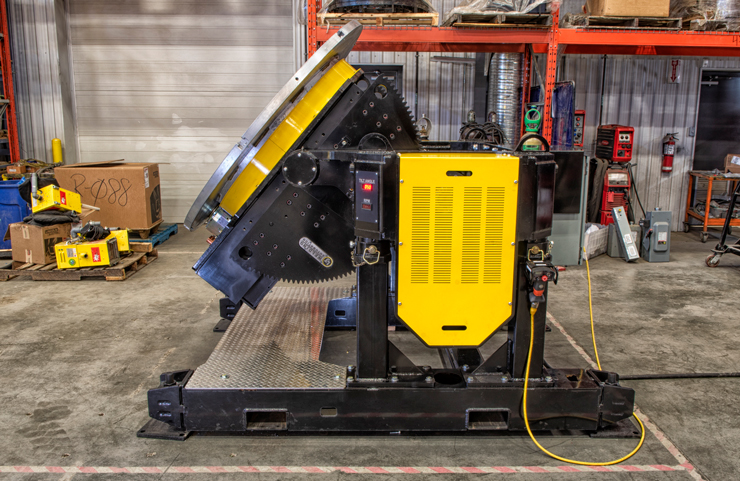

24,000 lb Gear Tilt Positioner - T24PS-100

Request quote

GEAR TILT POSITIONER RENTAL DESCRIPTION

24,000 lb Gear Tilt Positioner Rental is built for industrial heavy-duty applications that demand power, simplicity and reliability. It’s built for heavy-duty welding applications and designed to outlast the competition in its working life. This gear tilt welding positioner for rent includes tilting and rotation functioning. Tilting of workpieces is effortless because of its tilting power of 550,000 in-lb. With this strength, you can conveniently incline any heavy workpiece at angles of up to 135° within 23 seconds. Its tilting power allows you to tilt your workpiece at consistent speeds ranging between 0.05 and 1.00 rotations-per-minute (RPM).

GEAR TILT POSITIONER RENTAL BENEFITS

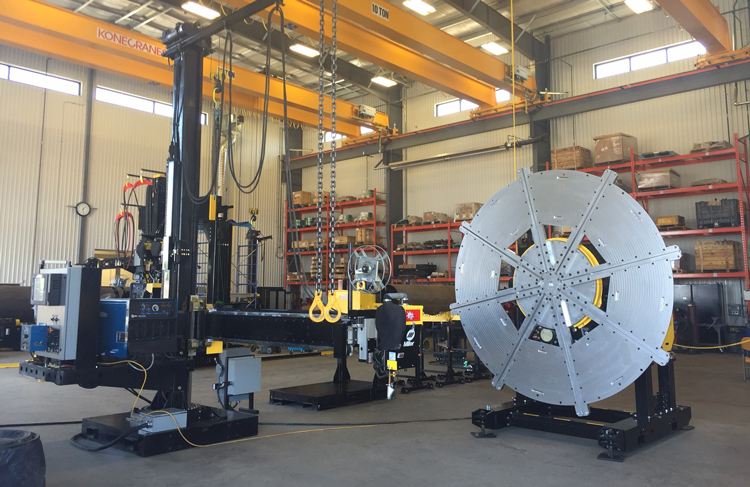

Our 24,000 lb Gear Tilt Positioner Rentals help to increase accessibility, weld quality, productivity and operator safety. Furthermore, it increases accessibility and improves weld quality. The T24PS-100 for rent can be also fully integrated with a robotic welding manipulator, which essentially lowers the handling time. Moreover, it lowers operating costs, improves weld productivity and reduces the time and effort required by the welder while working.

similar products

We, at LJ Welding, try to bring you the best products that satisfy your demands.
if you are looking for a Welding Positioner with different specs, have a look at our:

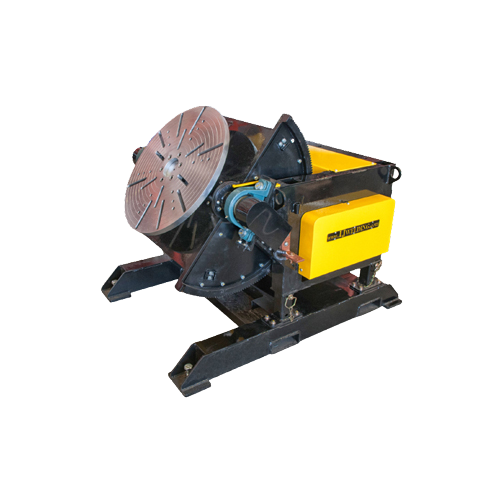

1PT-300
