Double-jointing Fit-Up Rolls For Lease
15 Ton 40TMR

KEY SPECIFICATIONS

Loading Capacity Driver: 15,000 lbs
Idler: 15,000 lbs
Vessel Diameter Range 24" - 60"
Output Torque 17,000 in-lbs
Power Requirements 115 V, 1 Ph, 15 Amp
Rotation Speed 12 - 120 in/min

FINE LEVELING

Fine leveling and side shift for fast fit up

TIME-SAVING

Improve shop productivity and fit-up time up to 2X

REQUEST QUOTE

PHOTO GALLERY

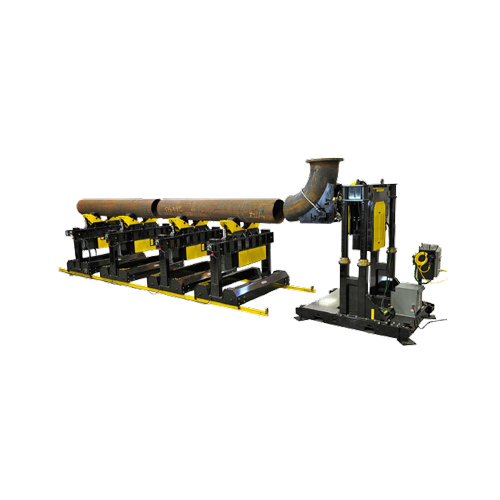

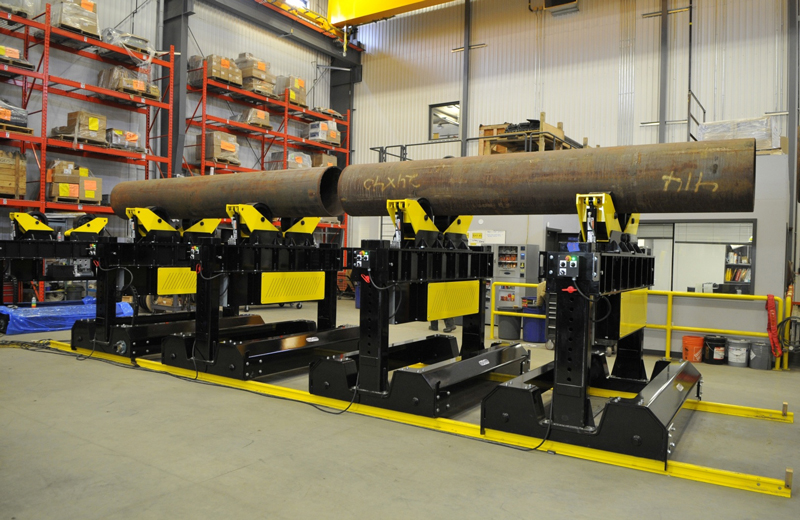

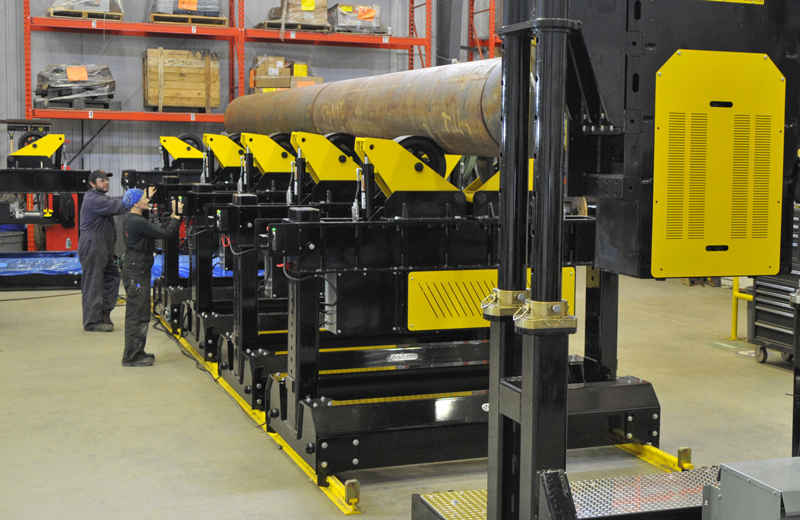

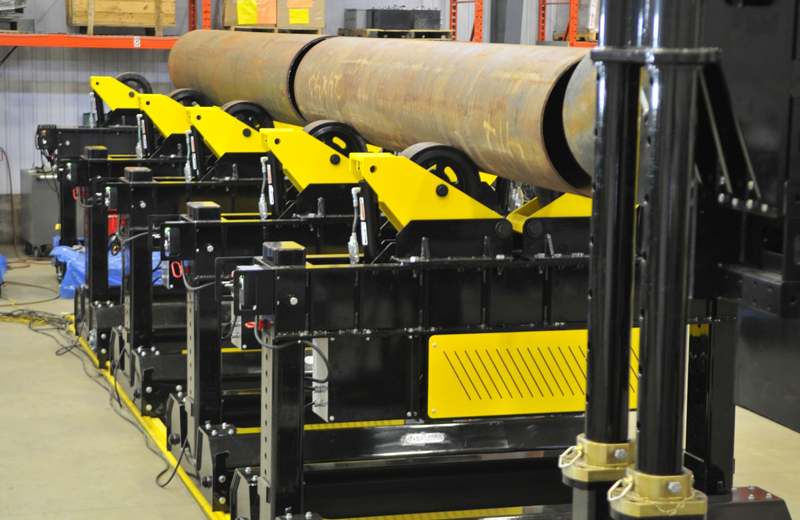

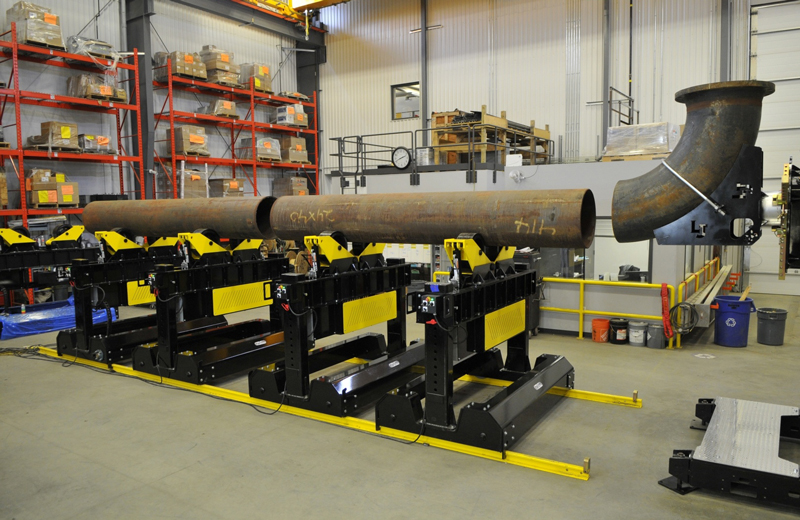

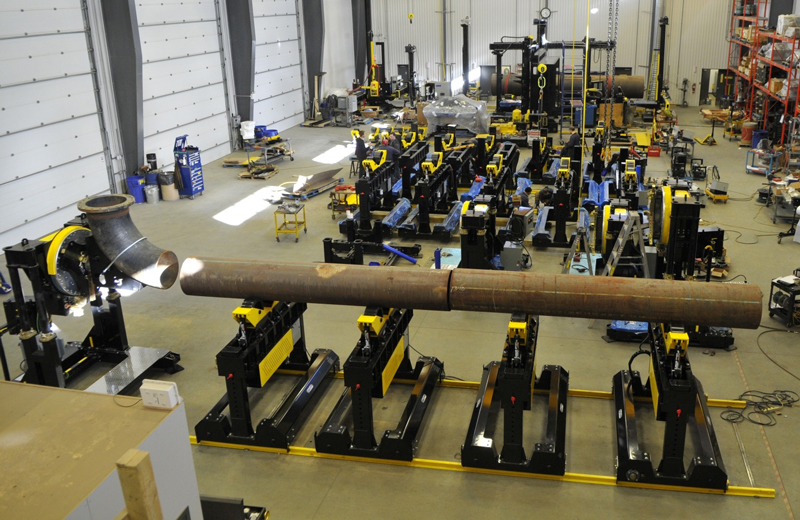

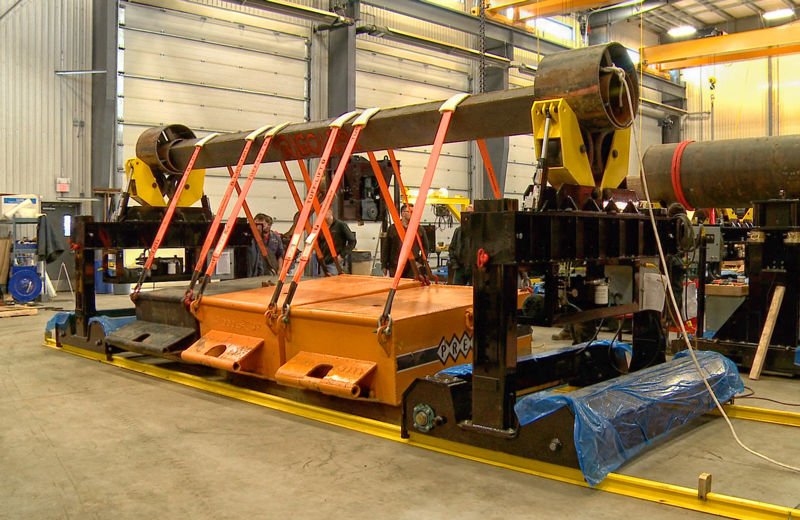

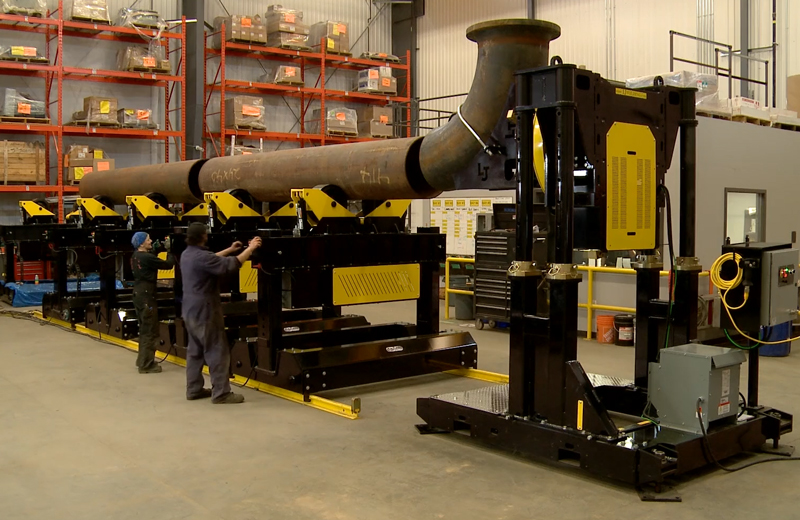

Pipe Double-Jointing System - 40TMR

Request quote

PIPE TURNING SYSTEM FOR LEASE • DESCRIPTION

Double-Jointing Fit-Up Roll For Lease offers a load capacity of up to 15 tons. Pipe alignment turning rolls for welding are adaptive to a wide range of workpieces without a need for a separate adjustment. They also enable constant rotation speeds and maintain a constant centerline when rotating workpieces that are unbalanced, thin-walled and/or heavy, and have diameters ranging from 24" to 60". 40TMR rental also provides certain alignment features that include height adjustability, up to 30" pinned and 8" hydraulic, side shift and powered track drive.

PIPE TURNING SYSTEM RENTALS • BENEFITS

LJ’s Double-Jointing Fit-Up Roll Rentals is usually used in pipe double-jointing systems for maximum efficiency and safety, with up to a 65% decrease in fit up cycle times. It provides even weight distribution, constant rotation speeds and is adaptive to a wide range of work-piece diameters without the need for separate adjustment. Pipe alignment turning roll 40TMR reduces worker fatigue as well as provides a secure way to position cylindrical parts. Vessel pipe alignment rolls provide constant centerline capabilities making the set-up and alignment quick and the workflow more efficient.

similar products

We, at LJ Welding, try to bring you the best products that satisfy your demands.
if you are looking for Pipe Double-Jointing System with different specs, have a look at our:

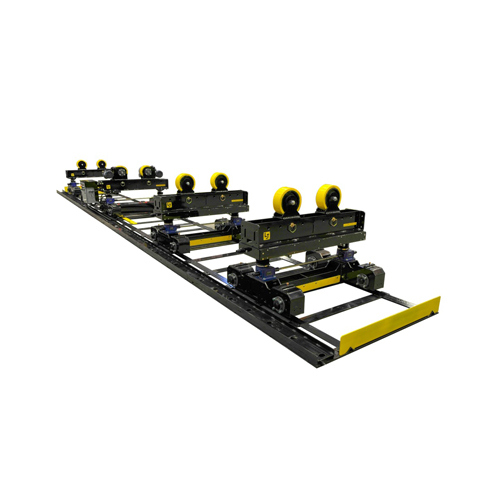

10TMR-100
MODULAR ALIGNMENT ROLLS

Pipe-Alignment-Jointing-System-For-Rent

LJ Welding's engineering department provides a progressive approach to solving the
unique problems that inevitably arise in our industry, resulting in efficient design,
fabrication, and timely delivery of custom equipment.
