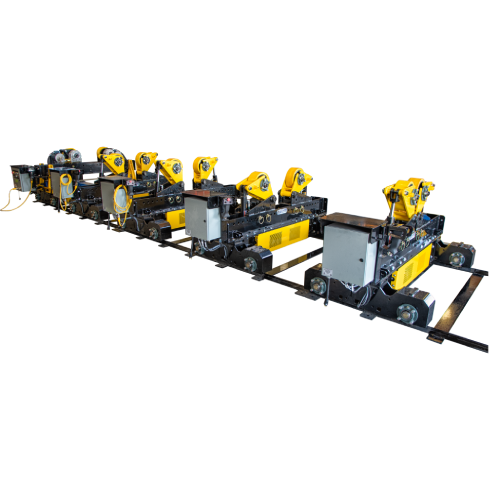

Pipe Alignment Jointing System For Rent
10 Ton 10TMR-100

KEY SPECIFICATIONS

Loading Capacity Driver: 10,000 lbs
Idler: 10,000 lbs
Vessel Diameter Range 6"– 96"
Tractive Effort Dual Drive, 3,400 lbs
Output Torque 17,000 in-lbs
Power Requirements 110V, 1-ph*
Rotation Speed 5-50 in/min

HEIGHT ADJUSTMENT

Manual adjust of height, side shift; powered track drive and rotation

FINE LEVELING

Fine leveling and side shift for fast fit up

TIME-SAVING

Improve shop productivity and fit-up time up to 2X

REQUEST QUOTE

PHOTO GALLERY

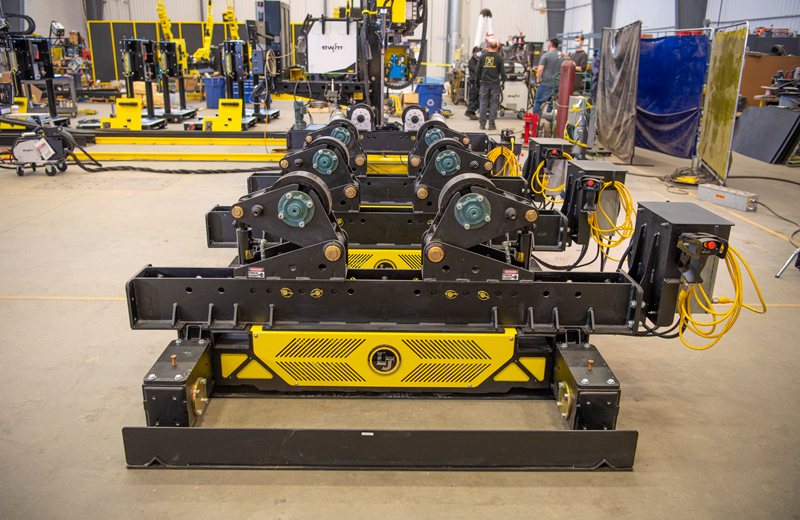

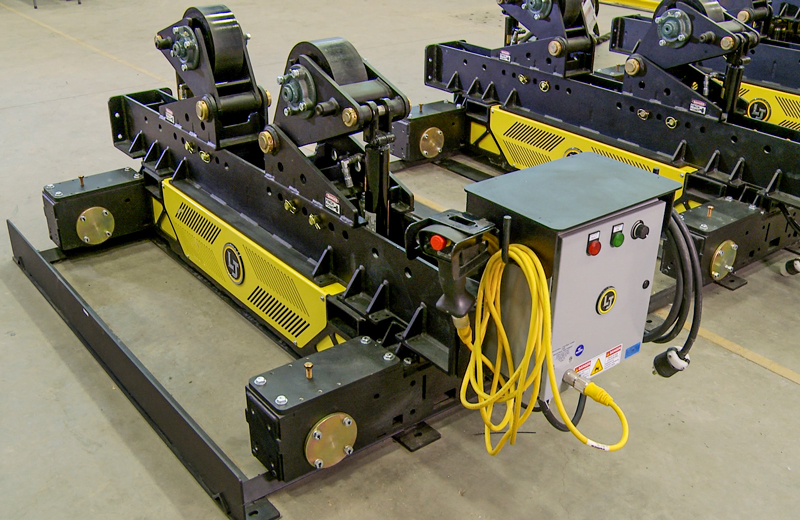

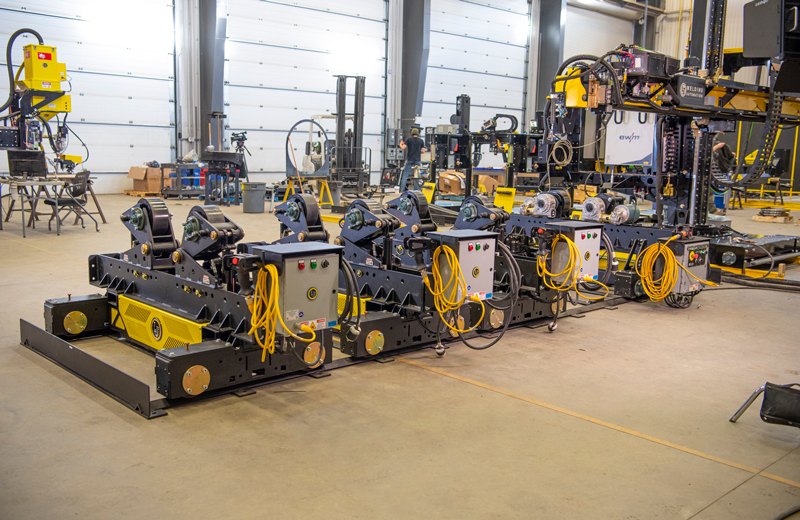

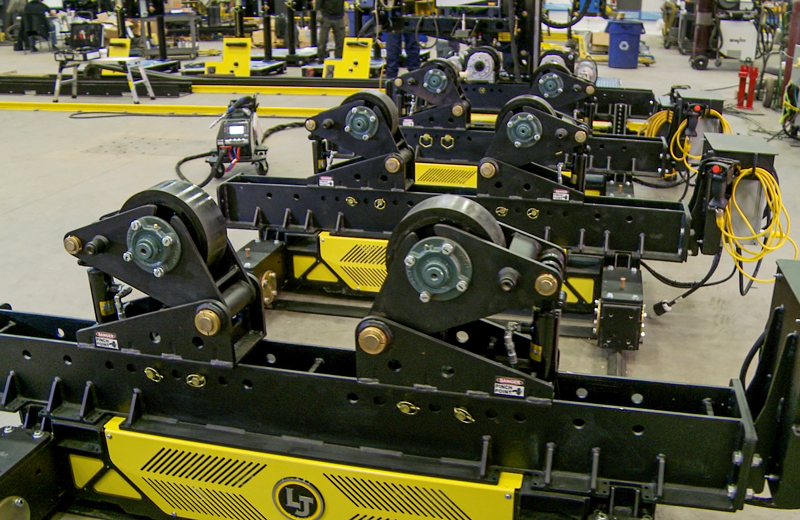

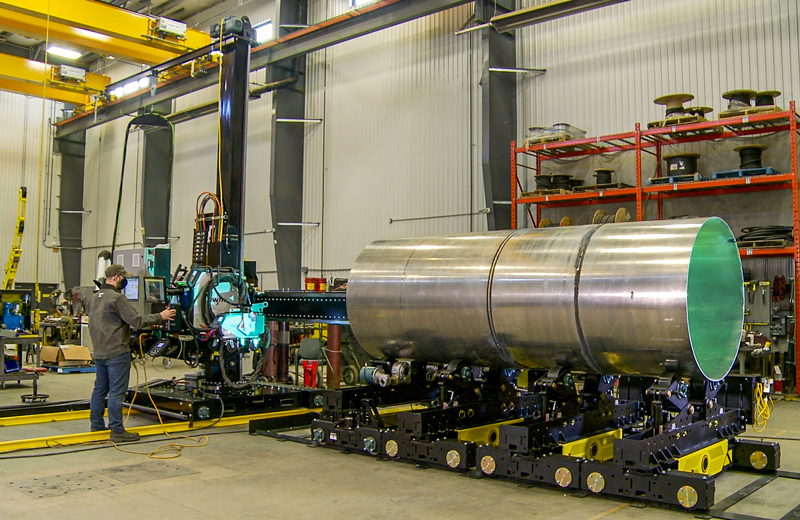

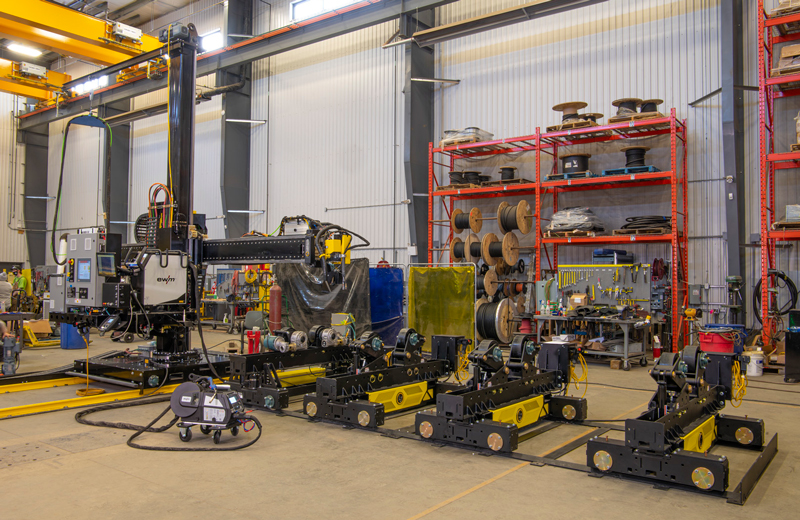

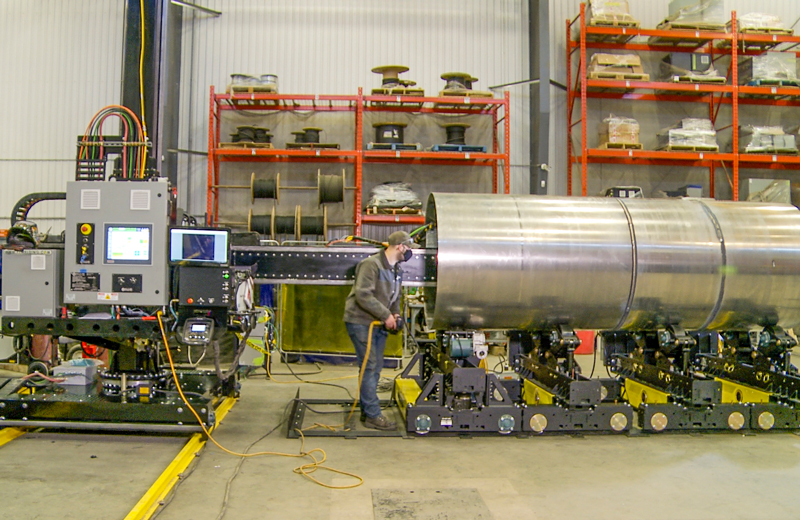

Modular Pipe Alignment Rolls - 10TMR-100

Request quote

PIPE ALIGNMENT SYSTEM FOR RENT • DESCRIPTION

LJ’s Pipe Alignment Jointing System For Rent is adaptive to a wide range of workpieces without a need for a separate adjustment. 10TMR-100 rental model enables constant rotation speeds and maintains a stable centerline when rotating workpieces that are unbalanced, thin-walled and/or heavy, and have diameters ranging from just 6 inches, all the way up to 96 inches. The load capacity our pipe alignment tank roll offers is 10 tons, which are equally distributed on the driver and idler. Other features offered are height adjustability in a range of 6 inches, side shift and powered track drive.

PIPE ALIGNMENT SYSTEM FOR LEASE • BENEFITS

Our Pipe Alignment Jointing System For Lease reduce worker fatigue as well as provide a secure way to position cylindrical parts. They essentially reduce set-up time and offer more support areas to the workpiece. We provide pipe alignment roll solutions that are used in pipe, tank and vessel double-jointing systems for maximum safety and efficiency, with up to 65% decrease in fit up cycle times. Finally, LJ’s 10TMR-100 Pipe Alignment Roll adjusts the wheel centerline setting automatically when the vessel is lowered on the turning rolls which eventually results in a fast fit up.

similar products

We, at LJ Welding, try to bring you the best products that satisfy your demands.
if you are looking for a Modular Alignment System with different specs, have a look at our:

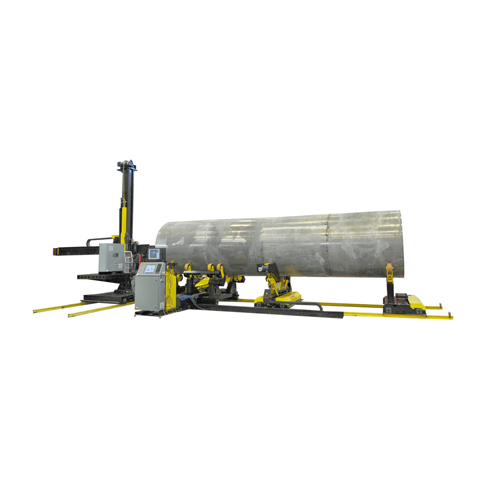

10TMR-GL-100
MODULAR ALIGNMENT ROLLS

Tank-&-Vessel-Alignment-Rolls-For-Hire

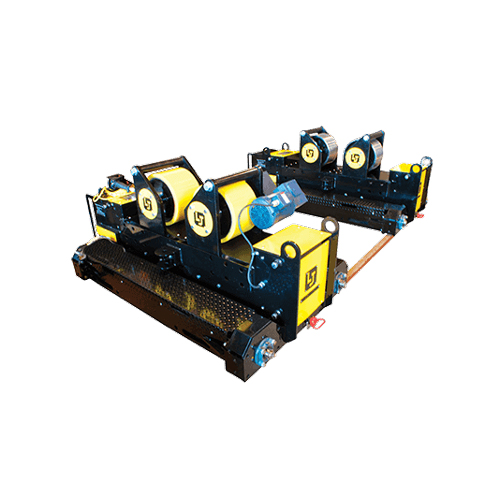

20TSR-100/200
PIPE ALIGNMENT ROLLS

Modular-Pipe-Alignment-Rolls-For-Lease

LJ Welding's engineering department provides a progressive approach to solving the
unique problems that inevitably arise in our industry, resulting in efficient design,
fabrication, and timely delivery of custom equipment.
