Tank & Vessel Alignment Rolls For Hire
10 TON 10TMR-GL-100

KEY SPECIFICATIONS

Loading Capacity Driver: 10,000 lbs
Idler: 10,000 lbs
Vessel Diameter Range 6"– 96"
Tractive Effort Dual Drive, 2,400 lbs
Output Torque 12,000 in-lbs
Power Requirements 480V, 1-ph*
Rotation Speed 8-70 in/min

HEIGHT ADJUSTMENT

Manual adjust of height, side shift; powered track drive and rotation

FINE LEVELING

Fine leveling and side shift for fast fit up

TIME-SAVING

Improve shop productivity and fit-up time up to 2X

REQUEST QUOTE

PHOTO GALLERY

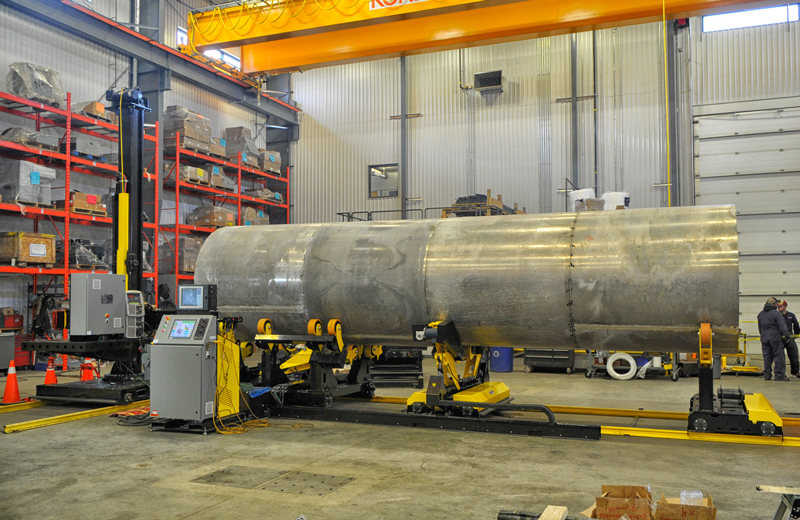

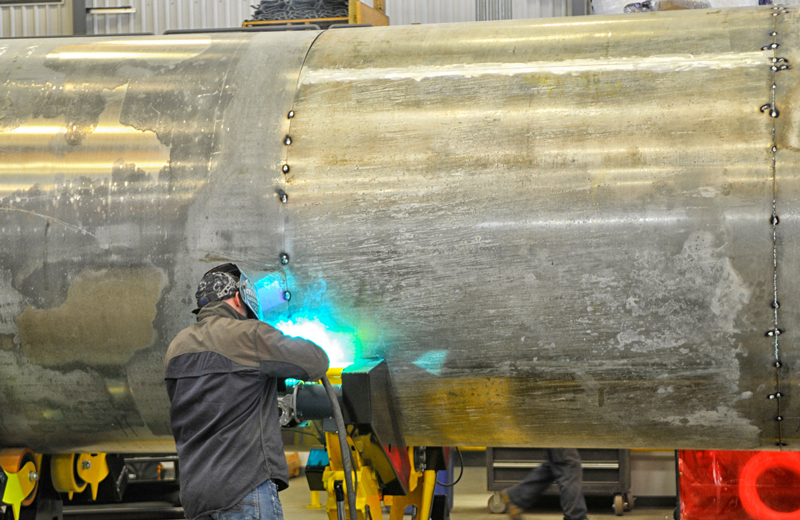

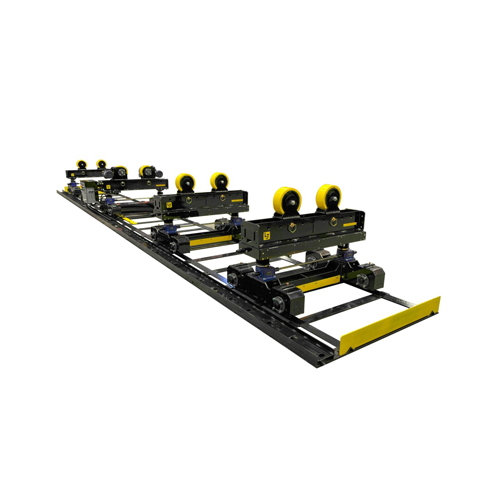

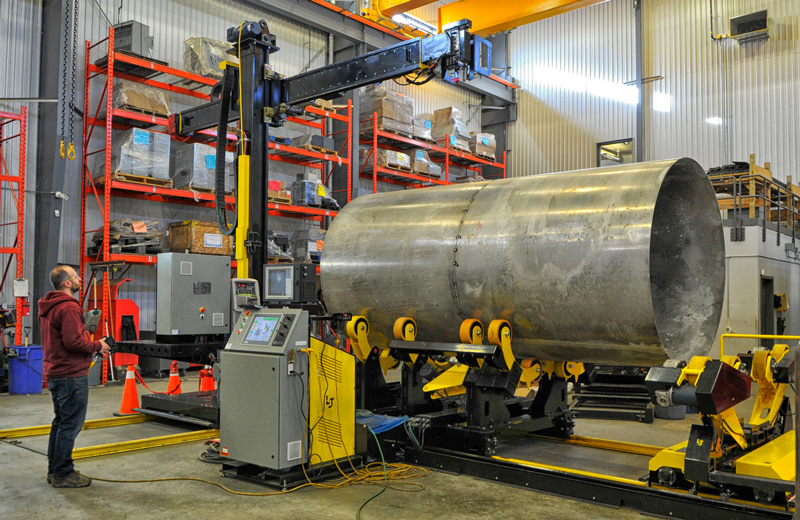

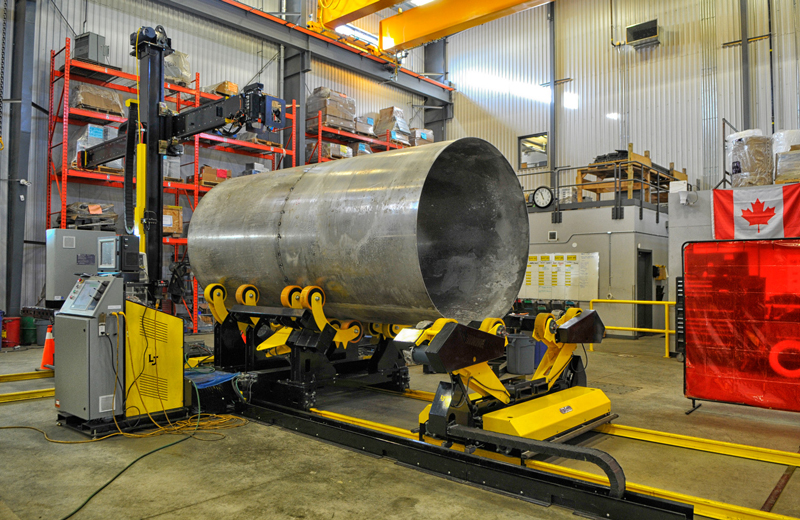

Tank & Vessel Modular Alignment Rolls - 10TMR GL 100

Request quote

PIPE ALIGNMENT ROLLS FOR HIRE • DESCRIPTION

LJ's Tank & Vessel Alignment Rolls For Hire offers a load capacity of up to 10 tons. This load capacity is evenly distributed on an idler and driver which provides an efficient rotation. Pipe alignment turning rolls for welding are adaptive to a wide range of workpieces without a need for a separate adjustment. They also enable constant rotation speeds and maintain a constant centerline when rotating workpieces that are thin-walled, heavy or unbalanced. 10TMR-GL-100 rental model can handle cylindrical workpieces with a diameter ranging from just 6 inches, all the way up to 96 inches.

PIPE ALIGNMENT ROLLS RENTAL • BENEFITS

LJ’s Tank & Vessel Alignment Rolls Rental offers maximum efficiency and safety, with up to 65% decrease in fit up cycle times. Our pipe alignment tank rolls adjust the wheel centerline setting automatically when the vessel is lowered on the turning rolls and provide a side shift for fast fit up. 10TMR-GL-100 model vessel pipe alignment rolls provide constant centerline capabilities making the set-up and alignment quick and easy, turning an 8-hour job into a 2-hour job.

similar products

We, at LJ Welding, try to bring you the best products that satisfy your demands.
if you are looking for Modular Alignment Rolls with different specs, have a look at our:

10TMR-100
MODULAR ALIGNMENT ROLLS

Modular-Pipe-Alignment-Rolls-For-Rent-10ton

20TSR-100/200
PIPE ALIGNMENT ROLLS

Modular-Pipe-Alignment-Rolls-For-Lease-20tsr

LJ Welding's engineering department provides a progressive approach to solving the
unique problems that inevitably arise in our industry, resulting in efficient design,
fabrication, and timely delivery of custom equipment.
