|Loading capacity||Driver: 8,000 lb
Idler: 8,000 lb
|Pipe Diameter Range||4" – 48"|
|Footprint||36"x 50"x 29"|
|Height Range||29"– 41" (top of wheel); Manual or Powered geared height adjustable|
|Tractive Effort||Single Drive 2,400 lb|
|Output Torque||12,000 in-lb|
|Power Requirements||110V, 1-ph*|
|Operation Speed Range||5-50 in/min|
Ease of welding using height adjusts for optimal weld performance
Accommodate for pipe welding applications ranging from light tubes to extra-heavy walled pipe.

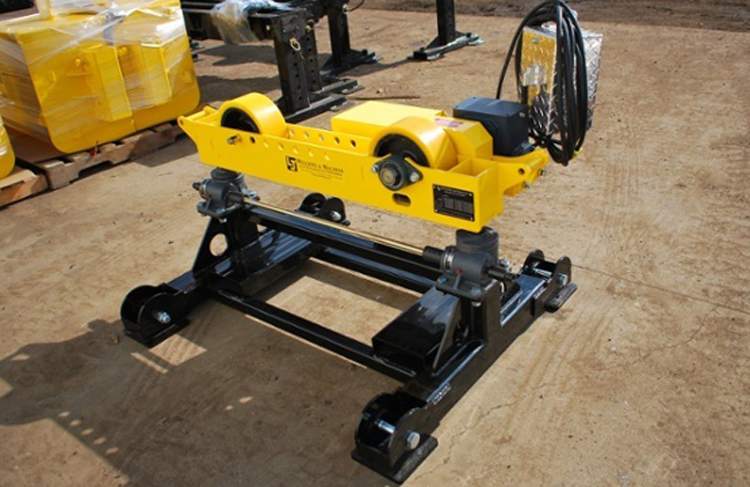

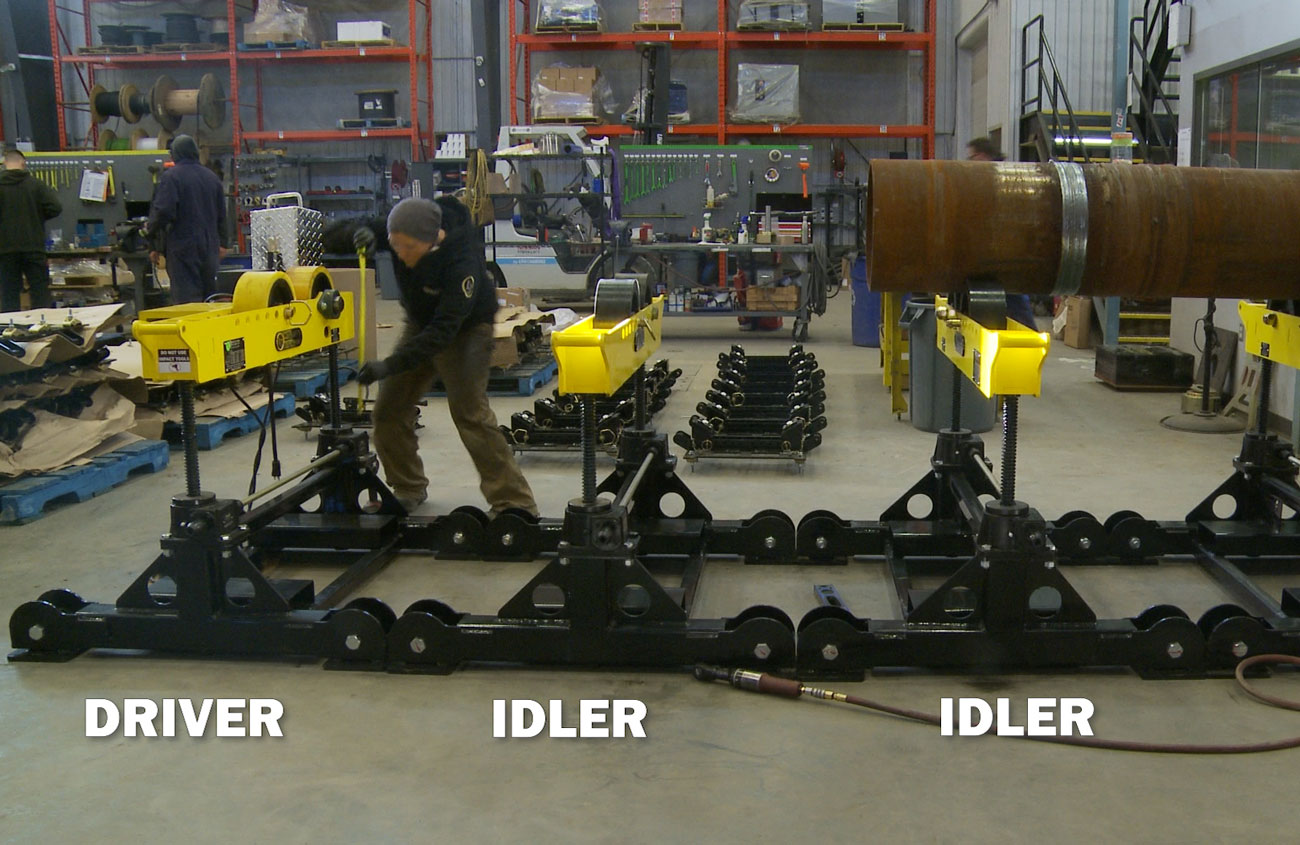

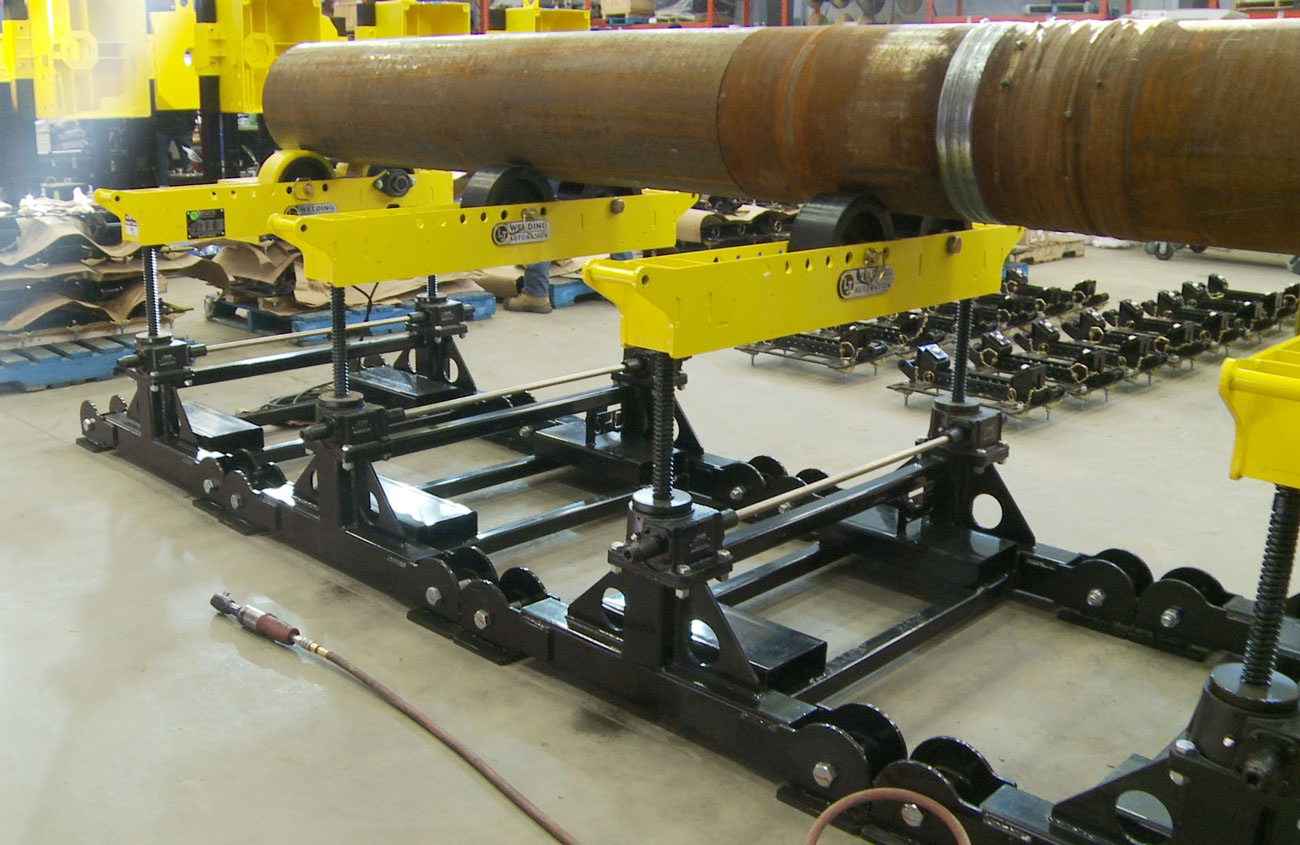

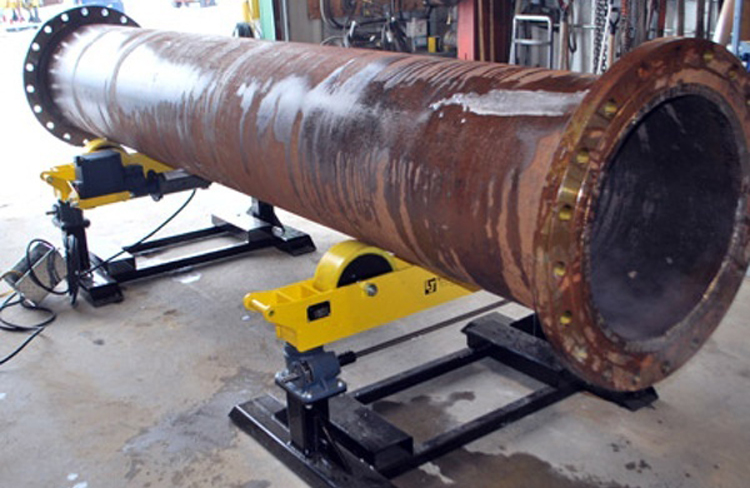

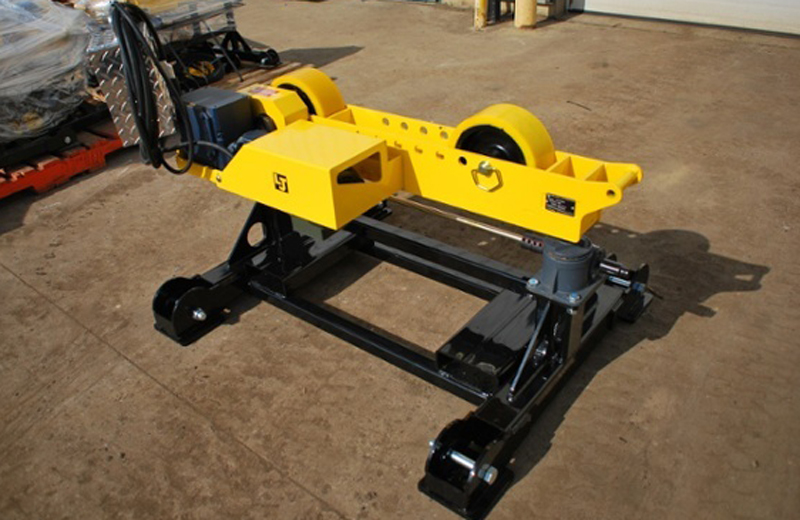

LJ´s 8-Ton Geared Height Adjustable Pipe Roll Rentals are manufactured to handle pipes with a diameter ranging from 4" to 48" and weight up to 8 tons. Our height-adjustable pipe roll stands for rent SHD-800/850 are designed to help attain exceptional quality circumference joints on shells and offer precise rotations of pipes that require minimal working space. The SHD-800/850 welding pipe roller stand provides a stable weld head position where a welding torch can be placed above the pipe.
Our 8-Ton Geared Height Adjustable Pipe Roll Rental is convenient and comfortable for welders working at a shop bench. Working with the SHD-800/850 rental model minimizes manual handling and allows welders to perform at suitable positions under a preset speed and precise angle with accurate rotating, which leads to faster and cleaner welds with minimal positioning. Another advantage is increased productivity, shorter idle time, reduced need for skilled labour and a decreased usage of lifting or cranes.
We, at LJ Welding, try to bring you the best products that satisfy your demands.
if you are looking for a Height Adjustable Pipe Roll with different specs, have a look at our:
LJ Welding's engineering department provides a progressive approach to solving the
unique problems that inevitably arise in our industry, resulting in efficient design,
fabrication, and timely delivery of custom equipment.
