4-Ton Height Adjustable Pipe Roll Rentals

KEY SPECIFICATIONS: HD2L-100/150

Loading capacity Driver: 4,000 lb
Idler: 4,000 lb
Pipe Diameter Range 2" – 36"
Footprint 30"x 31"x 40"
Height Range 28" – 40"
Tractive Effort Single Drive  650 lb
Output Torque 2,000 in-lb
Power Requirements 110V, 1-ph*
Operation Speed Range 8-80 in/min

GEARED HEIGHT ADJUST

Ease of welding using height adjusts for optimal weld performance

EXTRA LOW PROFILE

Accommodate for pipe welding applications ranging from light tubes to extra-heavy walled pipe.

REQUEST QUOTE

PHOTO GALLERY

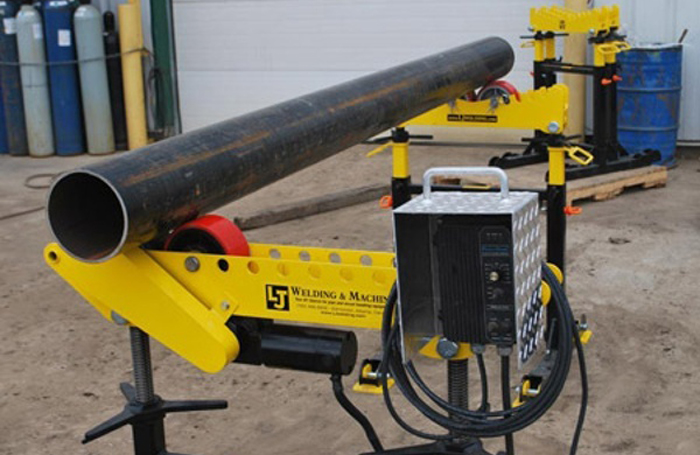

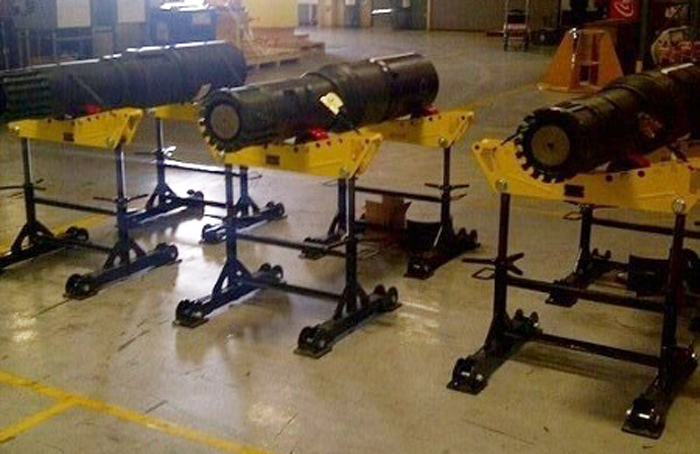

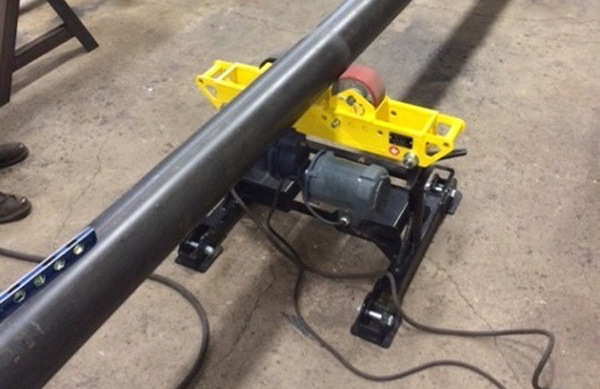

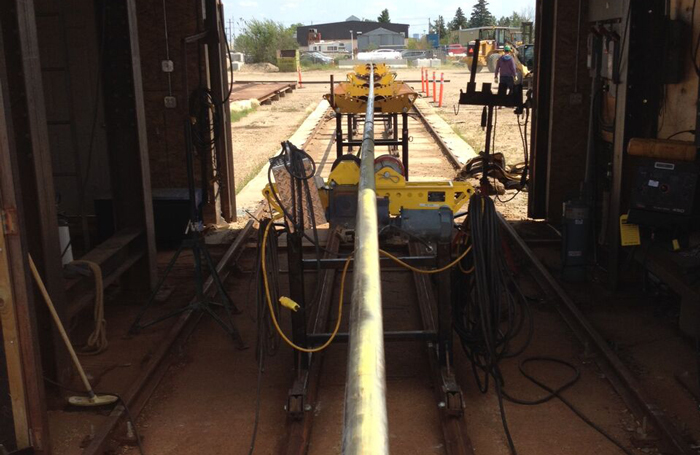

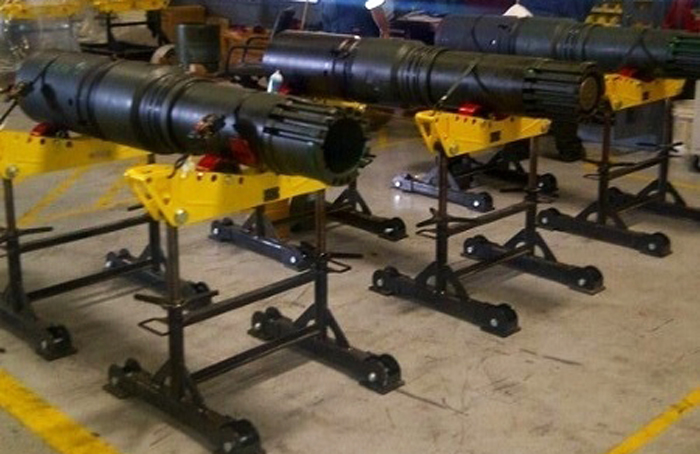

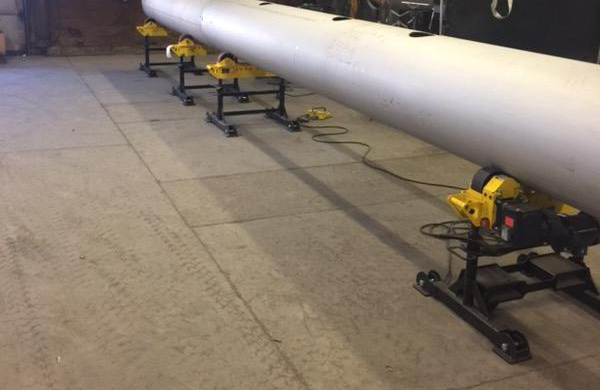

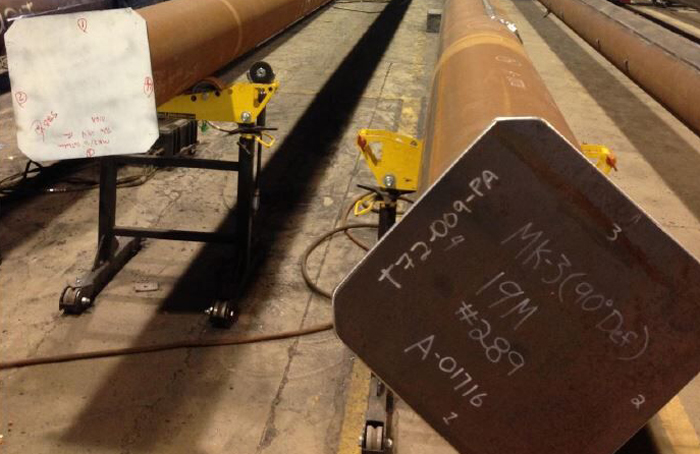

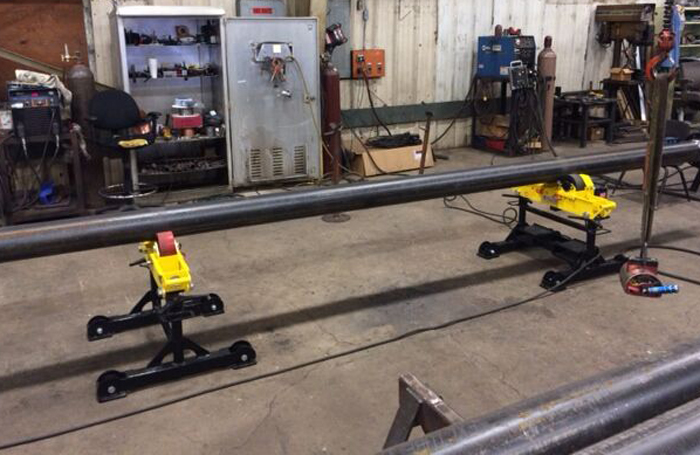

4-Ton Height Adjustable Pipe Roll - HD2L-100/150

Request quote

HEIGHT ADJUSTABLE PIPE ROLL RENTAL DESCRIPTION

LJ Welding 4-Ton Height Adjustable Pipe Roll Rentals are applicable for pipes with a diameter ranging from 2" to 36" and weight up to 4 tons. The weight of the pipe is placed and distributed equally on a driver and idle. Pipes and other cylindrical workpieces can be lowered and lifted in a height range between 28" - 40". LJ's machines help to capture remarkable quality circumference joints on shells and require less usage of lifting or cranes. Our equipment is built for the longevity of service and reliability. LJ also offers a lot of options and features that can be added to the equipment depending on the customer’s demands.

HEIGHT ADJUSTABLE PIPE ROLL RENTAL BENEFITS

4-Ton Height Adjustable Pipe Roll Rentals are built for reliability and endurance for the longest possible service life. They provide precise rotation for pipe fabrication that requires minimal floor space. Further advantages of using our welding pipe rolls are faster overall production, cleaner and smoother welds and reduction of skilled labour needed for operations. Using HD2L-100/150 rental is significantly more convenient and comfortable for welders working at a shop bench leading to improved production.

similar products

We, at LJ Welding, try to bring you the best products that satisfy your demands.
if you are looking for a Pipe Roller Stand with different specs, have a look at our:

BPR-200/300
1.5-TON BENCHTOP ROLLER

1-2

EMCC-300
4-TON PIPE ROLLER & CART

Pipe-Roller-Stands-&-Cart-2

LJ Welding's engineering department provides a progressive approach to solving the
unique problems that inevitably arise in our industry, resulting in efficient design,
fabrication, and timely delivery of custom equipment.
