8-Ton Low Profile Pipe Support Roll Rentals

KEY SPECIFICATIONS:
SHD-700/SHD-750

Loading capacity Driver: 8,000 lb
Idler: 8,000 lb
Pipe Diameter Range 2" – 48"
Footprint 34"x 50"x 21"
Height Range 14"– 26" (top of wheel) ; Adjustable in 1" increments
Tractive Effort Single Drive 2,400 lb
Output Torque 12,000 in-lb
Power Requirements 110V, 1-ph*
Operation Speed Range 5-50 in/min

GEARED HEIGHT ADJUST

Ease of welding using height adjusts for optimal weld performance

EXTRA LOW PROFILE

Accommodate for pipe welding applications ranging from light tubes to extra-heavy walled pipe.

REQUEST QUOTE

PHOTO GALLERY

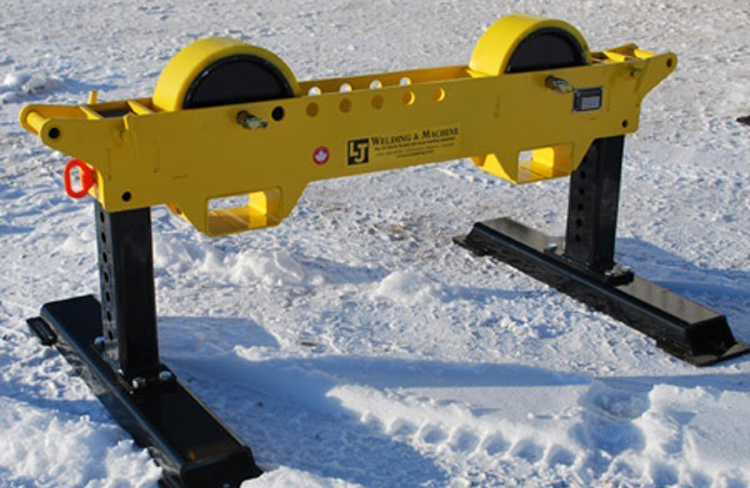

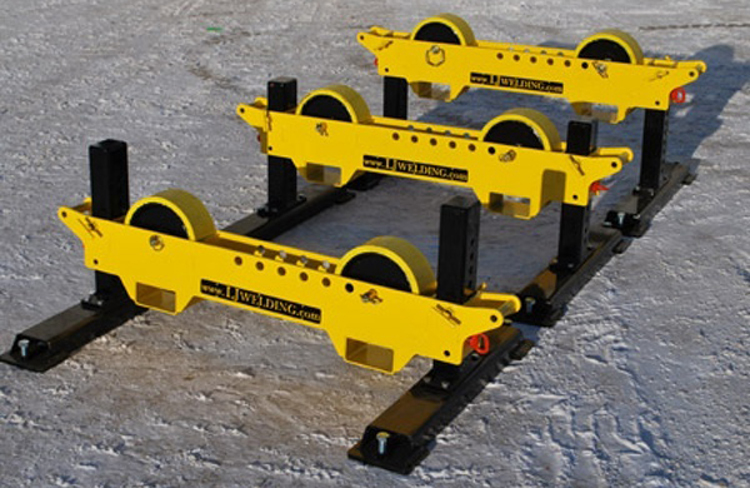

8-Ton Low Profile Pipe Support Roll - SHD-700/SHD-750

Request quote

PIPE SUPPORT ROLL RENTAL DESCRIPTION

LJ's 8-Ton Low Profile Pipe Support Roll Rental is made to handle pipes with a diameter ranging from 2" to 48" and weigh up to 8 tons, which are distributed equally on the driver and idle. Additionally, it uses a single drive tract effort and provides a rotation speed in a range from 5 to 50 in/min. They are equipped with polyurethane rollers, which LJ has developed, that offer the best durability, loading capacity which results in a constant centerline of pipes. Turning rolls, as well as SHD 700/750 rentals, come with wireless control options, hand pedants and motorized or not motorized rail casters.

PIPE SUPPORT ROLL RENTAL BENEFITS

LJ’s 8-Ton Low Profile Pipe Support Roll Rental offers a convenient and comfortable environment for welders working at shop benches, minimal shell/job handling, quick change-overs between different sized workpieces and an extremely heavy-duty design that ensures durability over years of use. SHD-700/750 rentals provide faster and smoother welds with minimal human interference. Another benefit is increased productivity, shorter idle time, reduced need for skilled labour and precise rotation of cylindrical workpieces.

similar products

We, at LJ Welding, try to bring you the best products that satisfy your demands.
if you are looking for a Height Adjustable Pipe Roll with different specs, have a look at our:

HD2L-100/150
4-TON PIPE ROLLER

Pipe-Roller-Welding-Stands-To-Let

BPR-200/300
1.5-TON BENCHTOP ROLLER

Benchtop-Roller-Stands-For-Lease-1.5ton

SHD-800/SHD-850
8-TON GEARED HEIGHT ADJUST

Geared-Pipe-Roller-Support-Rentals

LJ Welding's engineering department provides a progressive approach to solving the
unique problems that inevitably arise in our industry, resulting in efficient design,
fabrication, and timely delivery of custom equipment.
