40-Ton Height Adjustable Tank Roller Rentals

KEY SPECIFICATIONS: 20TRV-100/200

Loading capacity Driver: 40,000 lb
Idler: 40,000 lb
Vessel Diameter Range 1' – 14'
Footprint 116"x 44"x 31"
Height Adjustability (top of wheel) 30"– 48" ; Adjustable in 3" increments
Tractive Effort Dual Drive 8,700 lb
Output Torque 80,000 in-lb
Power Requirements 480V, 3-ph*
Operation Speed Range 5-50 in/min



HEIGHT ADJUSTABILITY

Ease of welding using height adjusts for optimal weld performance

FASTER CYCLE TIMES

Faster cycle times from reduced changeover effort

REQUEST QUOTE

PHOTO GALLERY

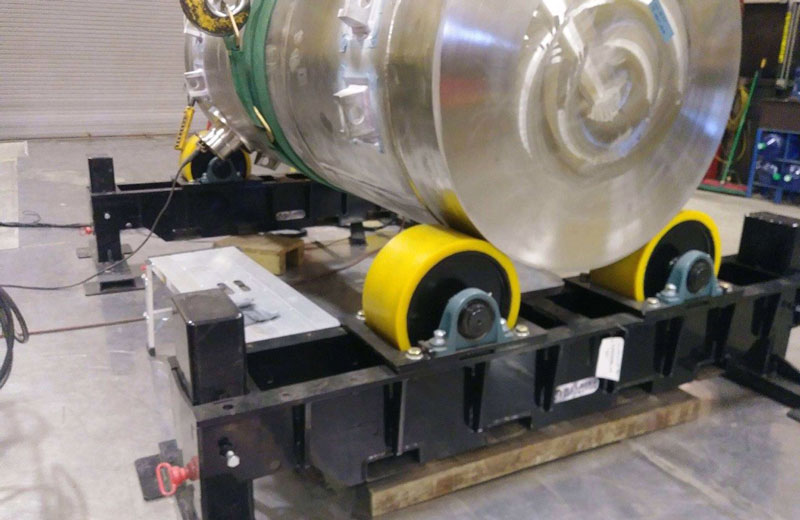

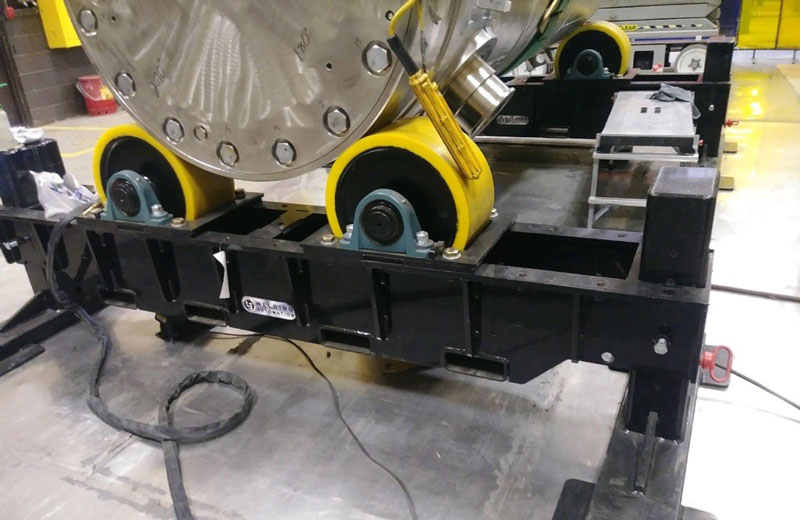

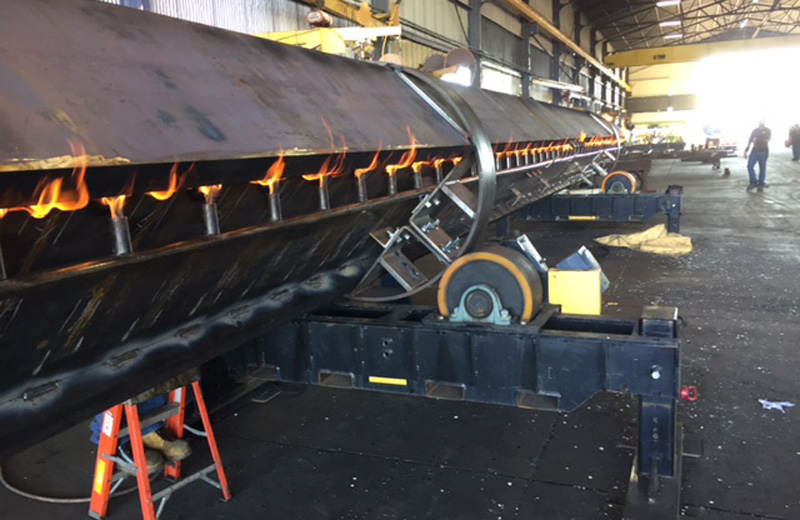

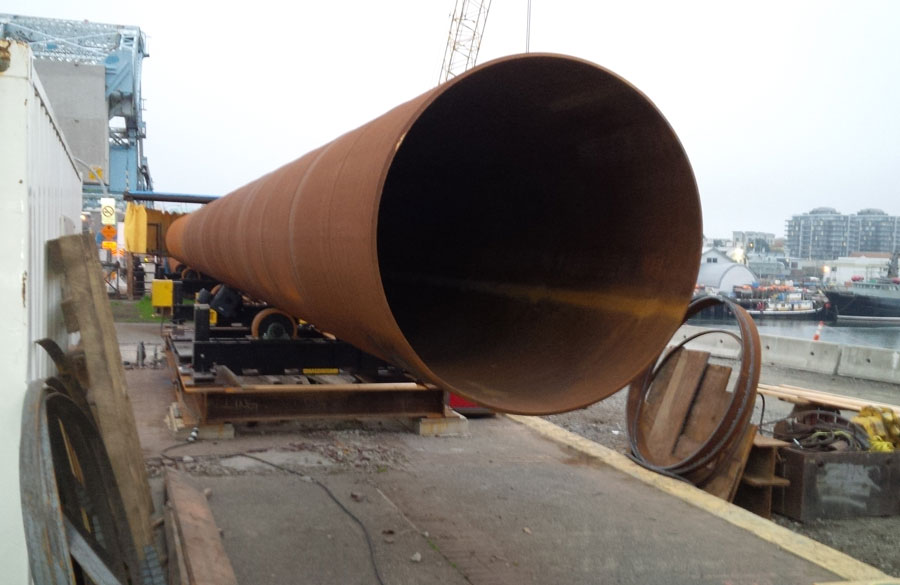

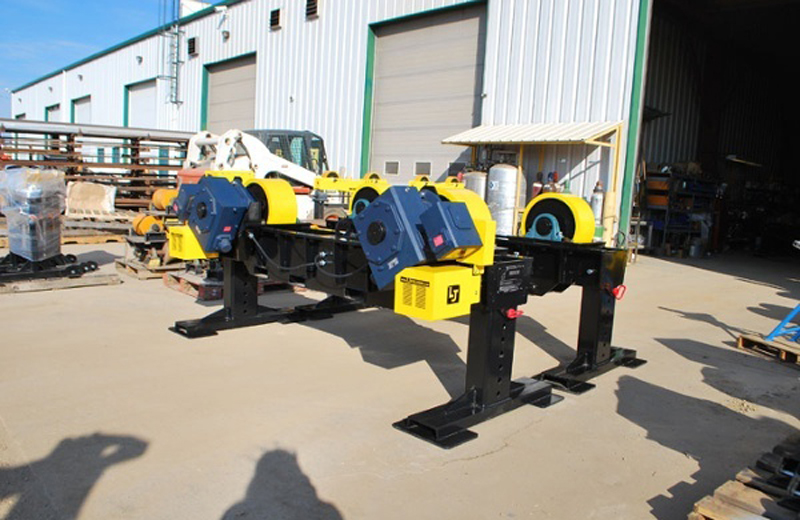

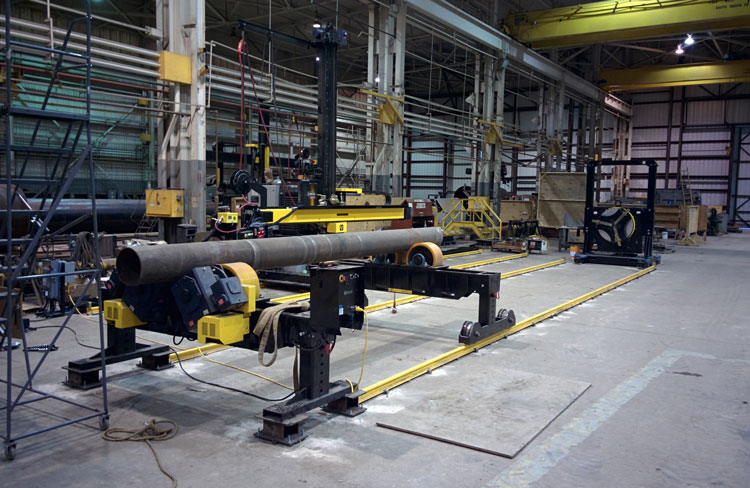

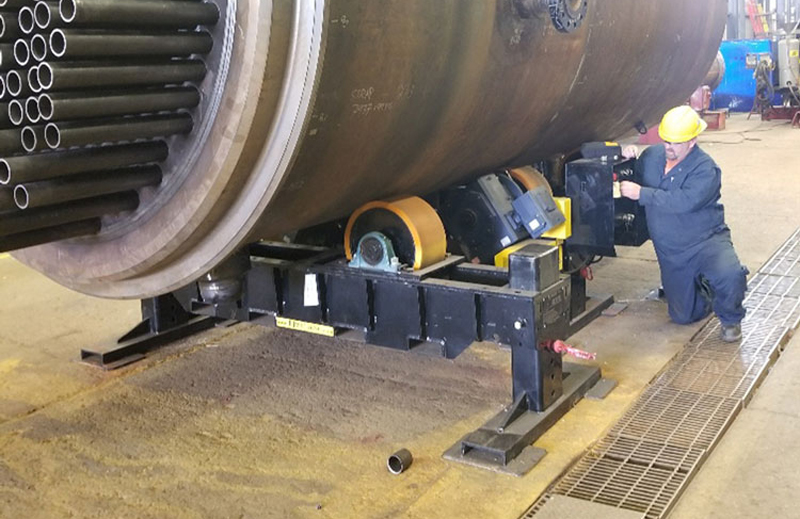

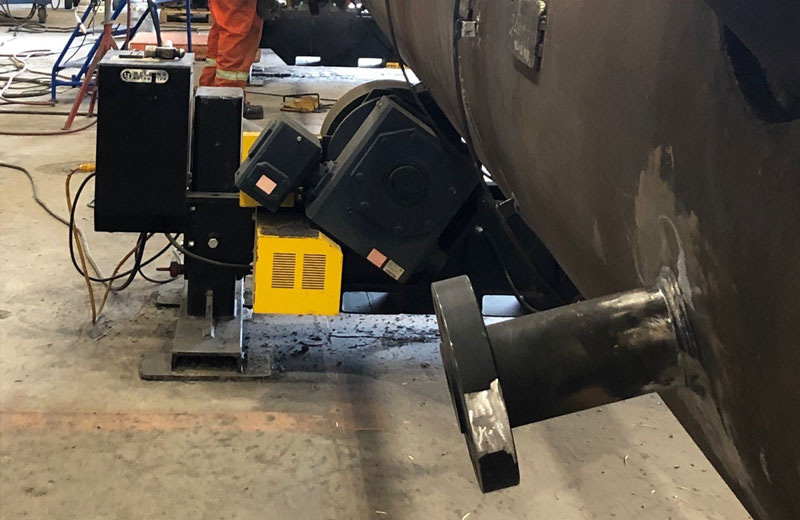

40-Ton Height Adjustable Tank Roller - 20TRV-100/200

Request quote

TANK ROLLER RENTAL DESCRIPTION

LJ Welding 40-Ton Height Adjustable Tank Roller Rentals are suitable for pipes and circular objects with a diameter ranging from 1' to 14' that can be lifted or lowered in a range from 30" to 48". The loading capacity reaches 20 tons which are dispersed equally on the driver and idler. LJ’s 20TRV-100/200 turning roll for rent can be operated manually with hand pendants which are available cabled or wireless. LJ Welding also offers other accessories and options, including different types of footswitches, grippers, casters and other specialized fixtures that can be added at customers’ request.

TANK ROLLER RENTAL BENEFITS

The extremely heavy-duty design of LJ's 40-Ton Height Adjustable Tank Roller Rental ensures durability over years of use. With rental model 20TRV-100/200 we can ensure increased production with reduced labour skill, lower work fatigue and maximize the quality of welds using synchronized rotation. LJ’s height-adjustable turning rolls rentals improve plant efficiency, welding automation and provide precise rotation of cylindrical workpieces. Additionally, they provide lesser usage of cranes reducing the idle time and polyurethane rollers that maintain constant centerline and accurate roll centre changes. Using our turning rolls ensure minimum shell/job handling and seamless integration with manipulator applications.

similar products

We, at LJ Welding, try to bring you the best products that satisfy your demands.
if you are looking for a Height Adjustable Vessel Roll with different specs, have a look at our:

10TRV-500/600
20-TON HEIGHT ADJUSTABLE TURNING ROLLS

Vessel-And-Tank-Rolls-For-Hire-10TRV

06R-100A/200
12-TON HEIGHT ADJUSTABLE TURNING ROLLS

Height-Adjustable-Vessel-Rolls-For-Rent

LJ Welding's engineering department provides a progressive approach to solving the
unique problems that inevitably arise in our industry, resulting in efficient design,
fabrication, and timely delivery of custom equipment.
