12-Ton Height Adjustable Tank Roller Rentals

KEY SPECIFICATIONS: 06R-100A/200

Loading capacity Driver: 12,000 lb
Idler: 12,000 lb
Vessel Diameter Range 0.5' – 12'
Footprint 34"x 103"x 26"
Height Adjustability (top of wheel) 23"– 39" ; Adjustable in 3" increments
Tractive Effort Single Drive 3,500 lb
Output Torque 25,000 in-lb
Power Requirements 110V, 1-ph*
Operation Speed Range 5-50 in/min



HEIGHT ADJUSTABILITY

Ease of welding using height adjusts for optimal weld performance

FASTER CYCLE TIMES

Faster cycle times from reduced changeover effort

REQUEST QUOTE

PHOTO GALLERY

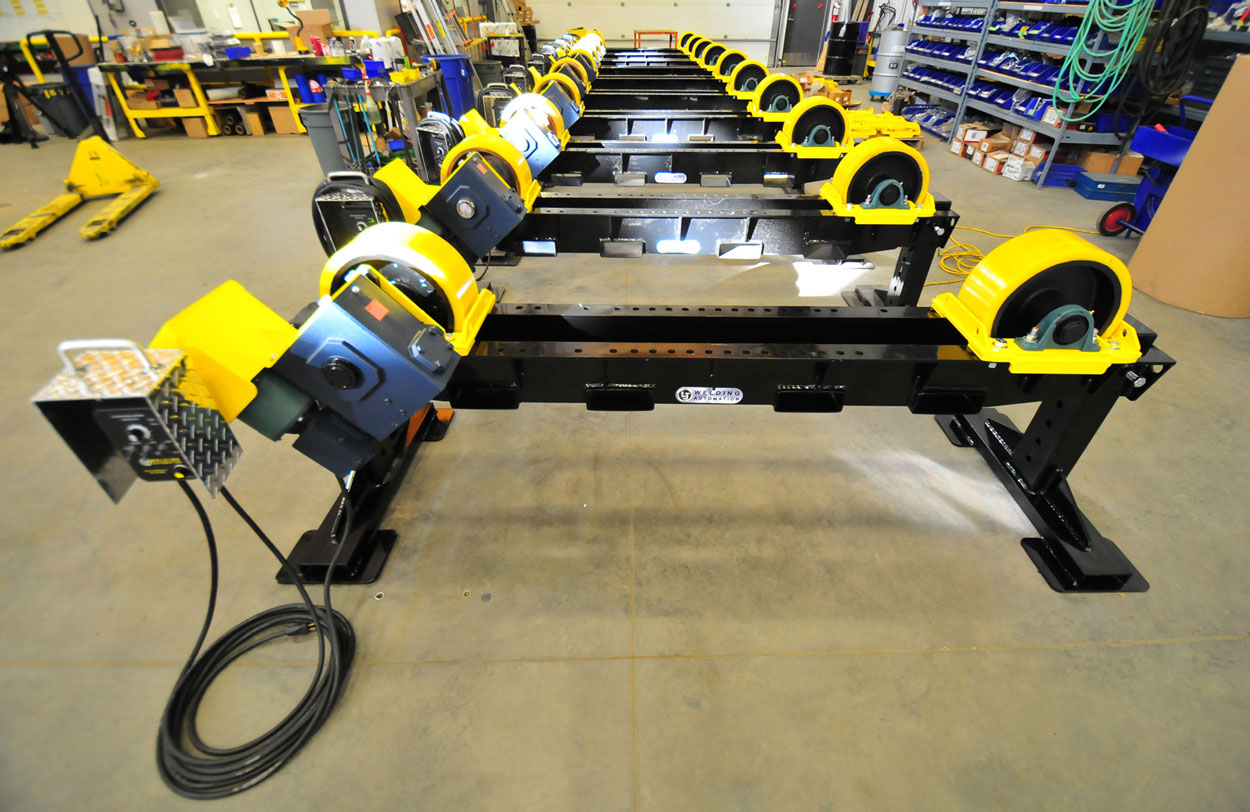

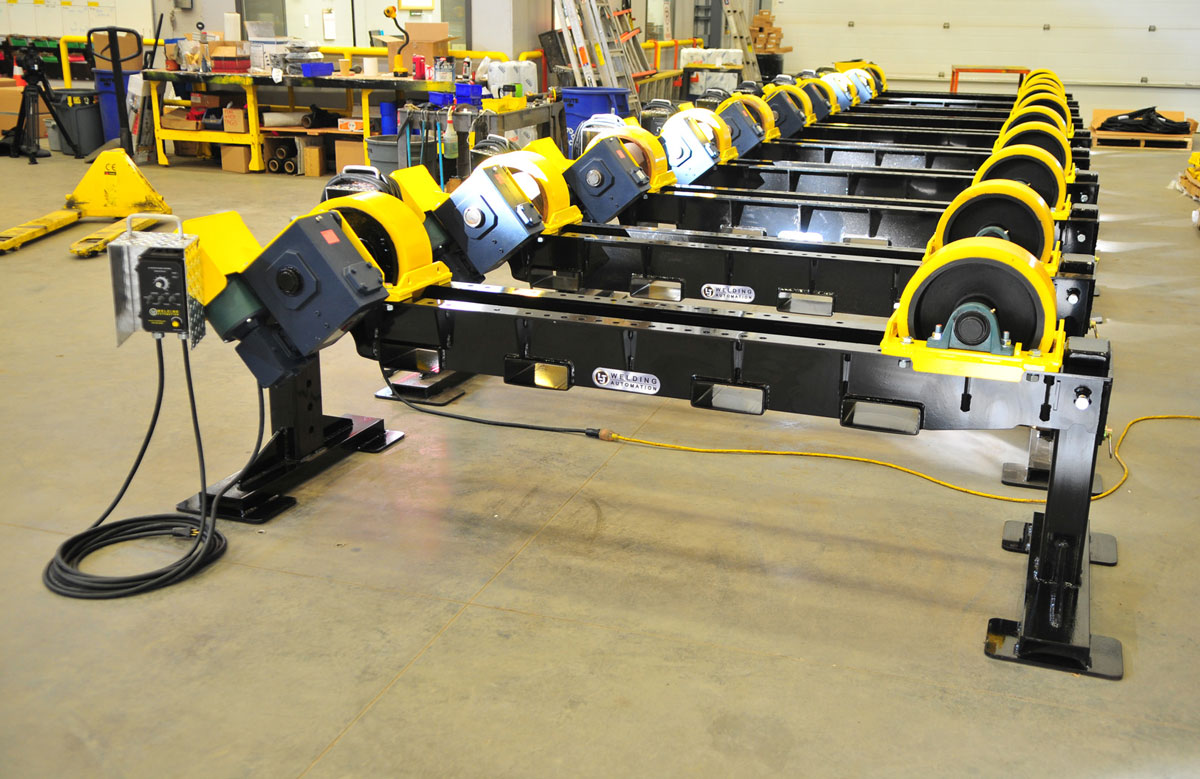

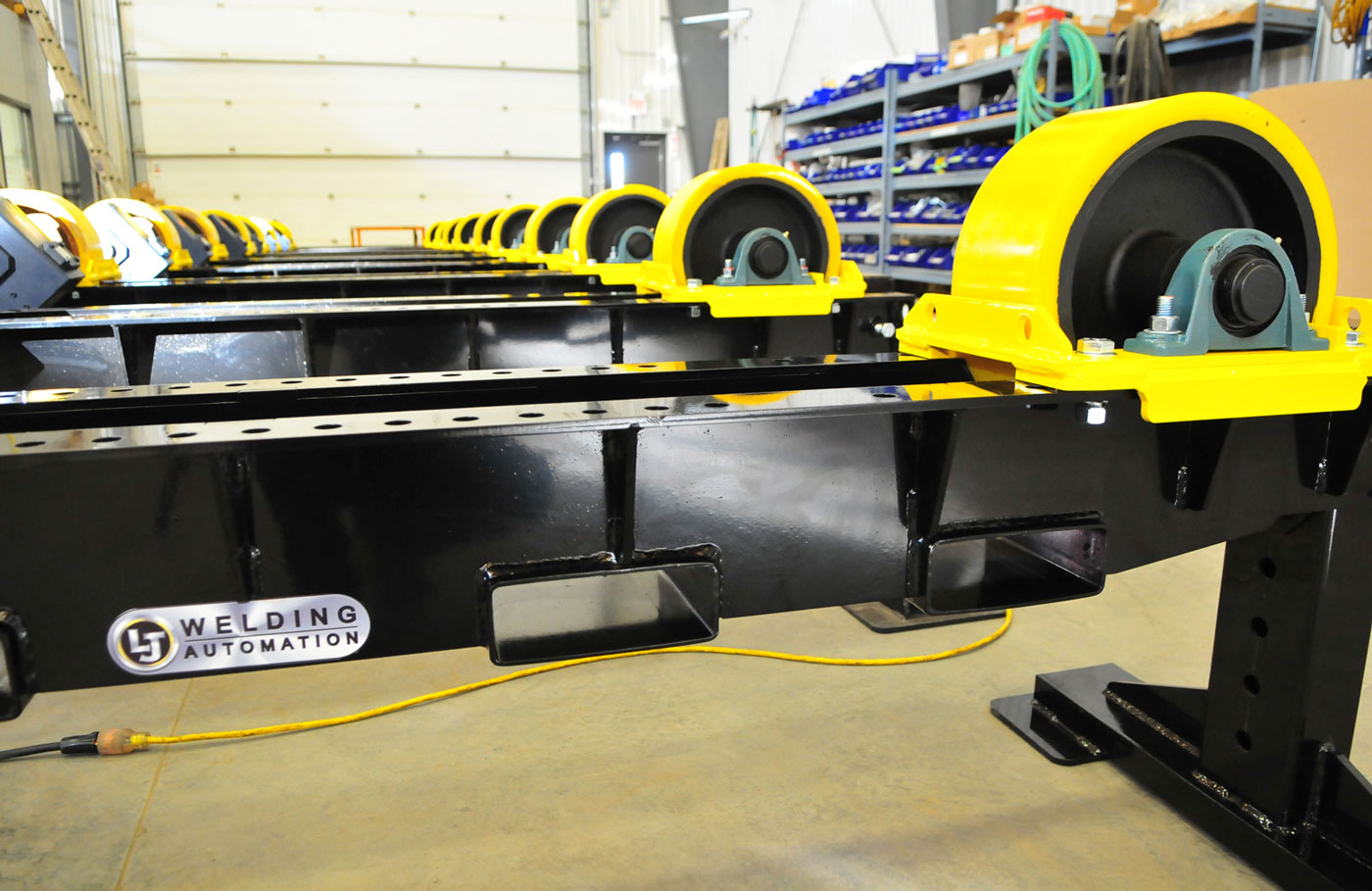

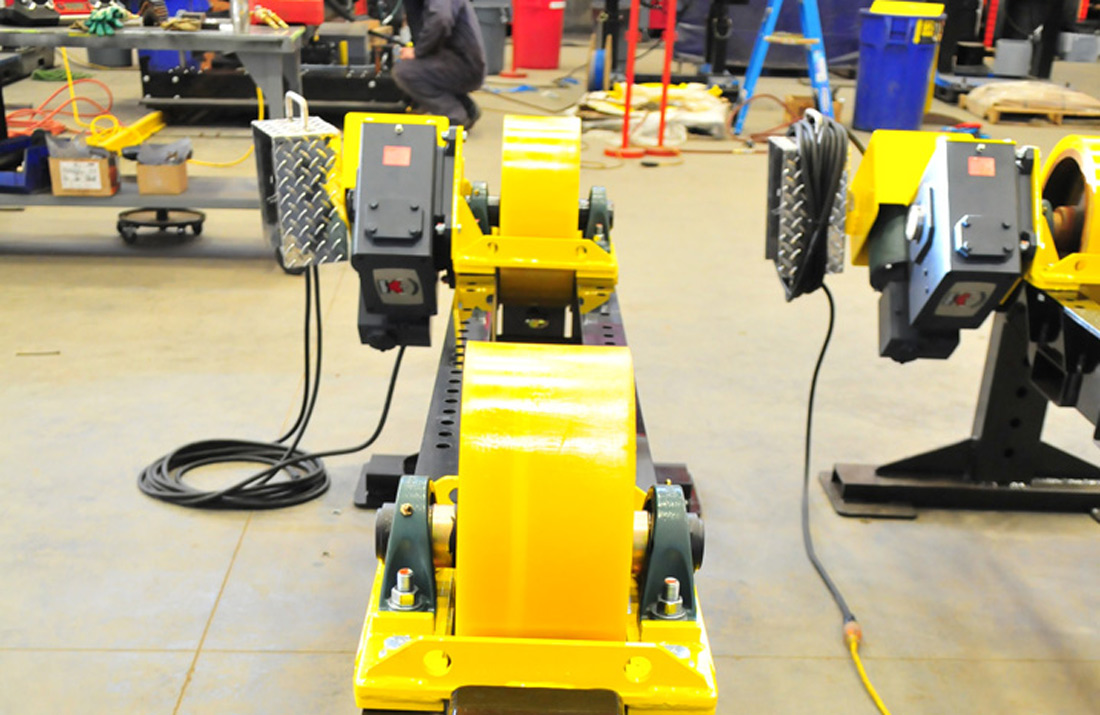

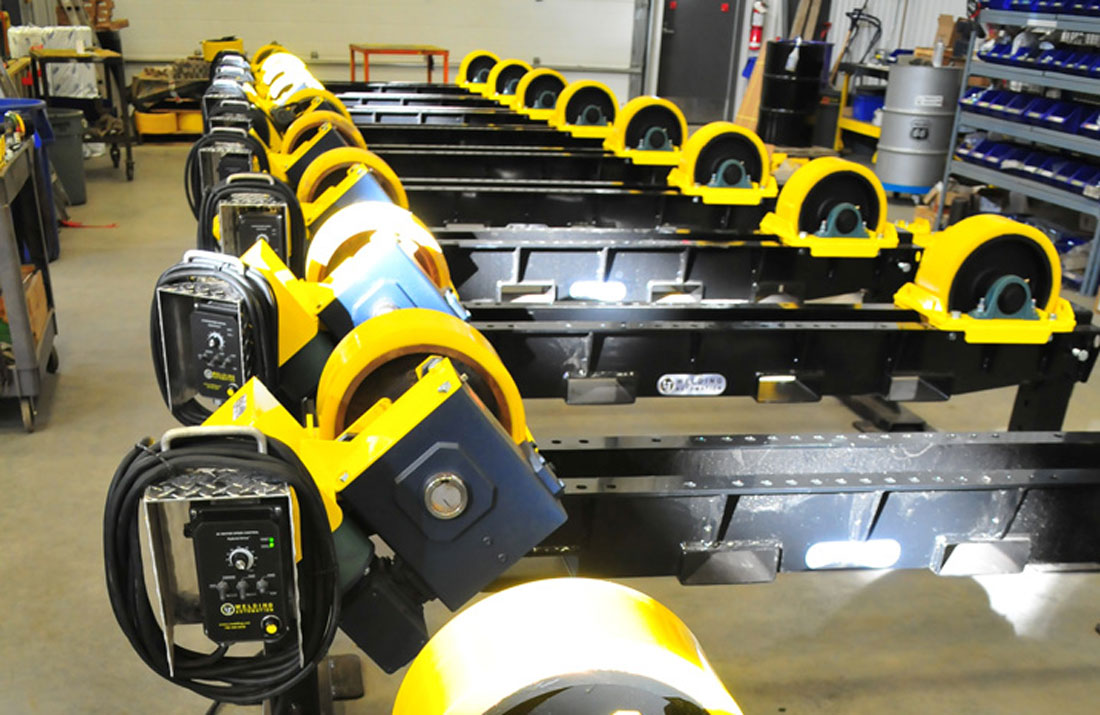

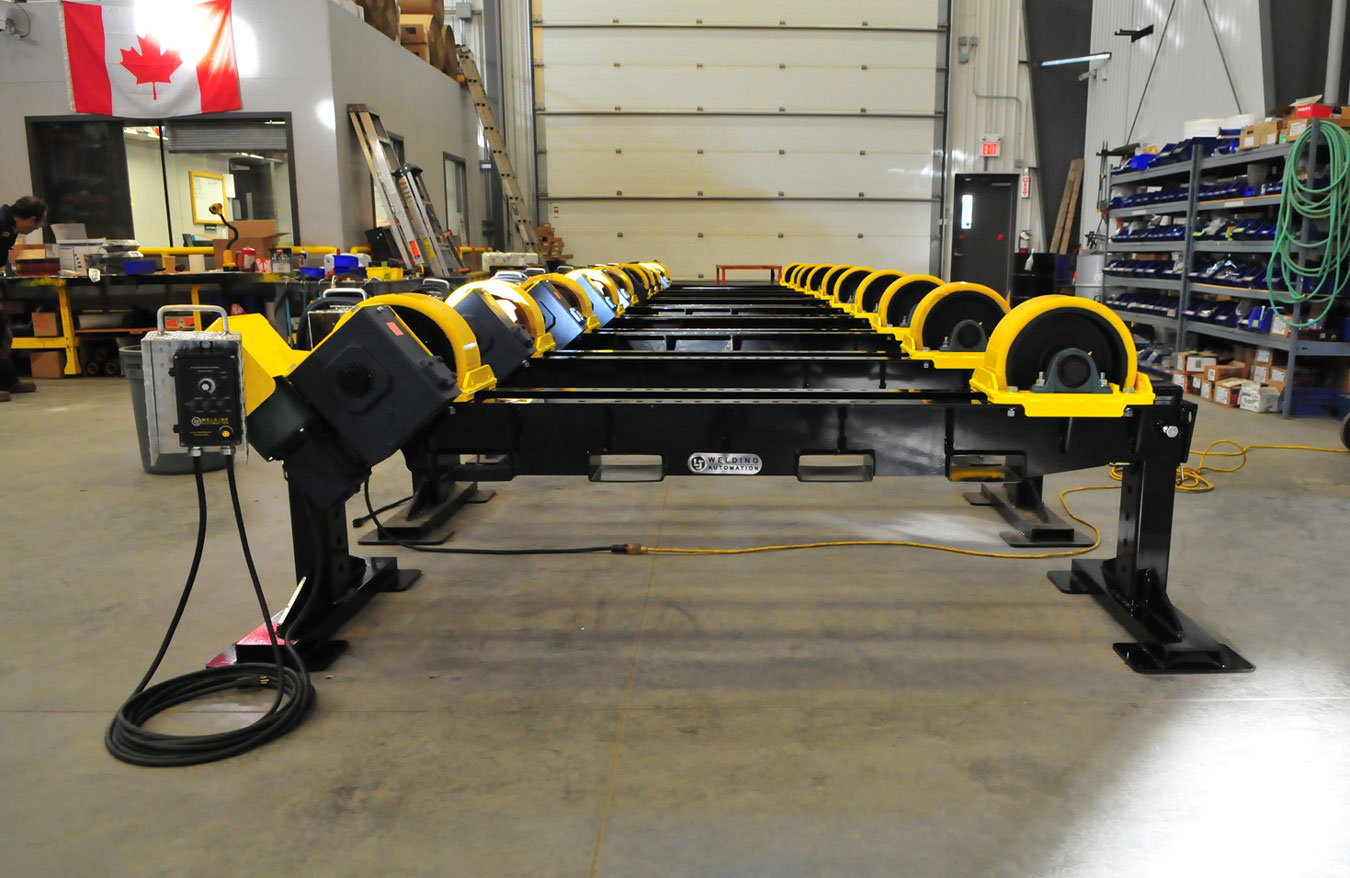

12-Ton Height Adjustable Tank Roller - 06R-100A/200

Request quote

TANK ROLLER RENTAL DESCRIPTION

LJ's 12-Ton Height Adjustable Tank Roller Rental features polyurethane rollers which LJ has developed especially for roller bed use. LJ also provides different options and accessories that can be added to a vessel roller per customer’s demand. It includes grippers, casters, footswitches or upgraded control options. 06R-100/200 rental model has a loading capacity of 12 tons that are equally dispersed on the idler and driver. It offers an output torque of 25,000 and height adjustability that allows pipes and other cylindrical objects to be raised and lowered within a range of 23" to 39".

TANK ROLLER RENTAL BENEFITS

There are many benefits to using LJ's 12-Ton Height Adjustable Tank Roller Rental, the key one is the heavy-duty design and longevity of the service life that ensures quality pipe rolling even after years of use. Our vessel rotators increase the quality of production, improve the overall efficiency and ease the operator’s workload. Additionally, they reduce the usage of cranes and support to attain exceptional quality circumferential joints on shells. Using tank turning rolls improves the welding automation and provides precise rotation of cylindrical workpieces.

similar products

We, at LJ Welding, try to bring you the best products that satisfy your demands.
if you are looking for a Height Adjustable Vessel Roll with different specs, have a look at our:

20TRV-100/200
40-TON HEIGHT ADJUSTABLE TURNING ROLLS

Height-Adjustable-Pipe-Rotator-Rentals-20TRV

10TRV-500/600
20-TON HEIGHT ADJUSTABLE TURNING ROLLS

Vessel-And-Tank-Rolls-For-Hire-10TRV

LJ Welding's engineering department provides a progressive approach to solving the
unique problems that inevitably arise in our industry, resulting in efficient design,
fabrication, and timely delivery of custom equipment.
