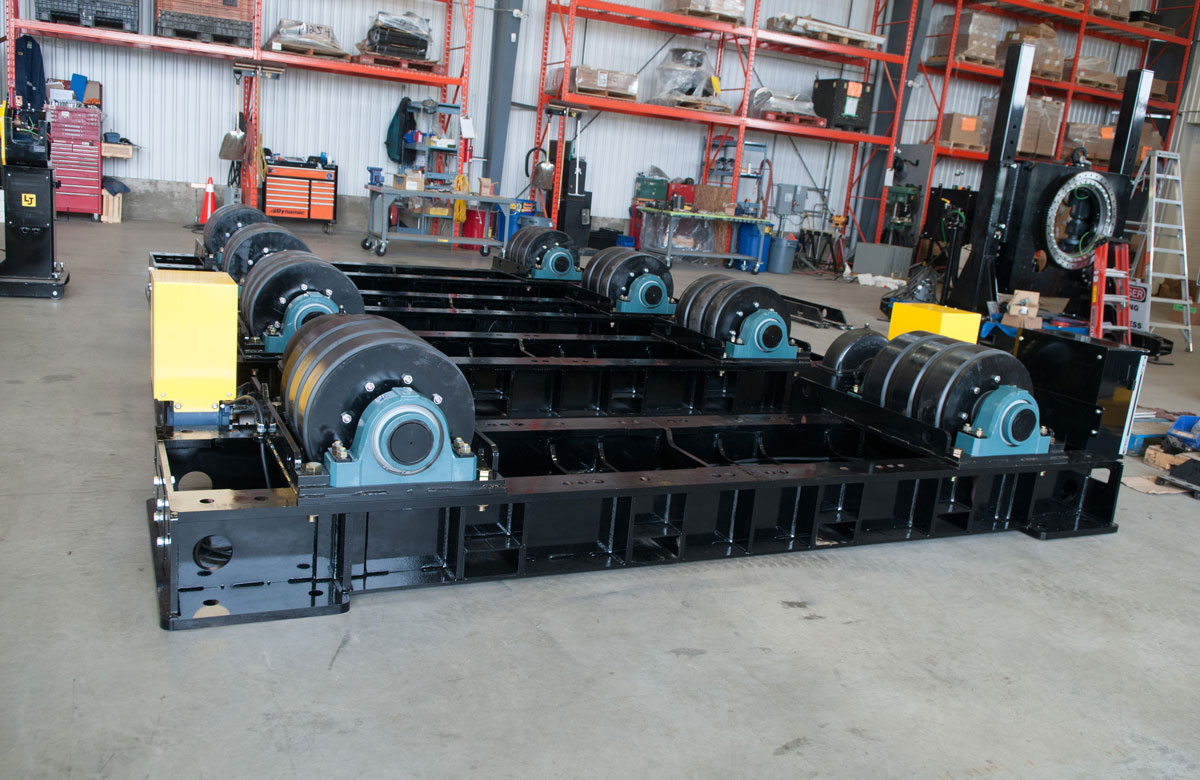

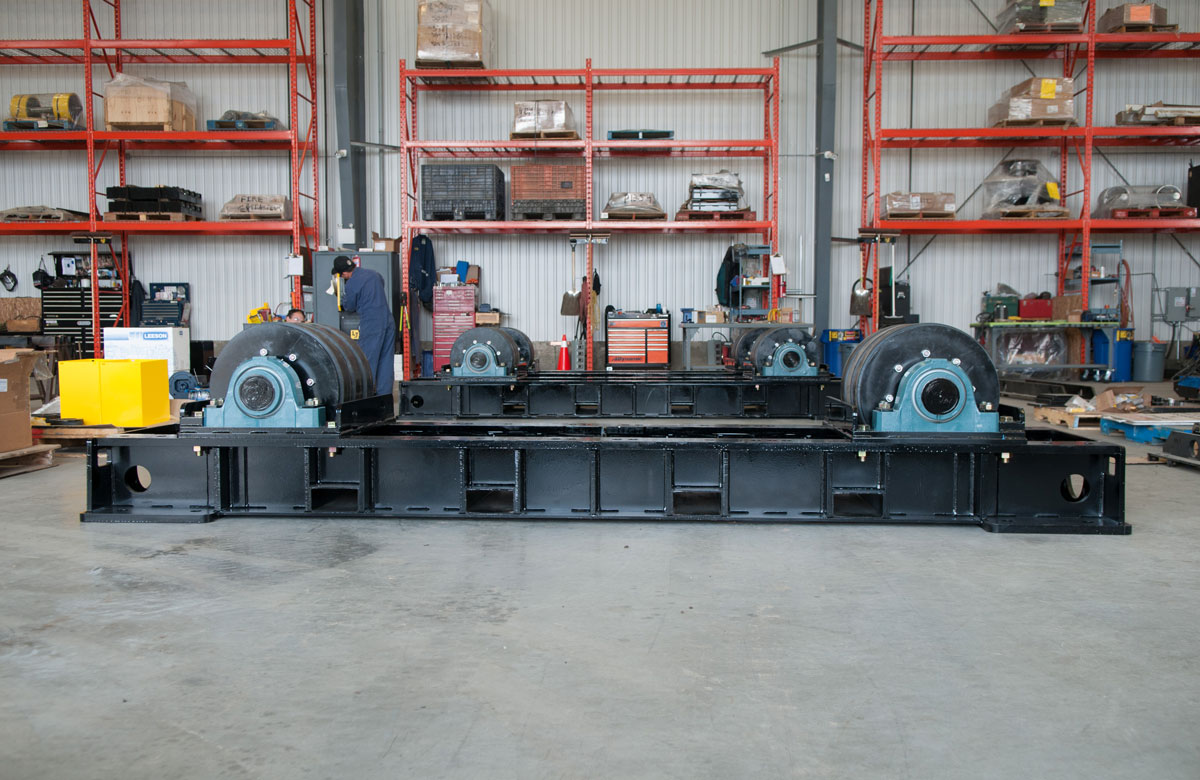

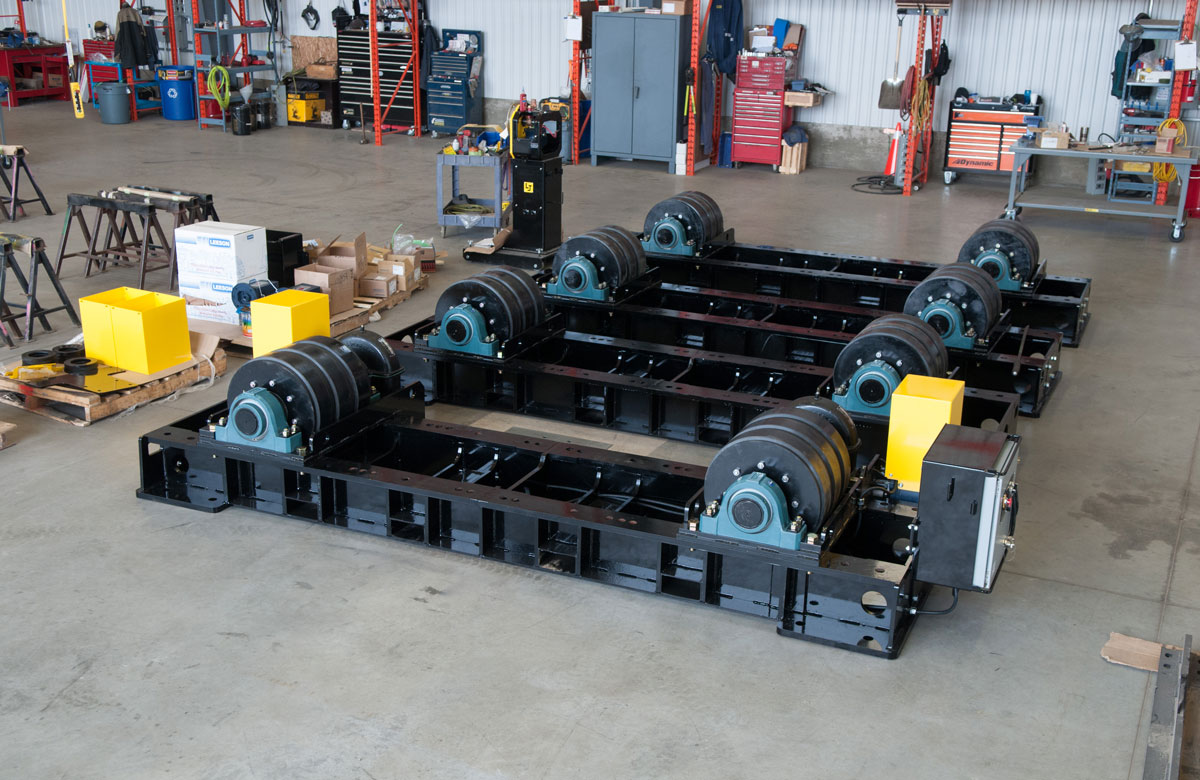

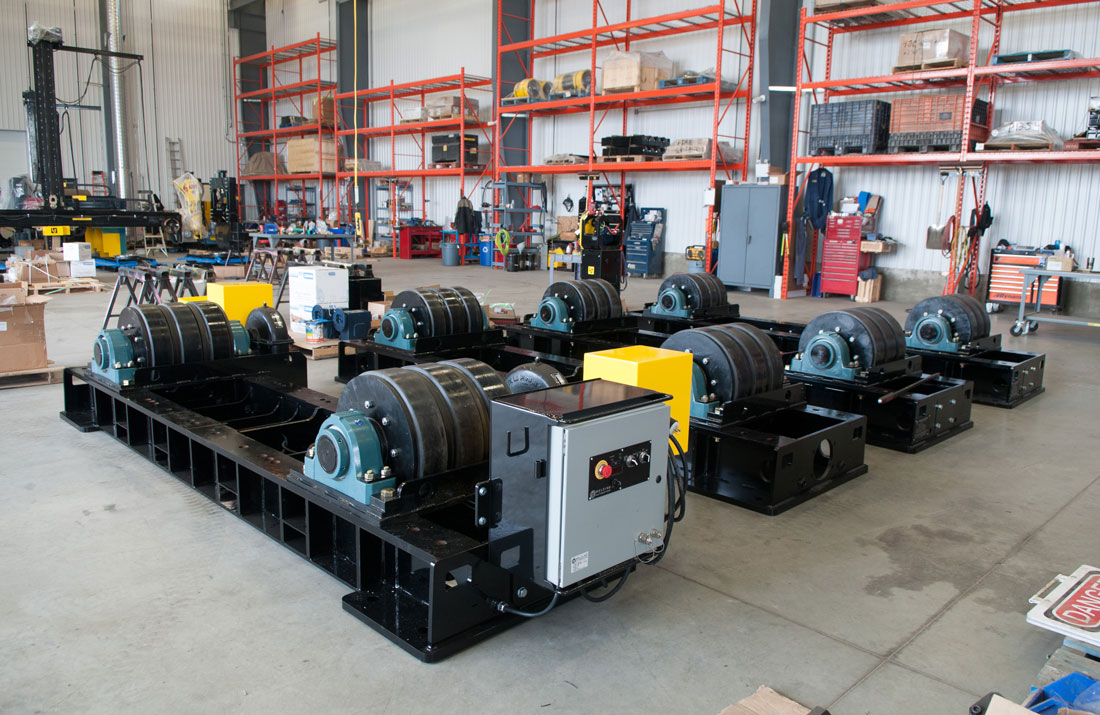

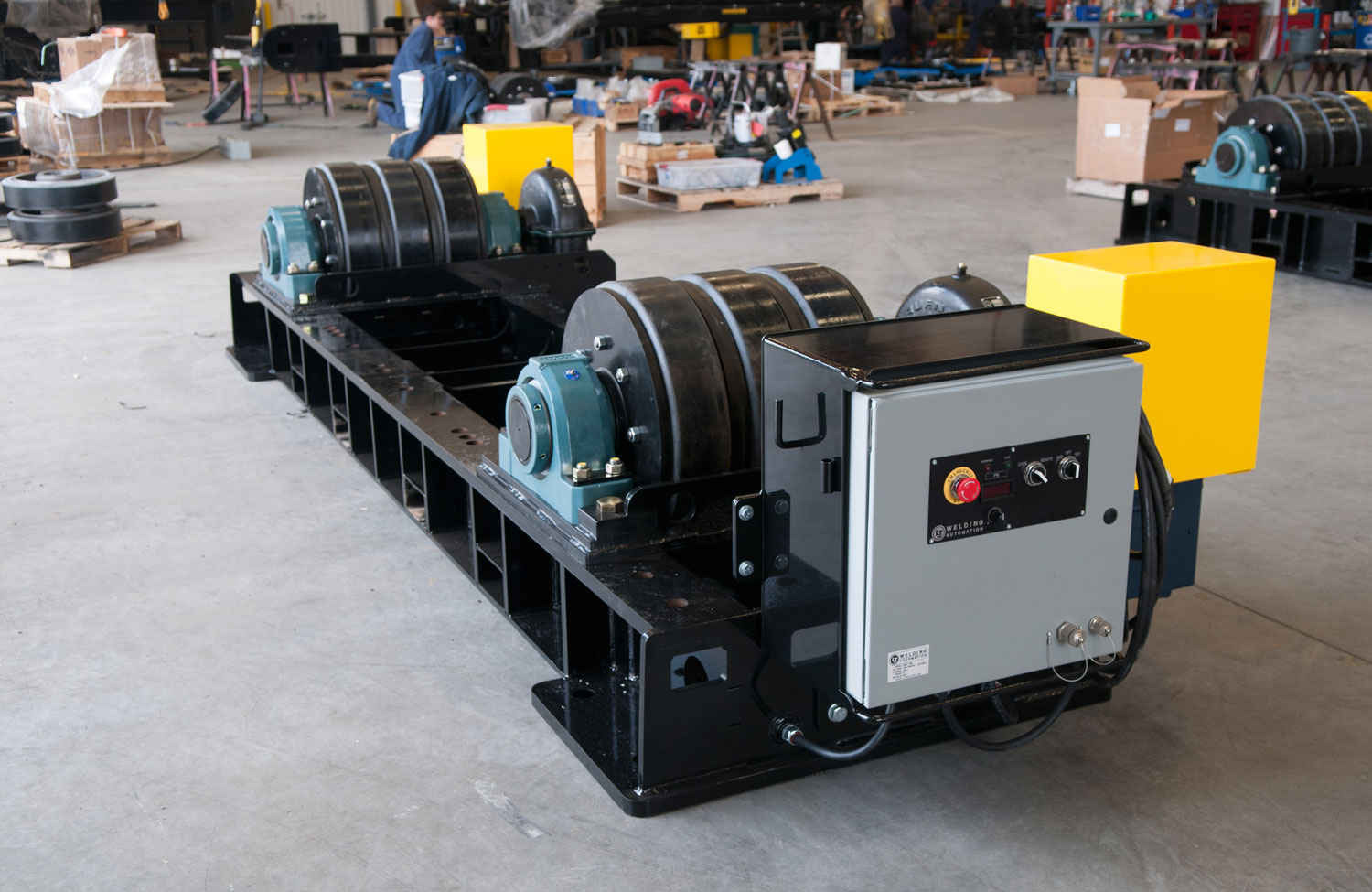

200-Ton Fixed Height Tank Turning Roll Rentals

KEY SPECIFICATIONS:
200T-500/200T-600

Loading capacity Driver: 200,000 lb
Idler: 200,000 lb
Vessel Diameter Range 1.5' – 26'
Footprint Idler: 50"x 184"x 31"
Driver: 36"x 162"x 31"
Tractive Effort Dual Drive 20,400 lb
Output Torque 240,000 in-lb
Power Requirements 480V, 3-ph*
Equipment Mass 5-70 in/min

QUICK CHANGE-OVERS

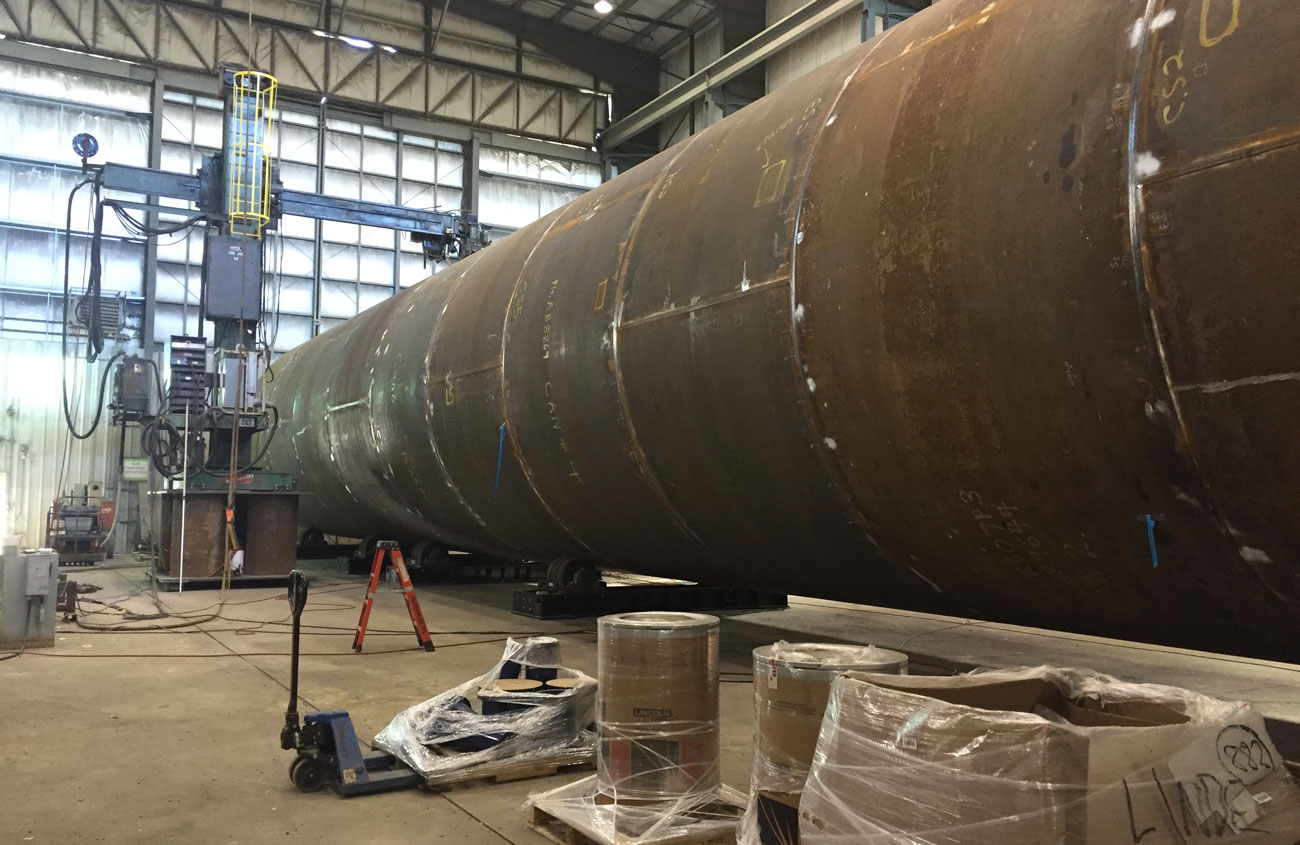

Maximizing ease & quality of welds using synchronized rotation

SMOOTH INTEGRATION

Seamless integration with manipulator applications

TANK TURNING ROLL RENTAL DESCRIPTION

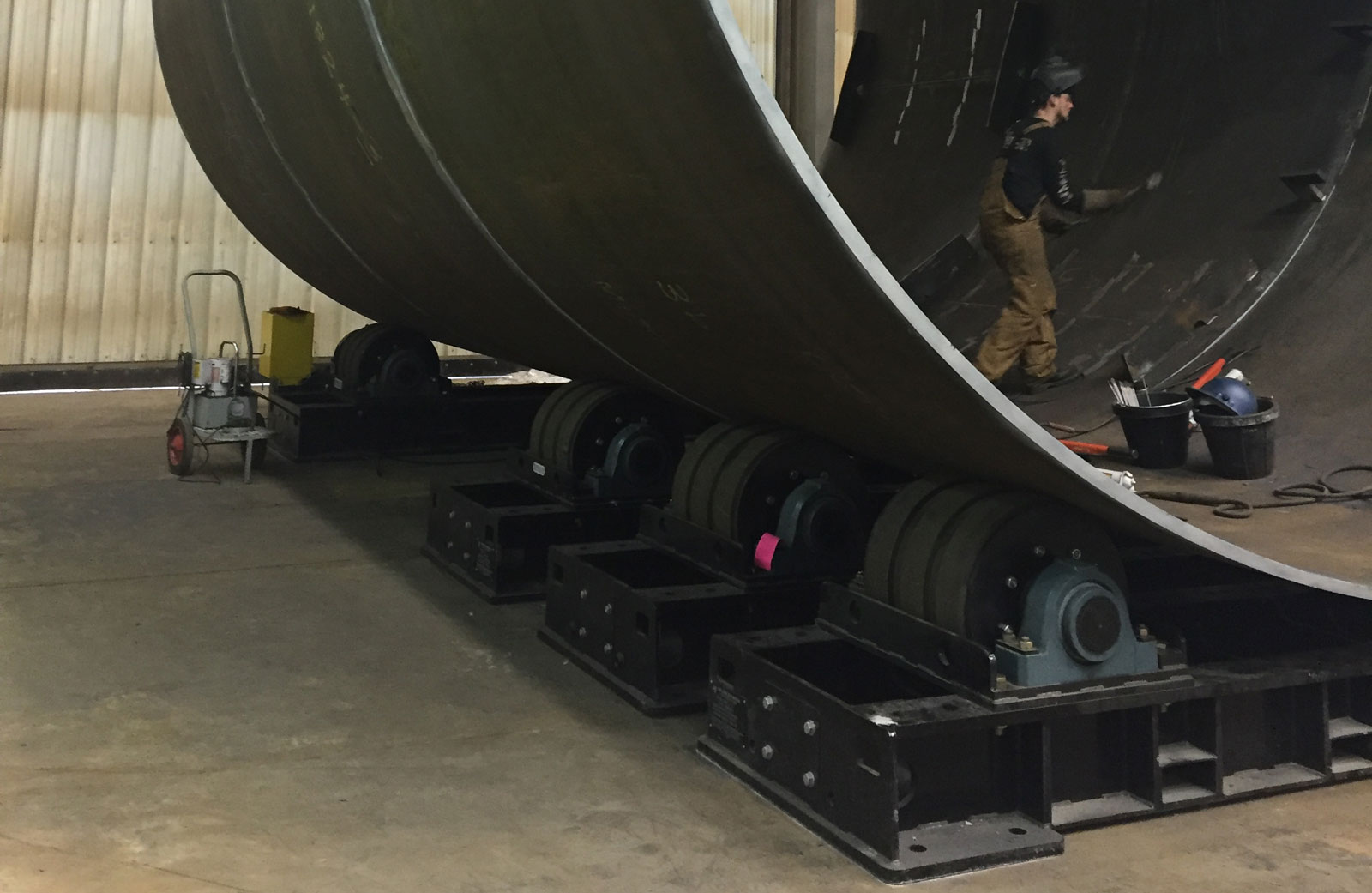

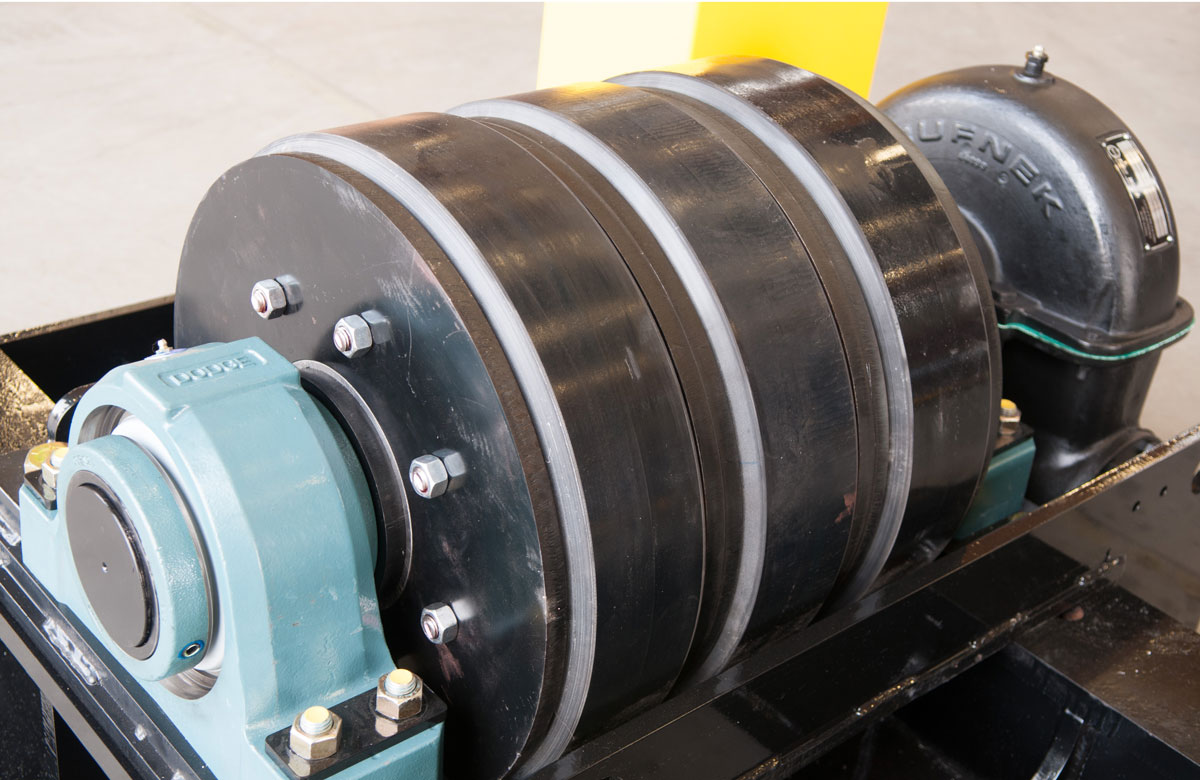

LJ's 200-Ton Fixed Height Tank Turning Roll Rental is power-driven in its power section. It provides easy adjustment of roller distances and compact size. The tank roller can carry a load weighing up to 200 tons. The total weight of the work object is spread on the driver and idler equally. The diameter size ranges from 1.5' to 26' making it the largest diameter range in its class. LJ also offers a variety of options and additional accessories that can be established based on customers’ requests.

TANK TURNING ROLL RENTAL BENEFITS

LJ’s 200-Ton Fixed Height Tank Turning Roll Rental automatically align themselves around the workpiece without the need for manual manipulation of the rollers, which improves the process of production and reduces workers’ fatigue. With the 200T-500/600 rental model, we offer solutions that can improve your fabrication requirements and reduce pipe preparation costs. Fixed height turning rolls are effective for maximizing the ease and quality of welds using synchronized rotation and quick change-overs between different sized workpieces.

similar products

We, at LJ Welding, try to bring you the best products that satisfy your demands.
if you are looking for a Fixed Height Turning Roll with different specs, have a look at our:

LJ Welding's engineering department provides a progressive approach to solving the
unique problems that inevitably arise in our industry, resulting in efficient design,
fabrication, and timely delivery of custom equipment.
