Loading capacity | Driver: 120,000 lb Idler: 120,000 lb |
Vessel Diameter Range | 1.5' – 26' |
Footprint | Idler: 50"x 184"x 31" Driver: 36"x 162"x 31" |
Tractive Effort | Dual Drive 20,400 lb |
Output Torque | 240,000 in-lb |
Power Requirements | 480V, 3-ph* |
Equipment Mass | 5-70 in/min |
Maximizing ease & quality of welds using synchronized rotation
Seamless integration with manipulator applications

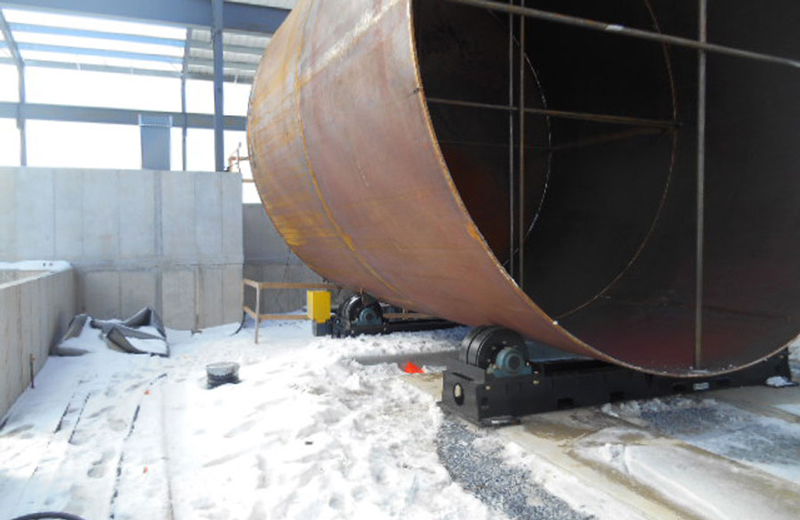

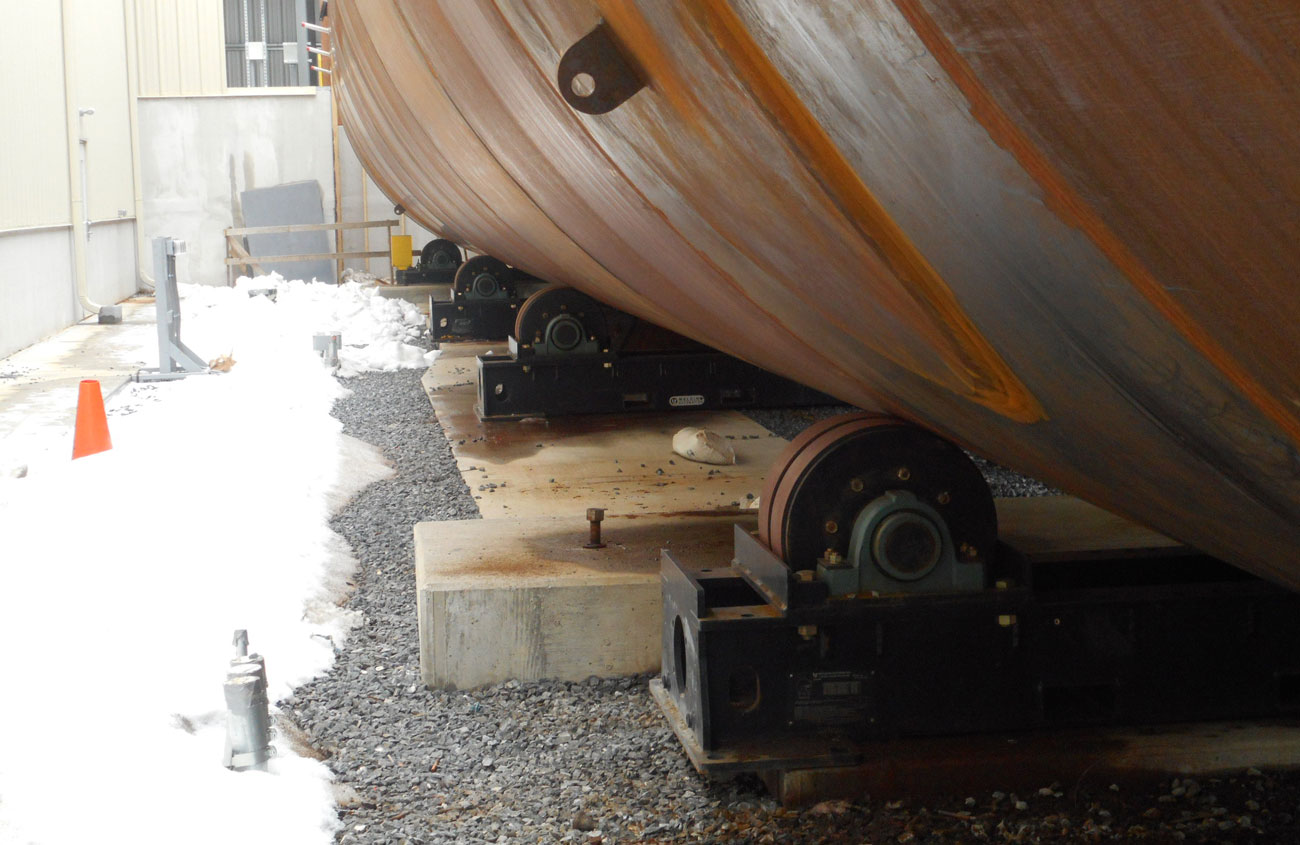

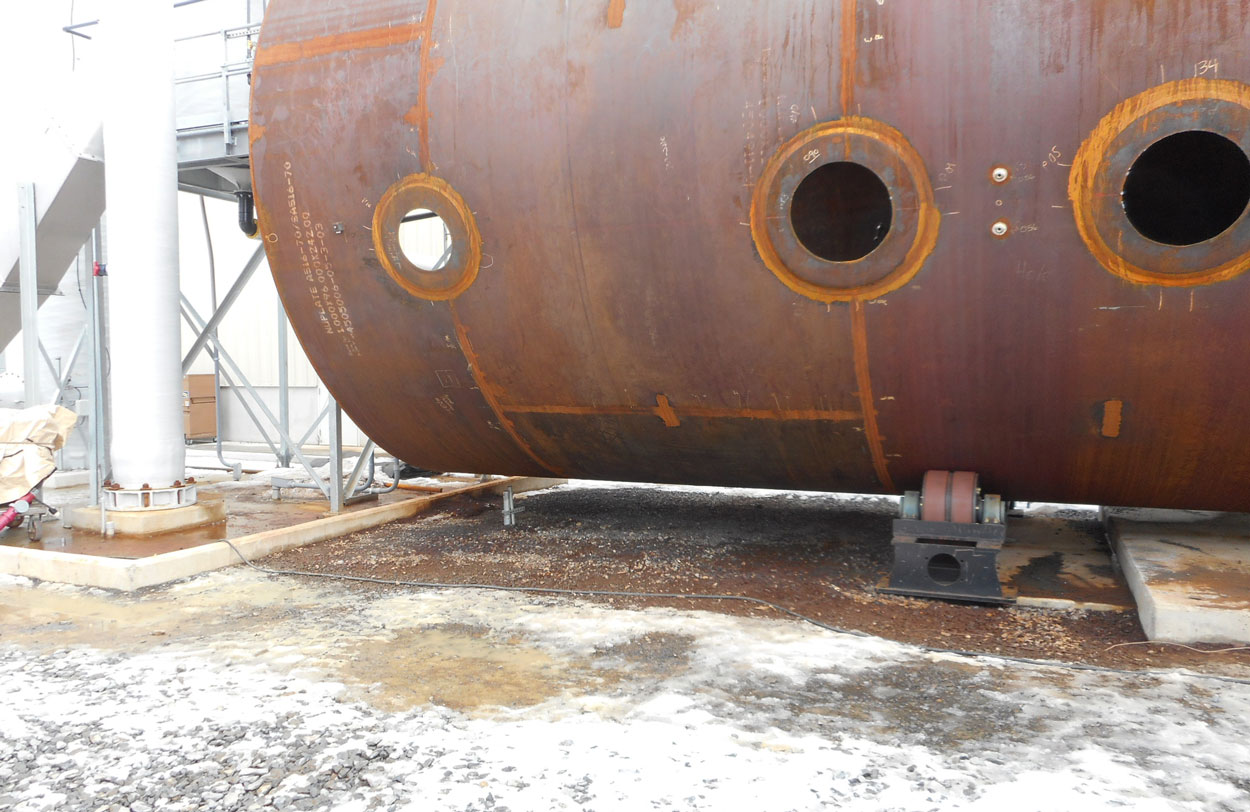

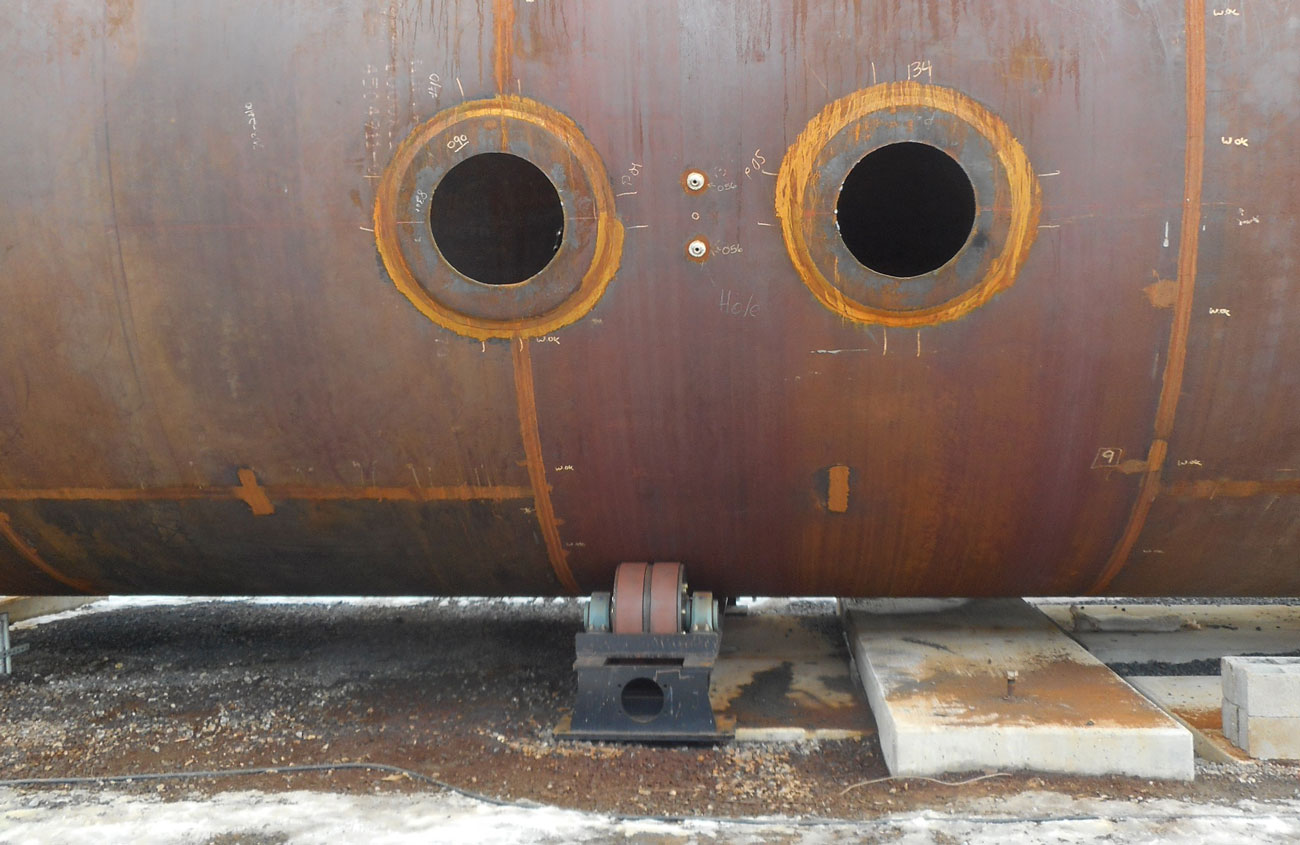

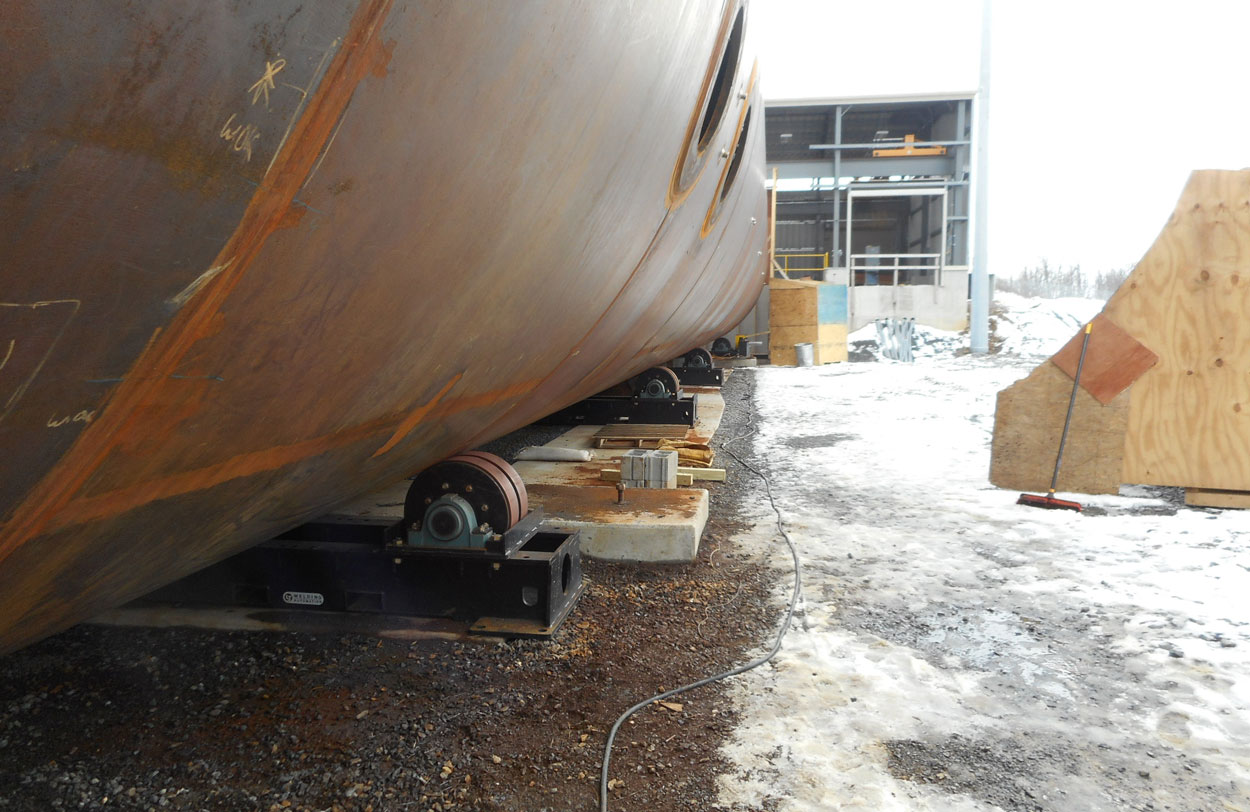

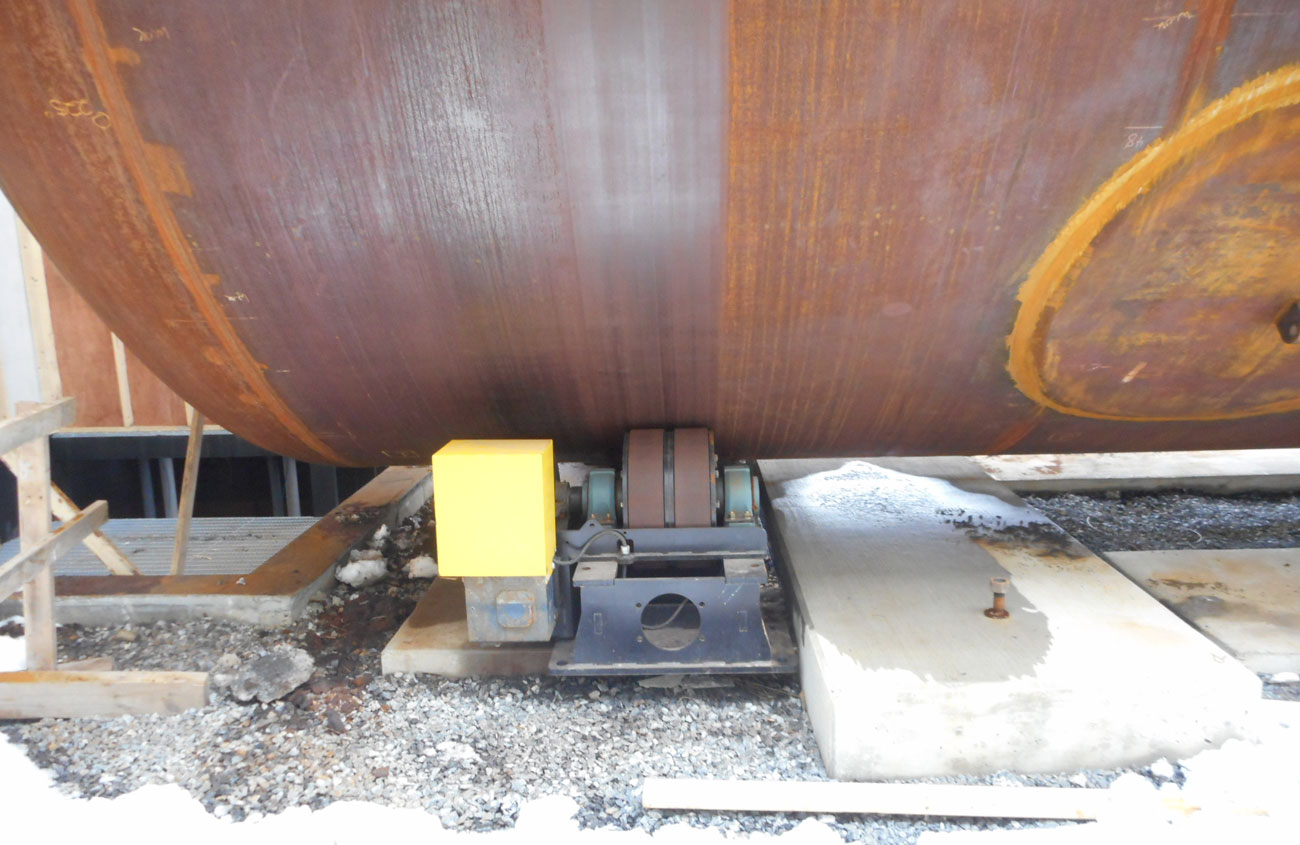

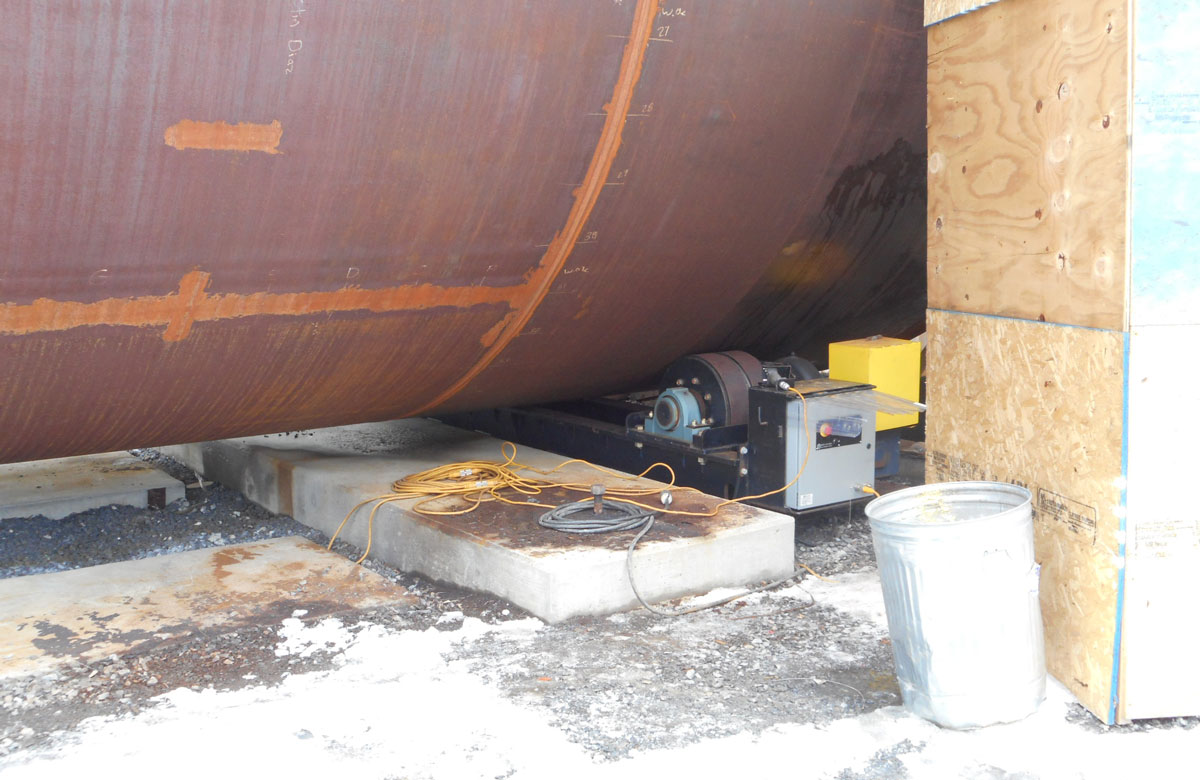

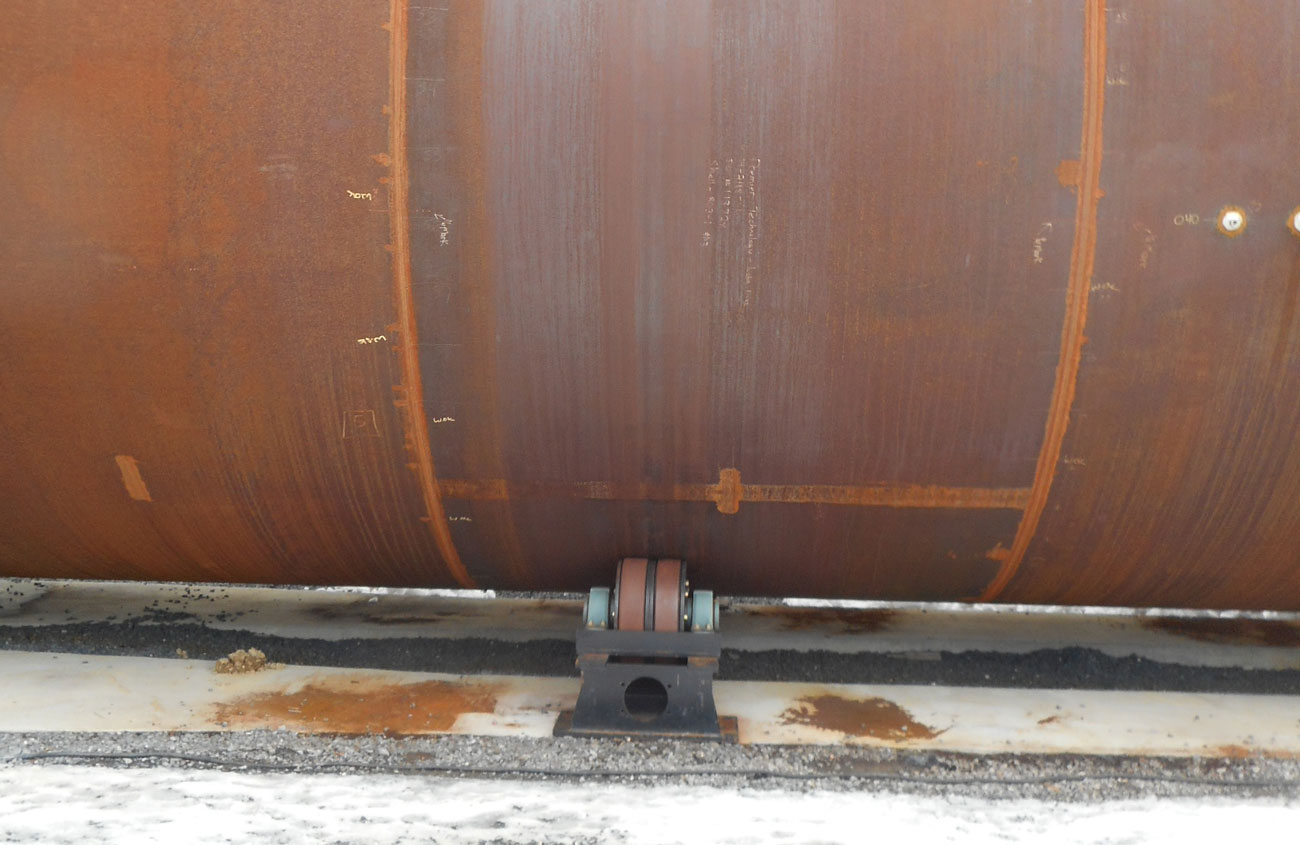

LJ's 120-Ton Fixed Height Tank Turning Roll Rentals have the largest diameter range and load capacity in their class. 120T-500/600 model for rent offers a diameter range from 1.5' to 26' and a loading capacity of 120 tons that can be equally spread on the idler and driver. When rolling or rotating workpieces, 120T-500/600 can carry out an output torque of 240,000 in-lb. We also offer a variety of accessories and options that can be added including wireless hand pendants, footswitches with variable speed style or motorized casters.
Using 120-Ton Fixed Height Tank Turning Roll Rental is beneficial for the overall performance of your production. They maximize control and traction using driveshaft-free dual drives with synchronized rotation, provide quick changes between different sized workpieces and offer seamless integration with manipulator applications. Vessel rollers reduce pipe preparation costs, crane use, idle time and improve welding efficiency and safety in work stations. Finally, they automatically align themselves around the workpiece without the need for manual manipulation of the rollers.
We, at LJ Welding, try to bring you the best products that satisfy your demands.
if you are looking for a Fixed Height Turning Rolls with different specs, have a look at our:
LJ Welding's engineering department provides a progressive approach to solving the
unique problems that inevitably arise in our industry, resulting in efficient design,
fabrication, and timely delivery of custom equipment.
