|Loading Capacity||300 lb (at chuck face)|
|Footprint||14"x 17" x 20"|
|Speed Range||0.7–7 RPM|
|Turning Torque||730 in-lb|
|Table||12" OD table, 8" chuck optional|
|Ground Capacity||200 Amps|
|Thru-Bore||3/8" hollow spindle c/w air purge fitting|
|Range of Operation||Manually adjustable with handle -15° – 105° in 15° increments|
|Equipment Mass||Positioner: 110 lb, Chuck 39 lb|
LJ’s Welding Benchtop Positioners serve as assisting tools for projects involving pipe and tube assemblies. They help welders to perform welding in more comfortable positions instead of moving and maneuvering around the workpiece.

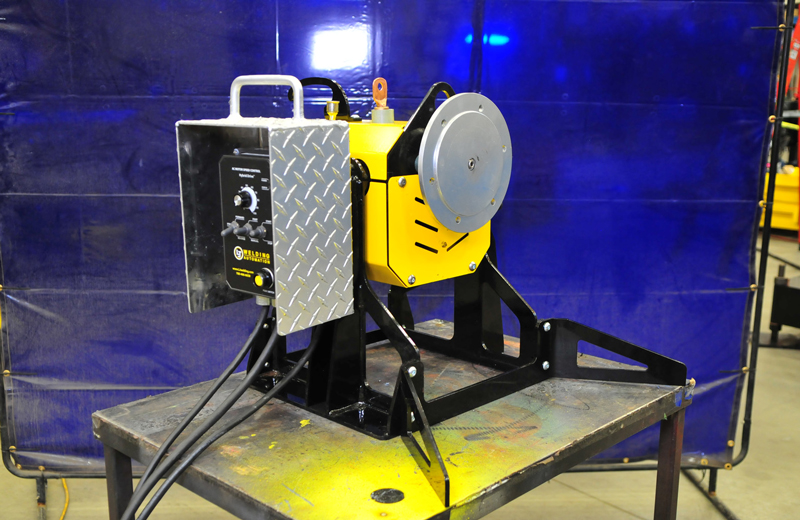

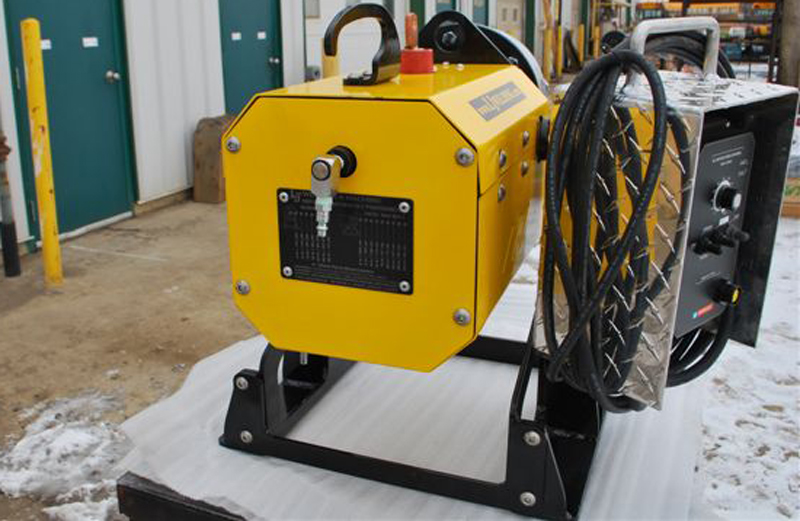

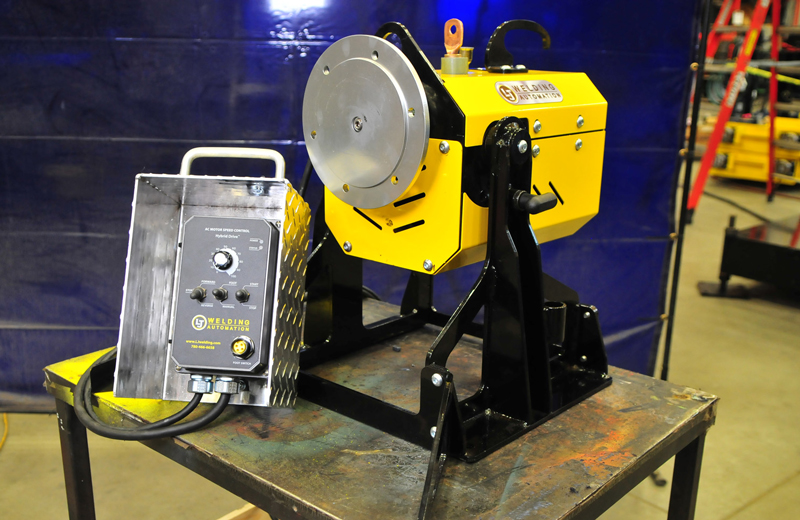

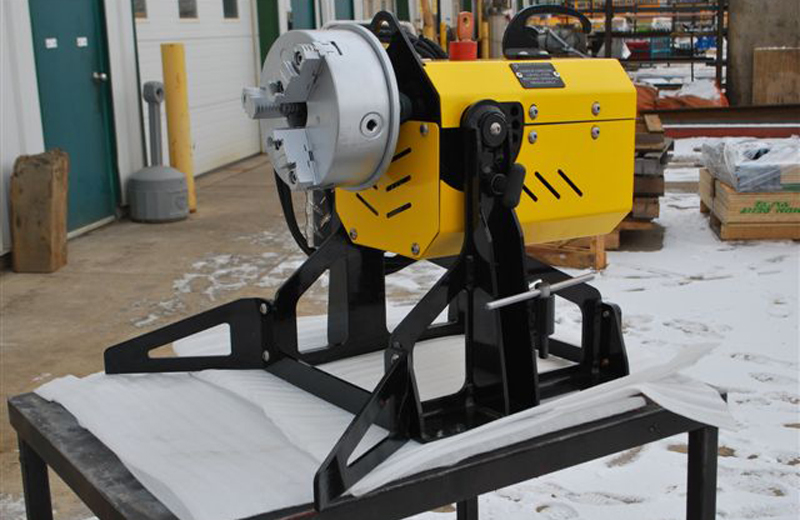

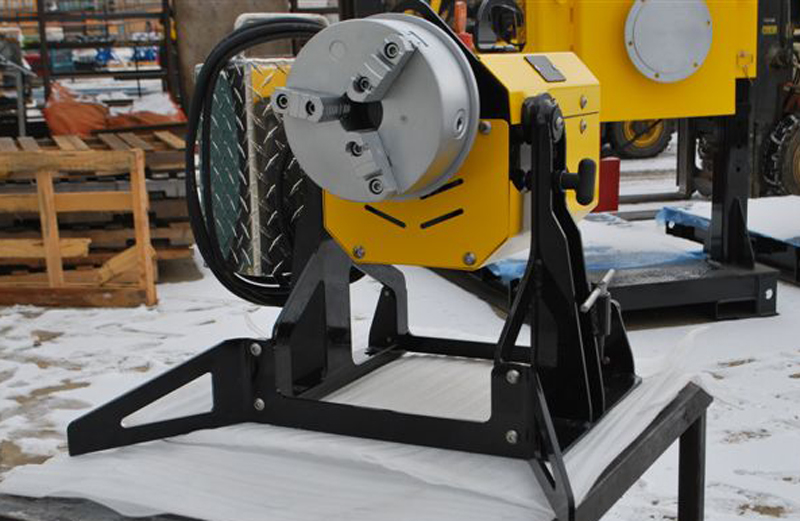

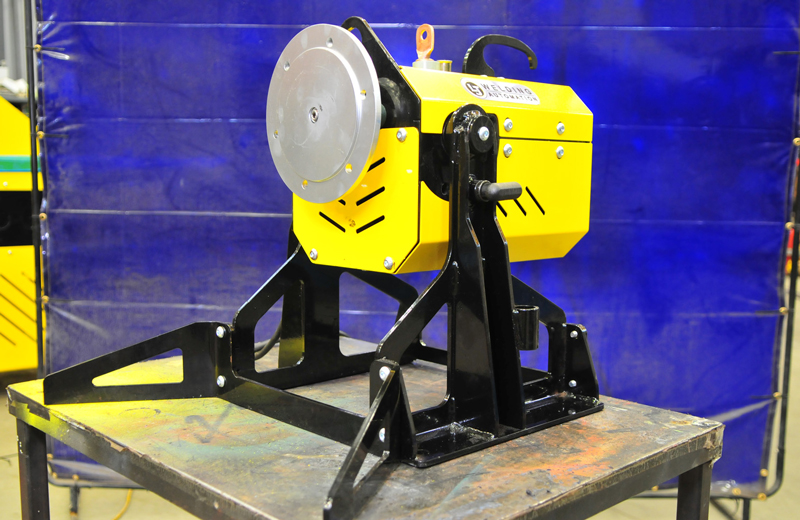

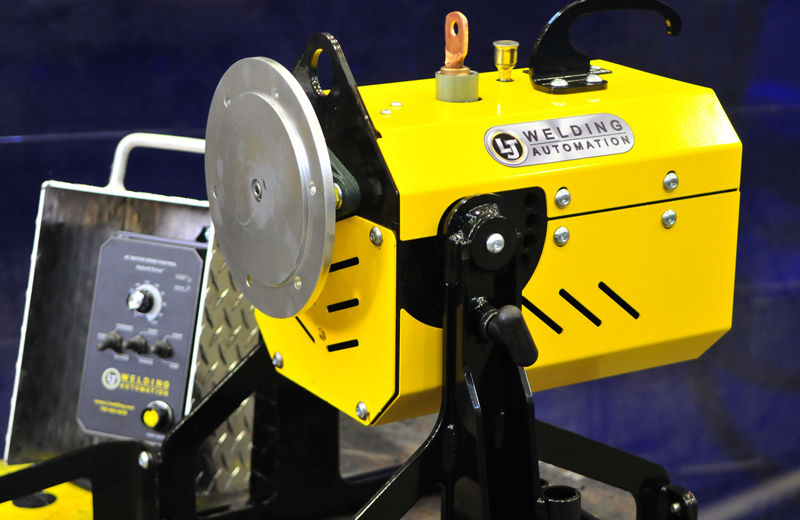

LJ's 12" 200 Amps Portable Benchtop Positioner Rental is an 8” outer diameter (OD) benchtop pipe welding positioner, offering versatility and added functionality to your shop floor. It weighs just 110 lb and an additional 39 lb when the chuck weight is added. This benchtop positioner has a 14”x17”x20” footprint and has a load capacity of 300 lb. from the chuck face. It supports lighter-duty workpieces that require rotation. This welding positioner offers rotation speed ranging from 0.7 to 7 rotations per minute (RPM) of a controlled operation. With a turning power of 730 in-lb, operators can confidently and safely turn their workpieces to facilitate quicker and more consistent welds. This benchtop pipe welding positioner offers an oversized turntable with a 12” outer diameter (OD). This is compatible with an 8'' chuck or a welding gripper. Additionally, the machine features a 3/8” hollow spindle with an air purge fitting option. The 8P-200 benchtop positioner rental offers a manual adjustment with a -15° – 105° handle. This has increments of 15°. The positioner has a standard 200Amps capacity with a 400Amps capacity available upon request. It runs on a standard 110-380V, 50-60Hz power input. Other custom power options are available upon customer request.

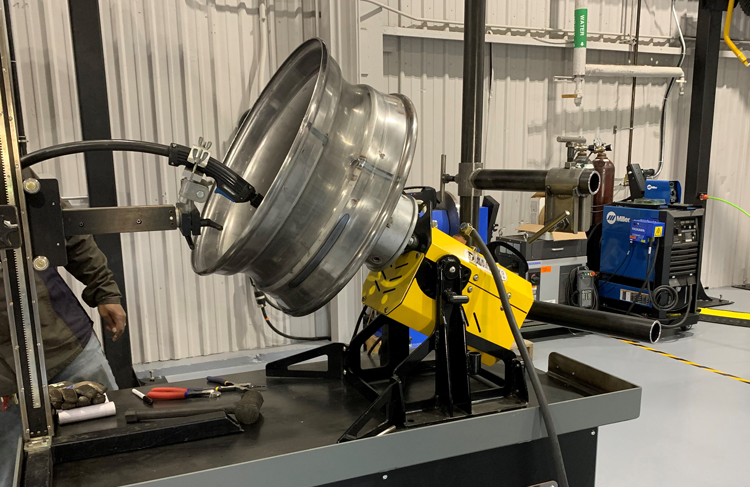

Our 12" 200 Amps Portable Benchtop Positioner Rental provides extraordinary capabilities of positioning the workpieces using a compact frame that can be easily mounted almost anywhere. They represent a perfect means for applications concerning MIG and TIG welding. Our 8P-200 for rent allows the operator to make down-hand welds for fast, smooth welding. The 8P-200 also gives operators the ability to deposit more metal with fewer passes. Our Benchtop Positioners, including 8P-200 rental, come in handy for grinding, chipping or other welding applications that depend upon circular movements. Other benefits include the compatibility to work with lightweight or heavyweight parts and components. Moreover, 8P-200 rental provides easy footswitch pedal functionality, versatile load capacity and flexible work table size and diameter.
We, at LJ Welding, try to bring you the best products that satisfy your demands.
if you are looking for a Benchtop Positioner with different specs, have a look at our:
LJ Welding's engineering department provides a progressive approach to solving the
unique problems that inevitably arise in our industry, resulting in efficient design,
fabrication, and timely delivery of custom equipment.
